8.5.1.4 I2C-Compatible Chip Address
NOTE
The device address for the LP8756x-Q1 is defined in the Technical Reference Manual (TRM).
After the START condition, the I2C master sends the 7-bit address followed by an eighth bit, read or write (R/W). R/W = 0 indicates a WRITE, and R/W = 1 indicates a READ. The second byte following the device address selects the register address to which the data will be written. The third byte contains the data for the selected register.
A. Here device address is 1100000Bin = 60Hex.

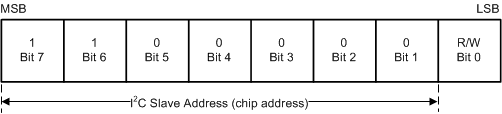

Figure 27. Example Device Address
