6 Pin Configuration and Functions

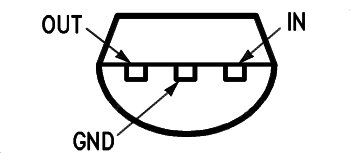

LP Package
3-Pin TO-92
Bottom View

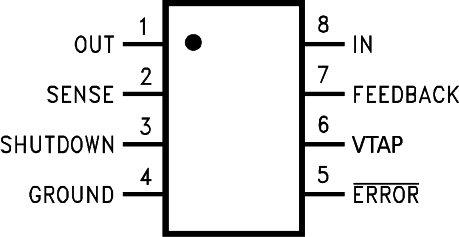

P, D, DGK Packages
8-Pin PDIP, SOIC, VSSOP
Top View

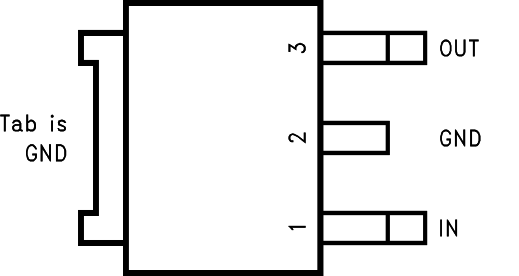

NDP Package
3-Pin TO-252
Front View
NGT Package
8-Pin WSON
Top View
Connect DAP to GND at device pin 4.
Pin Functions: LP2950-N
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | LP2950 | |||
| LP | NDP | |||
| GND | 2 | 2 | — | Ground |
| IN | 3 | 1 | I | Input supply voltage |
| OUT | 1 | 3 | O | Regulated output voltage |
Pin Functions: LP2951-N
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | LP2951 | |||
| D, DGK, P | NGT | |||
| ERROR | 5 | 5 | O | Error output |
| FEEDBACK | 7 | 7 | I | Voltage feedback input |
| GROUND | 4 | 4 | — | Ground |
| IN | 8 | 8 | I | Input supply voltage |
| OUT | 1 | 1 | O | Regulated output voltage |
| SENSE | 2 | 2 | I | Output voltage sense |
| SHUTDOWN | 3 | 3 | I | Disable device |
| VTAP | 6 | 6 | O | Internal resistor divider |
