5.9 Typical Characteristics
Unless otherwise specified, VS = +5V, single supply, TA = 25°C

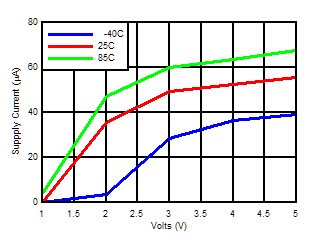

Figure 5-1 Supply Current vs Supply Voltage Output High

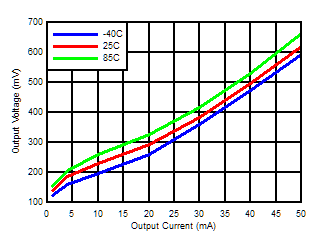

Figure 5-3 Output Voltage vs Output Current

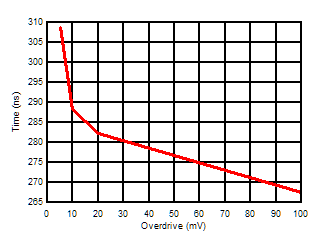

Figure 5-5 Response Time vs Input Overdrives Negative Transition (VCC=5V)

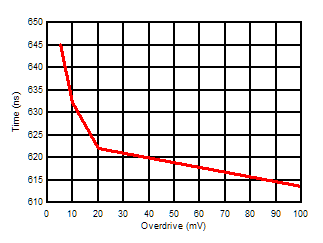

Figure 5-7 Response Time vs Input Overdrives Negative Transition (VCC = 2.7V)

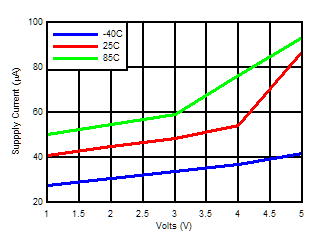

Figure 5-2 Supply Current vs Supply Voltage Output Low

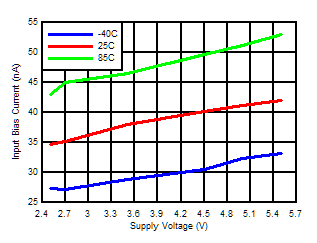

Figure 5-4 Input Bias Current vs Supply Voltage

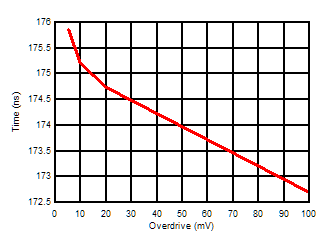

Figure 5-6 Response Time vs Input Overdrives Positive Transition (VCC = 5V)

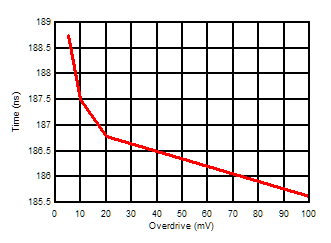

Figure 5-8 Response Time vs Input Overdrives Positive Transition (VCC = 2.7V)
