5.7 典型特性
除非另有說明，否則以下條件適用：VIN = 12V，fSW = 500kHz，L = 5.6μH，COUT = 47μF x 2，TA = 25°C。

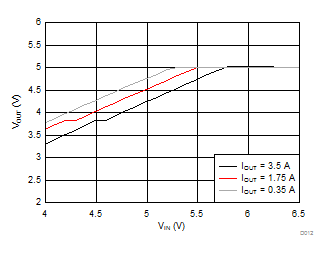

| VOUT = 5V | fSW = 500kHz |

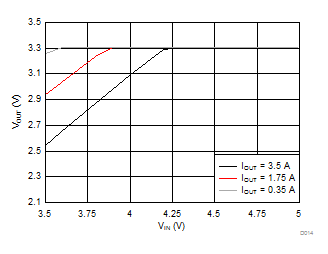

| VOUT = 3.3V | fSW = 1MHz |

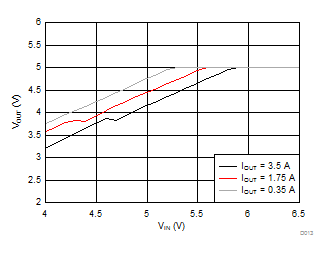

| VOUT = 5V | fSW = 500kHz |
| VOUT = 5V | fSW = 500kHz |
| VOUT = 5V | fSW = 2.2MHz |
圖 5-11 關斷電流和靜態電流
| VOUT = 5V | fSW = 1MHz |
| VOUT = 3.3V | fSW = 2.2MHz |
| VOUT = 5V | fSW = 500kHz |
| VOUT = 5V | fSW = 1MHz |
| VOUT = 3.3V | fSW = 2.2MHz |
| IOUT = 0A |
