SNOSB80C February 2011 – October 2015 LMP8350
PRODUCTION DATA.
| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| Output short circuit duration | See (4) | |||
| V+ relative to V– | –0.3 | 12.9 | V | |
| IN+, IN–, OUT, EN and VOCM pins | (V+) + 0.3 | (V–) – 0.3 | V | |
| Input current | 1 | mA | ||
| Junction temperature(5) | 150 | °C | ||
| Storage temperature, Tstg | −65 | 150 | °C | |
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1)(3) | ±2500 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±1250 | |||
| Machine Model | ±200 | |||
| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| Temperature range (TA) | –40 | 85 | °C | |
| Supply voltage (VS = V+ – V–) | 4.5 | 12 | V | |
| THERMAL METRIC(1) | LMP8350 | UNIT | |
|---|---|---|---|
| D (SOIC) | |||
| 8 PINS | |||
| RθJA | Junction-to-ambient thermal resistance (2) | 150 | °C/W |
| PARAMETER | TEST CONDITIONS(2) | MIN(3) | TYP(4) | MAX(3) | UNIT | ||
|---|---|---|---|---|---|---|---|
| 10-V DC CHARACTERISTICS | |||||||
| VOS | Input offset voltage (RTI) |
High power | TA = 25°C | ±0.6 | ±4 | mV | |
| At the temperature extremes | ±4.05 | ||||||
| Mid power | TA = 25°C | ±0.08 | ±2 | ||||
| At the temperature extremes | ±2.03 | ||||||
| Low power | TA = 25°C | ±0.1 | ±2.5 | ||||
| At the temperature extremes | ±2.52 | ||||||
| TCVOS | Input offset voltage vs.temperature(5) | High power | ±0.8 | μV/°C | |||
| Mid power | ±0.5 | ||||||
| Low power | ±0.4 | ||||||
| IB | Input bias current | High power | TA = 25°C | 2 | μA | ||
| At the temperature extremes | 2.1 | ||||||
| Mid power | TA = 25°C | 2.7 | |||||
| At the temperature extremes | 3.2 | ||||||
| Low power | TA = 25°C | 3.5 | |||||
| At the temperature extremes | 3.7 | ||||||
| AVOL | Open-loop gain | High power | 65 | 90 | dB | ||
| Mid power | 72 | 130 | |||||
| Low power | 74 | 114 | |||||
| CMVR | Common-mode voltage range(6) | HP at CMRR ≥ 73 dB | 1.2 | 8.8 | V | ||
| MP at CMRR ≥ 83 dB | 1.2 | 8.8 | |||||
| LP at CMRR ≥ 77 dB | 1.2 | 8.8 | |||||
| CMRR | Common-mode rejection ratio | DC, VOCM = 0,VID = 0, ΔVcm = ±0.2 V, High power | 75 | 90 | dB | ||
| Medium power | 84 | 130 | |||||
| Low power | 79 | 114 | |||||
| ZIND | Differential input resistance | VCM = mid-supply | 0.48 | MΩ | |||
| CIND | Differential input capacitance | VCM = mid-supply | 1 | pF | |||
| VO | Output swing (single-ended) |
High power | Low Swing | 0.86 | 0.75 | 9.14 | V |
| High Swing | 0.86 | 9.25 | 9.14 | ||||
| Mid power | Low Swing | 0.85 | 0.74 | 9.15 | |||
| High Swing | 0.85 | 9.26 | 9.15 | ||||
| Low power | Low Swing | 0.86 | 0.81 | 9.14 | |||
| High Swing | 0.86 | 9.19 | 9.14 | ||||
| ISHORT | Short-circuit current | Output shorted to mid-supply(7)
High power |
Low Swing | –36 | -65 | mA | |
| High Swing | 75 | 108 | |||||
| Medium power | Low Swing | -26 | -48 | ||||
| High Swing | 60 | 85 | |||||
| Low power | Low Swing | -6 | -20 | ||||
| High Swing | 15 | 36 | |||||
| PSRR | Power supply rejection ratio VS ±10% |
High power | 107 | dB | |||
| Mid power | 118 | ||||||
| Low power | 124 | ||||||
| IS | Supply current | VEN = 8.75(8) | TA = 25°C | 15 | 18 | mA | |
| At the temperature extremes | 20 | ||||||
| VEN = 6.25(8) | TA = 25°C | 8 | 10 | ||||
| At the temperature extremes | 11 | ||||||
| VEN = 3.75(8) | TA = 25°C | 3 | 4 | ||||
| At the temperature extremes | 5 | ||||||
| PD | Power-down mode | Disable voltage threshold(8) | < 1.65 | V | |||
| Shutdown current | TA = 25°C | 0.75 | 0.9 | mA | |||
| At the temperature extremes | 0.95 | ||||||
| Enable pin current | 100 | μA | |||||
| ten | Enable time | High power | 15 | ns | |||
| Mid power | 20 | ||||||
| Low power | 40 | ||||||
| 10-V AC CHARACTERISTICS | |||||||
| SSBW | Small signal bandwidth 200 mVp-p differential |
High power | 118 | MHz | |||
| Mid power | 87 | ||||||
| Low power | 31 | ||||||
| SR | Slew rate 2 Vp-p differential(9) |
High power | 507 | V/μs | |||
| Mid power | 393 | ||||||
| Low power | 178 | ||||||
| trise | Rise time 2 Vp-p differential |
High power | 3 | ns | |||
| Mid power | 3.9 | ||||||
| Low power | 9.7 | ||||||
| tfall | Fall time 2 Vp-p differential |
High power | 2.8 | ns | |||
| Mid power | 3.8 | ||||||
| Low power | 9.6 | ||||||
| ts | 0.1% settling time 2 Vp-p |
2-V step, CL = 20 pF High power |
20 | ns | |||
| Mid power | 25 | ||||||
| Low power | 38 | ||||||
| en | Input referred voltage noise at 10 KHz |
High power | 4.6 | nV/√Hz | |||
| Mid power | 4.8 | ||||||
| Low power | 8 | ||||||
| In | Input referred current noise at 10 KHz |
f = 10 kHz High power |
1.7 | pA/√Hz | |||
| Mid power | 1.1 | ||||||
| Low power | 0.6 | ||||||
| THD+N | Total harmonic distortion + noise 3 Vp-p at 1 KHz |
High power | 0.000097% | ||||
| Mid power | 0.000109% | ||||||
| Low power | 0.000185% | ||||||
| HD2 | 2nd harmonic distortion 3 Vp-p, 1 KHz |
High power | –124.7 | –116 | dBc | ||
| Mid power | –122.8 | ||||||
| Low power | –117.2 | ||||||
| 2nd harmonic distortion 6 Vp-p, 1 KHz |
High power | –118.9 | dBc | ||||
| Mid power | –117.6 | ||||||
| Low power | –114.7 | ||||||
| HD3 | 3rd harmonic distortion 3 Vp-p, 1 KHz |
High power | –139.9 | –126 | dBc | ||
| Mid power | –141.9 | ||||||
| Low power | –133.3 | ||||||
| 3rd harmonic distortion 6 Vp-p, 1 KHz |
High power | –129.5 | dBc | ||||
| Mid power | –132.4 | ||||||
| Low power | –129.4 | ||||||
| 10-V VOCM INPUT CHARACTERISTICS | |||||||
| VOCM small signal bandwidth 200 mVp-p |
High power | 4.8 | MHz | ||||
| Mid power | 2.4 | ||||||
| Low power | 0.64 | ||||||
| VOCM gain | 1 | V/V | |||||
| VOCM offset voltage | High power | ±1.62 | mV | ||||
| Mid power | ±0.23 | ||||||
| Low power | ±0.43 | ||||||
| VOCM voltage range | All power levels | Low Swing | 1.8 | V | |||
| High Swing | 8.2 | ||||||
| VOCM input resistance | All power levels | Low Swing | 30 | KΩ | |||
| High Swing | mid-supply | ||||||
| PARAMETER | TEST CONDITIONS(2) | MIN(3) | TYP(4) | MAX(3) | UNIT | ||
|---|---|---|---|---|---|---|---|
| 6.6-V DC CHARACTERISTICS | |||||||
| VOS | Input offset voltage (RTI) |
High power | TA = 25°C | ±0.3 | ±3.5 | mV | |
| At the temperature extremes | ±3.54 | ||||||
| Mid power | TA = 25°C | ±0.1 | ±2.8 | ||||
| At the temperature extremes | ±2.83 | ||||||
| Low power | TA = 25°C | ±0.1 | ±2.5 | ||||
| At the temperature extremes | ±2.52 | ||||||
| TCVOS | Input offset voltage vs.temperature(5) | High power | ±0.7 | μV/°C | |||
| Mid power | ±0.5 | ||||||
| Low power | ±0.4 | ||||||
| IB | Input bias current | High power | TA = 25°C | 1.4 | μA | ||
| At the temperature extremes | 2.4 | ||||||
| Mid power | TA = 25°C | 2.5 | |||||
| At the temperature extremes | 3.0 | ||||||
| Low power | TA = 25°C | 3.5 | |||||
| At the temperature extremes | 3.7 | ||||||
| AVOL | Open-loop gain | High power | 65 | 70 | dB | ||
| Mid power | 73 | 76 | |||||
| Low power | 72 | 75 | |||||
| CMVR | Common-mode voltage range(7) | HP at CMRR ≥ 68 dB | 1.2 | 5.4 | V | ||
| MP at CMRR ≥ 63 dB | 1.2 | 5.4 | |||||
| LP at CMRR ≥ 79 dB | 1.2 | 5.4 | |||||
| CMRR | Common-mode rejection ratio | DC, VOCM = 0,VID = 0, ΔVcm = ±0.2 V High power |
70 | 85 | dB | ||
| Mid power | 86 | 117 | |||||
| Low power | 81 | 113 | |||||
| ZIND | Differential input resistance | VCM = mid-supply | 0.48 | MΩ | |||
| CIND | Differential input capacitance | VCM = mid-supply | 1 | pF | |||
| VO | Output swing (single-ended) |
High power | Low Swing | 0.84 | 0.77 | 5.76 | V |
| High Swing | 0.84 | 5.83 | 5.76 | ||||
| Mid power | Low Swing | 0.82 | 0.75 | 5.78 | |||
| High Swing | 0.82 | 5.83 | 5.78 | ||||
| Low power | Low Swing | 0.83 | 0.77 | 5.77 | |||
| High Swing | 0.83 | 5.83 | 5.77 | ||||
| ISHORT | Short-circuit current | Output shorted to mid-supply(6)
High power |
Low Swing | –30 | –49 | mA | |
| High Swing | 54 | 83 | |||||
| Mid power | Low Swing | –19 | –35 | ||||
| High Swing | 40 | 64 | |||||
| Low power | Low Swing | –6 | –15 | ||||
| High Swing | 15 | 27 | |||||
| PSRR | Power supply rejection ratio VS ±10% |
High power | 111 | dB | |||
| Mid power | 117 | ||||||
| Low power | 127 | ||||||
| IS | Supply current | VEN = 5.775(8) | TA = 25°C | 14 | 16 | mA | |
| At the temperature extremes | 18 | ||||||
| VEN = 4.125(8) | TA = 25°C | 7 | 9 | ||||
| At the temperature extremes | 10 | ||||||
| VEN = 2.475(8) | TA = 25°C | 2 | 3 | ||||
| At the temperature extremes | 4 | ||||||
| PD | Power-down mode | Disable voltage threshold(8) | <1.225 | V | |||
| Shutdown current | TA = 25°C | 0.55 | 0.65 | mA | |||
| At the temperature extremes | 0.7 | ||||||
| Enable pin current | 40 | μA | |||||
| ten | Enable time | High power | 18 | ns | |||
| Mid power | 22 | ||||||
| Low power | 43 | ||||||
| 6.6-V AC CHARACTERISTICS | |||||||
| SSBW | Small signal bandwidth 200 mVp-p differential |
High power | 116 | MHz | |||
| Mid power | 85 | ||||||
| Low power | 29 | ||||||
| SR | Slew rate 2 Vp-p differential(9) |
High power | 488 | V/μs | |||
| Mid power | 376 | ||||||
| Low power | 166 | ||||||
| trise | Rise time 2 Vp-p differential |
High power | 3.1 | ns | |||
| Mid power | 4.2 | ||||||
| Low power | 10.4 | ||||||
| tfall | Fall time 2 Vp-p differential |
High power | 3.0 | ns | |||
| Mid power | 4.0 | ||||||
| Low power | 10.3 | ||||||
| ts | 0.1% settling time 2 Vp-p |
2-V step, CL = 20 pF High power |
19 | ns | |||
| Mid power | 25 | ||||||
| Low power | 43 | ||||||
| en | Input referred voltage noise at 10KHz |
High power | 4.5 | nV/√Hz | |||
| Mid power | 4.8 | ||||||
| Low power | 8 | ||||||
| In | Input referred current noise at 10KHz |
High power | 1.7 | pA/√Hz | |||
| Mid power | 1.2 | ||||||
| Low power | 0.6 | ||||||
| THD+N | Total harmonic distortion + noise 3 Vp-p at 1 KHz |
High power | 0.000098% | ||||
| Mid power | 0.00011% | ||||||
| Low power | 0.000089% | ||||||
| HD2 | 2nd harmonic distortion 3 Vp-p, 1 KHz |
High power | –124.7 | dBc | |||
| Mid power | –122.8 | ||||||
| Low power | –117.2 | ||||||
| 2nd harmonic distortion 6 Vp-p, 1 KHz |
High power | –118.9 | dBc | ||||
| Mid power | –117.6 | ||||||
| Low power | –114.7 | ||||||
| HD3 | 3rd harmonic distortion 3 Vp-p, 1 KHz |
High power | –139.9 | dBc | |||
| Mid power | -141.9 | ||||||
| Low power | –133.3 | ||||||
| 3rd harmonic distortion 6Vp-p, 1KHz |
High power | –121.4 | dBc | ||||
| Mid power | –125.3 | ||||||
| Low power | –124.5 | ||||||
| 6.6-V VOCM INPUT CHARACTERISTICS | |||||||
| VOCM small signal bandwidth 200mVp-p |
High power | 4.5 | MHz | ||||
| Mid power | 2.2 | ||||||
| Low power | 0.6 | ||||||
| VOCM gain | 1 | V/V | |||||
| VOCM offset voltage | High power | ±0.97 | mV | ||||
| Mid power | ±0.43 | ||||||
| Low power | ±0.89 | ||||||
| VOCM voltage range | All power levels | Low Swing | 1.2 | V | |||
| High Swing | 5.4 | ||||||
| VOCM input resistance | All power levels | Low Swing | 30 | KΩ | |||
| High Swing | mid-supply | ||||||
| PARAMETER | TEST CONDITIONS | MIN(2) | TYP(3) | MAX(2) | UNIT | ||
|---|---|---|---|---|---|---|---|
| 5-V DC CHARACTERISTICS | |||||||
| VOS | Input offset voltage (RTI) |
High power | TA = 25°C | ±0.2 | ±3.2 | mV | |
| At the temperature extremes | ±3.6 | ||||||
| Mid power | TA = 25°C | ±0.1 | ±2.0 | ||||
| At the temperature extremes | ±2.3 | ||||||
| Low power | TA = 25°C | ±0.1 | ±2.0 | ||||
| At the temperature extremes | ±2.3 | ||||||
| TCVOS | Input offset voltage vs.temperature(4) | High power | ±0.7 | μV/°C | |||
| Mid power | ±0.5 | ||||||
| Low power | ±0.4 | ||||||
| IB | Input bias current | High power | TA = 25°C | 1.5 | μA | ||
| At the temperature extremes | 1.6 | ||||||
| Mid power | TA = 25°C | 2.5 | |||||
| At the temperature extremes | 3.0 | ||||||
| Low power | TA = 25°C | 3.5 | |||||
| At the temperature extremes | 3.7 | ||||||
| AVOL | Open-loop gain | High power | 63 | 68 | dB | ||
| Mid power | 71 | 75 | |||||
| Low power | 68 | 75 | |||||
| CMVR | Common-mode voltage range(5) | HP at CMRR ≥ 60 dB | 1.15 | 3.85 | V | ||
| MP at CMRR ≥ 86 dB | 1.15 | 3.85 | |||||
| LP at CMRR ≥ 80 dB | 1.15 | 3.85 | |||||
| CMRR | Common-mode rejection ratio | DC, VOCM = 0,VID = 0, ΔVcm = ±0.2 V High power |
63 | 79 | dB | ||
| Mid power | 87 | 114 | |||||
| Low power | 82 | 114 | |||||
| ZIND | Differential input resistance | VCM = mid-supply | 0.48 | MΩ | |||
| CIND | Differential input capacitance | VCM = mid-supply | 1 | pF | |||
| VO | Output swing (single-ended) |
High power | Low Swing | 0.82 | 0.77 | 4.18 | V |
| High Swing | 0.82 | 4.23 | 4.18 | ||||
| Mid power | Low Swing | 0.82 | 0.75 | 4.18 | |||
| High Swing | 0.82 | 4.25 | 4.18 | ||||
| Low power | Low Swing | 0.83 | 0.77 | 4.17 | |||
| High Swing | 0.83 | 4.23 | 4.17 | ||||
| ISHORT | Short-circuit current | Output shorted to mid-supply(6)
High power |
Low Swing | –25 | –42 | mA | |
| High Swing | 44 | 72 | |||||
| Mid power | Low Swing | –16 | –31 | ||||
| High Swing | 34 | 57 | |||||
| Low power | Low Swing | –5 | –13 | ||||
| High Swing | 12 | 23 | |||||
| PSRR | Power supply rejection ratio VS ±10% |
High power | 117 | dB | |||
| Mid power | 120 | ||||||
| Low power | 111 | ||||||
| IS | Supply current | VEN = 4.375(7) | TA = 25°C | 13 | 15 | mA | |
| At the temperature extremes | 17 | ||||||
| VEN = 3.125(7) | TA = 25°C | 7 | 9 | ||||
| At the temperature extremes | 10 | ||||||
| VEN = 1.875(7) | TA = 25°C | 2 | 3 | ||||
| At the temperature extremes | 4 | ||||||
| PD | Power-down mode | Disable voltage threshold(7) | <1.025 | V | |||
| Shutdown current | TA = 25°C | 0.50 | 0.85 | mA | |||
| At the temperature extremes | 0.90 | ||||||
| Enable pin current | 15 | μA | |||||
| ten | Enable time | High power | 20 | ns | |||
| Mid power | 22 | ||||||
| Low power | 50 | ||||||
| 5-V AC CHARACTERISTICS | |||||||
| SSBW | Small signal bandwidth 200 mVp-p differential |
High power | 114.5 | MHz | |||
| Mid power | 84 | ||||||
| Low power | 28 | ||||||
| SR | Slew rate 2 Vp-p differential(8) |
High power | 476 | V/μs | |||
| Mid power | 366 | ||||||
| Low power | 160 | ||||||
| trIse | Rise time 2 Vp-p differential |
High power | 3.2 | ns | |||
| Mid power | 4.3 | ||||||
| Low power | 10.8 | ||||||
| tfall | Fall time 2 Vp-p differential |
High power | 3.1 | ns | |||
| Mid power | 4.1 | ||||||
| Low power | 10.7 | ||||||
| ts | 0.1% settling time 2 Vp-p |
2-V step, CL = 20 pF High power |
19 | ns | |||
| Mid power | 24 | ||||||
| Low power | 48 | ||||||
| en | Input referred voltage noise | f = 10 kHz High power |
4.5 | nV/√Hz | |||
| Mid power | 4.8 | ||||||
| Low power | 8 | ||||||
| In | Input referred current noise | f = 10 kHz High power |
1.8 | pA/√Hz | |||
| Mid power | 1.2 | ||||||
| Low power | 0.6 | ||||||
| THD+N | Total harmonic distortion + noise 3 Vp-p at 1 KHz |
High power | 0.000107% | ||||
| Mid power | 0.000114% | ||||||
| Low power | 0.000192% | ||||||
| HD2 | 2nd harmonic distortion 3 Vp-p, 1 KHz |
High power | –125.3 | dBc | |||
| Mid power | –122.6 | ||||||
| Low power | –117.0 | ||||||
| HD3 | 3rd harmonic distortion 3 Vp-p, 1 KHz |
High power | –125.5 | dBc | |||
| Mid power | –130.0 | ||||||
| Low power | –128.7 | ||||||
| 5-V VOCM INPUT CHARACTERISTICS | |||||||
| VOCM small signal bandwidth 200 mVp-p |
High power | 4.4 | MHz | ||||
| Mid power | 2.2 | ||||||
| Low power | 0.56 | ||||||
| VOCM gain | 1 | V/V | |||||
| VOCM offset voltage | High power | ±0.46 | mV | ||||
| Mid power | ±0.53 | ||||||
| Low power | ±0.11 | ||||||
| VOCM voltage range | All power levels | Low Swing | 1.15 | V | |||
| High Swing | 3.85 | ||||||
| VOCM input resistance | All power levels | Low Swing | 30 | KΩ | |||
| High Swing | mid-supply | ||||||

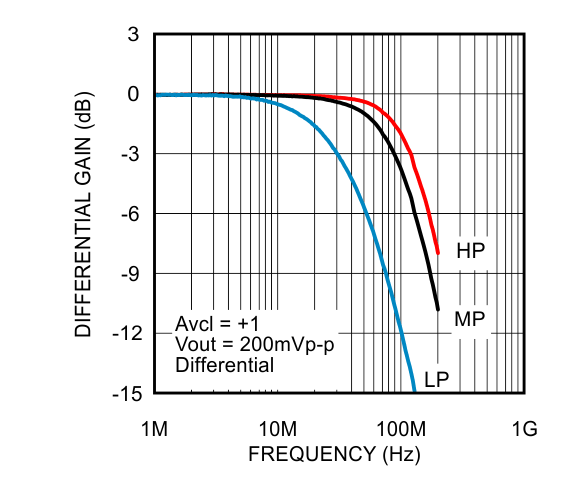

Figure 1. Frequency Response at 10 V
Figure 3. Frequency Response at 6.6 V

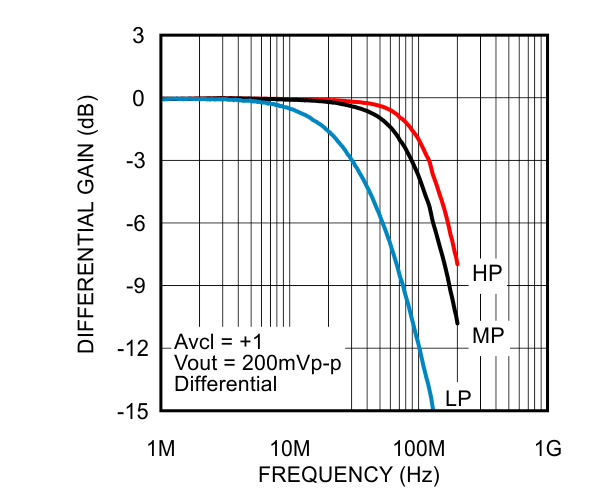

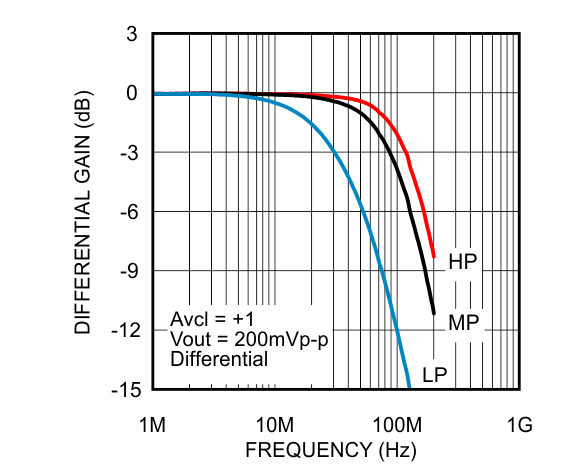

Figure 5. Frequency Response at 5 V

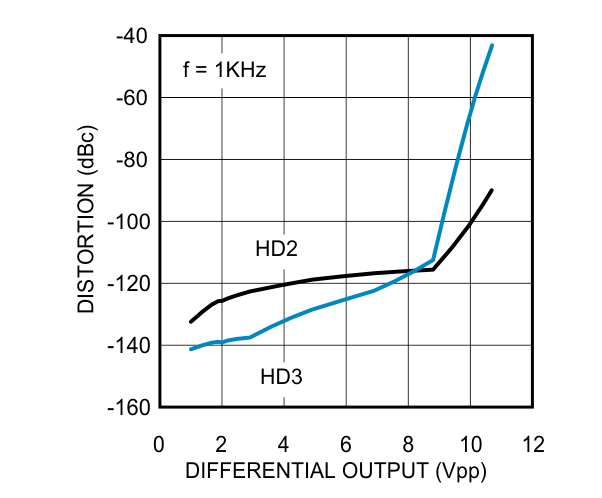

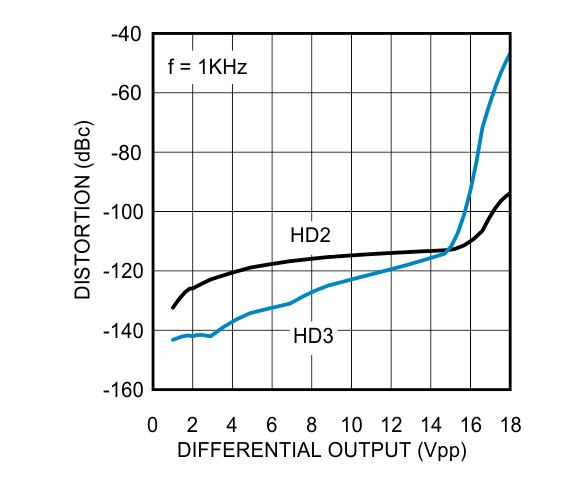

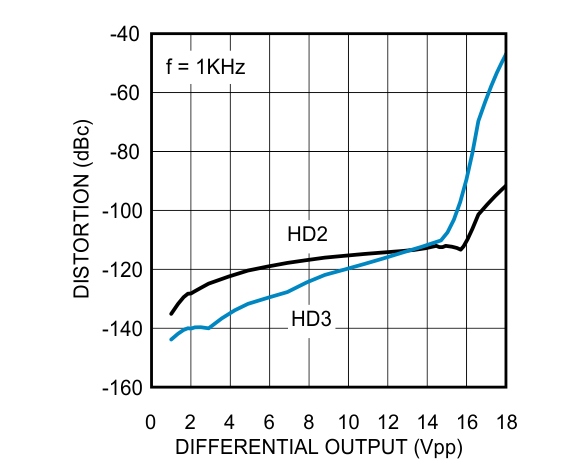

Figure 7. Distortion at 10 V, High Power

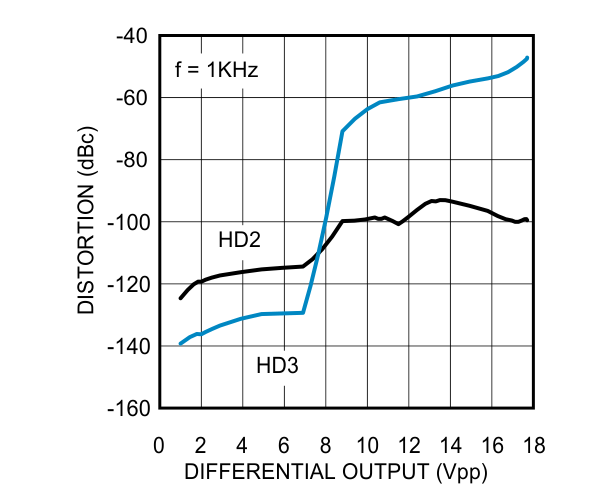

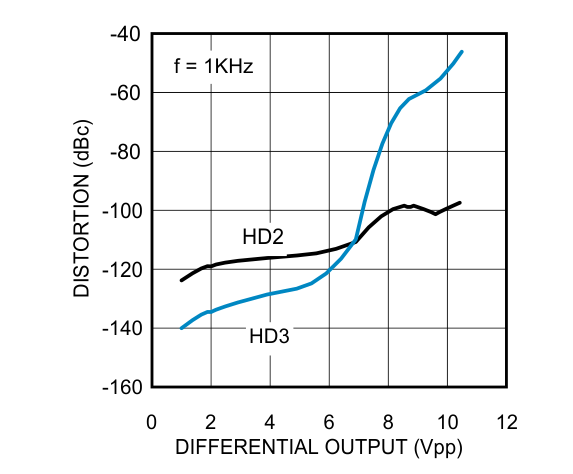

Figure 9. Distortion at 10 V, Mid Power
Figure 11. Distortion at 10 V, Low Power

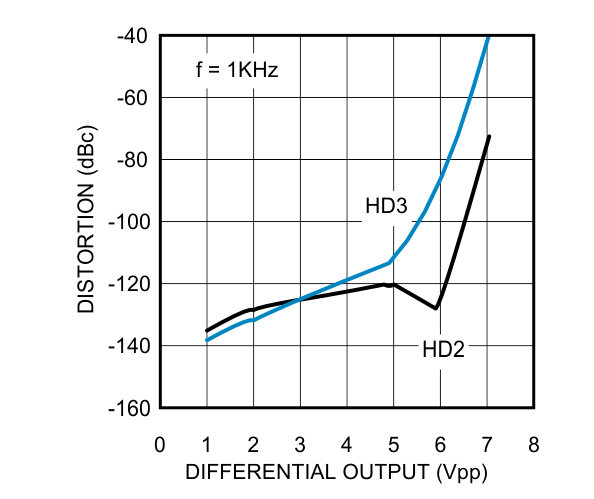

Figure 13. Distortion at 5 V, High Power
Figure 15. Distortion at 5 V, Mid Power
Figure 17. Distortion at 5 V, Low Power

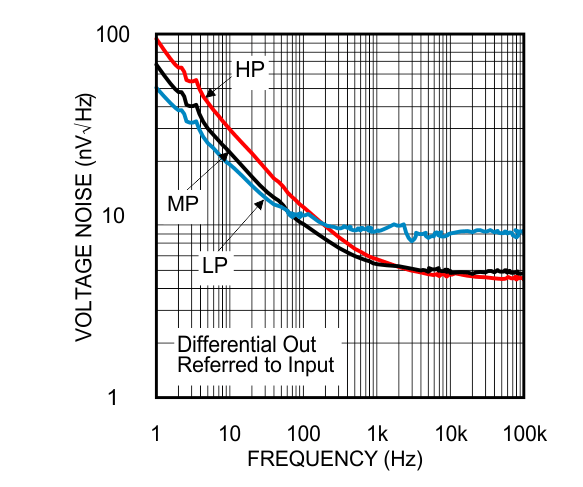

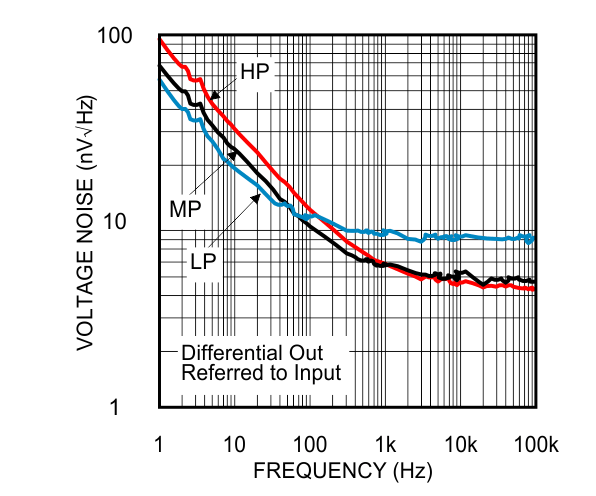

Figure 19. Voltage Noise at 10 V
Figure 21. Voltage Noise at 6.6 V

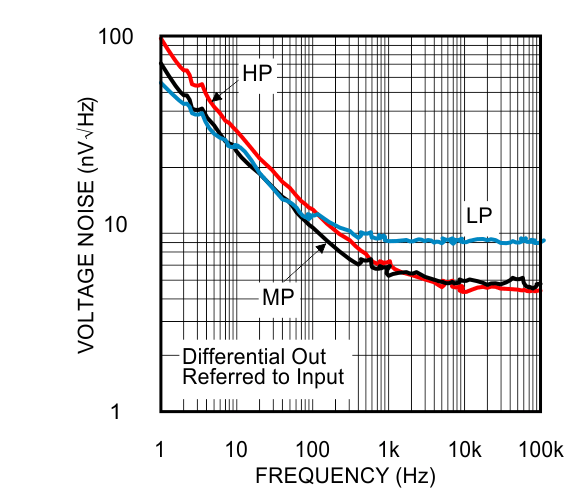

Figure 23. Voltage Noise at 5 V

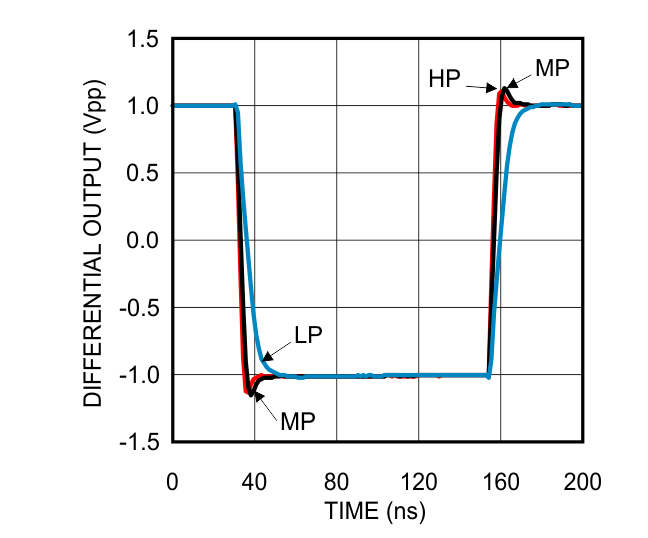

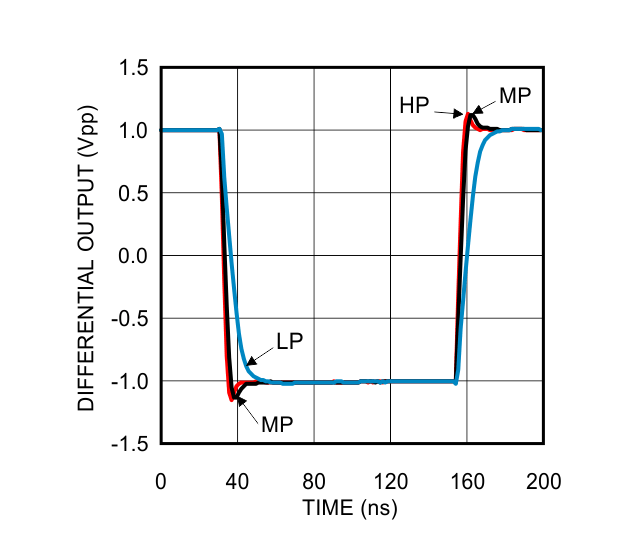

Figure 25. Pulse Response at 10 V
Figure 27. Pulse Response at 5 V

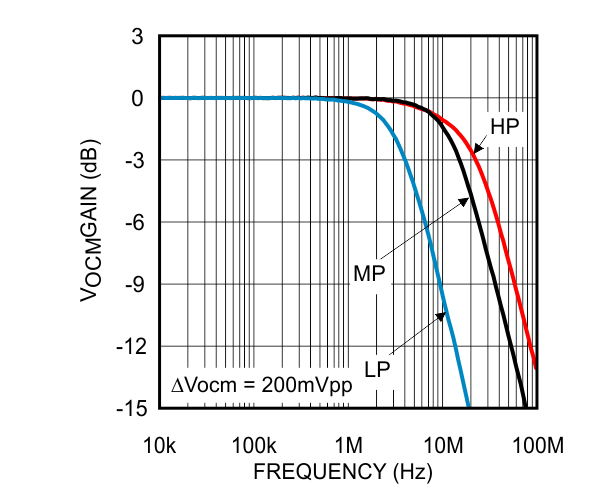

Figure 2. VOCM Frequency Response at 10 V

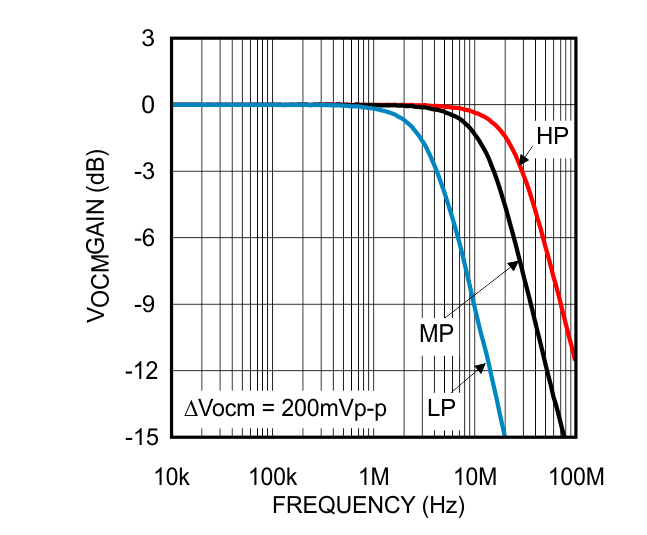

Figure 4. VOCM Frequency Response at 6.6 V

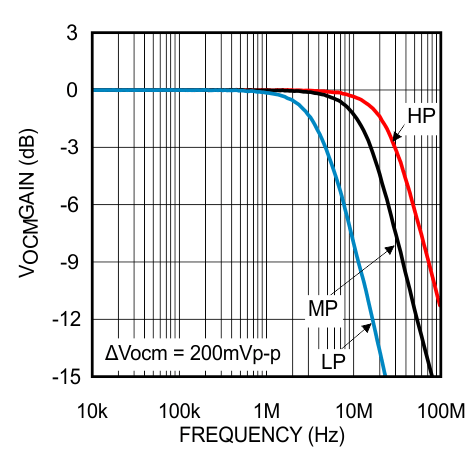

Figure 6. VOCM Frequency Response at 5 V

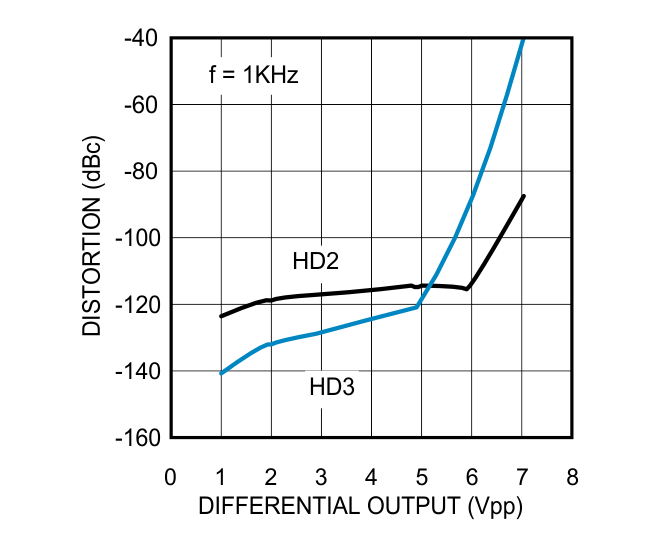

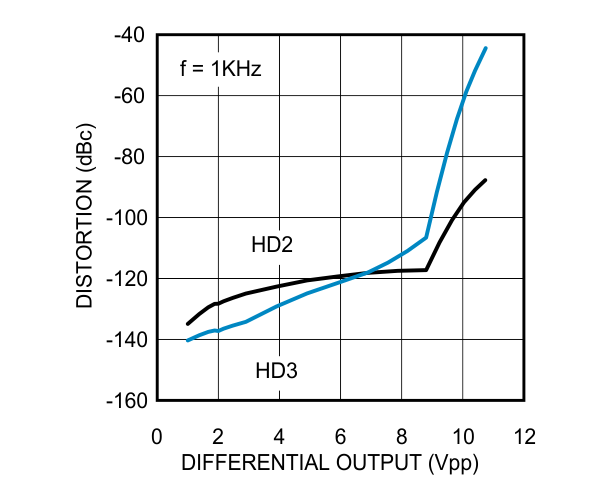

Figure 8. Distortion at 6.6 V, High Power

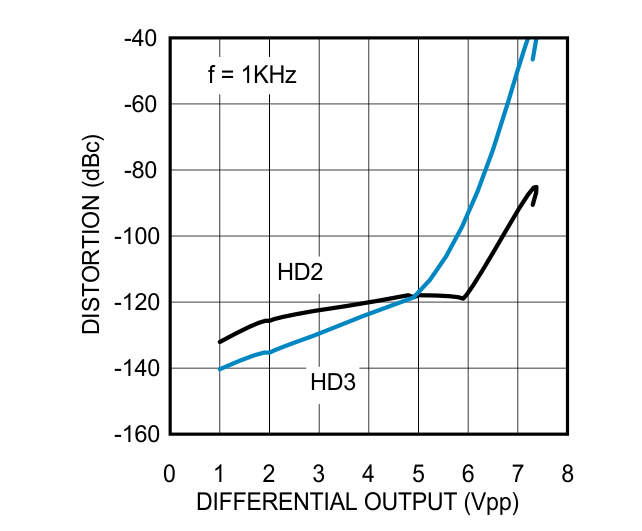

Figure 10. Distortion at 6.6 V, Mid Power
Figure 12. Distortion at 6.6 V, Low Power

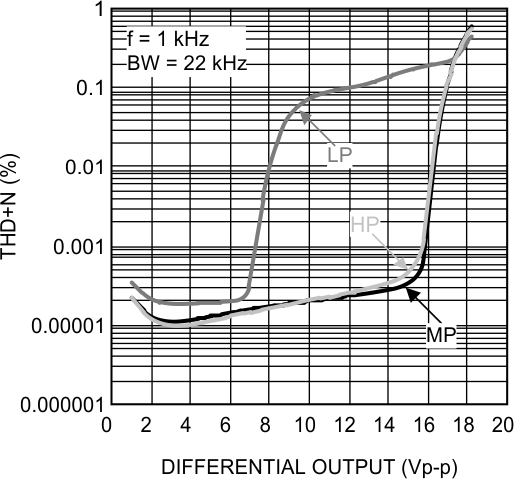

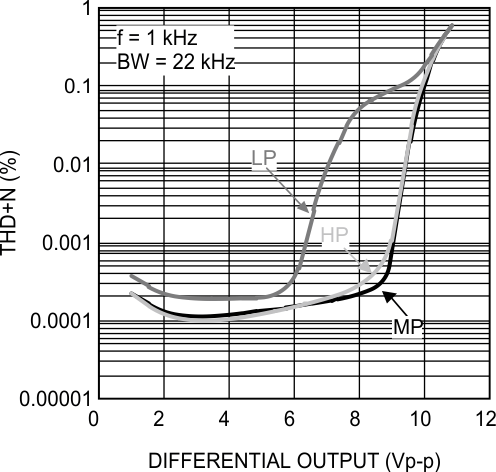

Figure 14. THD+N at 10 V

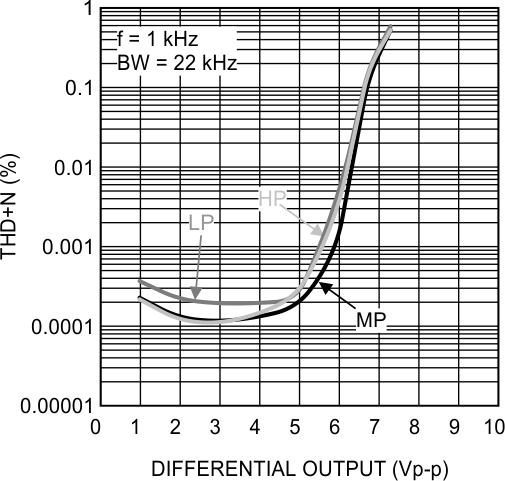

Figure 16. THD+N at 6.6 V
Figure 18. THD+N at 5 V

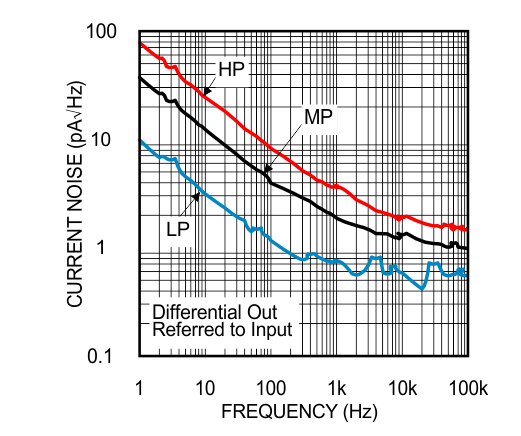

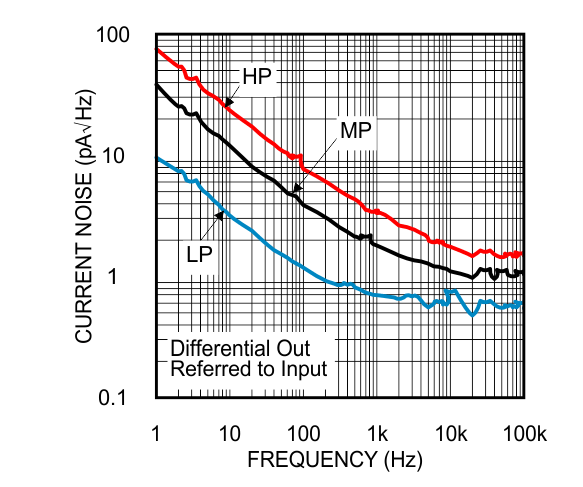

Figure 20. Current Noise at 10 V

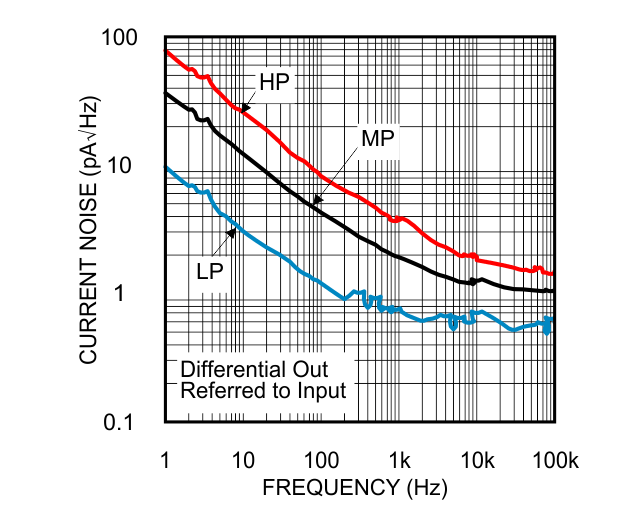

Figure 22. Current Noise at 6.6 V
Figure 24. Current Noise at 5 V

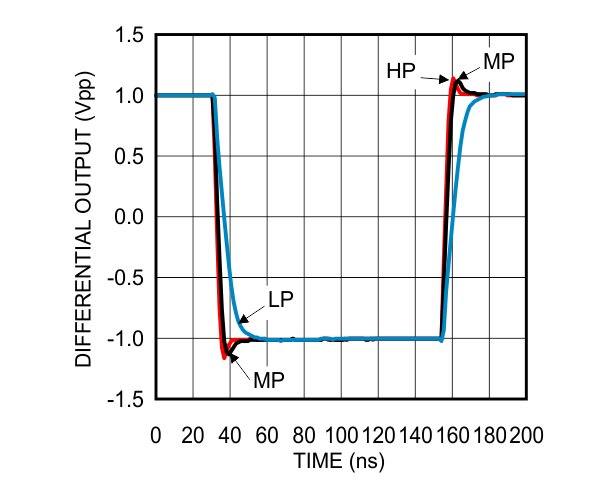

Figure 26. Pulse Response at 6.6 V
