ZHCSFX5C December 2016 – December 2017 LMK60E0-156M , LMK60E0-212M , LMK60E2-100M , LMK60E2-125M , LMK60E2-156M , LMK60I2-100M , LMK60I2-322M
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics - Power Supply
- 6.6 LVPECL Output Characteristics
- 6.7 LVDS Output Characteristics
- 6.8 HCSL Output Characteristics
- 6.9 OE Input Characteristics
- 6.10 Frequency Tolerance Characteristics
- 6.11 Power-On/Reset Characteristics (VDD)
- 6.12 PSRR Characteristics
- 6.13 PLL Clock Output Jitter Characteristics
- 6.14 Additional Reliability and Qualification
- 7 Parameter Measurement Information
- 8 Power Supply Recommendations
- 9 Layout
- 10器件和文檔支持
- 11機械、封裝和可訂購信息
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- SIA|6
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
7.1 Device Output Configurations

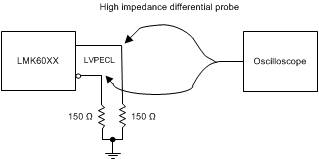

Figure 1. LVPECL Output DC Configuration During Device Test
Figure 2. LVDS Output DC Configuration During Device Test

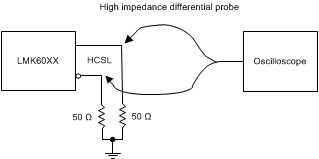

Figure 3. HCSL Output DC Configuration During Device Test (1)
Figure 4. LVPECL Output AC Configuration During Device Test
Figure 5. LVDS Output AC Configuration During Device Test

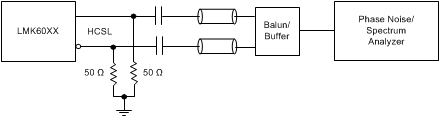

Figure 6. HCSL Output AC Configuration During Device Test

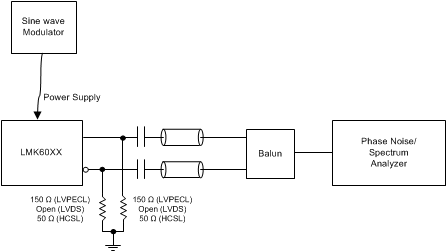

Figure 7. PSRR Test Setup
Figure 8. Differential Output Voltage and Rise/Fall Time1. Also compatible with 85 Ω termination
