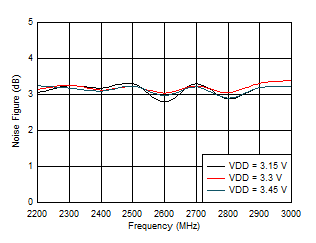

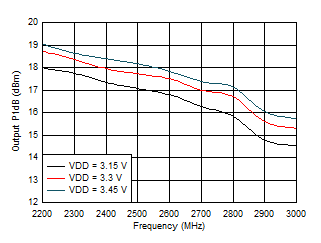

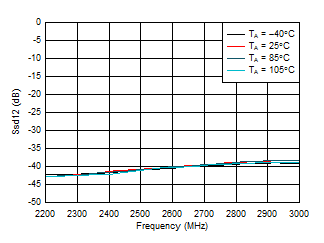

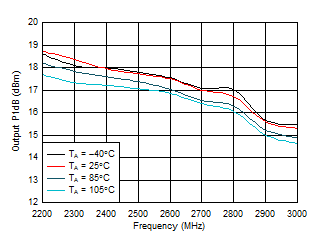

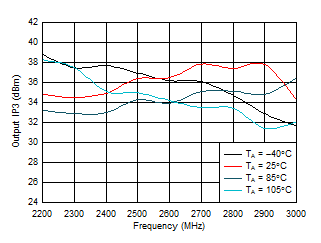

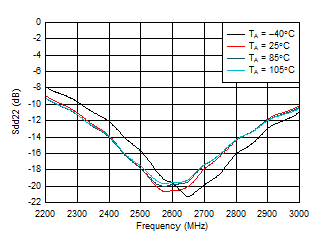

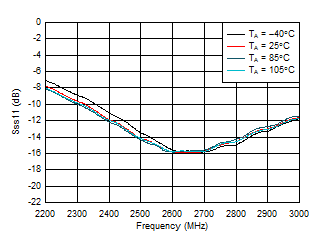

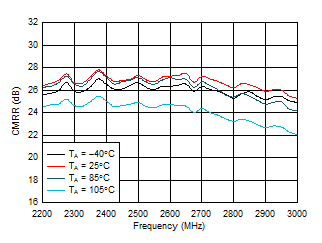

6.6 Typical Characteristics

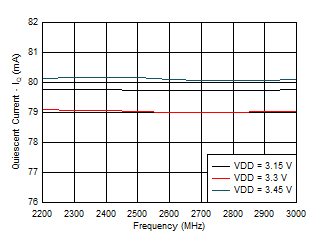

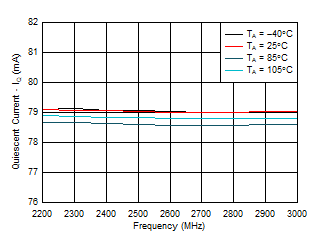

at TA = 25°C, VDD = 3.3 V, center frequency (fIN) = 2.6 GHz, single-ended input impedance (ZIN) = 50 Ω, differential output impedance (ZLOAD) = 50 Ω, and POUT(TOTAL) = 8 dBm into ZLOAD = 50 Ω (unless otherwise noted)

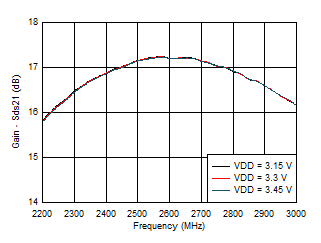

| POUT = 2 dBm |

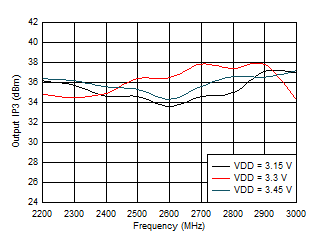

| POUT/TONE = 2 dBm, ±1-MHz tone spacing |

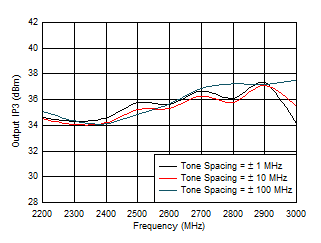

| POUT/TONE = 2 dBm |

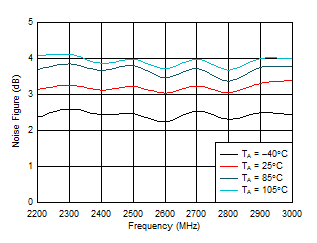

| ZSOURCE = 50 Ω |

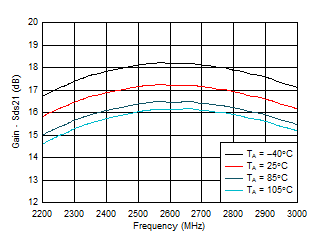

| POUT = 2 dBm |
| POUT/TONE = 2 dBm, ±1-MHz tone spacing |

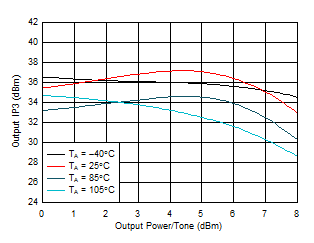

| f = 2.6 GHz, ±1-MHz tone spacing |
| ZSOURCE = 50 Ω |
