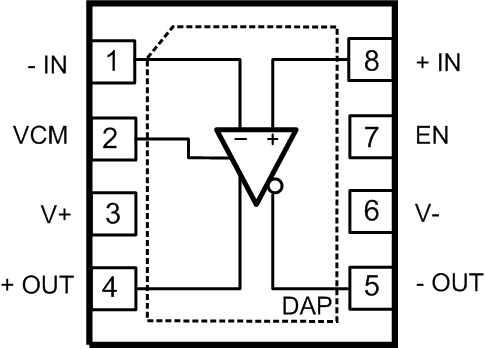

5 Pin Configuration and Functions
D Package
8 Pins
Top View
NGS Package
8 Pins
Top View
Pin Functions
| PIN | DESCRIPTION | |
|---|---|---|
| NAME | NO. | |
| EN | 7 | Enable |
| -IN | 1 | Negative Input |
| +IN | 8 | Positive Input |
| -OUT | 5 | Negative Output |
| +OUT | 4 | Positive Output |
| V- | 6 | Negative Supply |
| V+ | 3 | Positive Supply |
| VCM | 2 | Output Common Mode Control |
| DAP | DAP | Die Attach Pad (See Thermal Considerations for more information) |
