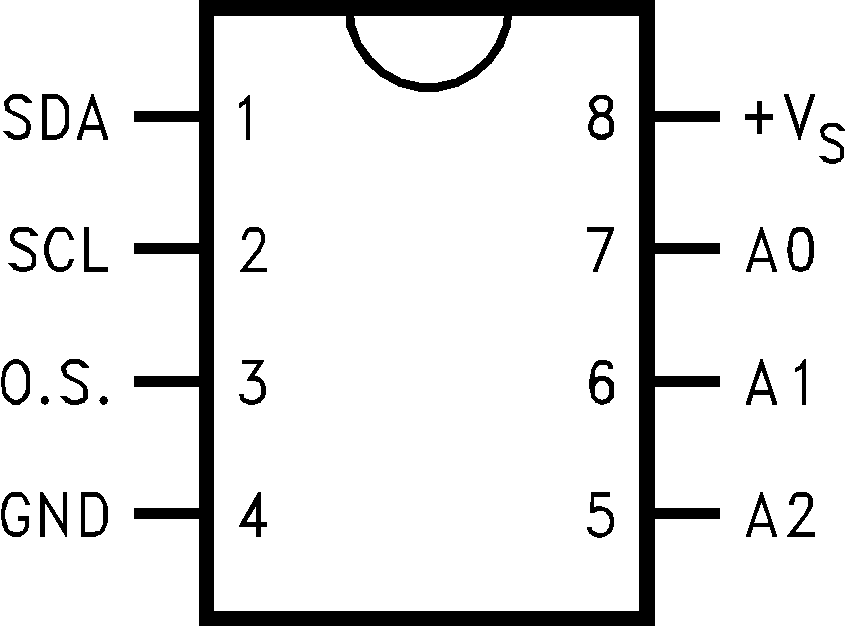

5 Pin Configuration and Functions
D and DGK Packages
8-Pin SOIC, VSSOP
Top View
Pin Functions
| PIN | DESCRIPTION | TYPICAL CONNECTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | SDA | I2C Serial Bi-Directional Data Line. Open Drain. |
From Controller, tied to a pullup resistor or current source |
| 2 | SCL | I2C Clock Input | From Controller, tied to a pullup resistor or current source |
| 3 | O.S. | Over temperature Shutdown. Open Drain Output |
Pullup Resistor, Controller Interrupt Line |
| 4 | GND | Power Supply Ground | Ground |
| 5 | A2 | User-Set I2C Address Inputs | Ground (Low, 0) or +VS (High, 1) |
| 6 | A1 | ||
| 7 | A0 | ||
| 8 | +VS | Positive Supply Voltage Input | DC Voltage from 3 V to 5.5 V; 100-nF bypass capacitor with 10-µF bulk capacitance in the near vicinity |
