9.2.10 Application Curves

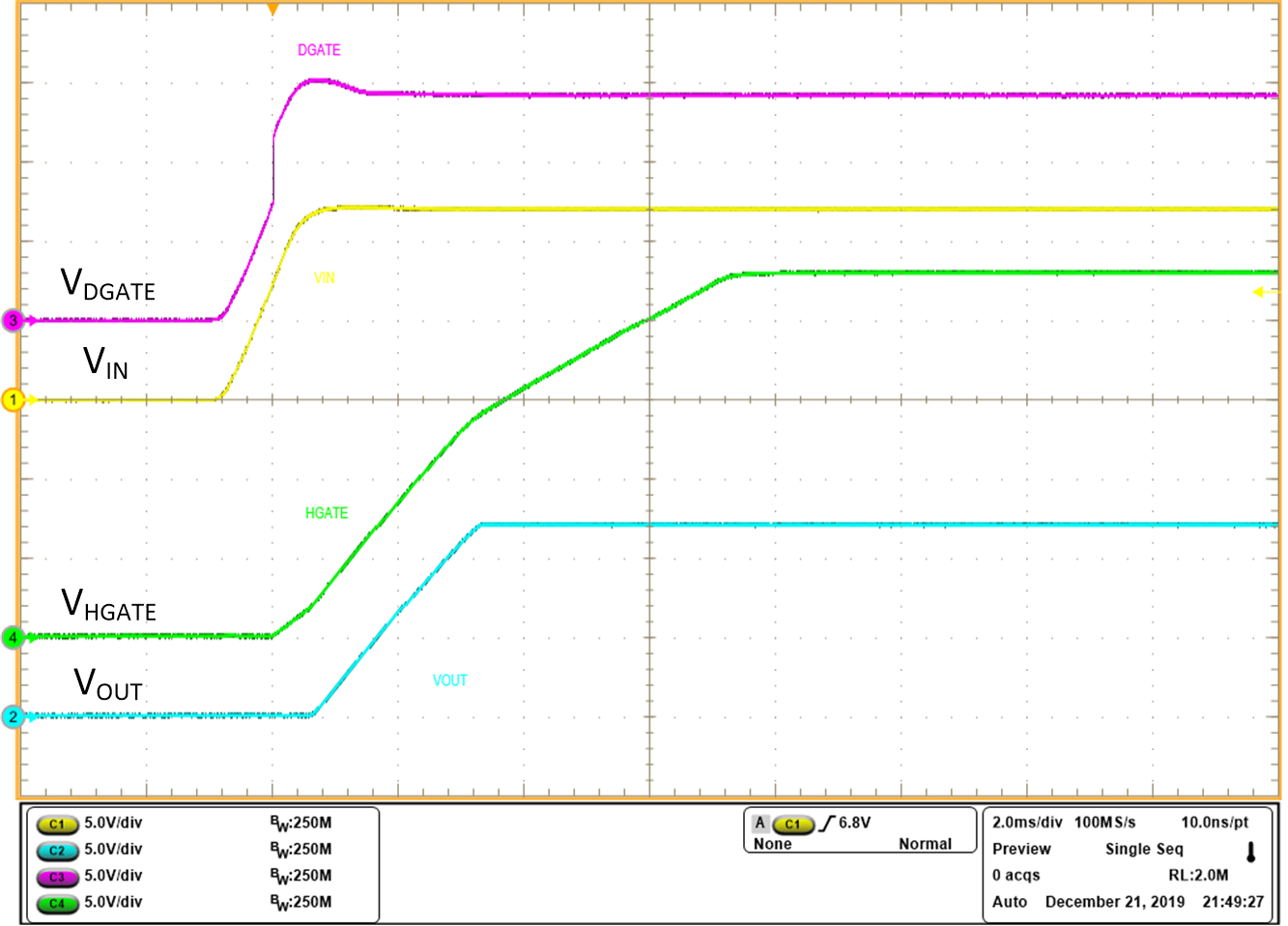

Figure 9-7 Startup 12 V with EN pulled to VIN

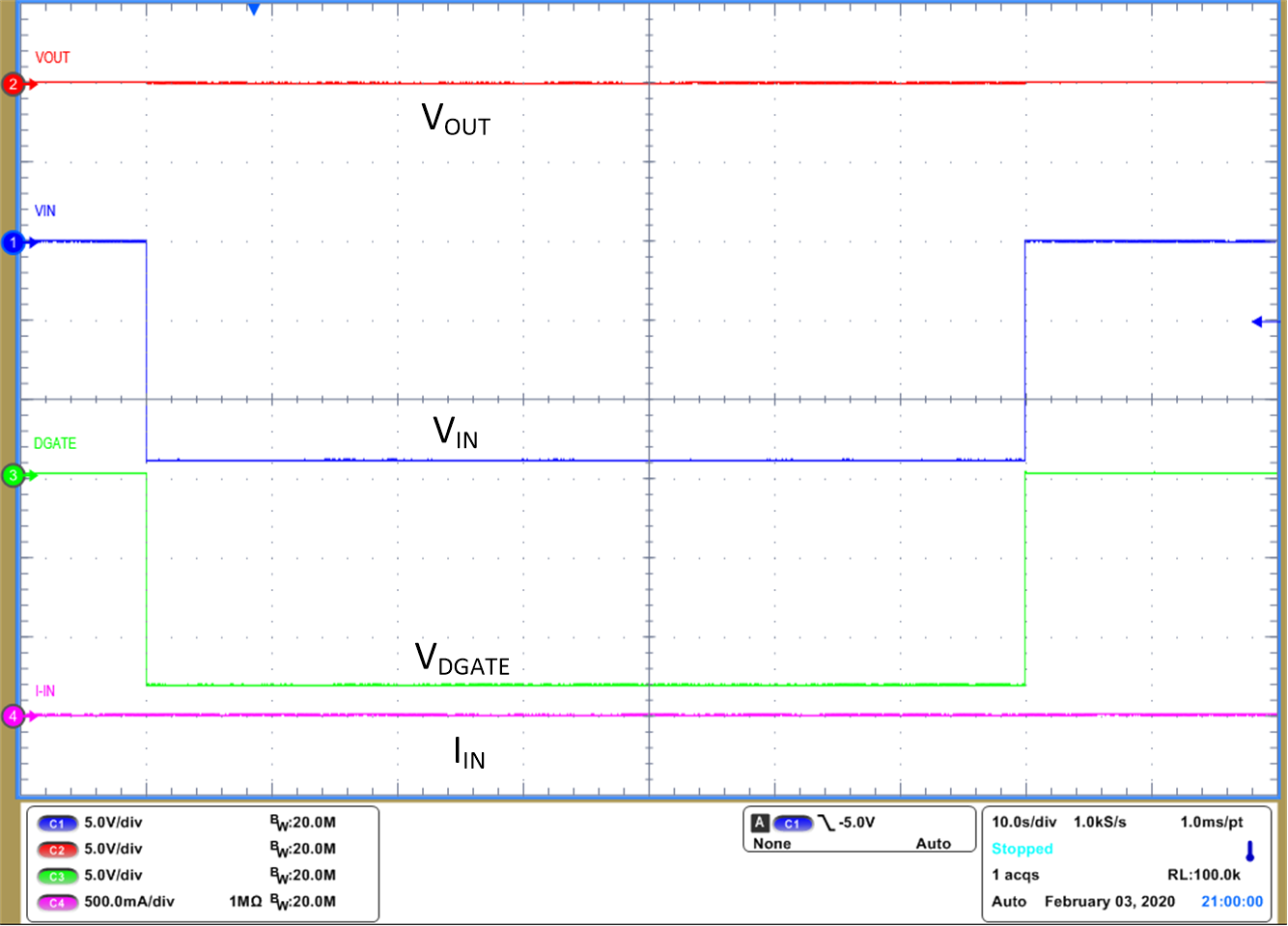

Figure 9-9 Reverse Input Voltage -12 V

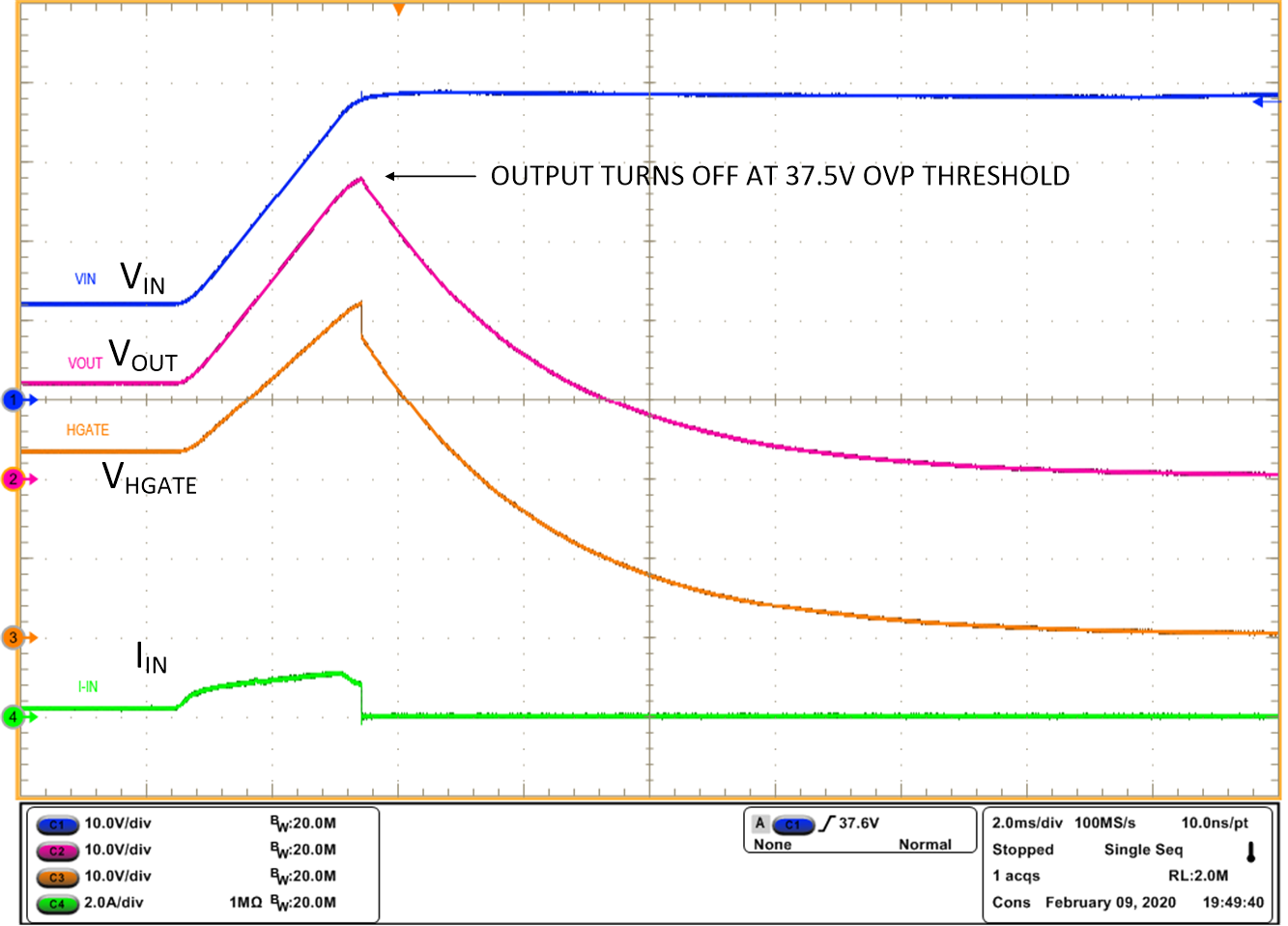

Figure 9-11 Over Voltage Cut-off

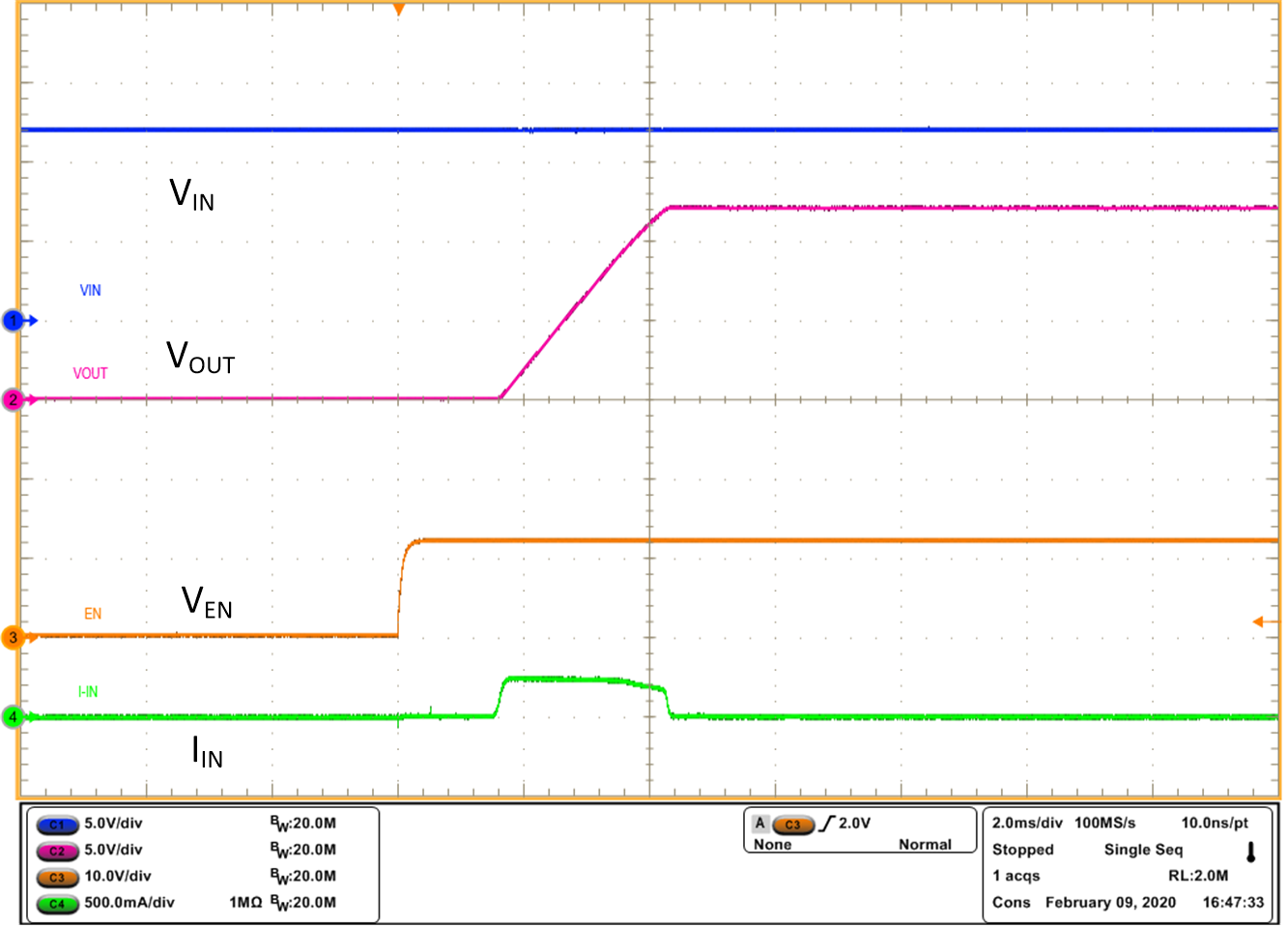

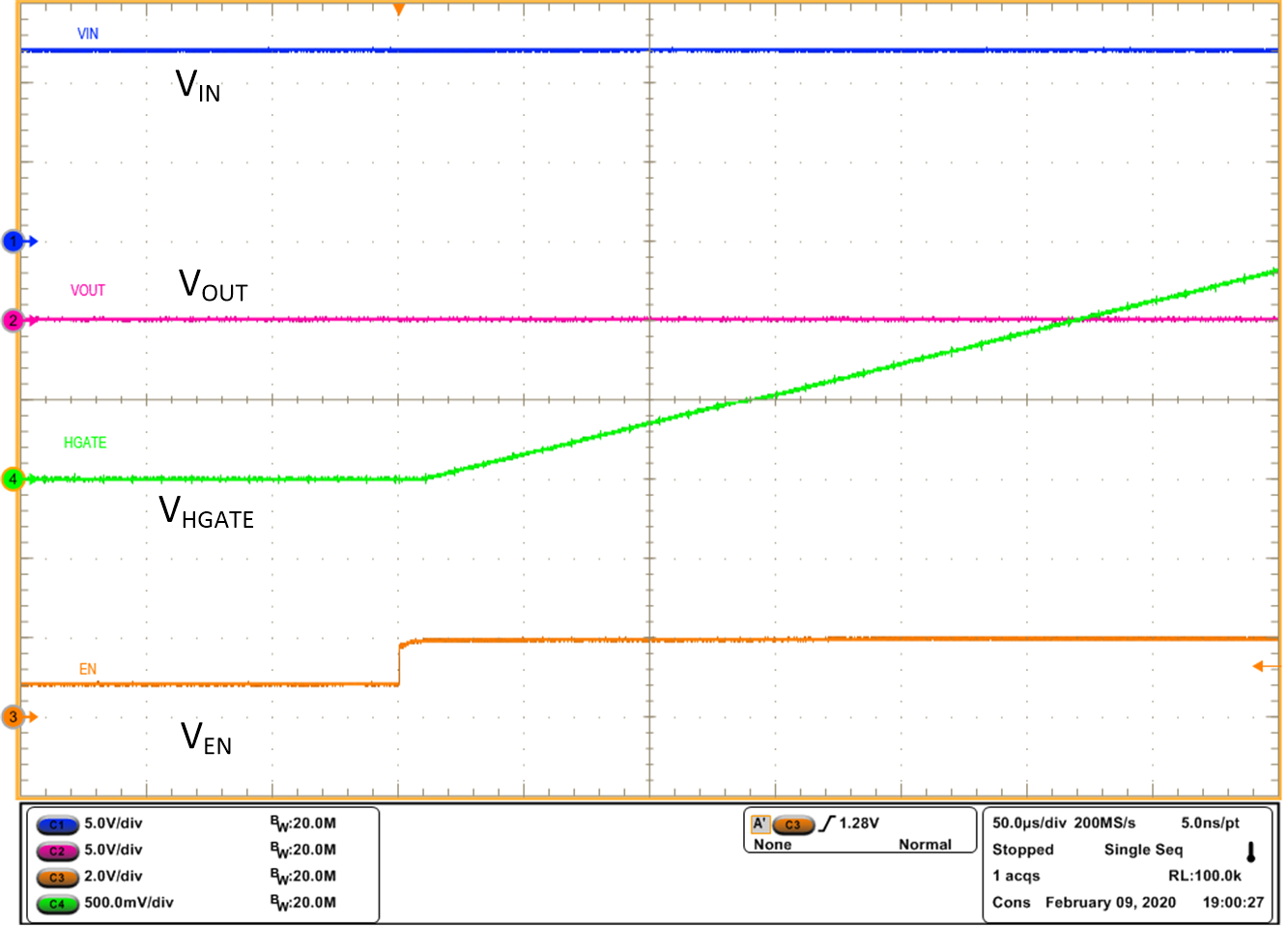

Figure 9-13 Turn ON with ENABLE Control

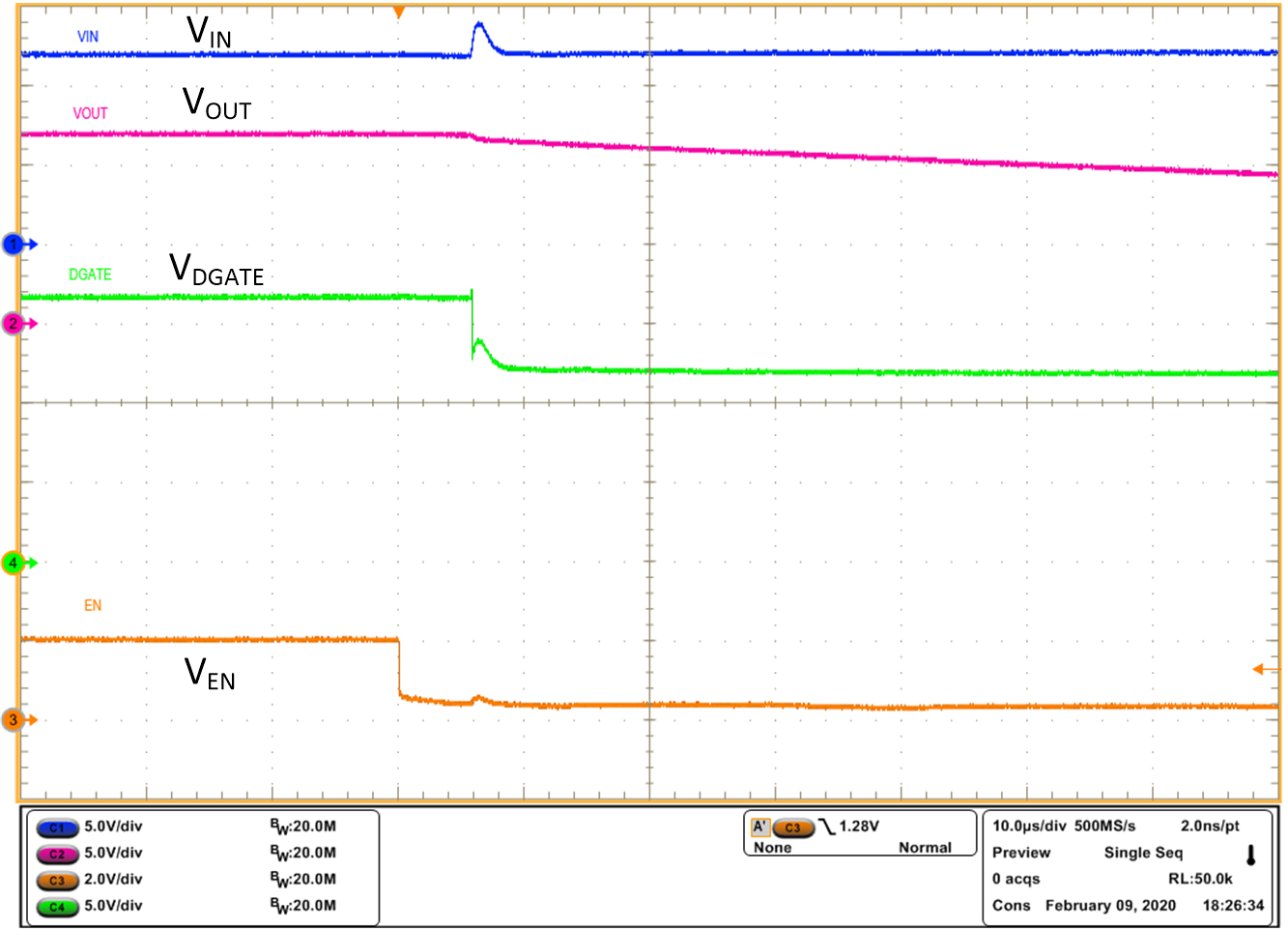

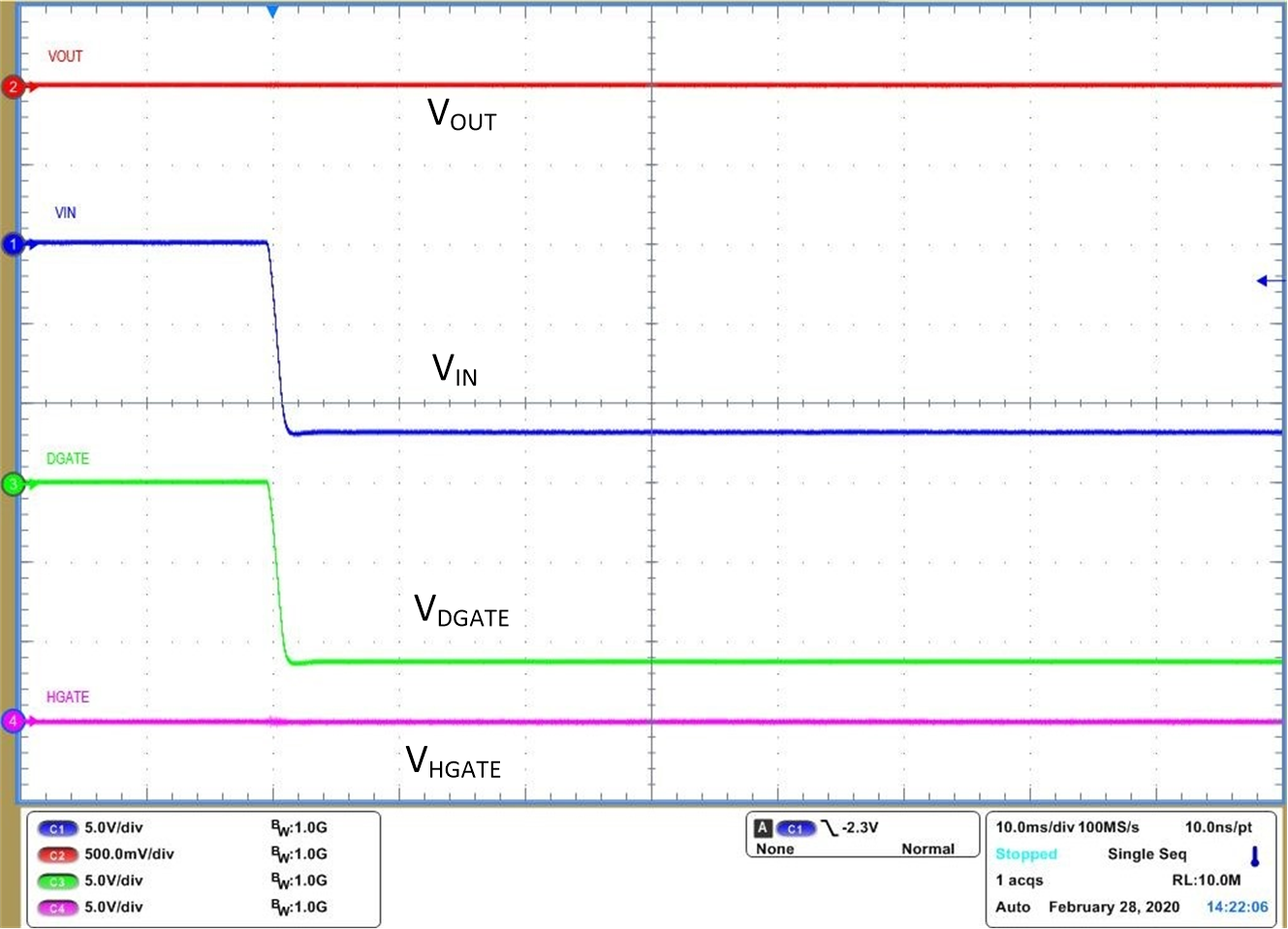

Figure 9-15 Disable Delay DGATE
Figure 9-17 Enable Delay HGATE

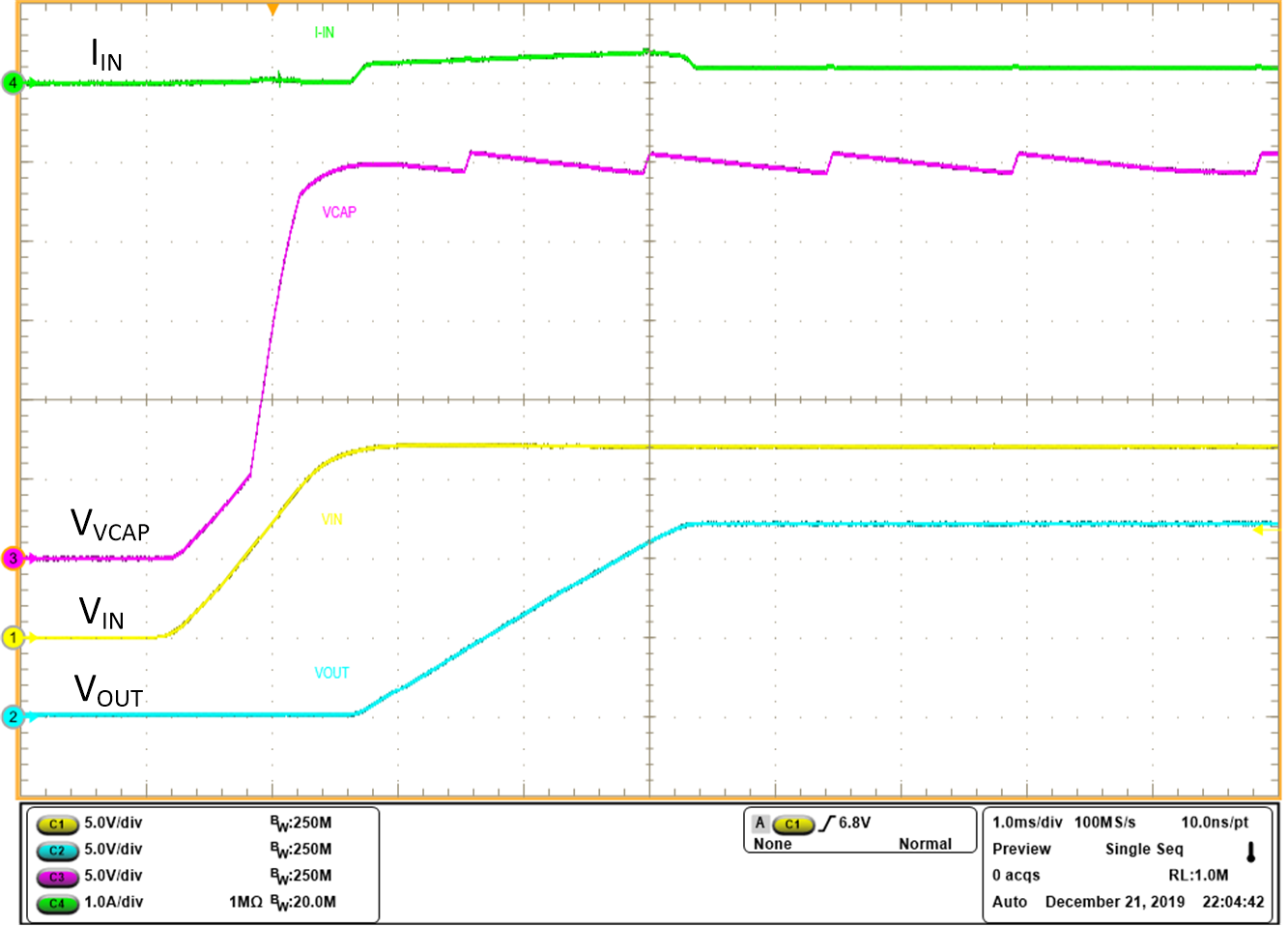

Figure 9-8 Startup 12 V showing Charge Pump VCAP
Figure 9-10 Reverse Input Voltage -12 V for 60s

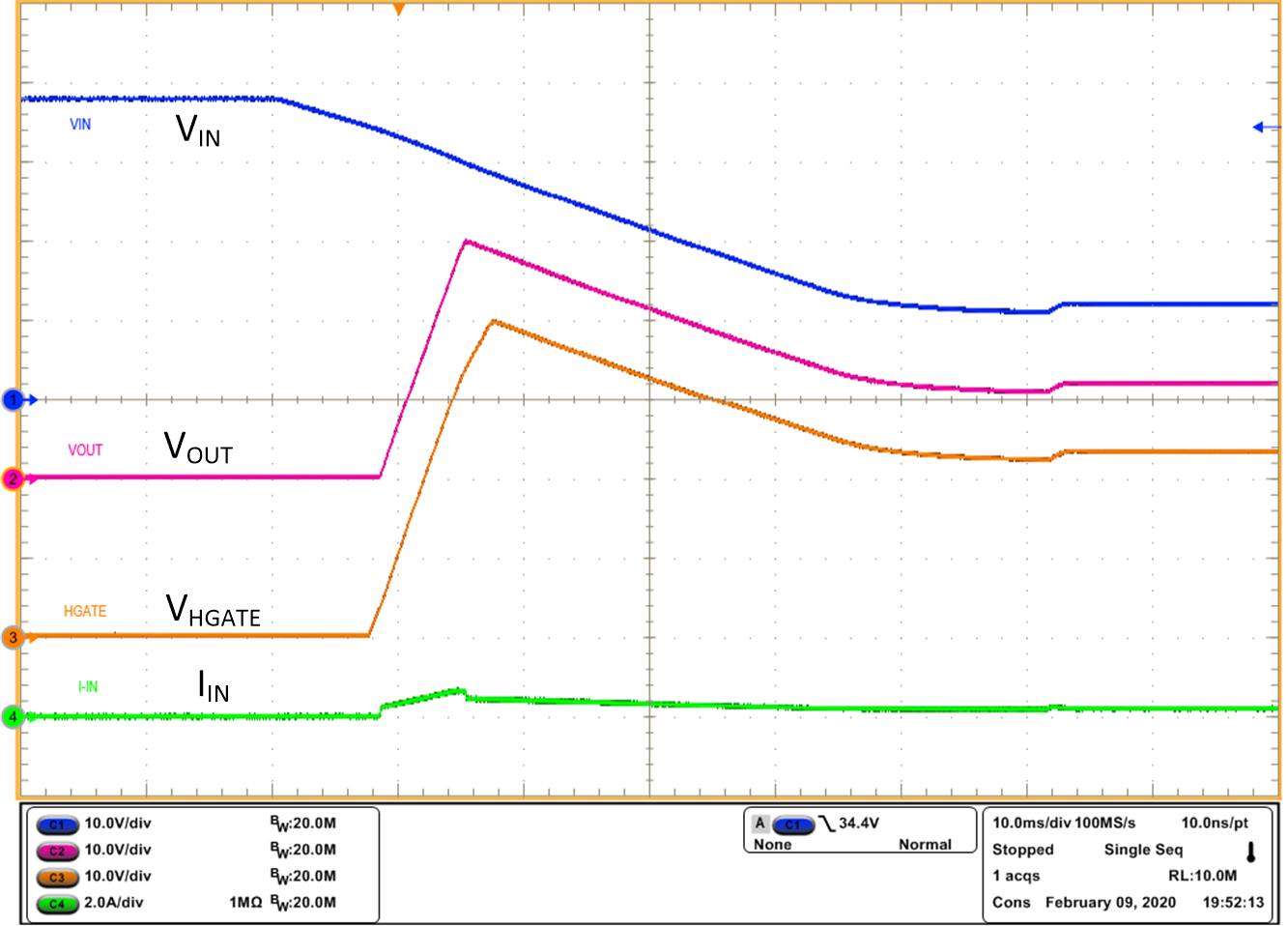

Figure 9-12 Over Voltage Recovery

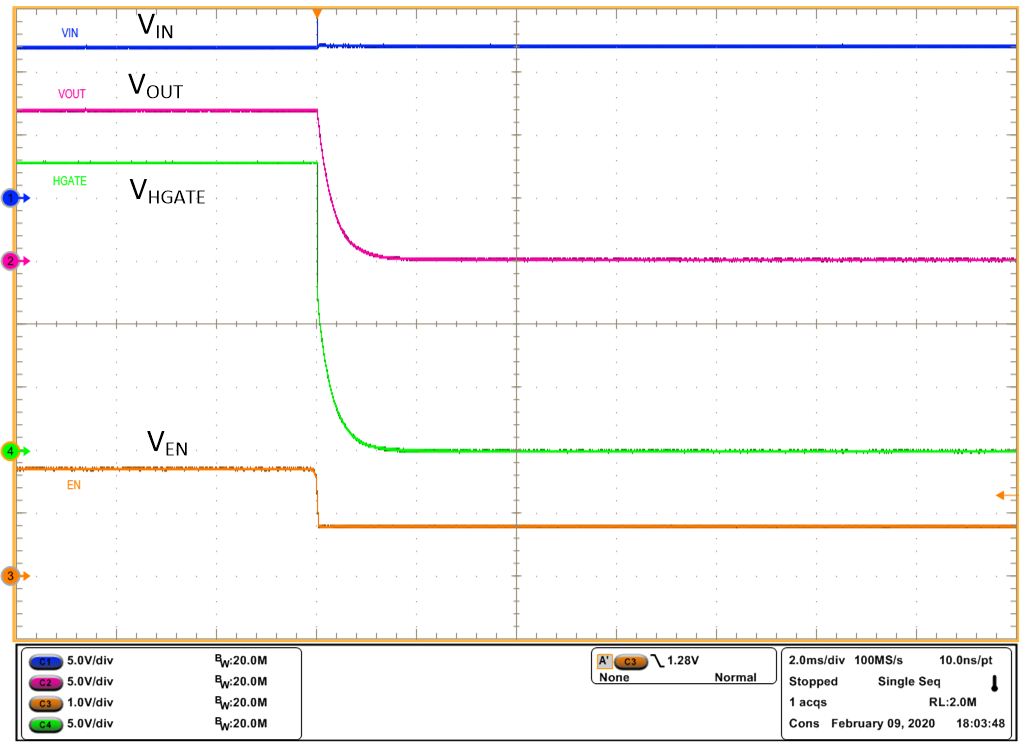

Figure 9-14 Turn OFF with ENABLE Control

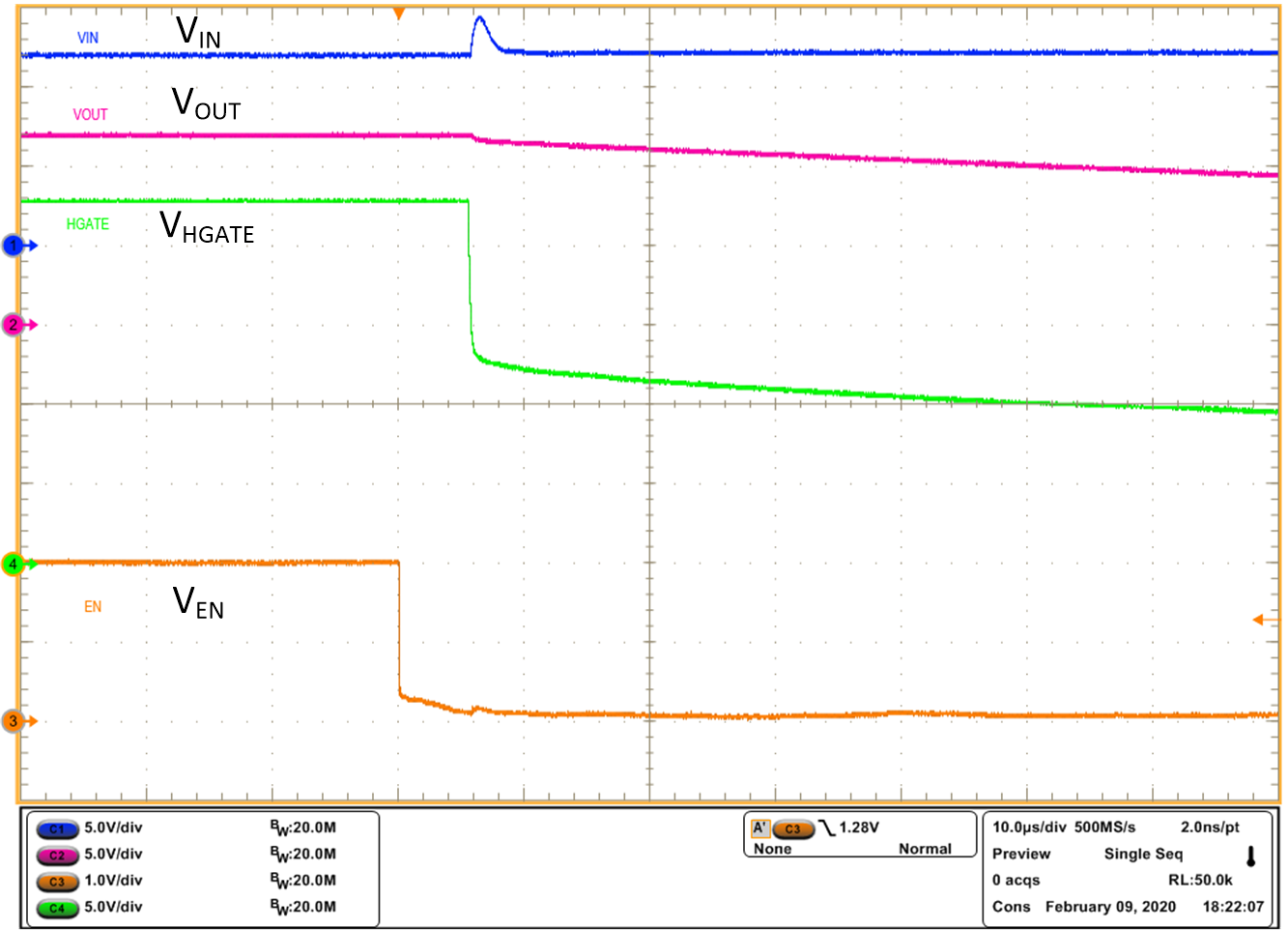

Figure 9-16 Disable Delay HGATE
Figure 9-18 Load Transient Response DGATE
