ZHCSSM7D May 1998 – November 2023 LM6171

PRODUCTION DATA

封裝選項

機械數據 (封裝 | 引腳)

D|8
- MSOI002K
P|8
- MPDI001B

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

5.8 Typical Characteristics

at T_A = 25°C (unless otherwise noted)

Figure 5-53 Supply Current vs Supply Voltage

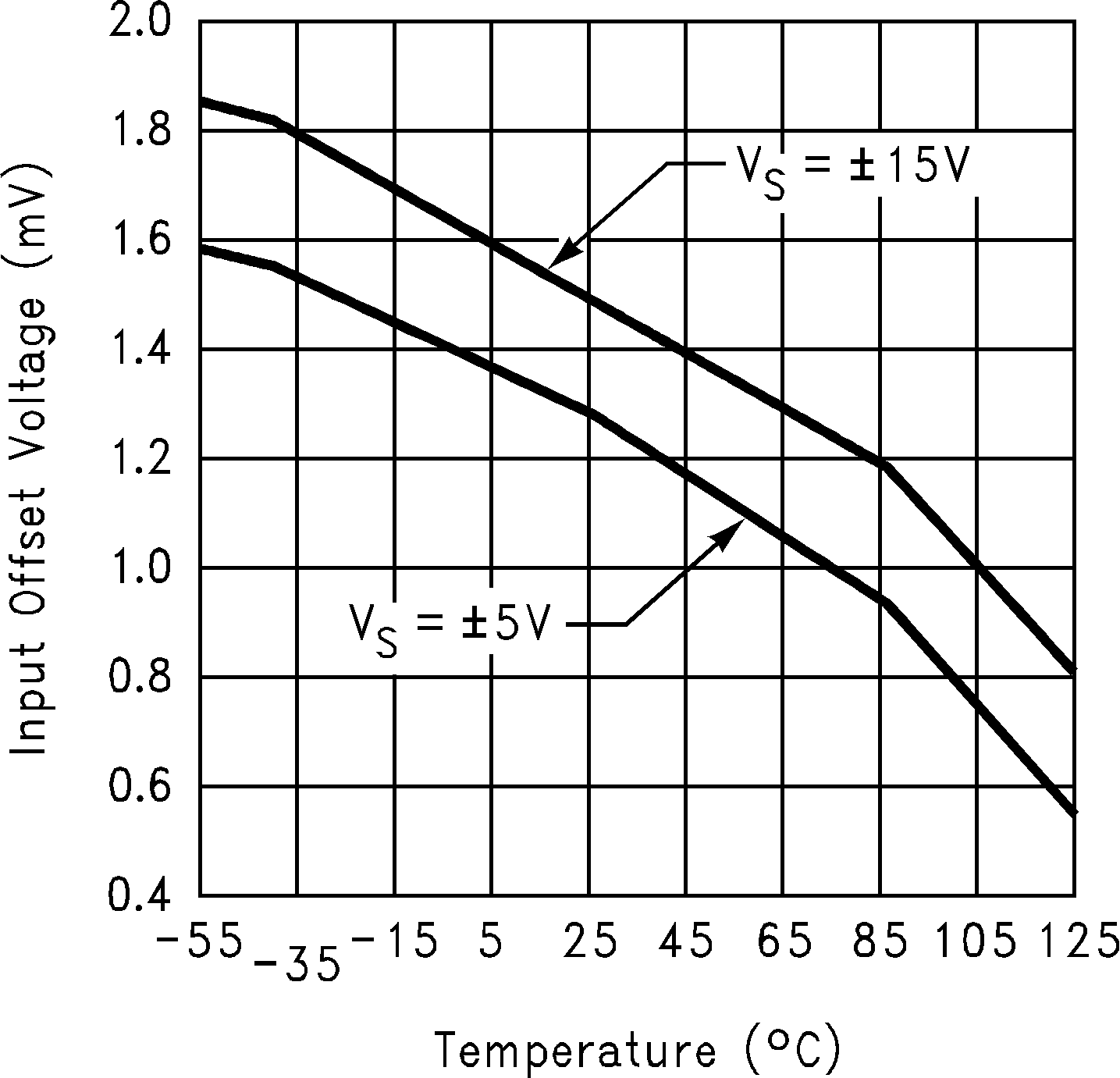

Figure 5-55 Input Offset Voltage vs Temperature

Figure 5-57 Input Offset Voltage vs Common Mode Voltage

Figure 5-59 Short Circuit Current vs Temperature (Sinking)

Figure 5-61 Output Voltage vs Output Current

Figure 5-63 PSRR vs Frequency

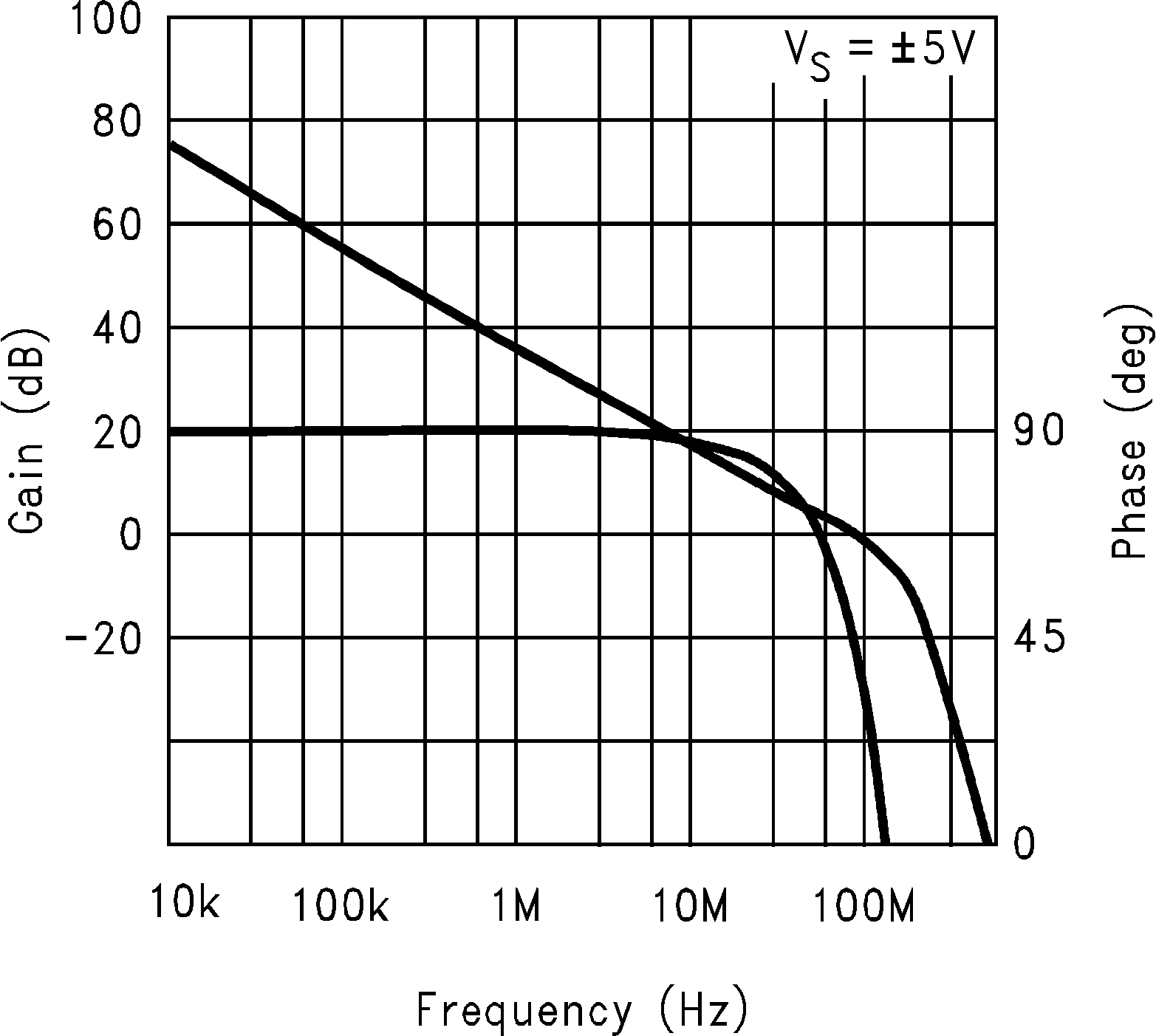

Figure 5-65 Open-Loop Frequency Response

Figure 5-67 Gain Bandwidth Product vs Supply Voltage

Figure 5-69 Large-Signal Voltage Gain vs Load

Figure 5-71 Input Voltage Noise vs Frequency

Figure 5-73 Input Current Noise vs Frequency

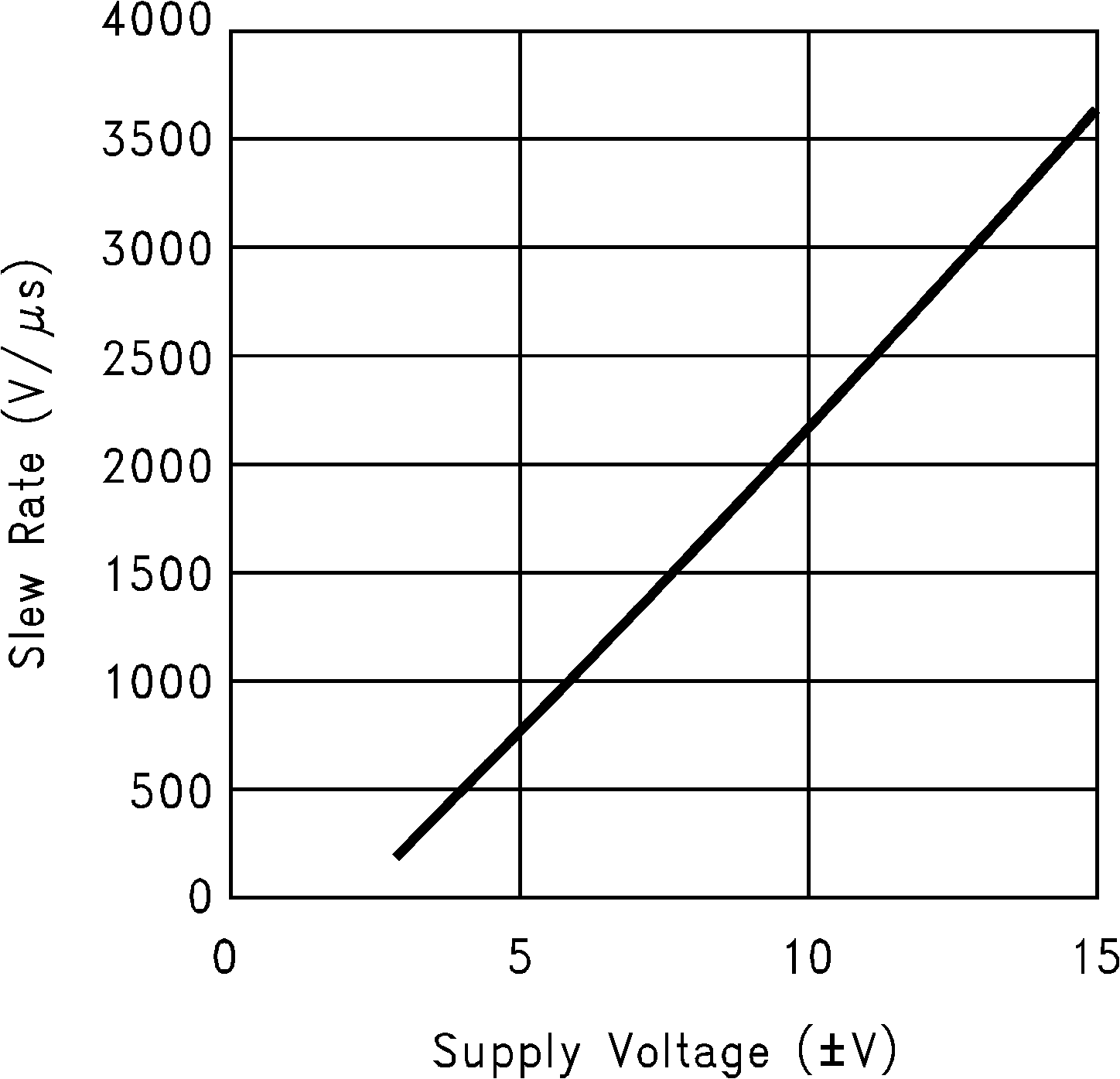

Figure 5-75 Slew Rate vs Supply Voltage

Figure 5-77 Slew Rate vs Load Capacitance

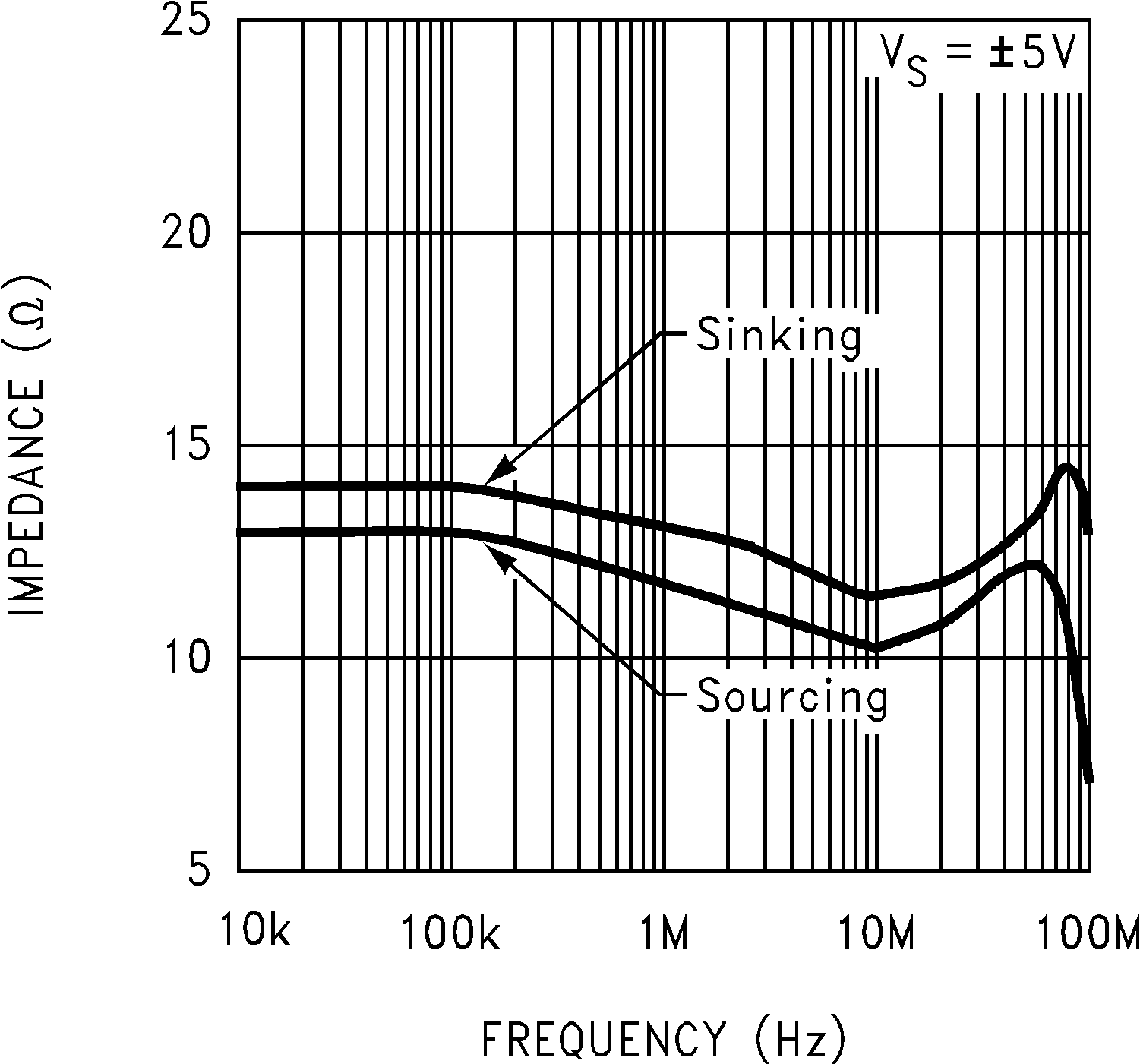

Figure 5-79 Open-Loop Output Impedance vs Frequency

A_V = ?1, V_S = ±5 V

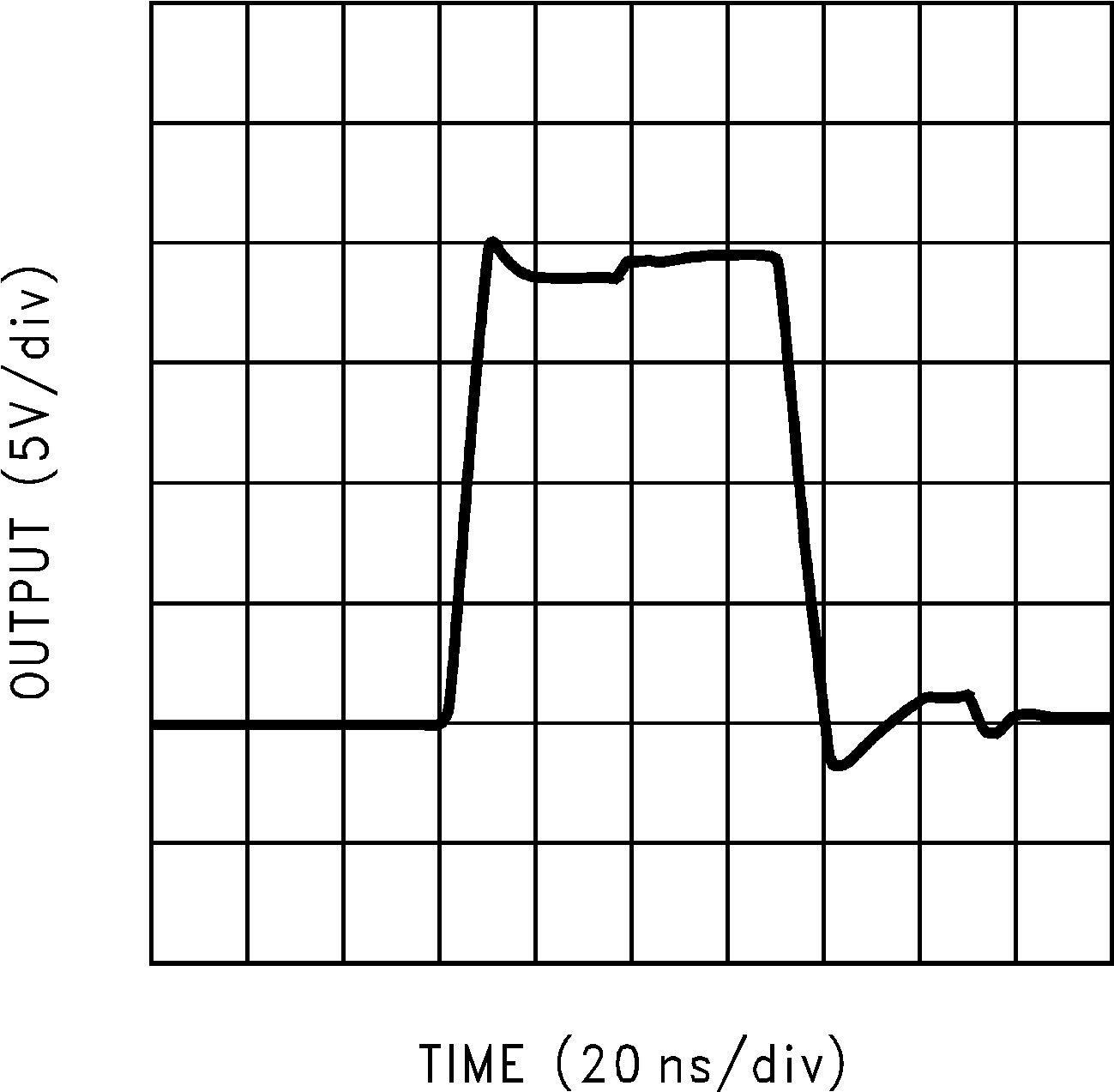

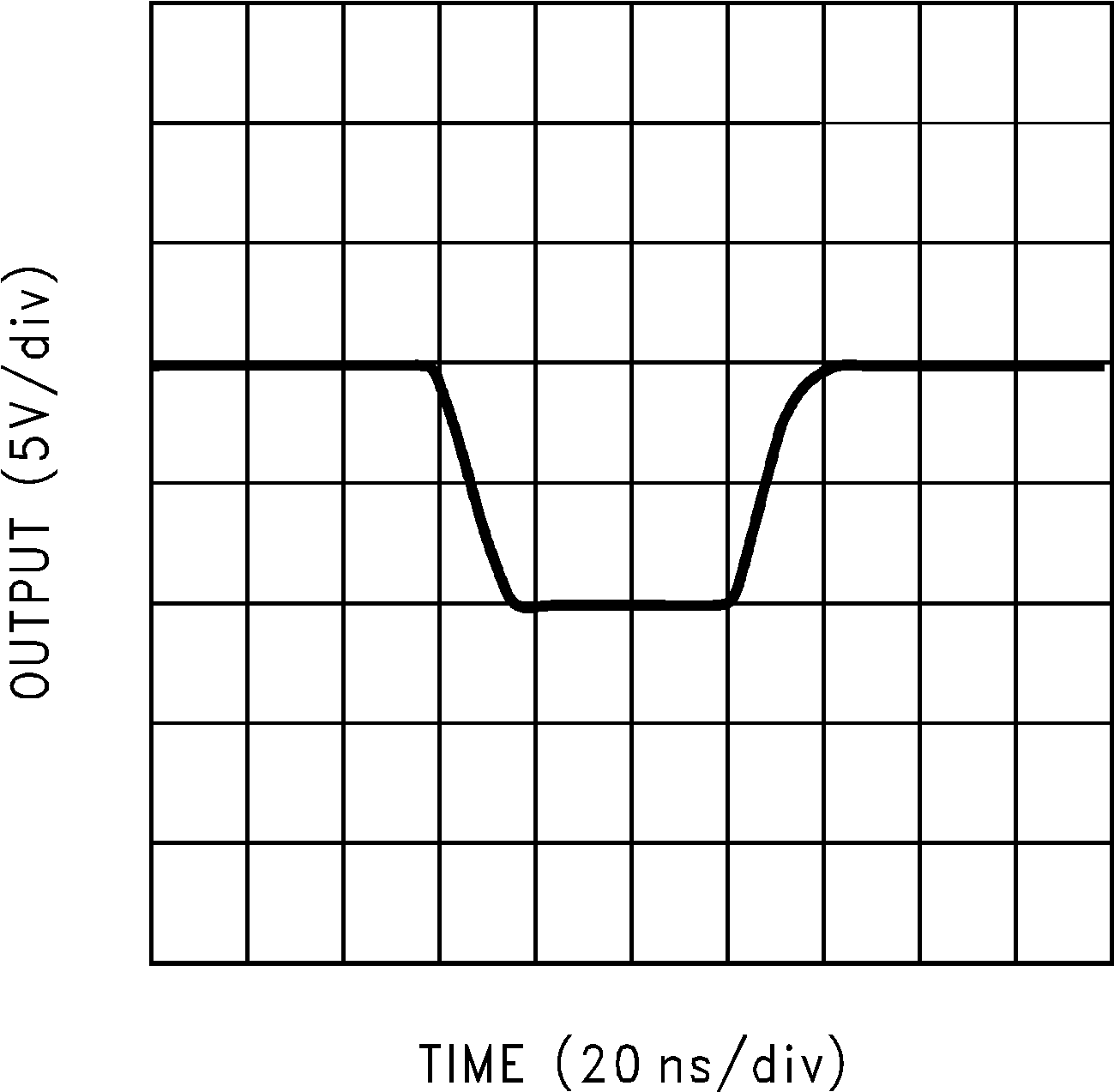

Figure 5-81 Large-Signal Pulse Response

A_V = 1, V_S = ±5 V

Figure 5-83 Large-Signal Pulse Response

A_V = 2, V_S = ±5 V

Figure 5-85 Large-Signal Pulse Response

A_V = ?1, V_S = ±5 V

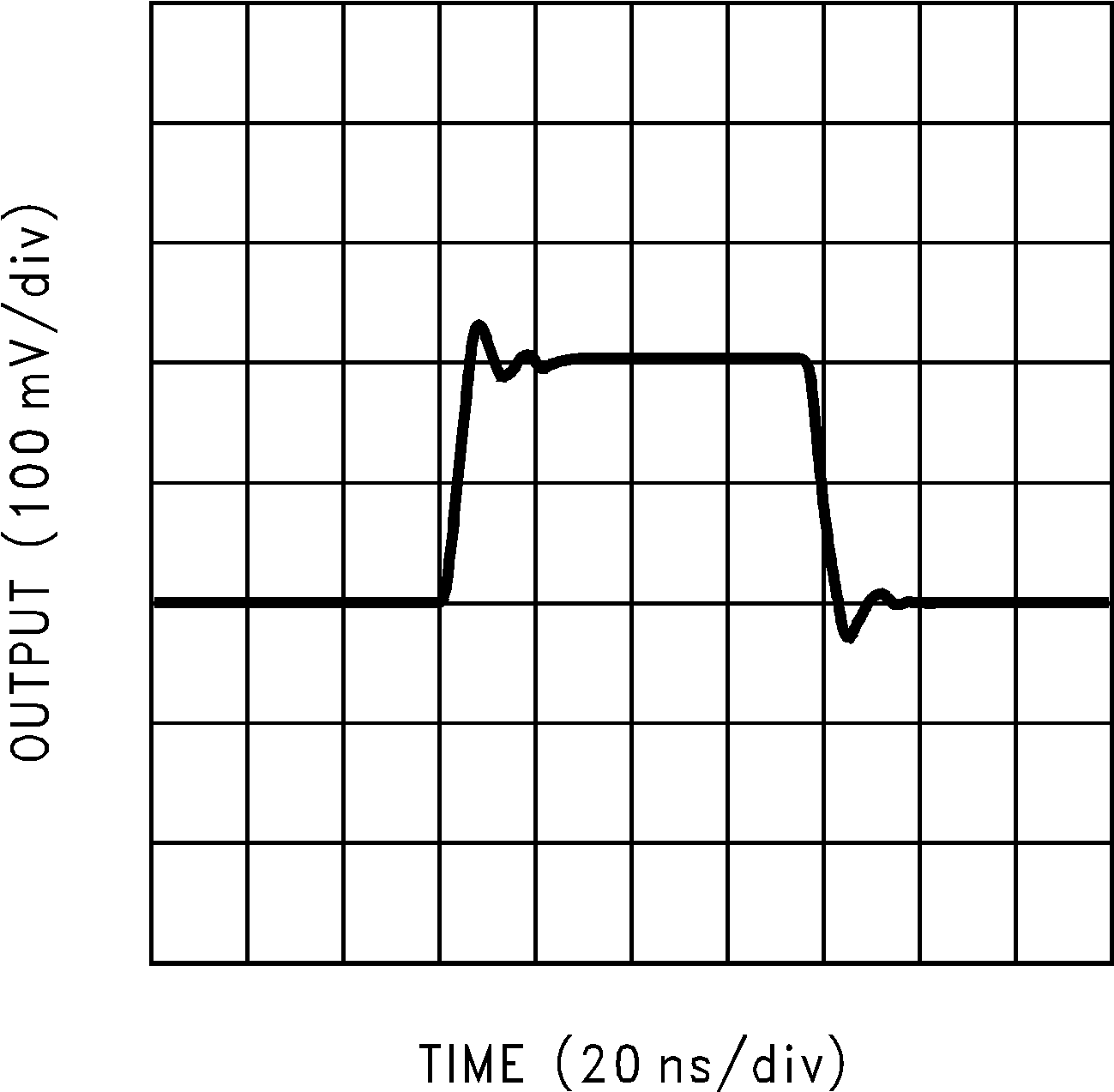

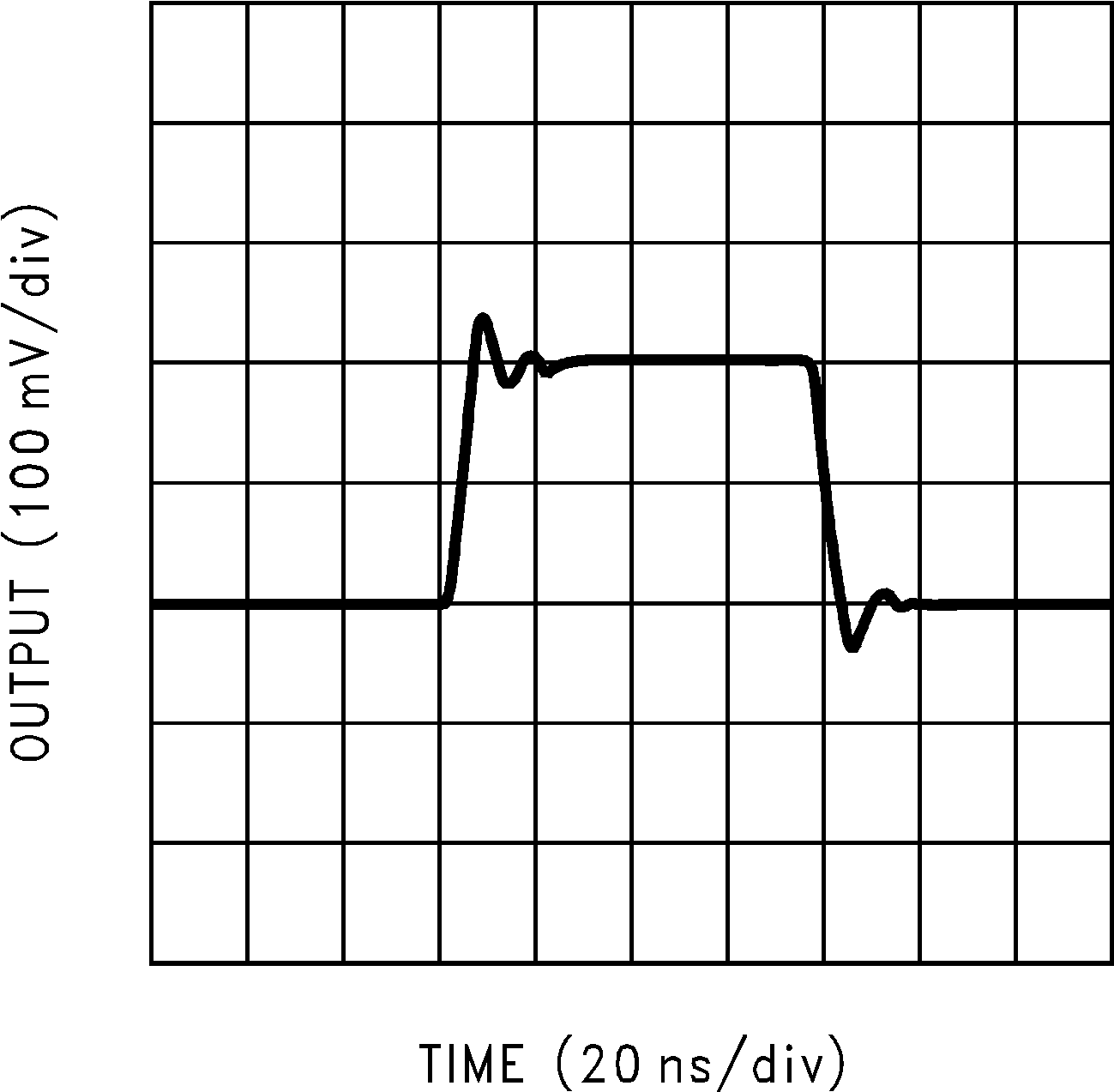

Figure 5-87 Small-Signal Pulse Response

A_V = 1, V_S = ±5 V

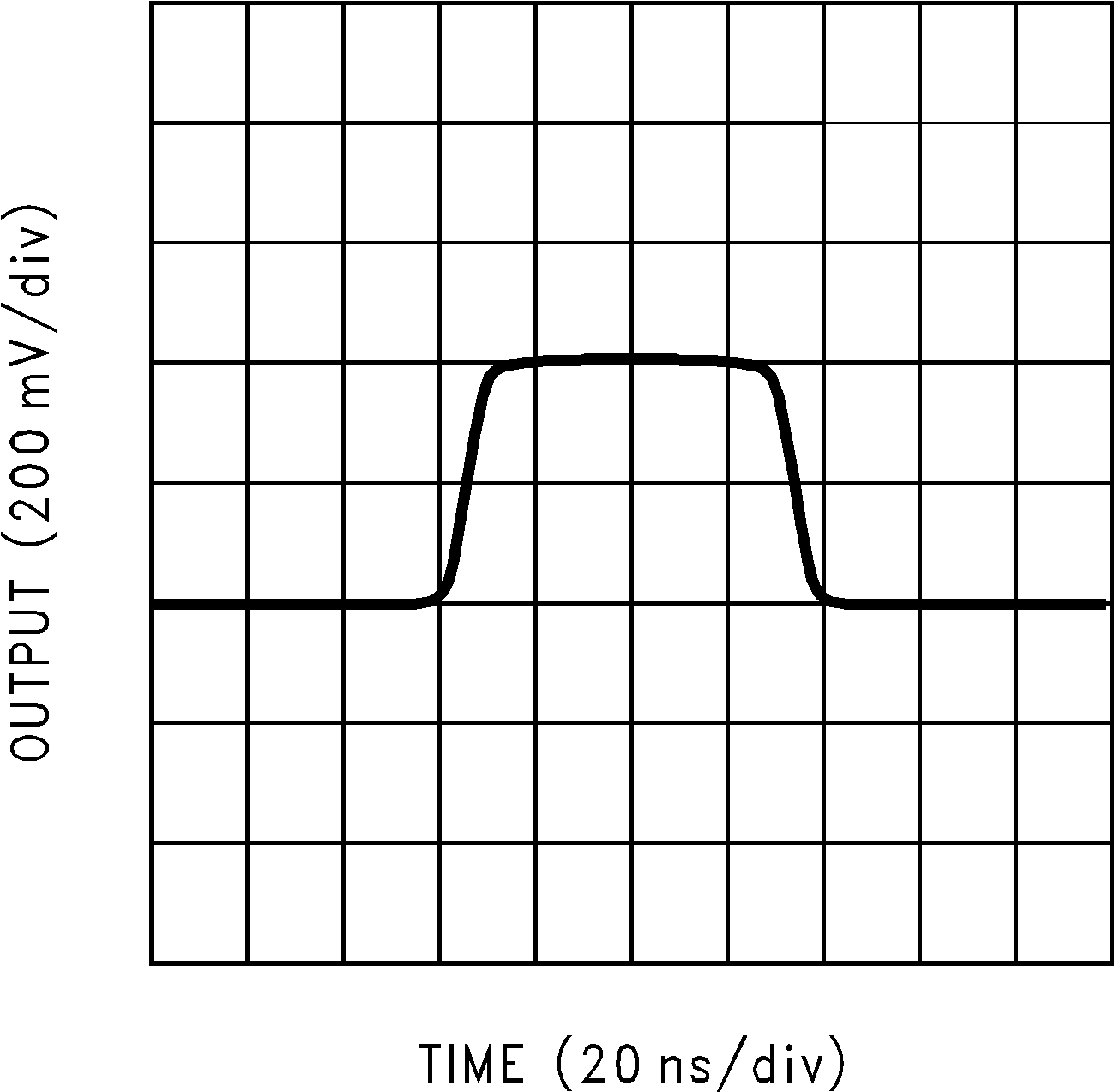

Figure 5-89 Small-Signal Pulse Response

A_V = 2, V_S = ±5 V

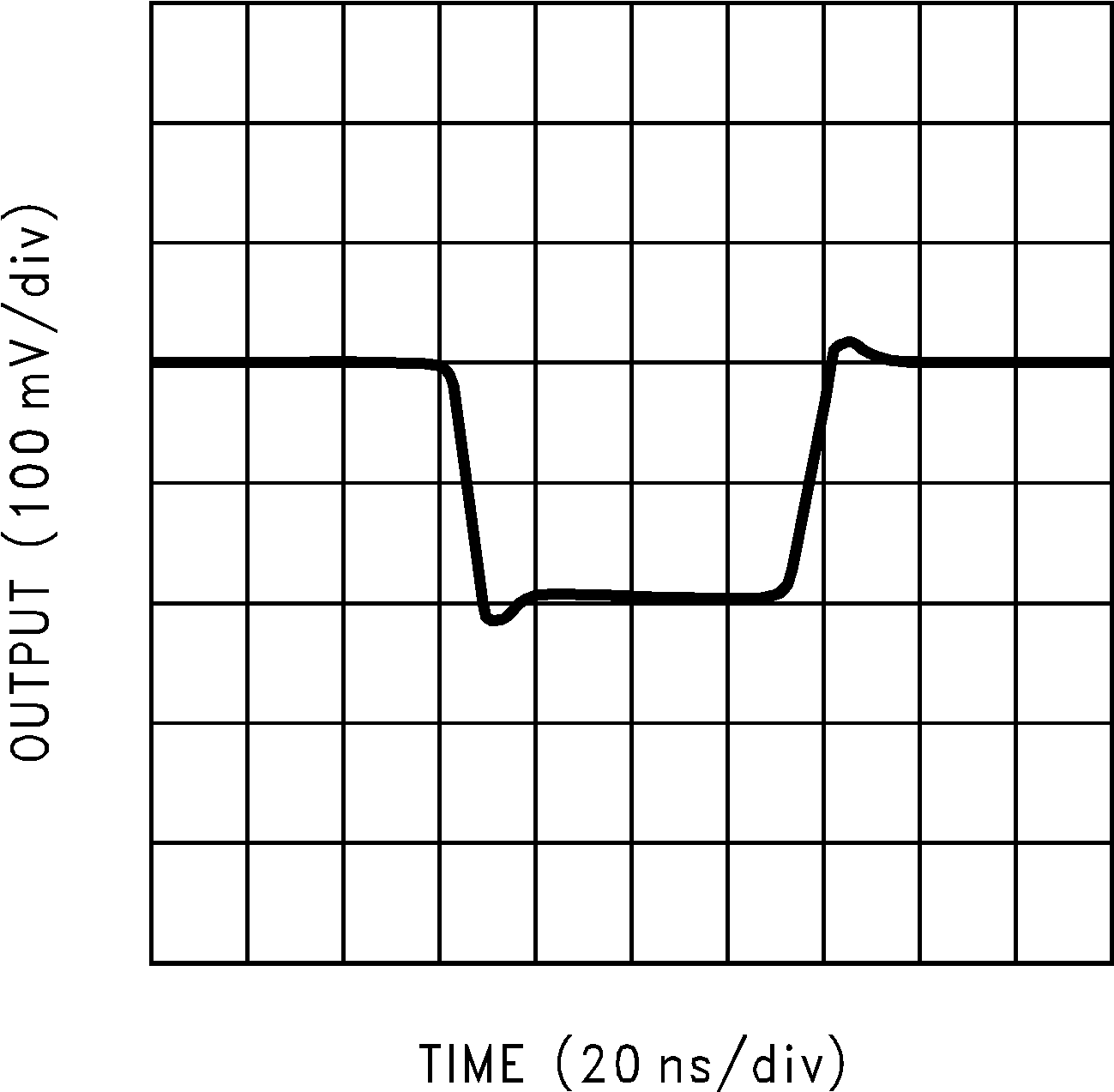

Figure 5-91 Small-Signal Pulse Response

A_V = 2

Figure 5-93 Closed-Loop Frequency Response vs Supply Voltage

A_V = 1

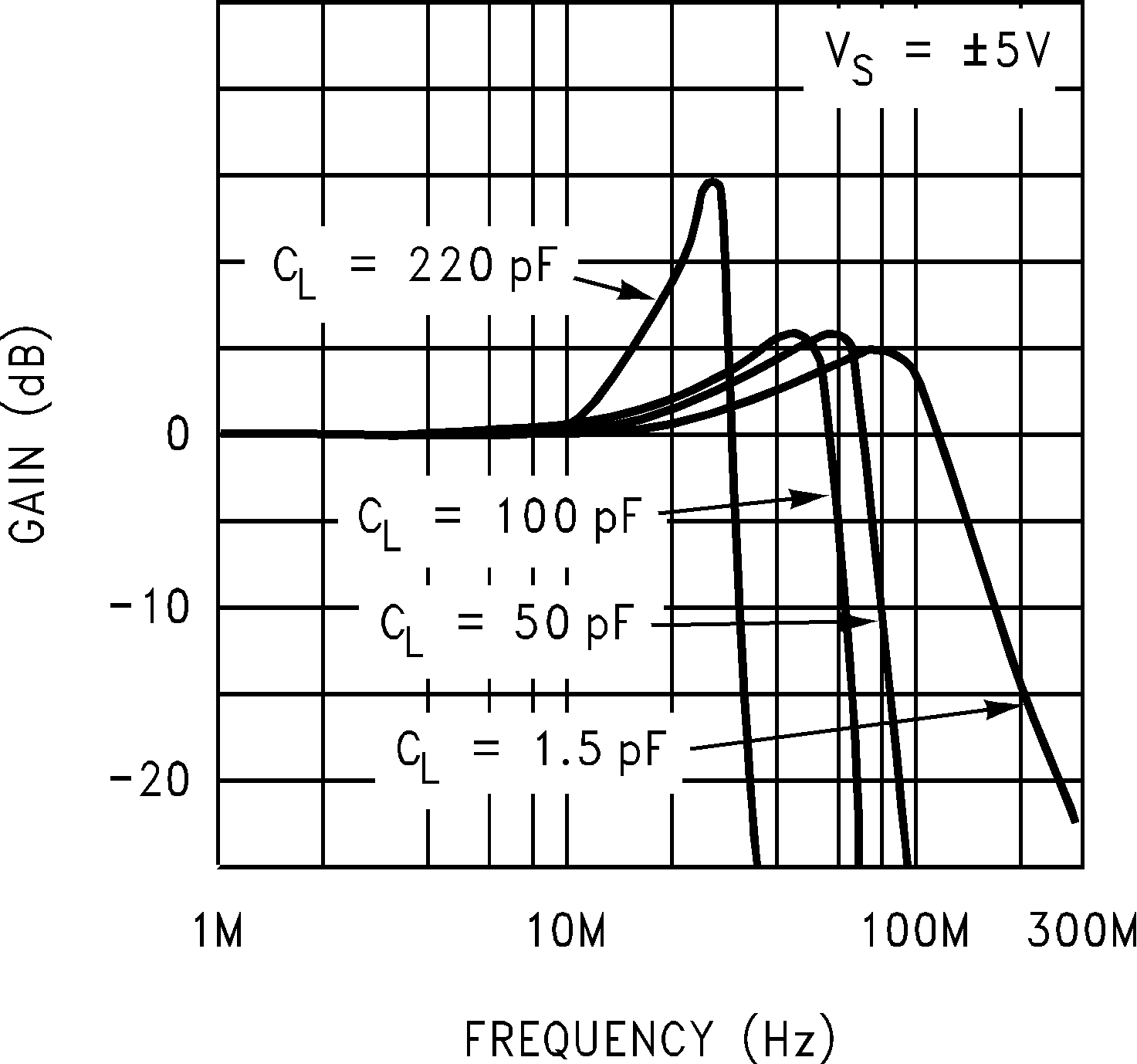

Figure 5-95 Closed Loop Frequency Response vs Capacitive Load

A_V = 2

Figure 5-97 Closed-Loop Frequency Response vs Capacitive Load

Figure 5-99 Total Harmonic Distortion vs Frequency

Figure 5-101 Total Harmonic Distortion vs Frequency

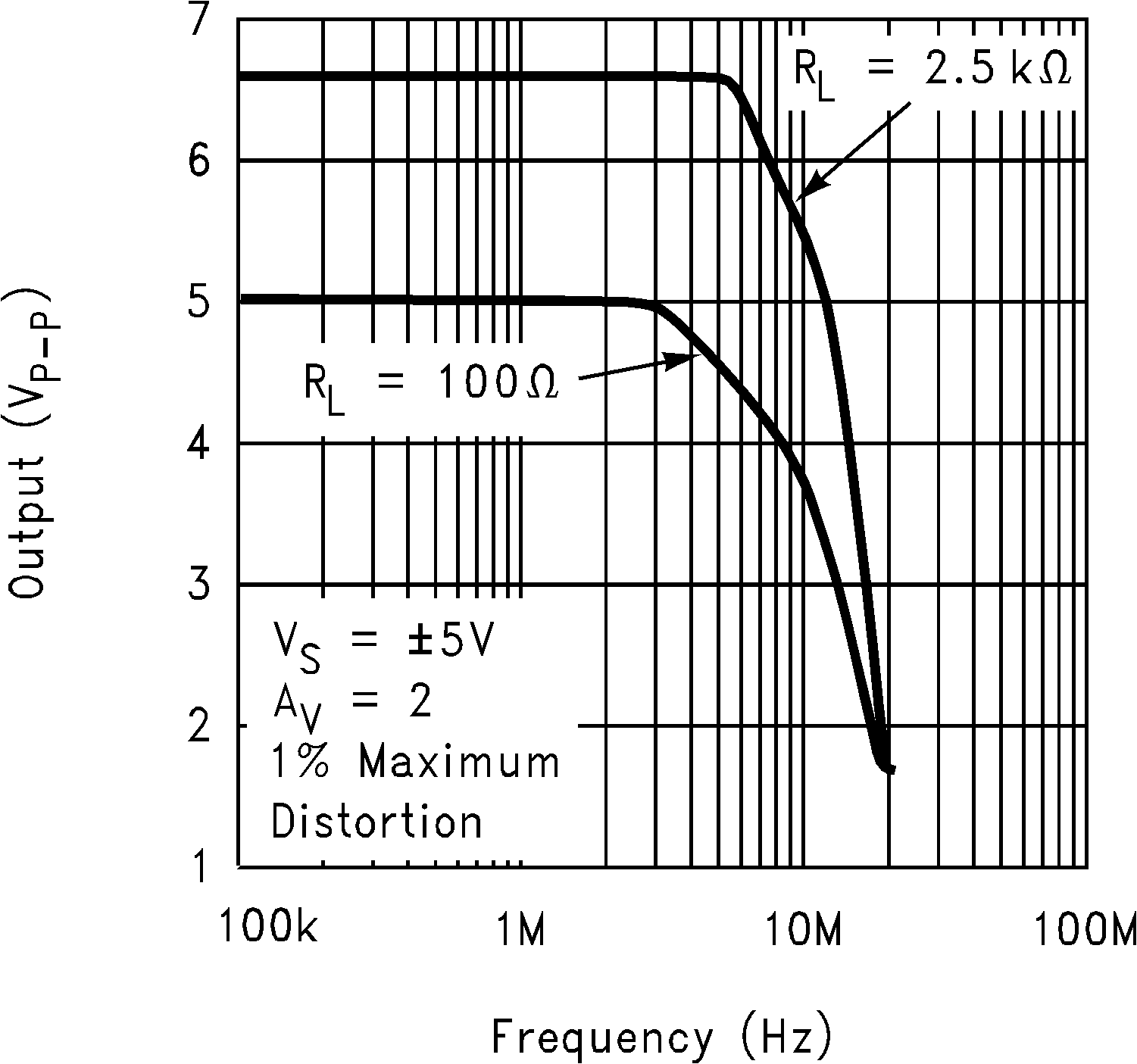

Figure 5-103 Undistorted Output Swing vs Frequency

Figure 5-105 Undistorted Output Swing vs Frequency

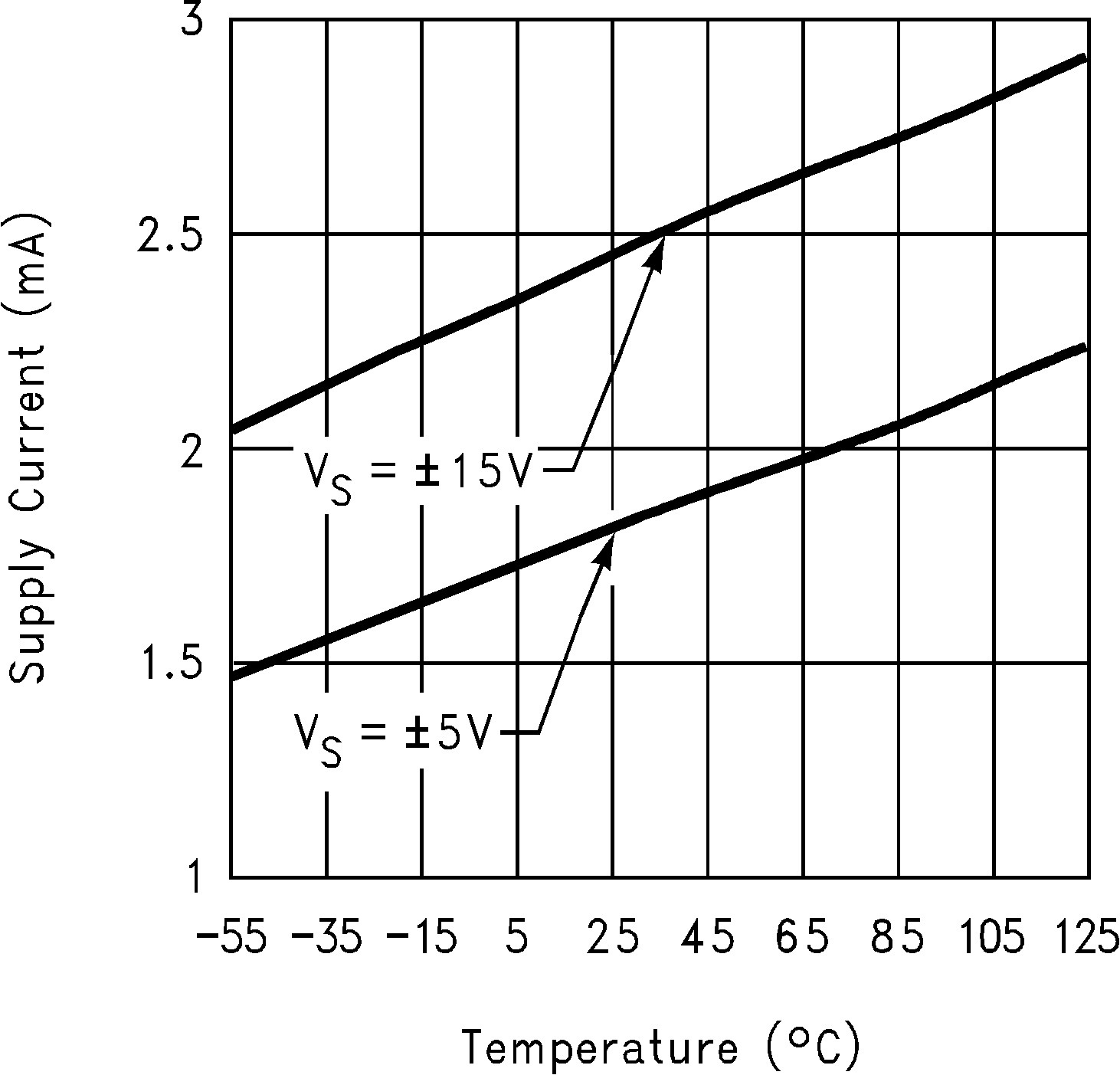

Figure 5-54 Supply Current vs Temperature

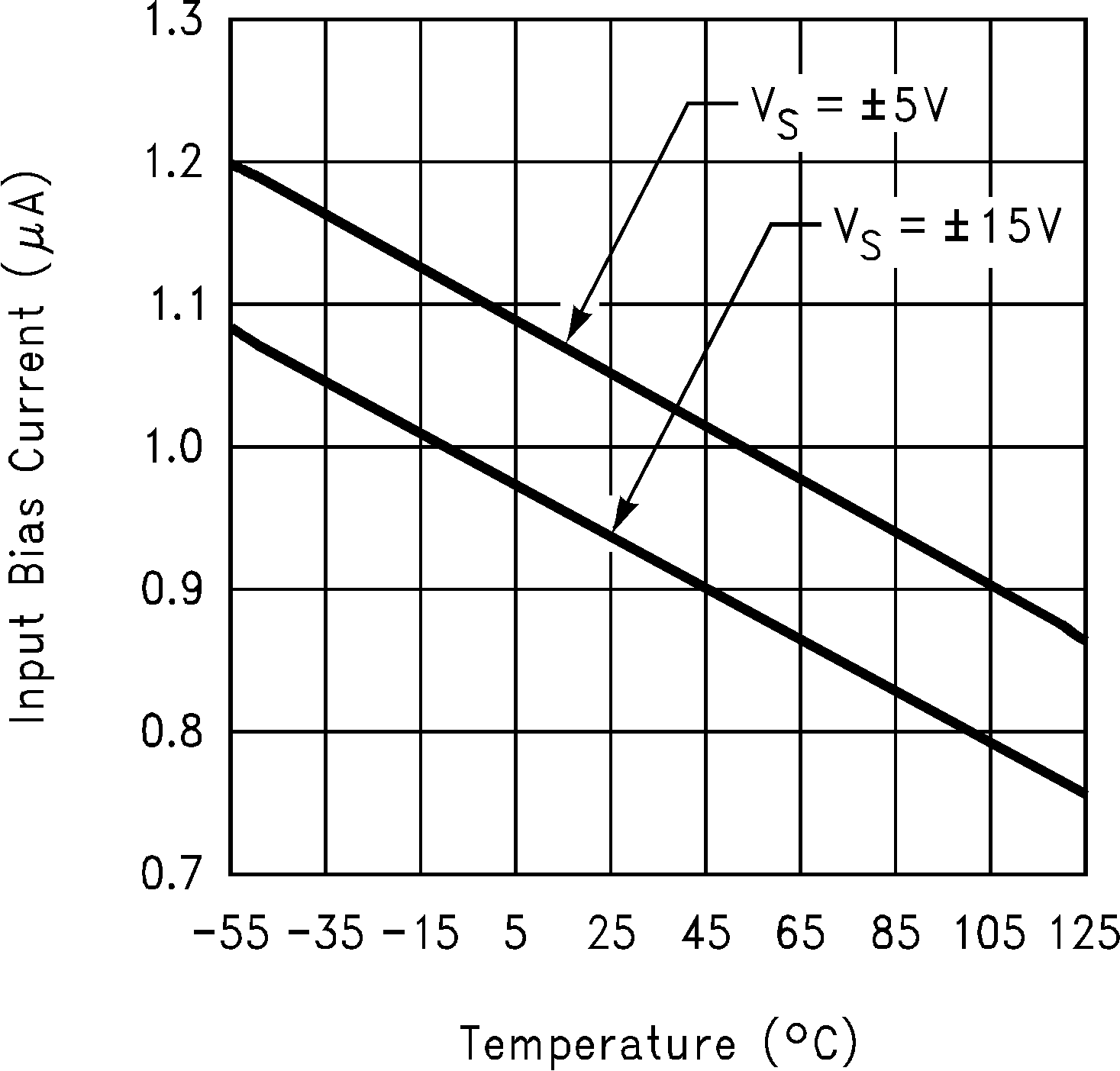

Figure 5-56 Input Bias Current vs Temperature

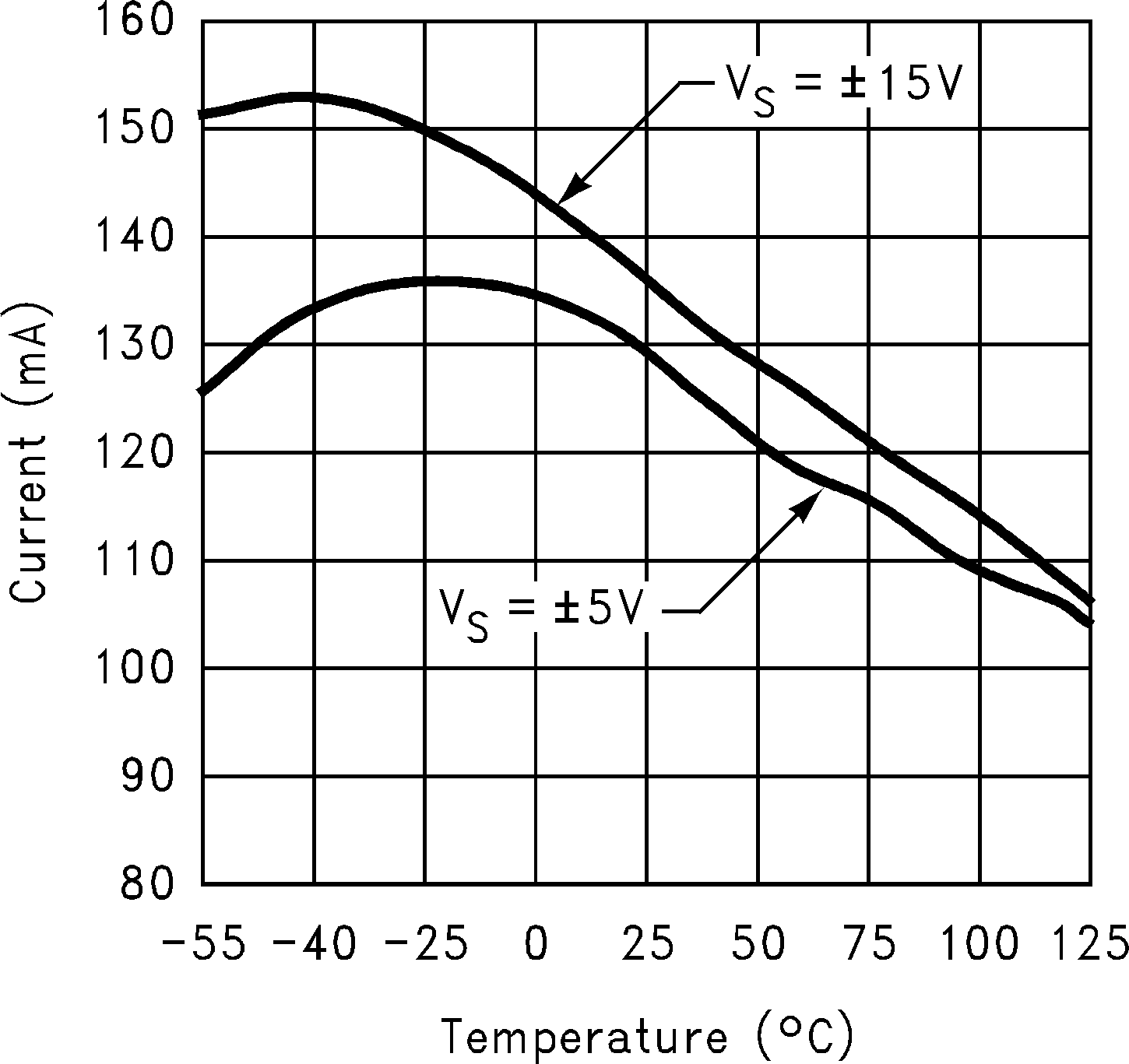

Figure 5-58 Short Circuit Current vs Temperature (Sourcing)

Figure 5-60 Output Voltage vs Output Current

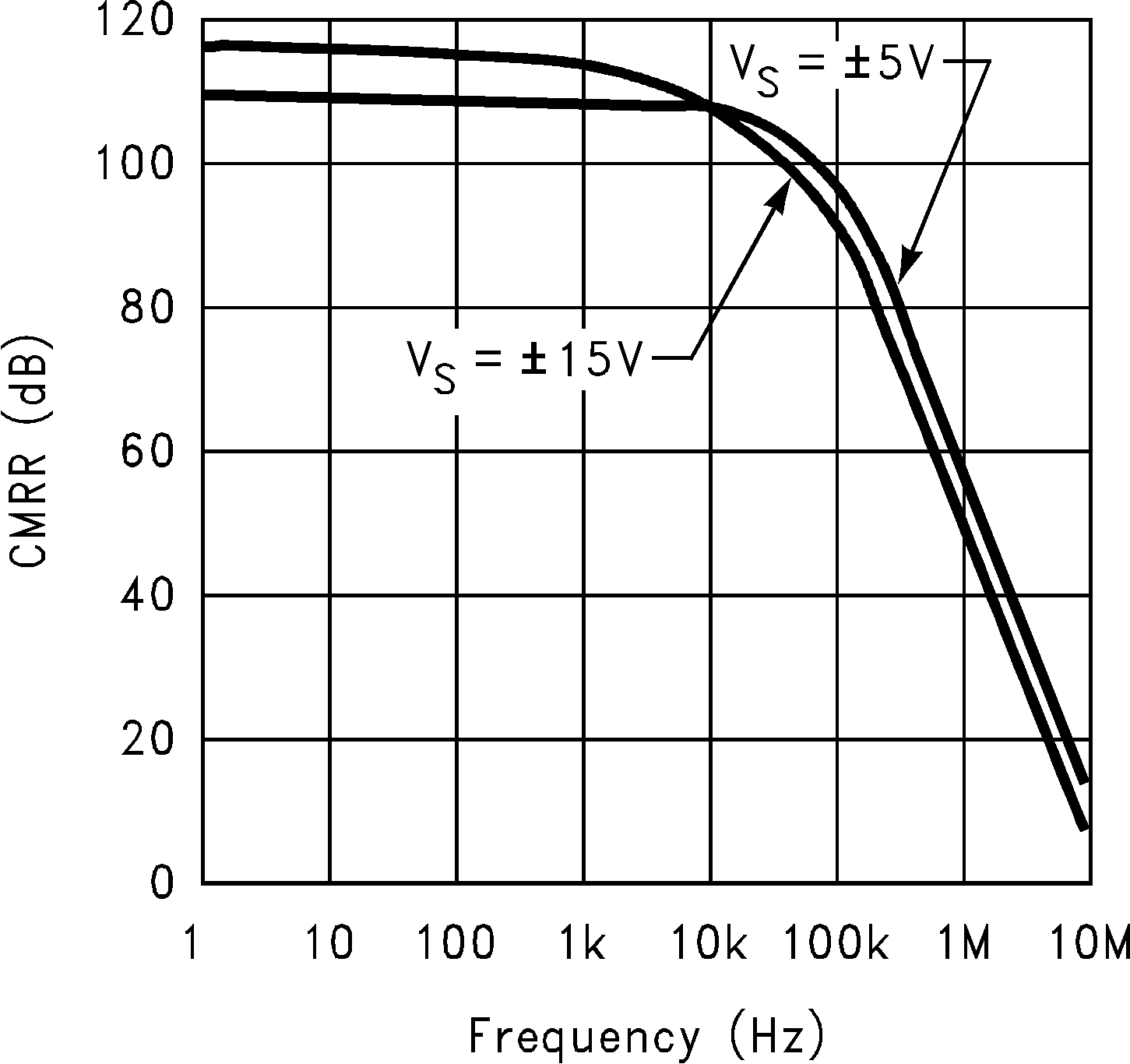

Figure 5-62 CMRR vs Frequency

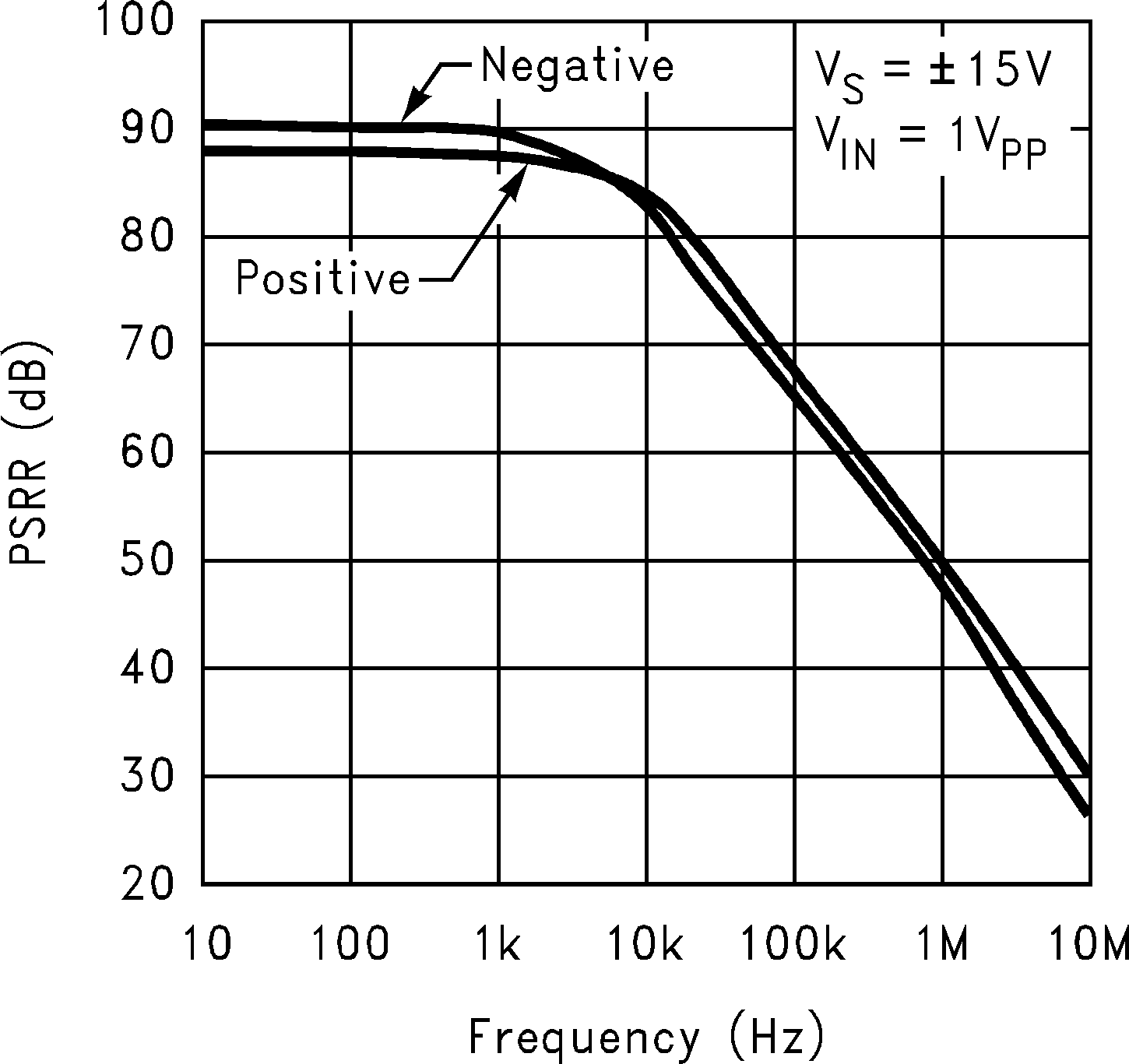

Figure 5-64 PSRR vs Frequency

Figure 5-66 Open-Loop Frequency Response

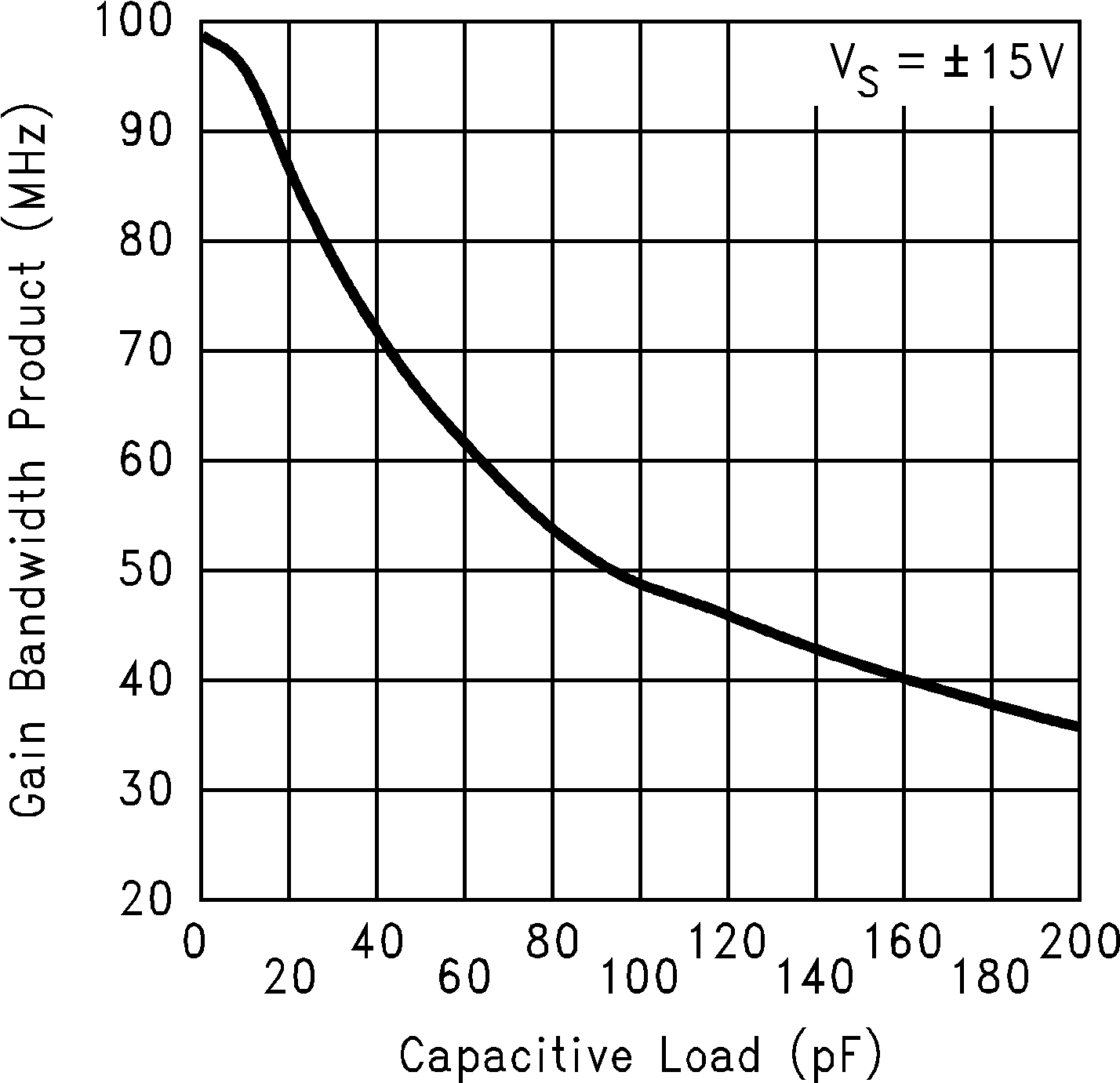

Figure 5-68 Gain Bandwidth Product vs Load Capacitance

Figure 5-70 Large-Signal Voltage Gain vs Load

Figure 5-72 Input Voltage Noise vs Frequency

Figure 5-74 Input Current Noise vs Frequency

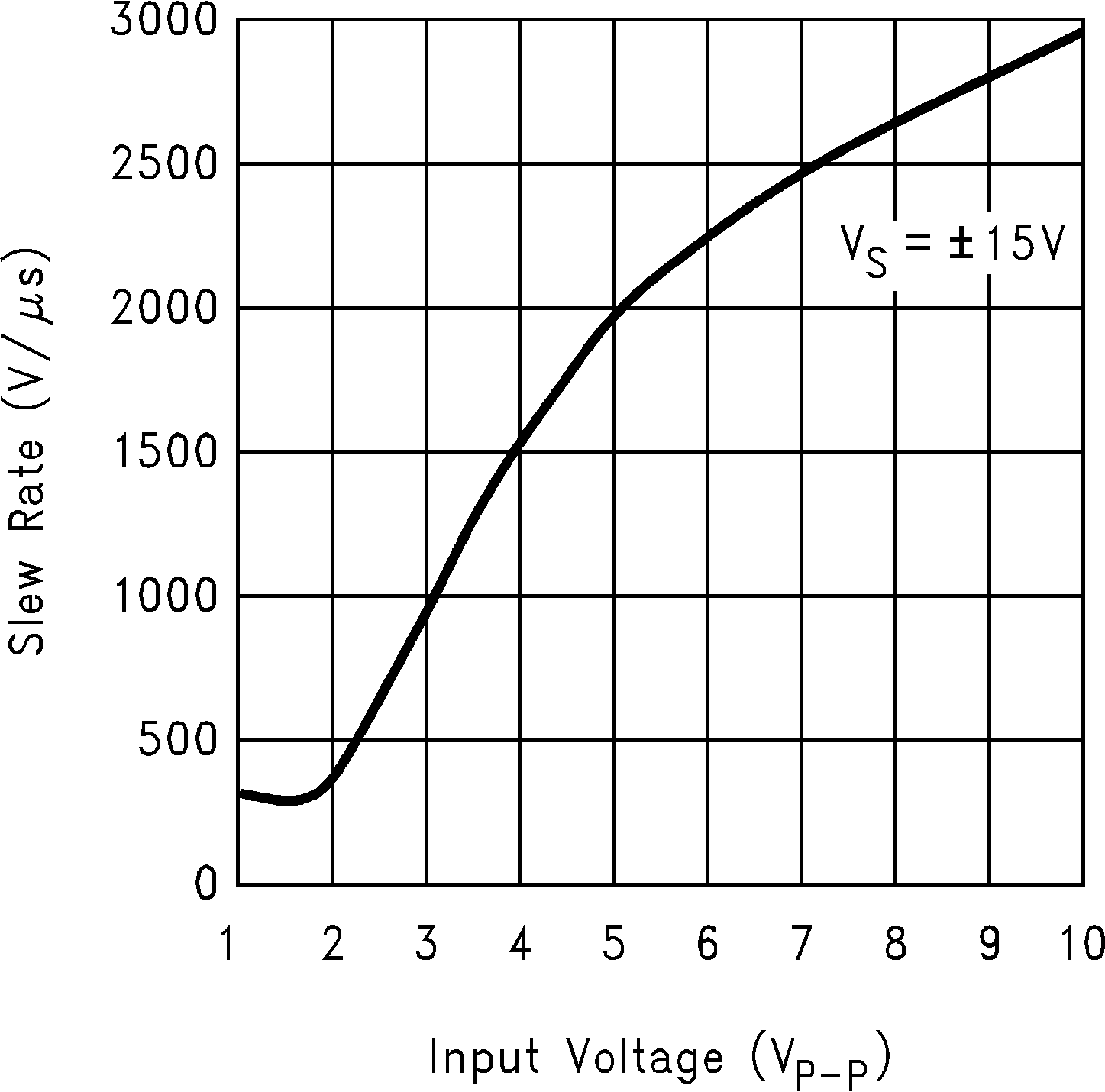

Figure 5-76 Slew Rate vs Input Voltage

Figure 5-78 Open-Loop Output Impedance vs Frequency

A_V = ?1, V_S = ±15 V

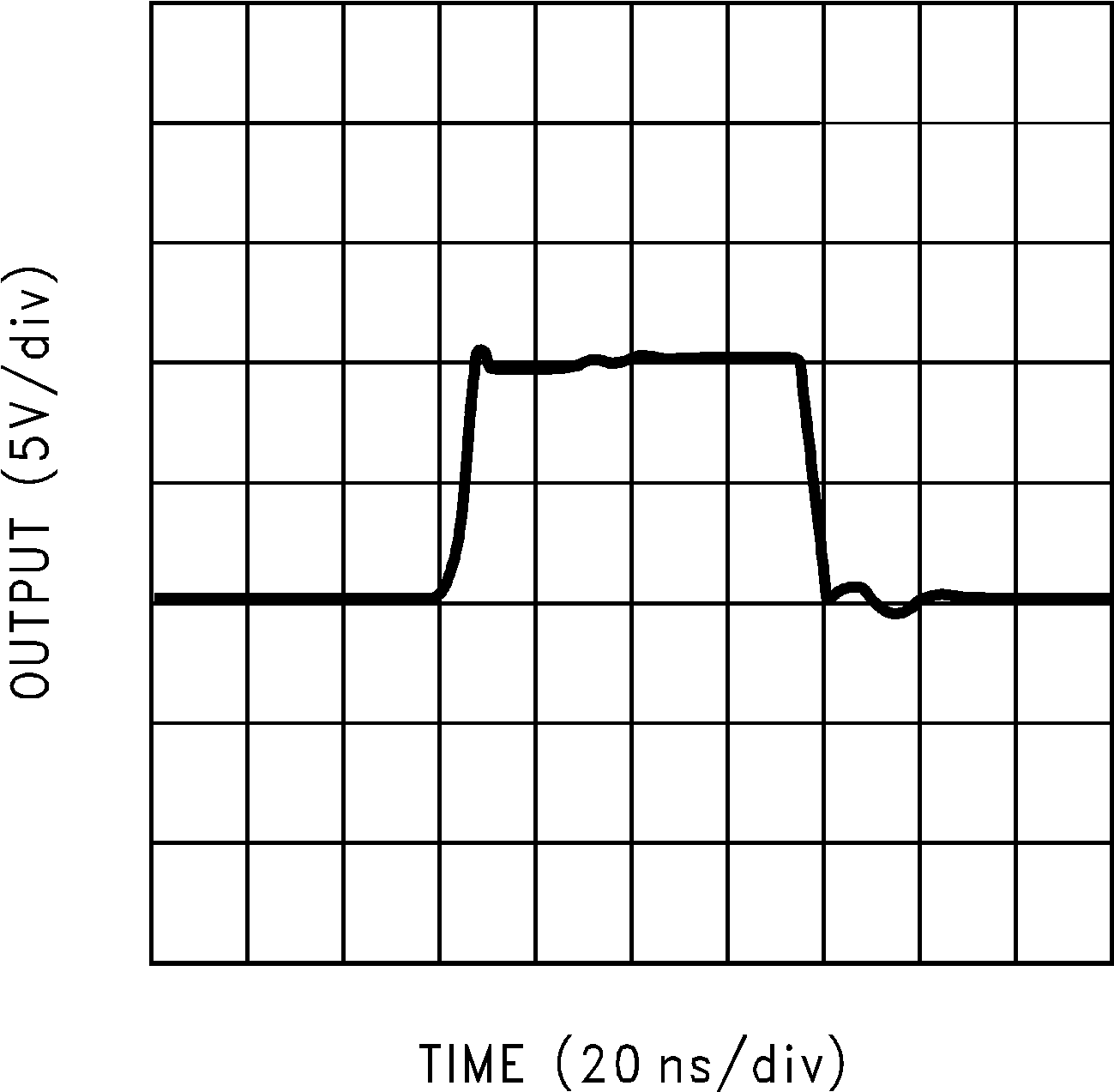

Figure 5-80 Large-Signal Pulse Response

A_V = 1, V_S = ±15 V

Figure 5-82 Large-Signal Pulse Response

A_V = 2, V_S = ±15 V

Figure 5-84 Large-Signal Pulse Response

A_V = ?1, V_S = ±15 V

Figure 5-86 Small-Signal Pulse Response

A_V = 1, V_S = ±15 V

Figure 5-88 Small-Signal Pulse Response

A_V = 2, V_S = ±15 V

Figure 5-90 Small-Signal Pulse Response

A_V = 1

Figure 5-92 Closed-Loop Frequency Response vs Supply Voltage

A_V = 1

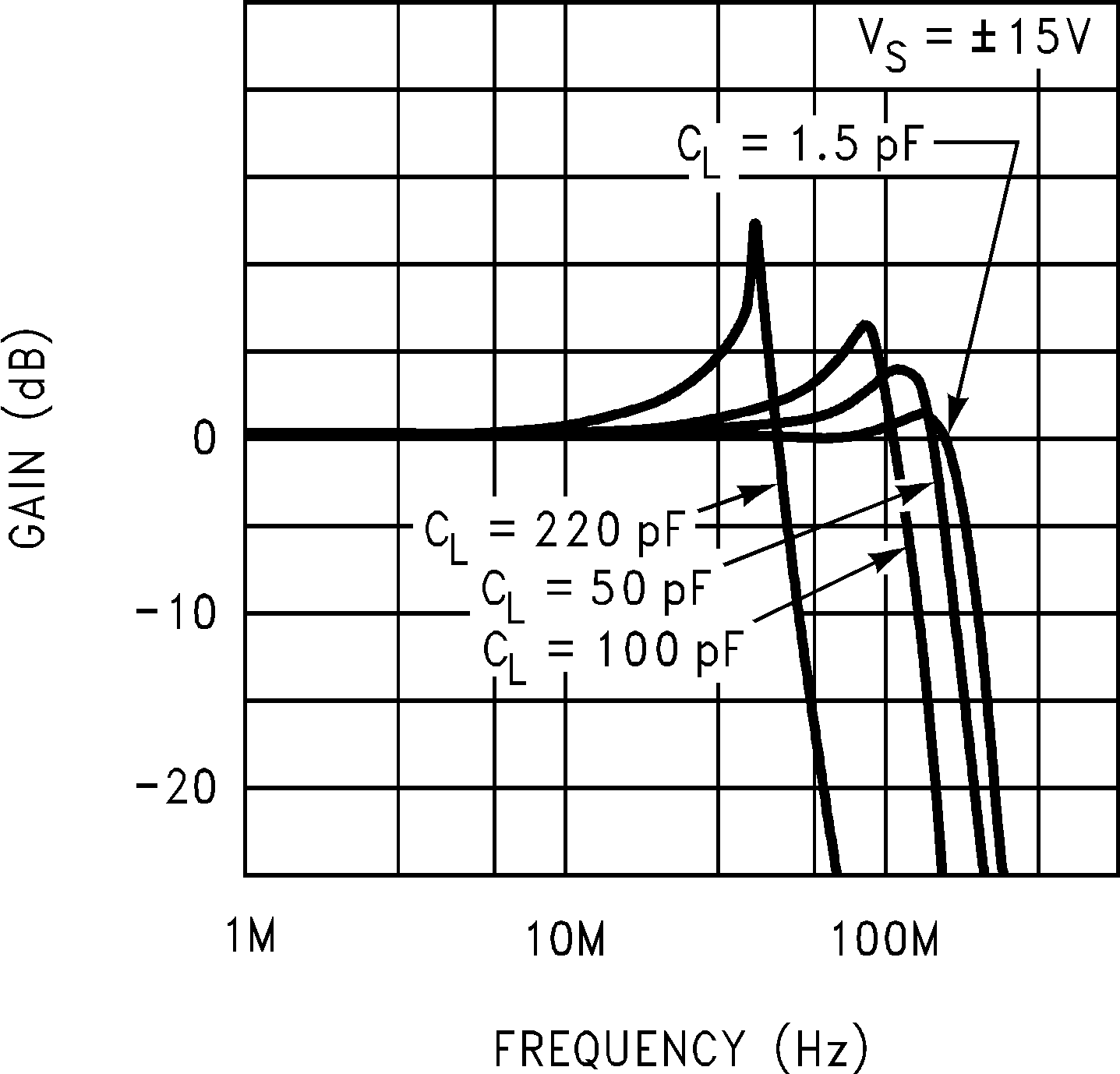

Figure 5-94 Closed-Loop Frequency Response vs Capacitive Load

A_V = 2

Figure 5-96 Closed-Loop Frequency Response vs Capacitive Load

Figure 5-98 Total Harmonic Distortion vs Frequency

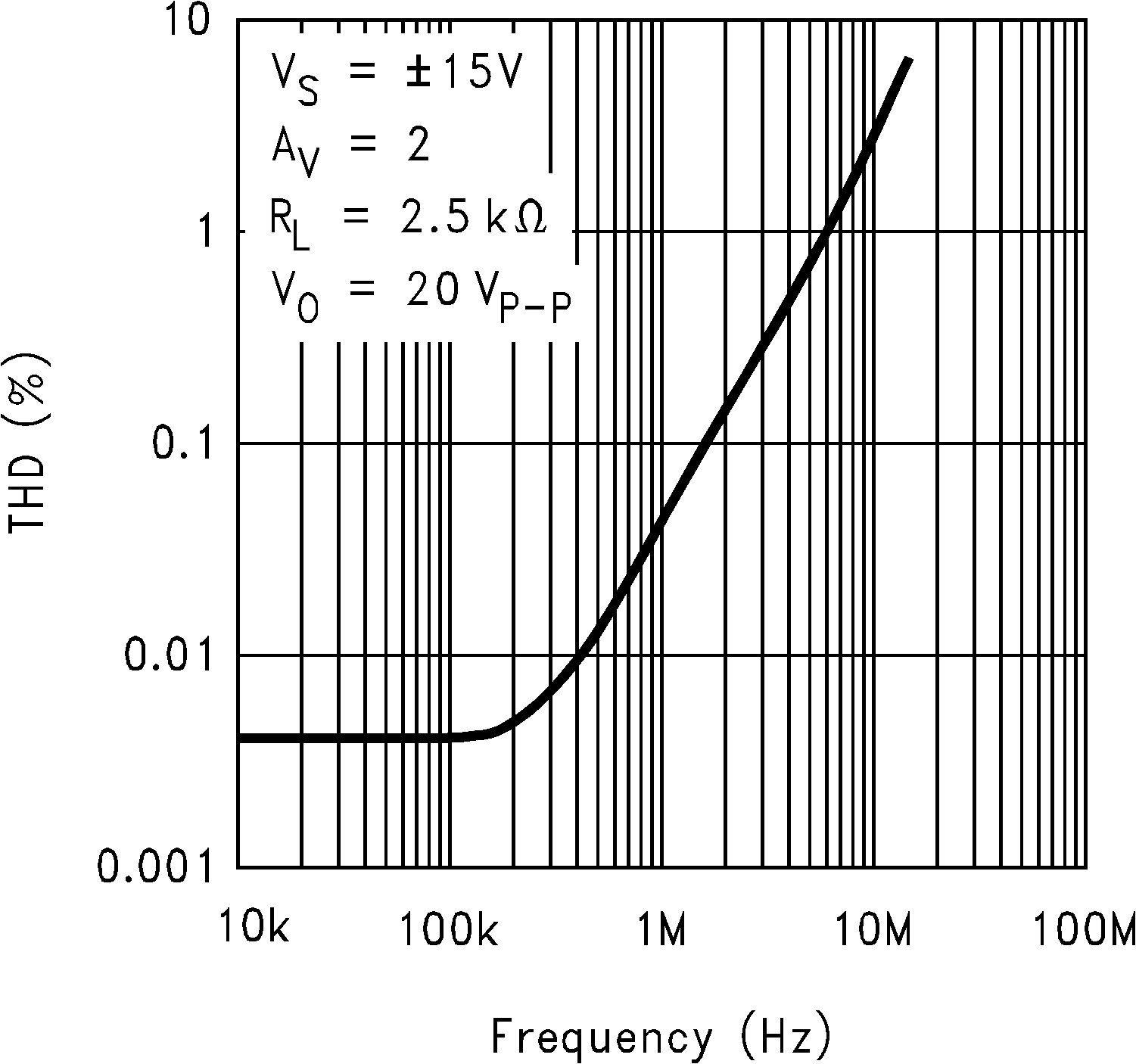

Figure 5-100 Total Harmonic Distortion vs Frequency

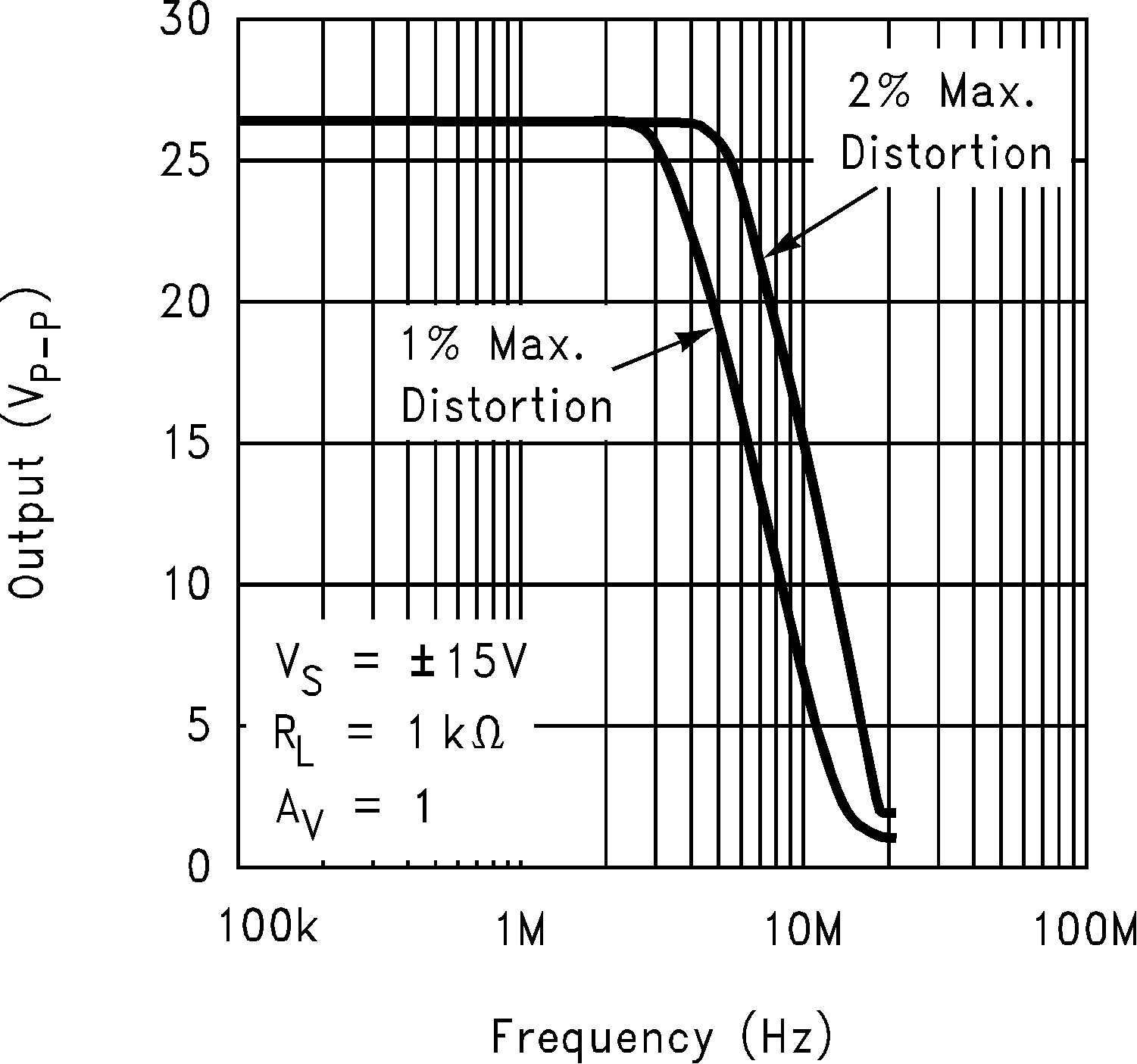

Figure 5-102 Undistorted Output Swing vs Frequency

Figure 5-104 Undistorted Output Swing vs Frequency

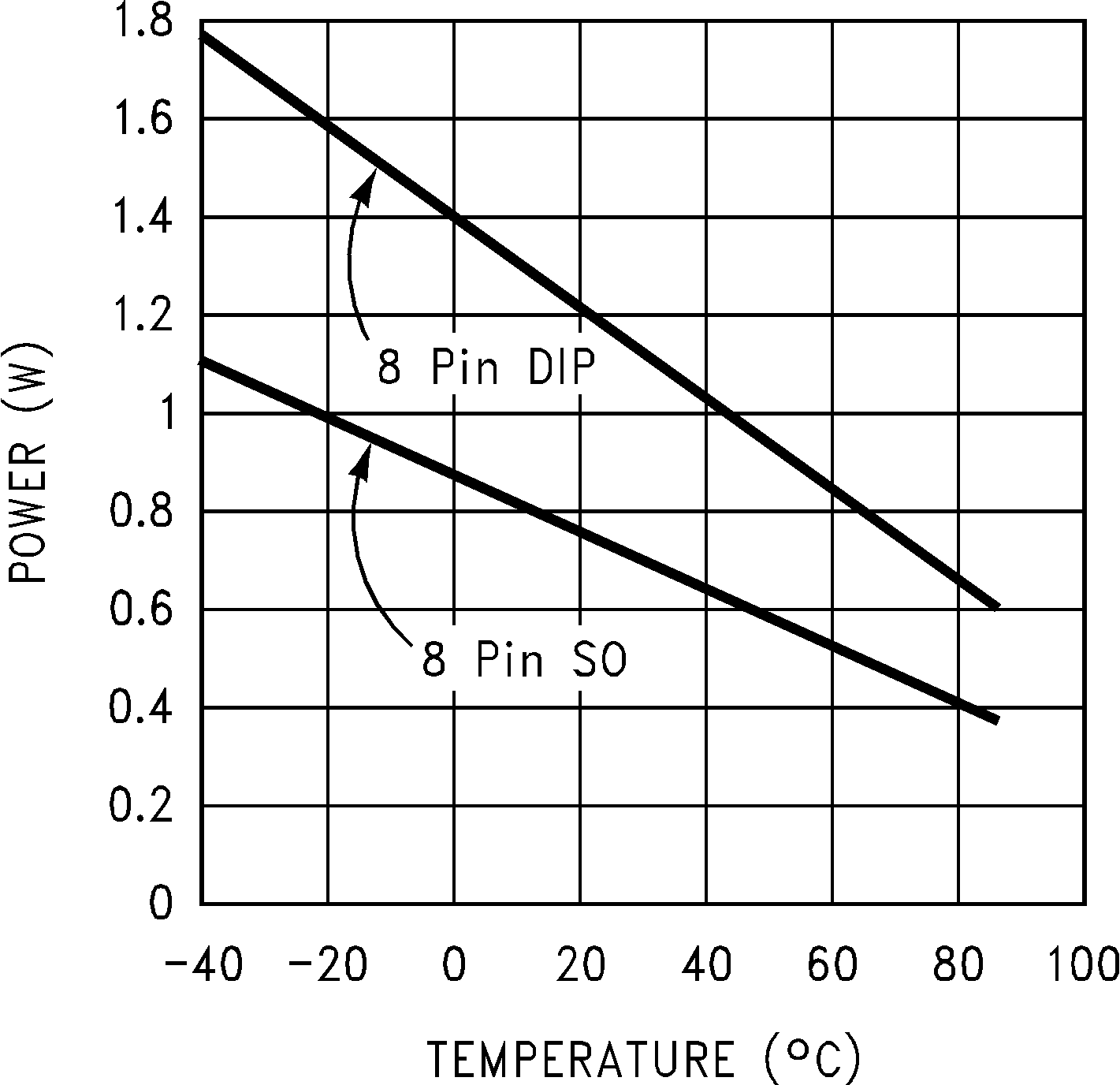

Figure 5-106 Total Power Dissipation vs Ambient Temperature
