5 Pin Configuration and Functions

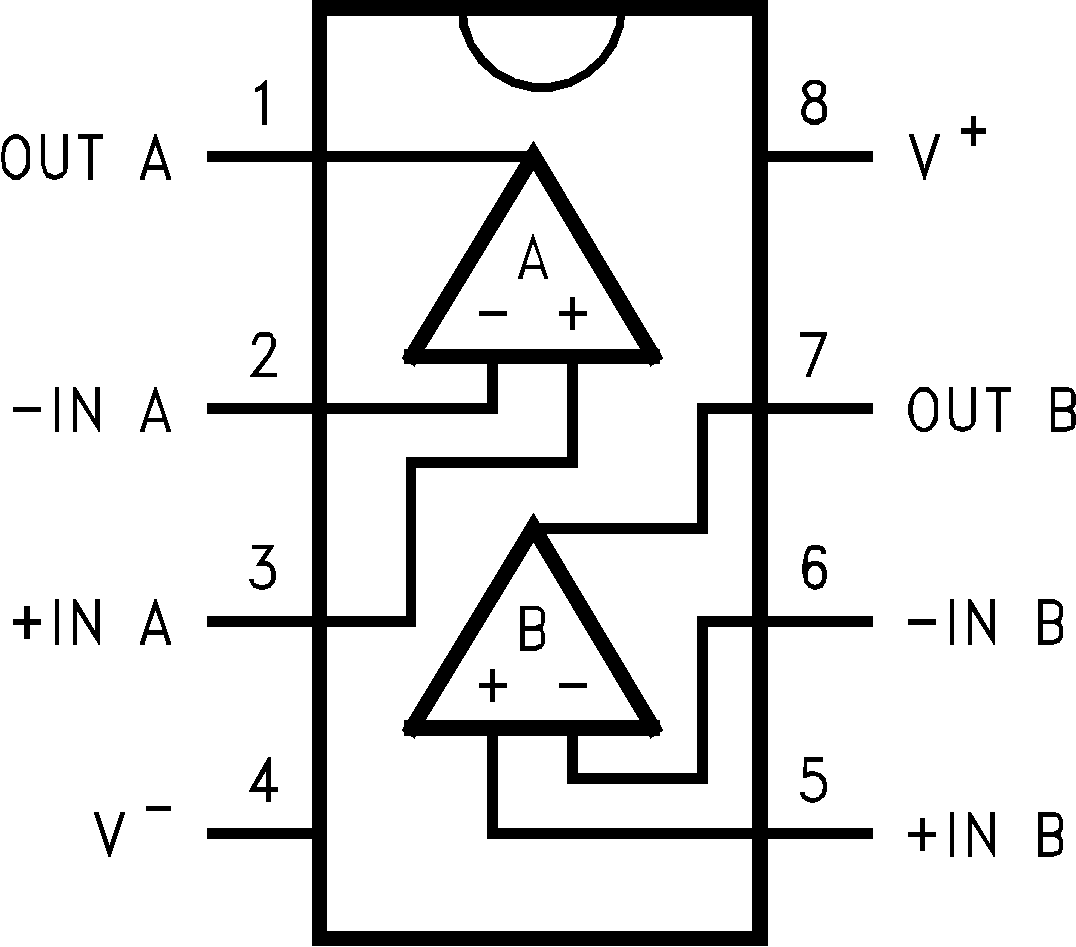

8-Pin
Package D08A
Top View

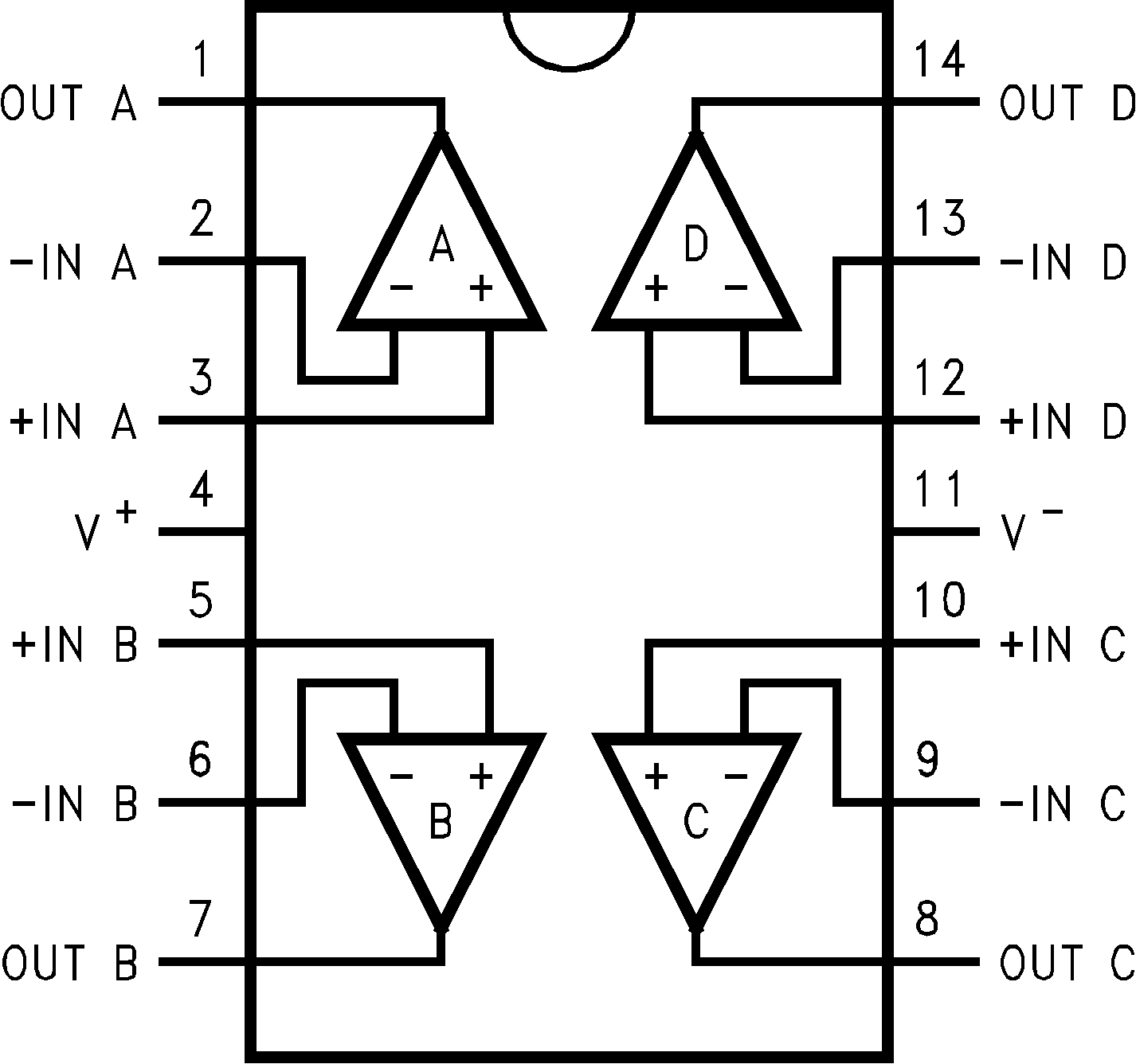

14-Pin
Package D14A
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | LM6152 | LM6154 | ||
| D08A | D14A | |||
| -IN A | 2 | 2 | I | ChA Inverting Input |
| +IN A | 3 | 3 | I | ChA Non-inverting Input |
| -IN B | 6 | 6 | I | ChB Inverting Input |
| +IN B | 5 | 5 | I | ChB Non-inverting Input |
| -IN C | 9 | I | ChC Inverting Input | |
| +IN C | 10 | I | ChC Non-inverting Input | |
| -IN D | 13 | I | ChD Inverting Input | |
| +IN D | 12 | I | ChD Non-inverting Input | |
| OUT A | 1 | 1 | O | ChA Output |
| OUT B | 7 | 7 | O | ChB Output |
| OUT C | 8 | O | ChC Output | |
| OUT D | 14 | O | ChD Output | |
| V- | 4 | 11 | I | Negative Supply |
| V+ | 8 | 4 | I | Positive Supply |
