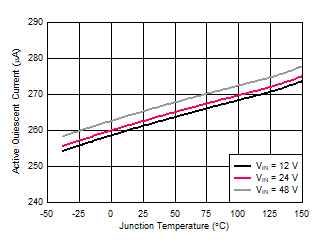

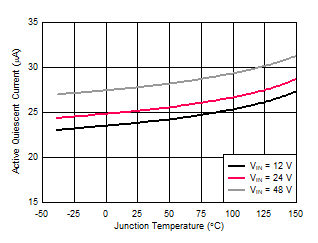

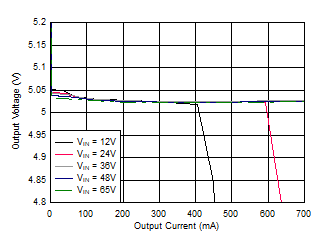

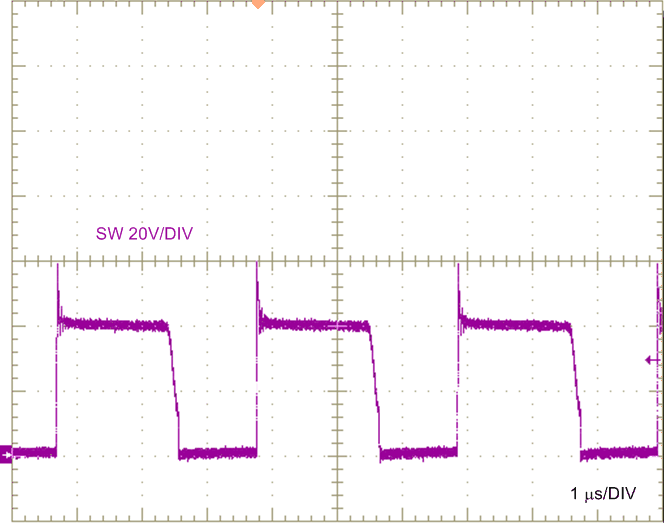

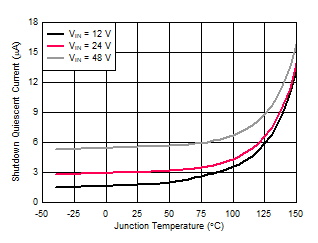

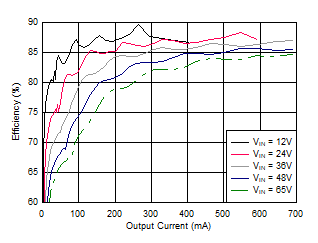

7.6 Typical Characteristics
VIN = 24 V, VEN/UVLO = 2 V (unless otherwise stated).

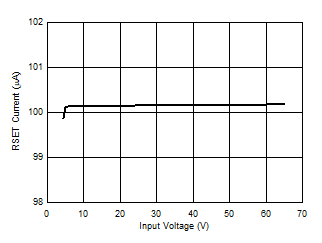

Figure 7-7 RSET Current versus Input Voltage

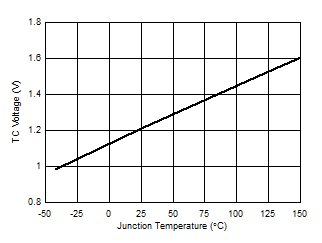

Figure 7-9 TC Voltage versus Temperature

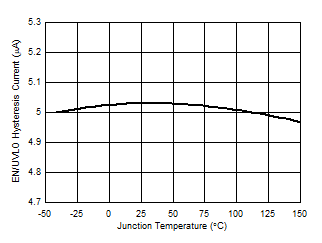

Figure 7-11 EN/UVLO Hysteresis Current versus Temperature

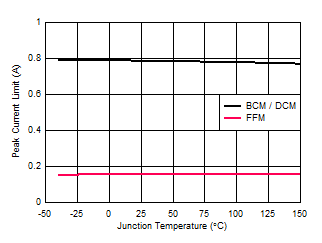

Figure 7-13 Switch Peak Current Limits versus Temperature

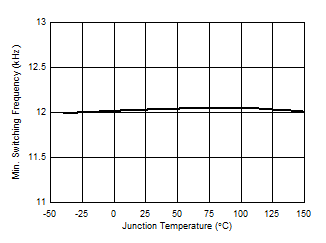

Figure 7-15 Minimum Switching Frequency versus Temperature
| VSS/BIAS = 6 V |

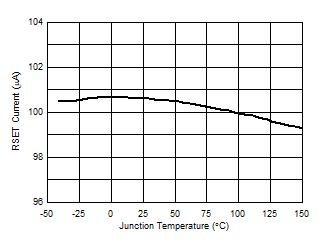

Figure 7-8 RSET Current versus Temperature

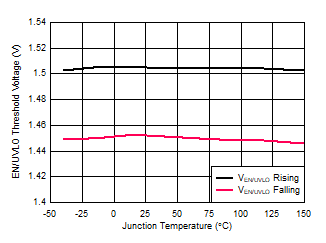

Figure 7-10 EN/UVLO Threshold Voltages versus Temperature

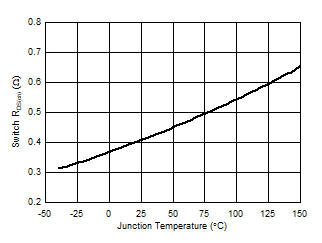

Figure 7-12 MOSFET RDS(on) versus Temperature

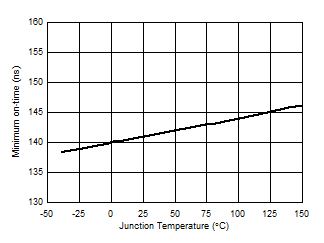

Figure 7-14 Minimum Switch On-Time versus Temperature

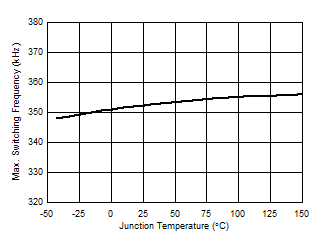

Figure 7-16 Maximum Switching Frequency versus Temperature
