5.6 Typical Characteristics
At TA = 25°C, VOUT = 12 V, LO = 120 μH, RRON = 105 kΩ, unless otherwise specified. At TA = 25°C, VOUT = 12 V, LO = 68 μH, RRON = 105 kΩ, unless otherwise specified.
Figure 5-1 Conversion Efficiency (Log Scale)
Figure 5-3 VIN Shutdown and Sleep Supply Current versus
Temperature
Figure 5-5 VIN Active Current versus Temperature
Figure 5-7 Feedback Comparator Threshold versus Temperature
Figure 5-9 Peak
and Valley Current Limit versus Temperature
Figure 5-2 Conversion Efficiency (Linear Scale)

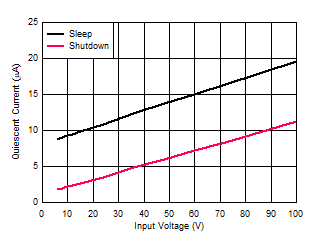

Figure 5-4 VIN Shutdown and Sleep Supply Current versus Input
Voltage

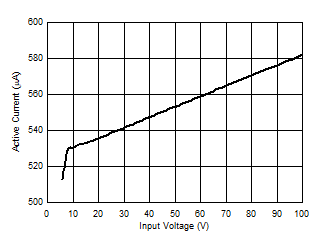

Figure 5-6 VIN Active Current versus Input Voltage
Figure 5-8 MOSFETs On-State Resistance versus Temperature
Figure 5-10 COT
On-Time versus VIN
