7.6 Typical Characteristics

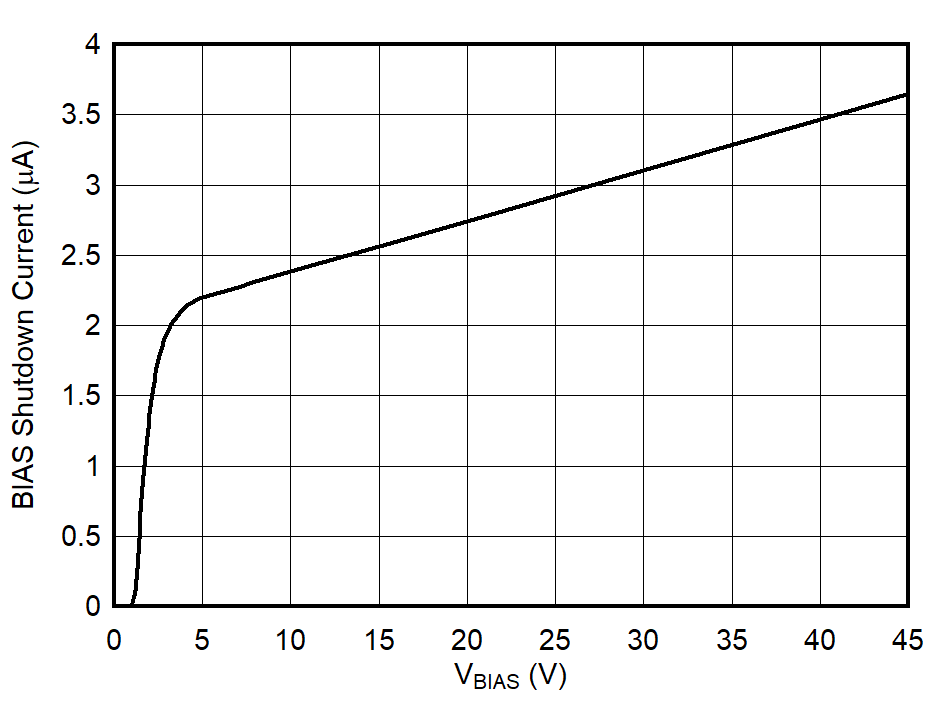

Figure 7-1 BIAS
Shutdown Current vs VBIAS

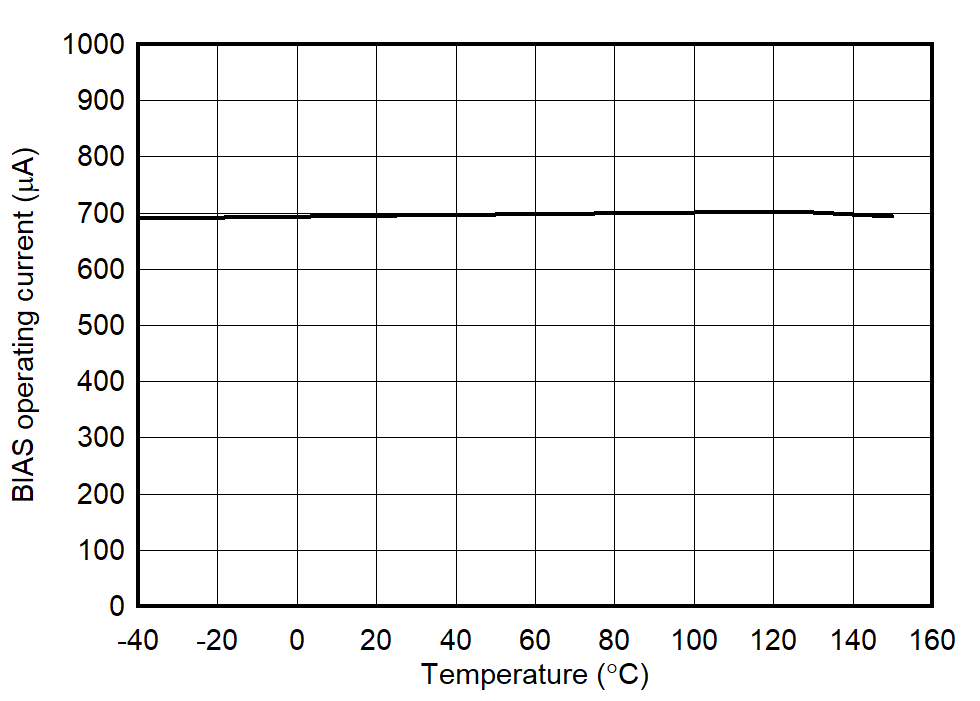

Figure 7-3 BIAS
Operating Current vs Temperature

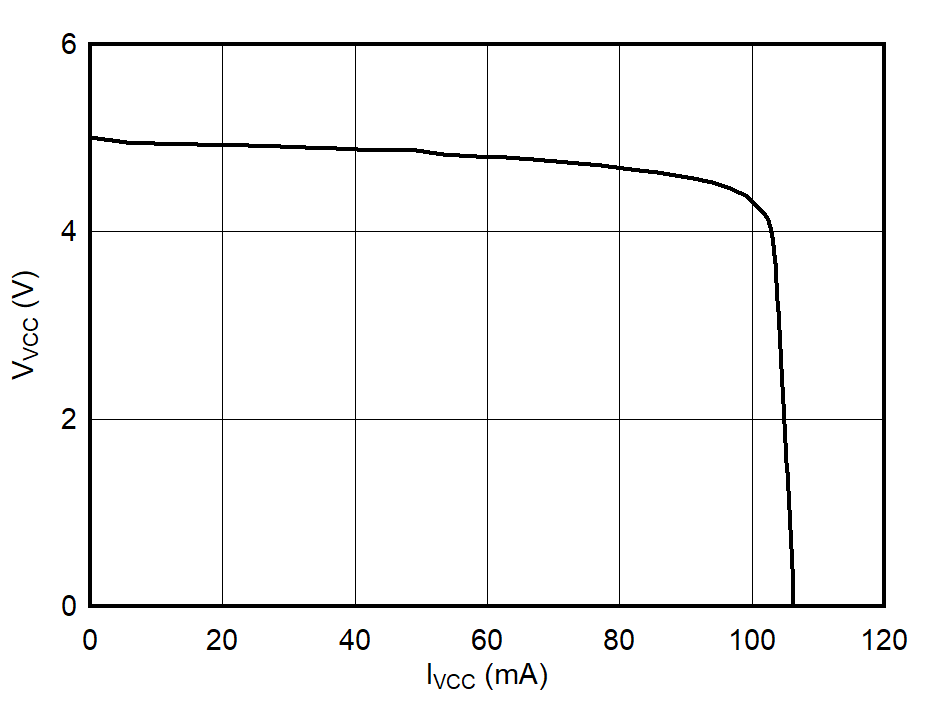

Figure 7-5 VVCC vs
IVCC

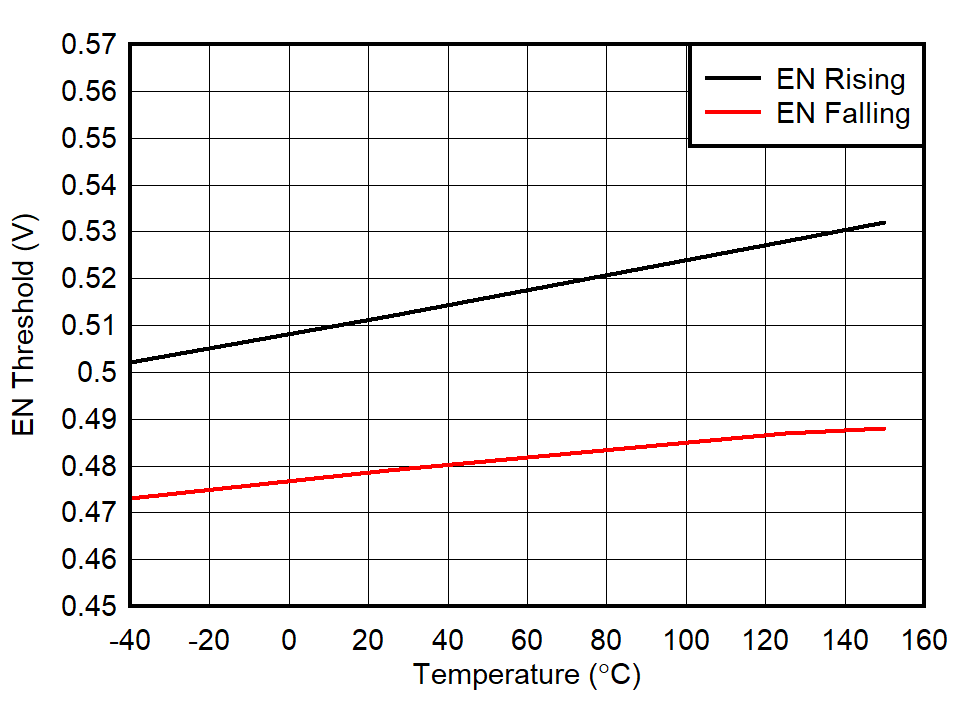

Figure 7-7 EN
Threshold vs Temperature

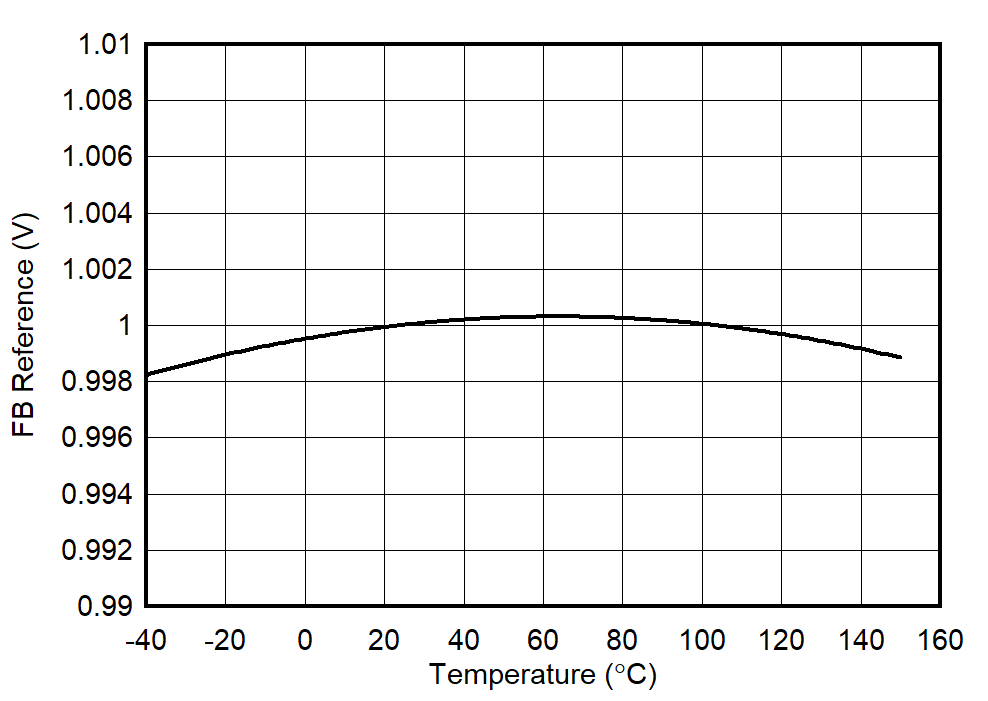

Figure 7-9 FB
Reference vs Temperature

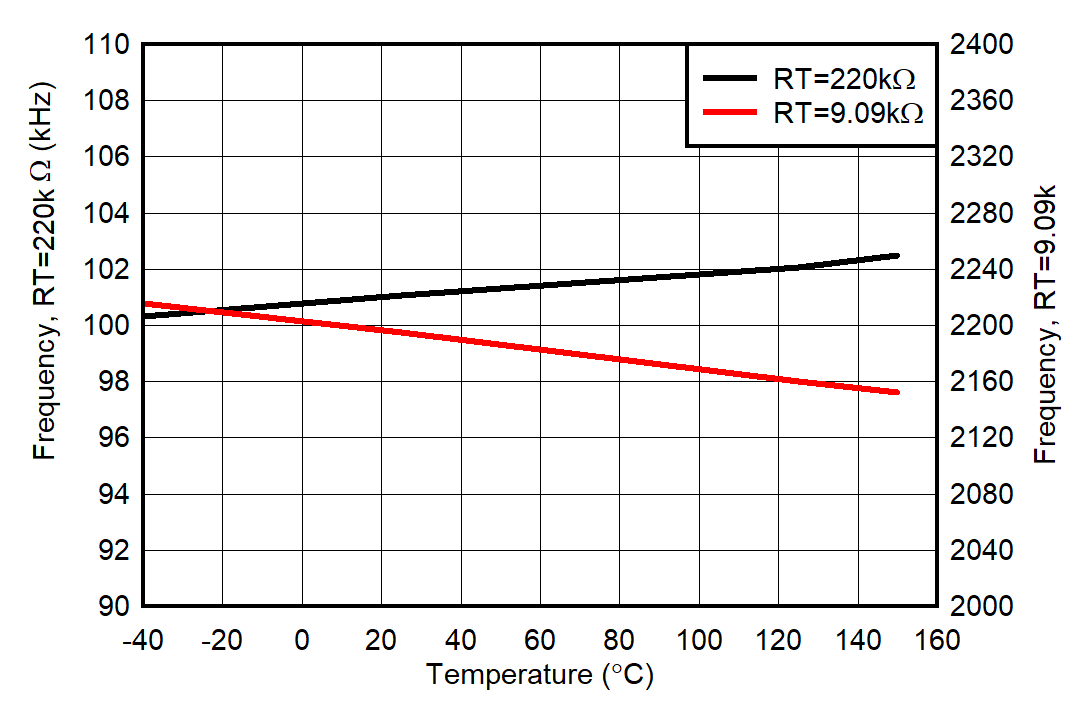

Figure 7-11 Frequency vs Temperature

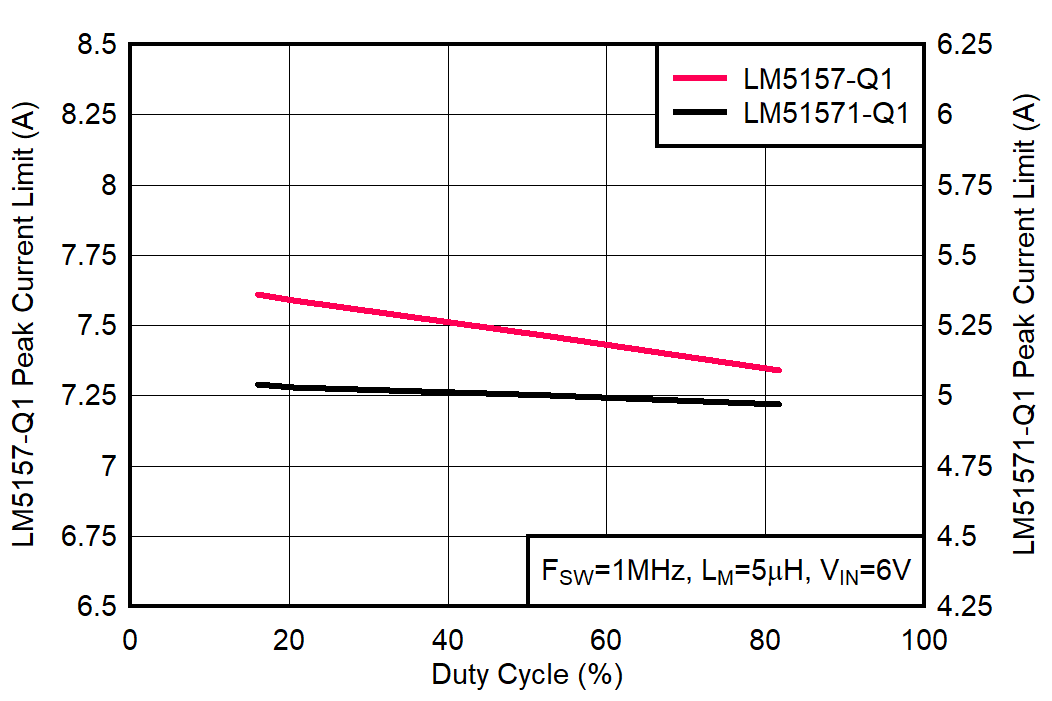

Figure 7-13 Peak
Current Limit vs Duty Cycle

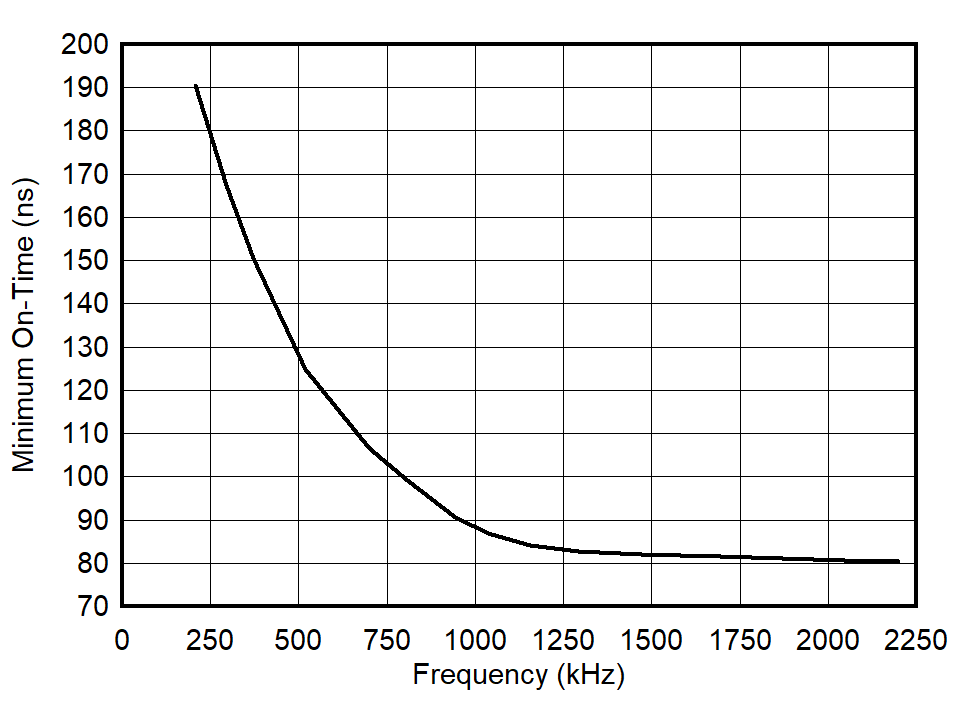

Figure 7-15 Minimum On Time vs Frequency

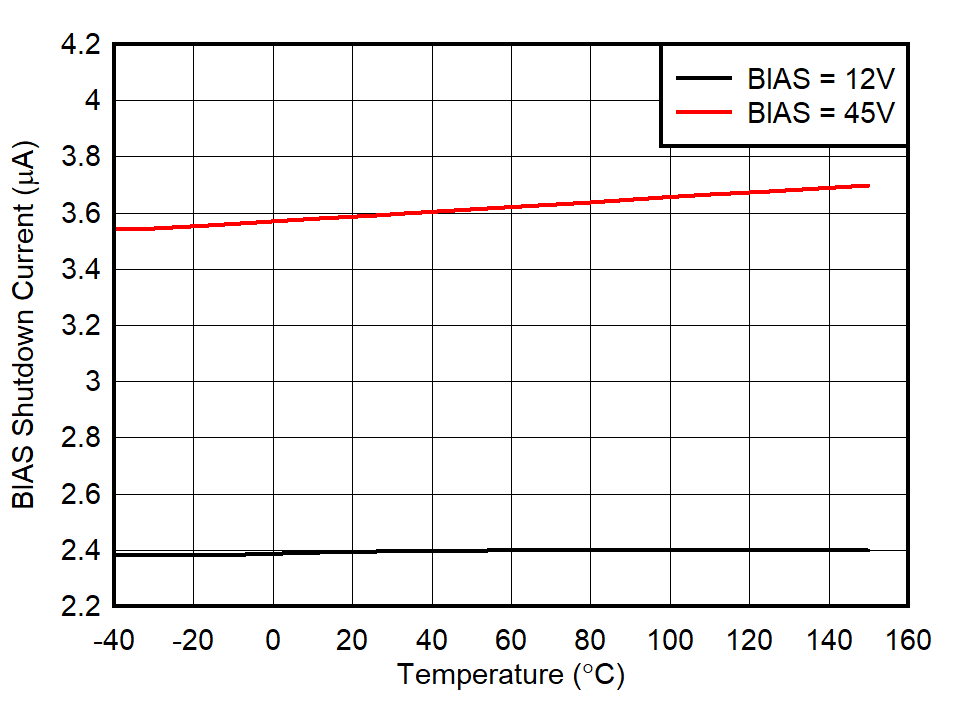

Figure 7-2 BIAS
Shutdown Current vs Temperature

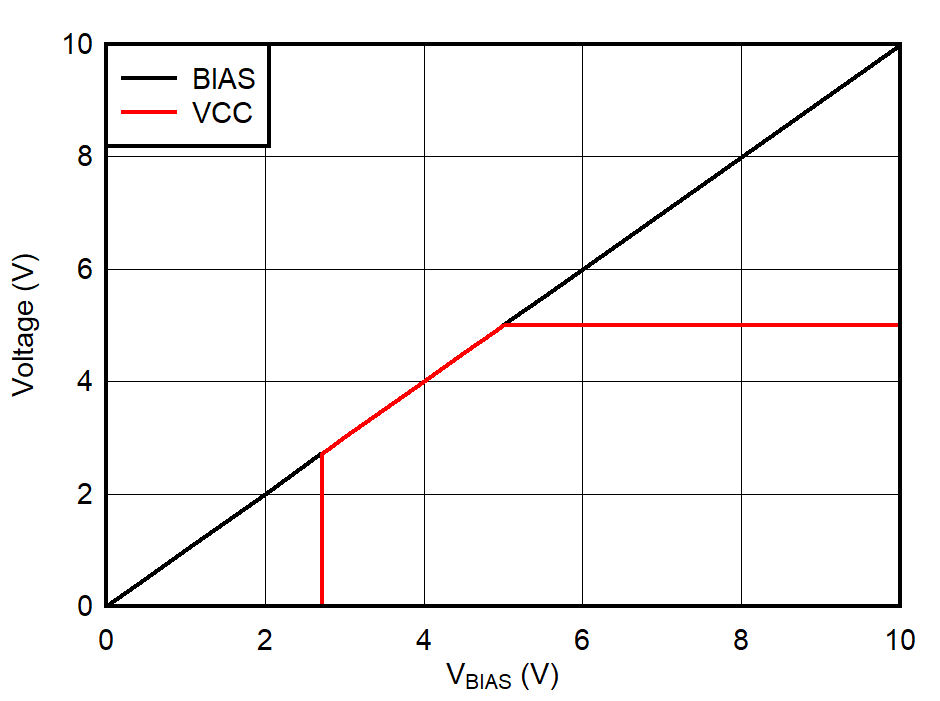

Figure 7-4 VVCC vs VBIAS

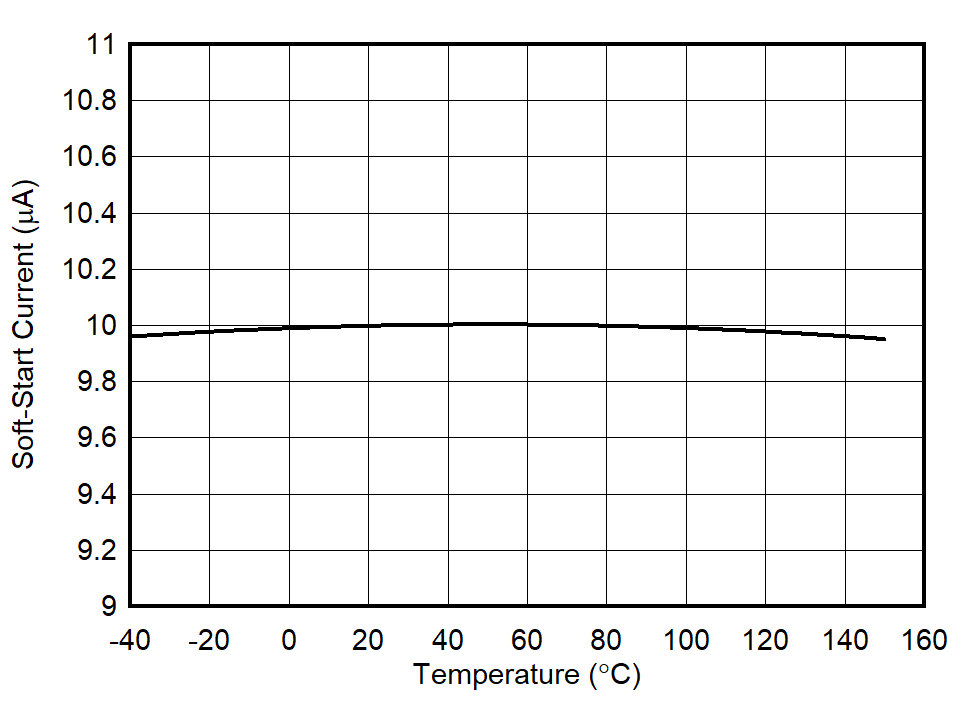

Figure 7-6 ISS vs Temperature

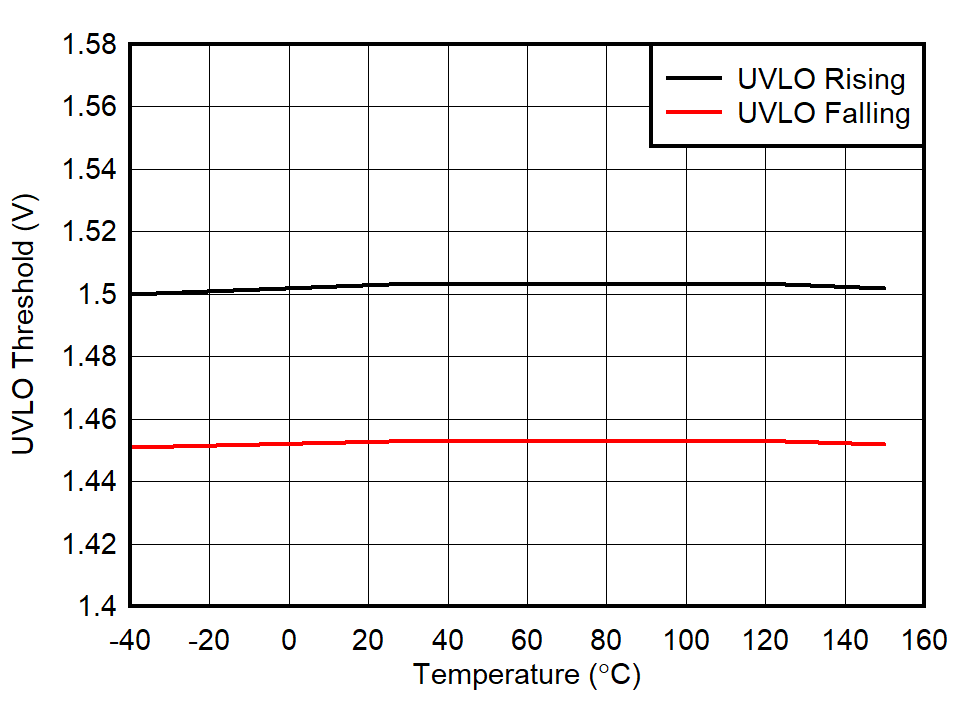

Figure 7-8 UVLO
Threshold vs Temperature

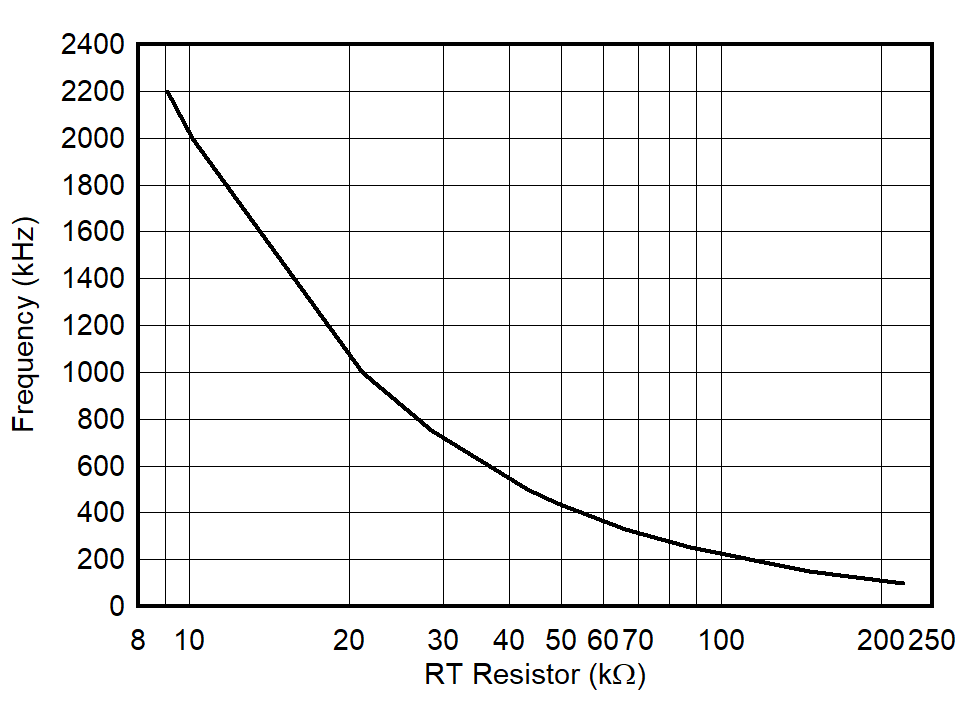

Figure 7-10 Frequency vs RT Resistance

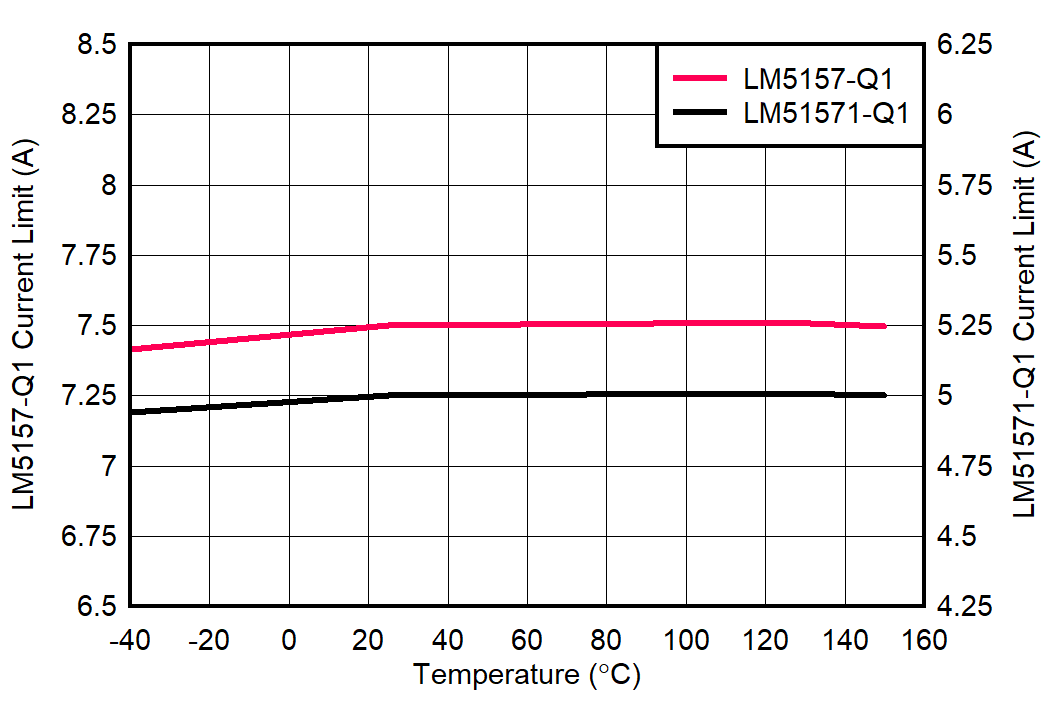

Figure 7-12 Current Limit Threshold vs Temperature

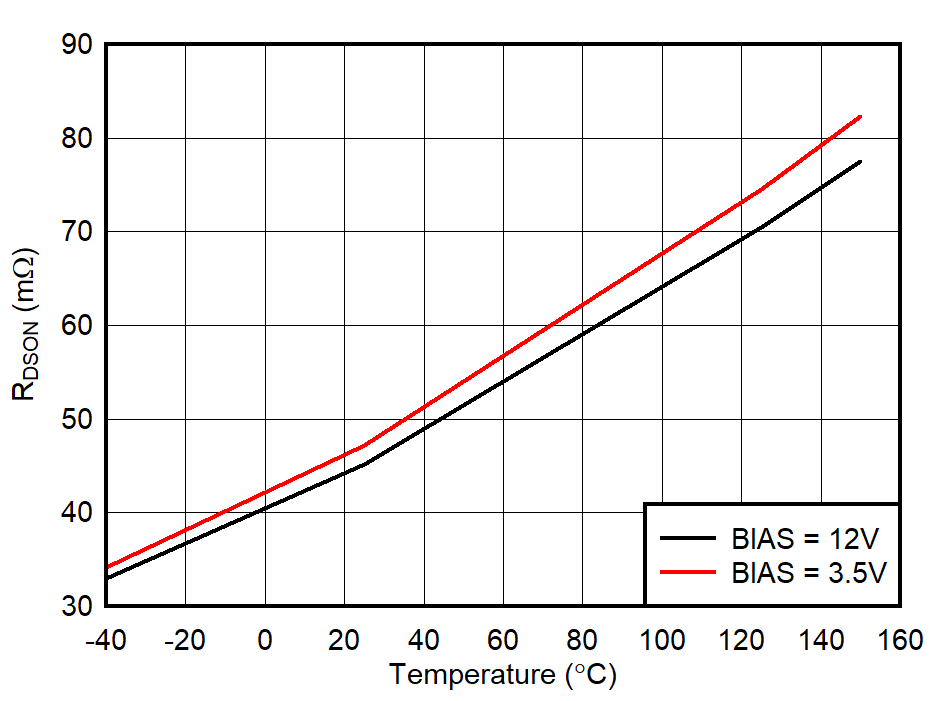

Figure 7-14 Internal MOSFET Drain Source On-state Resistance vs Temperature

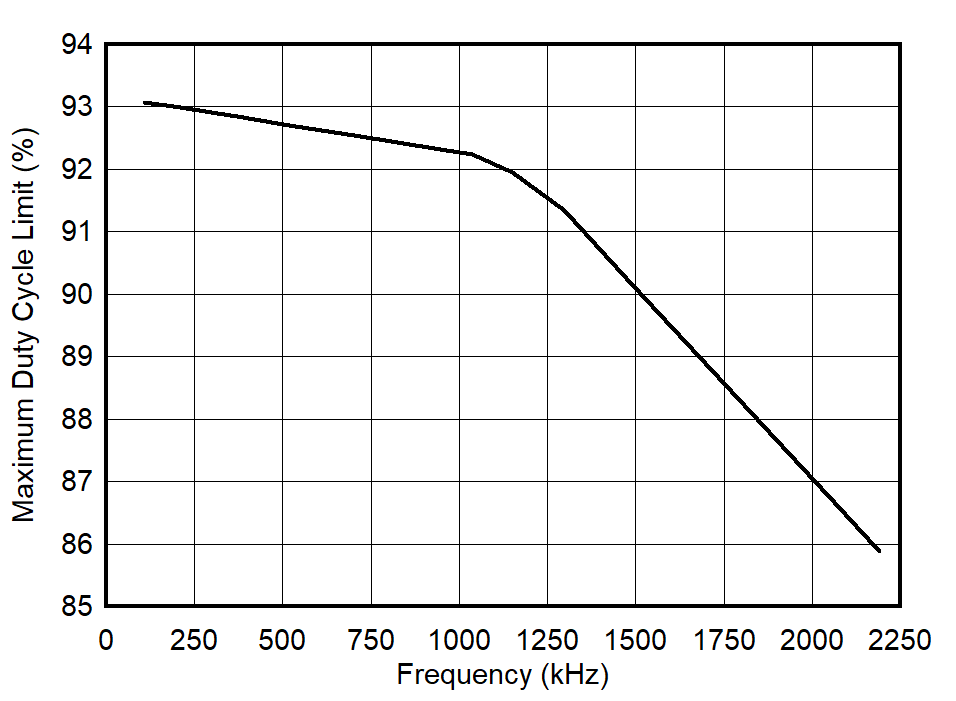

Figure 7-16 Maximum Duty Cycle Limit vs Frequency
