7.7 Typical Characteristics
VVIN = 48 V, RRT = 25 k?, SYNCIN tied to VCC, EN/UVLO tied to VIN (unless otherwise noted).

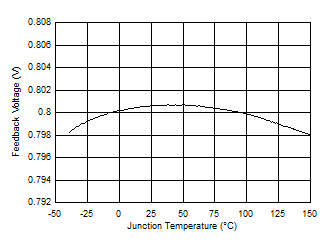

Figure 7-3 FB
Voltage vs Junction Temperature
| VSW = 0 V | VEN/UVLO = 0 V |
| VSW = 0 V | VEN/UVLO = VVIN | VSS/TRK = 0 V |
| VSW = 0 V | VVCC = VBST = VILIM | VFB = 0 V |
| VSW = 0 V |

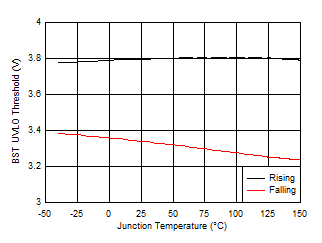

Figure 7-13 BST
UVLO Thresholds vs Junction Temperature

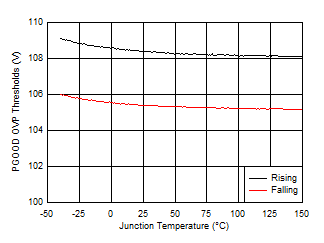

Figure 7-15 PGOOD
OVP Thresholds vs Junction Temperature
| RRT = 25 kΩ |

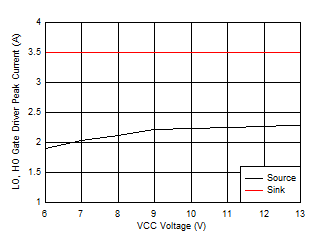

Figure 7-21 Gate
Driver Peak Current vs VCC Voltage
| VIN = 5.5 V |

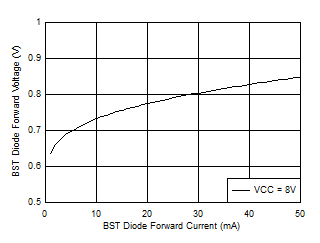

Figure 7-27 BST
Diode Forward Voltage vs Current

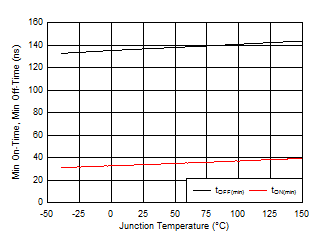

Figure 7-4 tON(min) and tOFF(min) vs Junction
Temperature
| VSW = 0 V | VEN/UVLO = 1 V |
| VSW = 0 V | HO, LO Open |

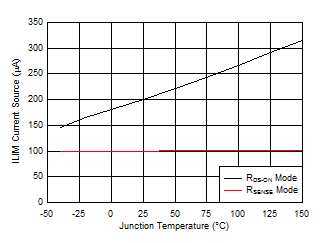

Figure 7-10 ILIM
Current Source vs Junction Temperature

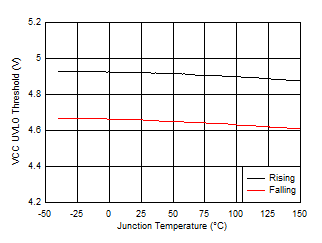

Figure 7-12 VCC
UVLO Thresholds vs Junction Temperature

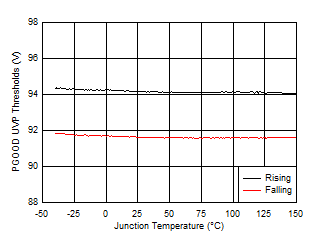

Figure 7-14 PGOOD
UVP Thresholds vs Junction Temperature

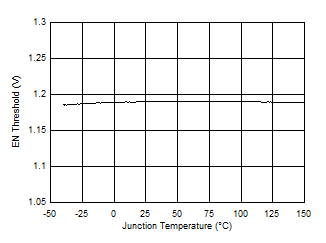

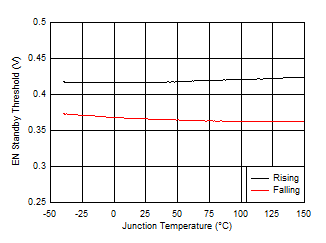

Figure 7-16 EN/UVLO Threshold vs Junction Temperature
| VSW = 0 V |

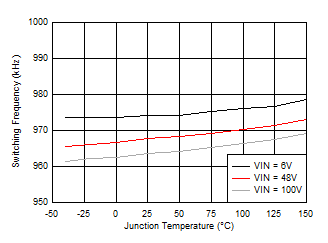

| RRT = 10 kΩ |
Figure 7-22 HO
Driver Resistance vs VCC Voltage
| VSS/TRK = 0 V |
| VIN = 12 V |

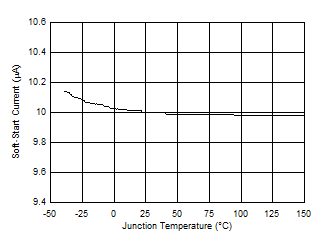

Figure 7-28 SS/TRK Current Source vs Junction Temperature
