5 Pin Configuration and Functions

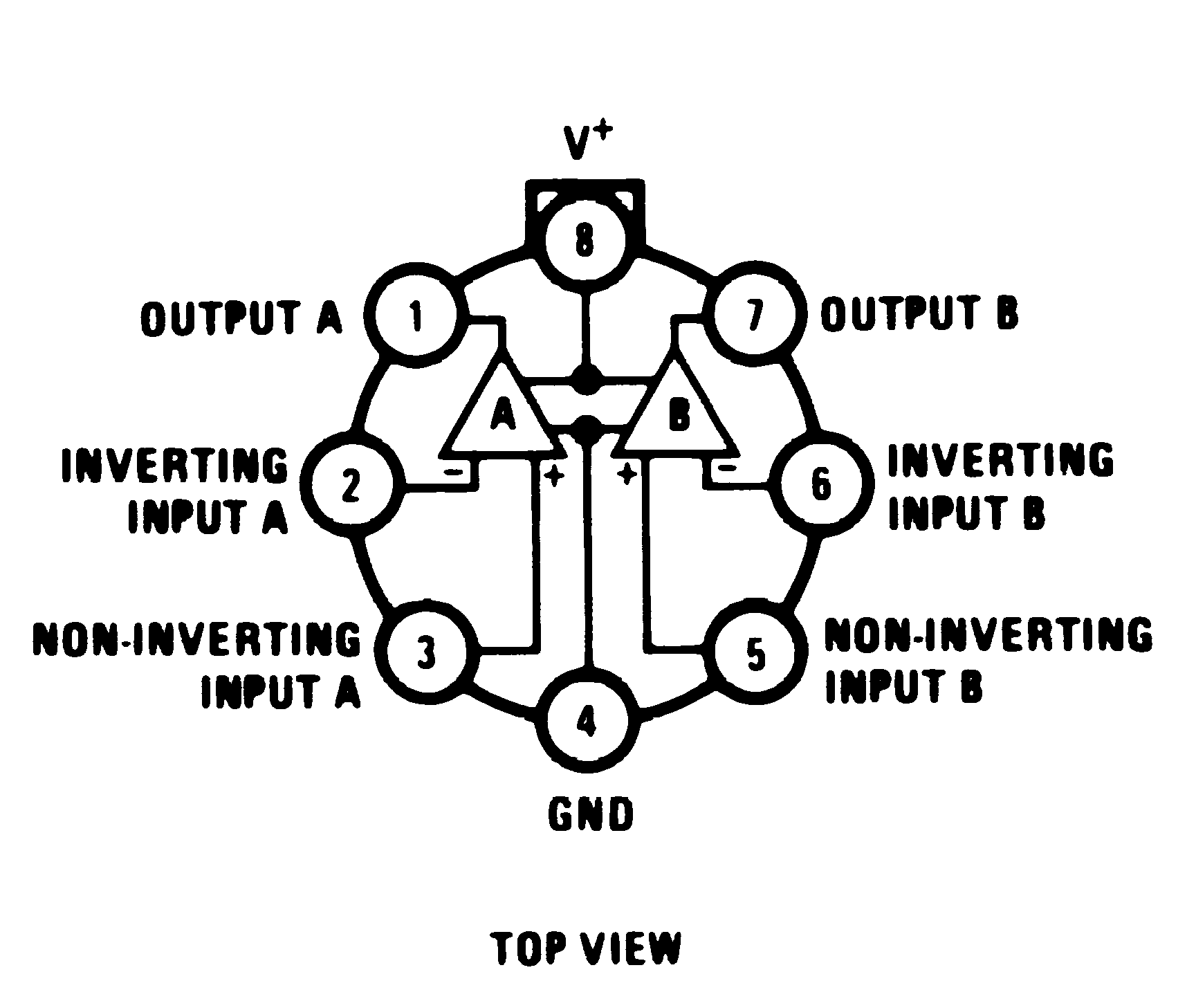

LMC Package
8-Pin TO-99
Top View

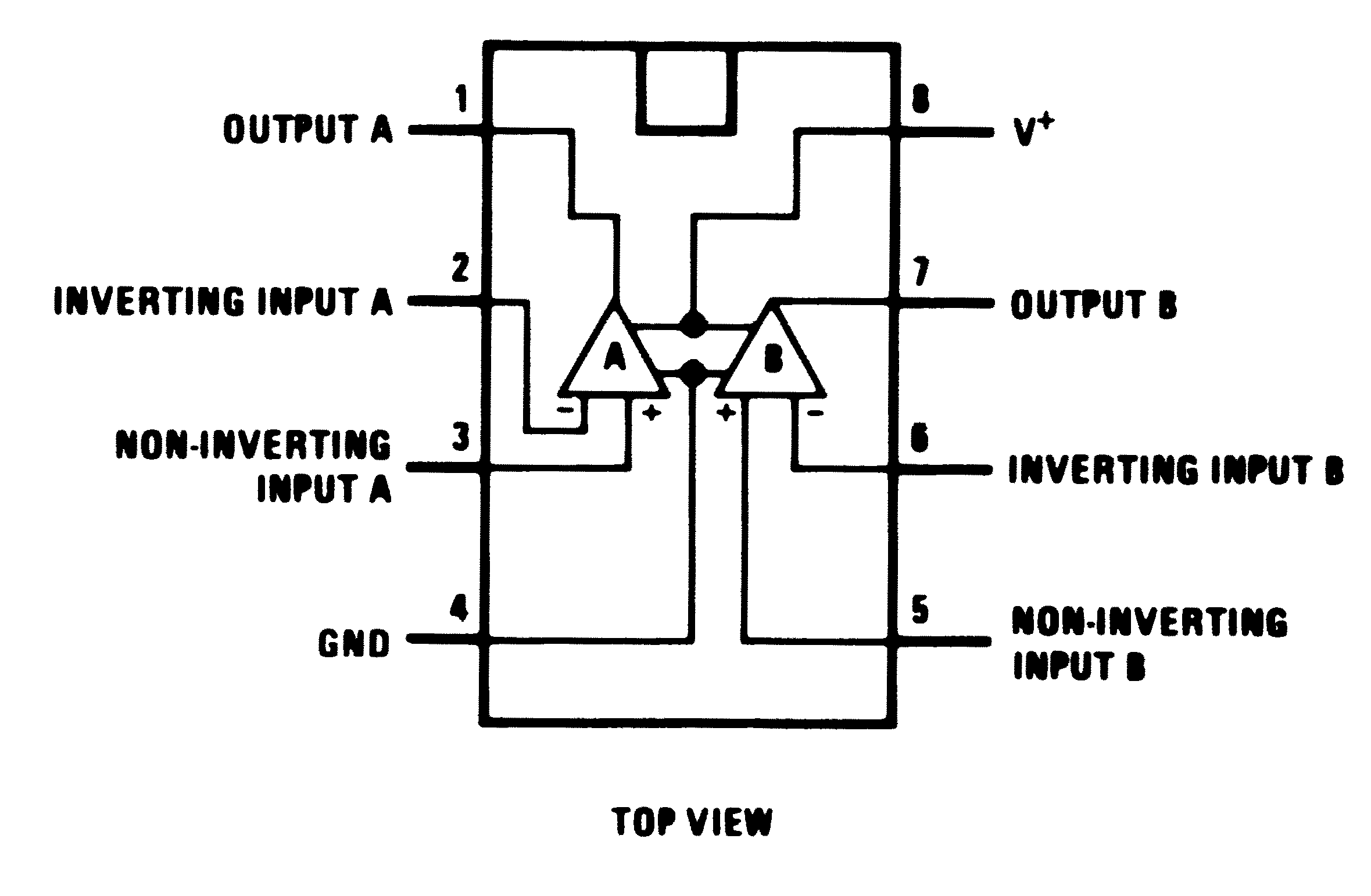

P and D Package
8-Pin CDIP, PDIP, SOIC
Top View

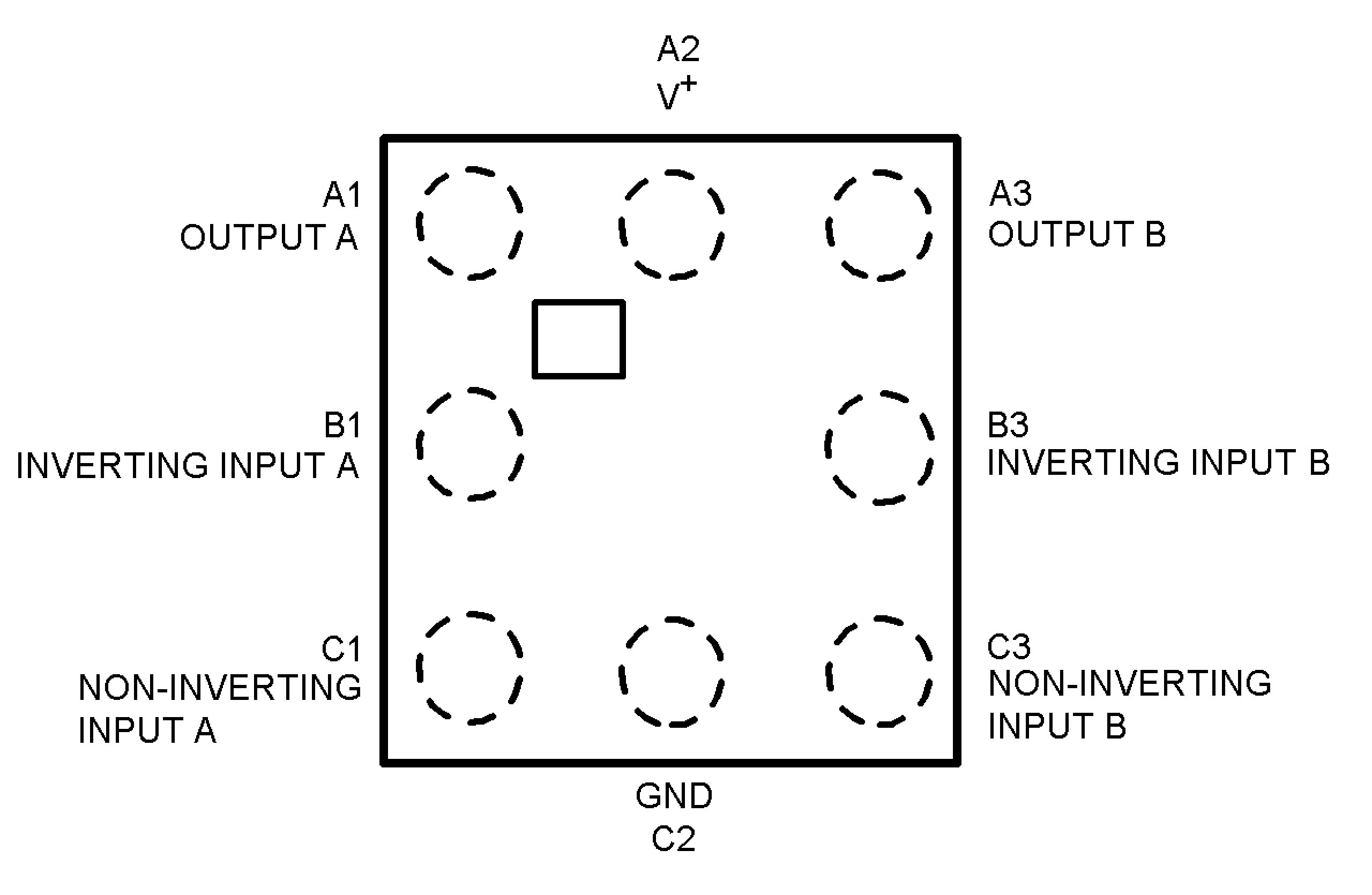

YZR Package
8-Pin DSBGA
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | NO. | |||
| PDIP/SOIC/TO-99 | DSBGA | |||
| OUTA | 1 | A1 | O | Output, Channel A |
| -INA | 2 | B1 | I | Inverting Input, Channel A |
| +INA | 3 | C1 | I | Noninverting Input, Channel A |
| GND | 4 | C2 | P | Ground |
| +INB | 5 | C3 | I | Noninverting Input, Channel B |
| -INB | 6 | B3 | I | Inverting Input, Channel B |
| OUTB | 7 | A3 | O | Output, Channel B |
| V+ | 8 | A2 | P | Positive power supply |
