9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.
9.1 Application Information
ISO764x use single-ended TTL-logic switching technology. Its supply voltage range is from 3 V to 5.5 V for both supplies, VCC1 and VCC2. When designing with digital isolators, it is important to note that due to the single-ended design structure, digital isolators do not conform to any specific interface standard and are only intended for isolating single-ended CMOS or TTL digital signal lines. The isolator is typically placed between the data controller (that is, μC or UART), and a data converter or a line transceiver, regardless of the interface type or standard.
9.2 Typical Application

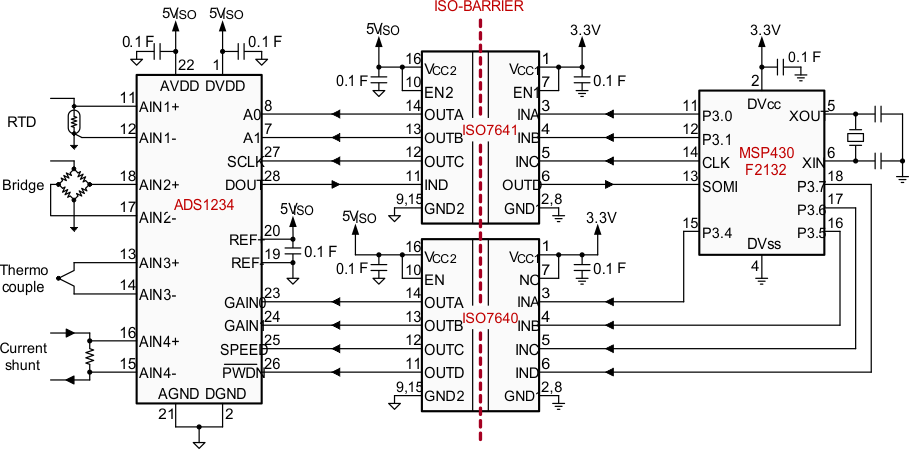

Figure 16. Isolated Data Acquisition System for Process Control
9.2.1 Design Requirements
Unlike optocouplers, which require external components to improve performance, provide bias, or limit current, the ISO764x device only requires two external bypass capacitors to operate.
9.2.2 Detailed Design Procedure

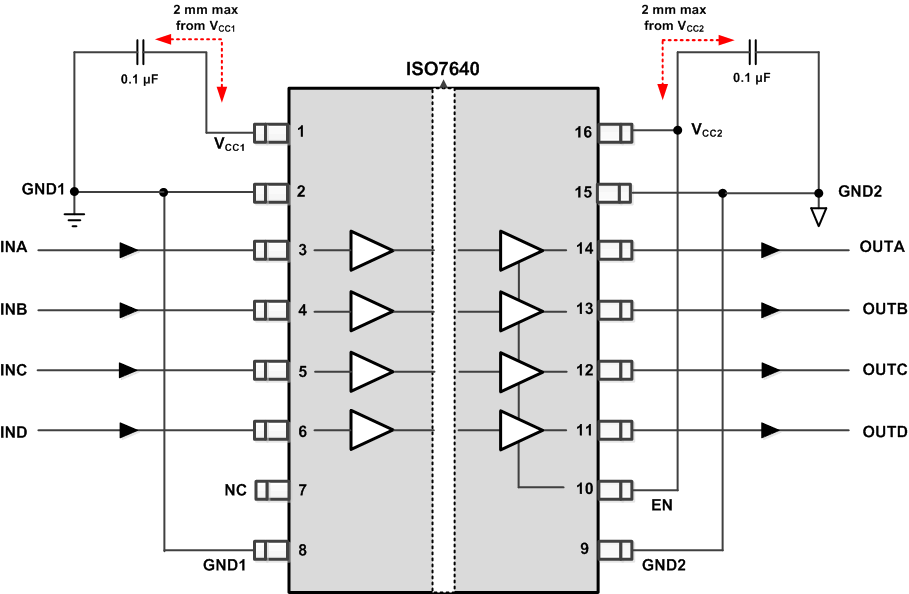

Figure 17. Typical ISO7640FM Circuit Hookup

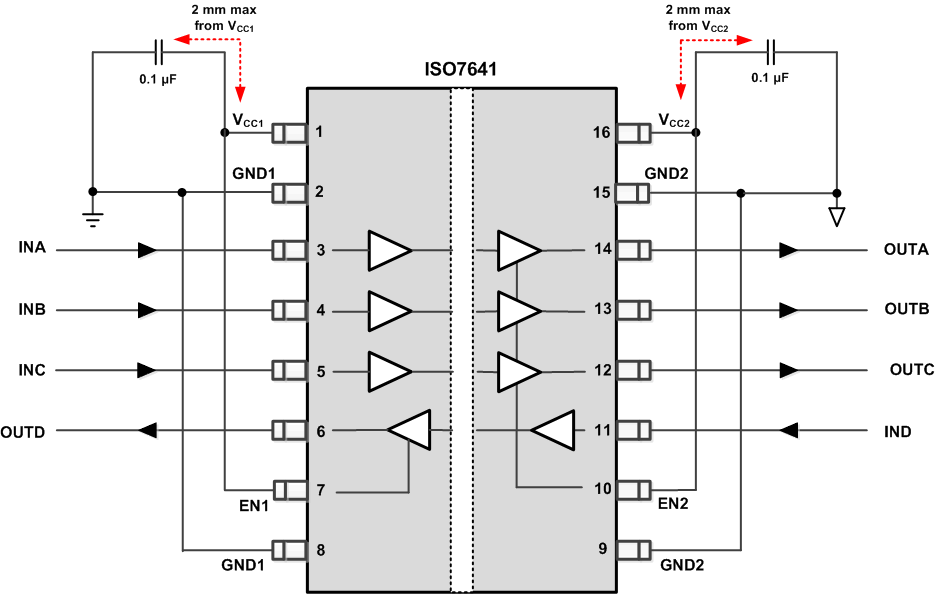

Figure 18. Typical ISO7641FM Circuit Hookup
9.2.2.1 Typical Supply Current Equations
(Calculated based on room temperature and typical Silicon process)
ISO7640FM:
At VCC1 = VCC2 = 3.3 V
At VCC1 = VCC2 = 5 V
ISO7641FM:
At VCC1 = VCC2 = 3.3 V
At VCC1 = VCC2 = 5 V
ICC1 and ICC2 are typical supply currents measured in mA; f is data rate measured in Mbps; CL is the capacitive load on each channel measured in pF.
9.2.3 Application Curves

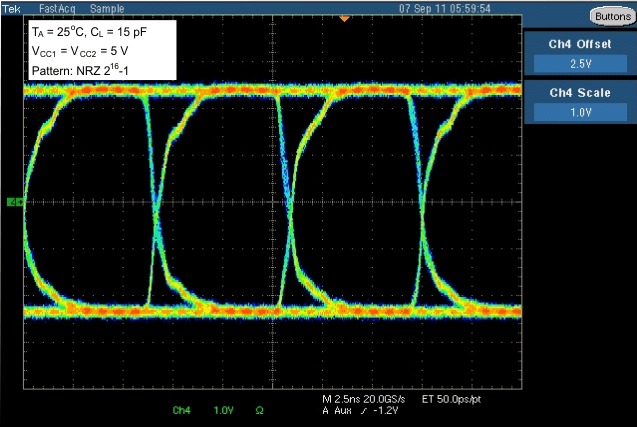

Figure 19. Typical Eye Diagram at 150 Mbps, 5-V Operation

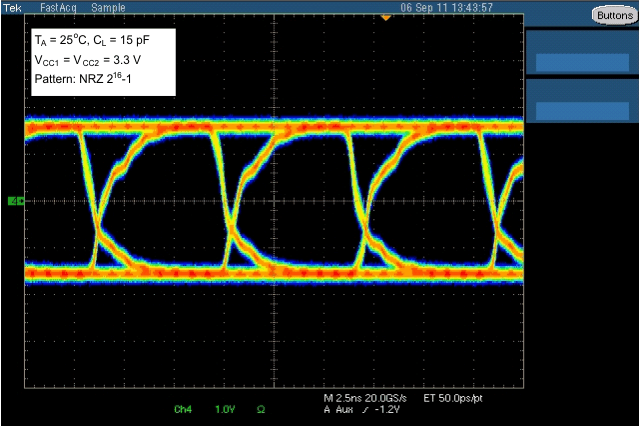

Figure 20. Typical Eye Diagram at 150 Mbps, 3.3-V Operation
