ZHCSLV6E August 2021 – February 2023 ISO6760 , ISO6761 , ISO6762 , ISO6763
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Power Ratings
- 6.6 Insulation Specifications
- 6.7 Safety-Related Certifications
- 6.8 Safety Limiting Values
- 6.9 Electrical Characteristics—5-V Supply
- 6.10 Supply Current Characteristics—5-V Supply
- 6.11 Electrical Characteristics—3.3-V Supply
- 6.12 Supply Current Characteristics—3.3-V Supply
- 6.13 Electrical Characteristics—2.5-V Supply?
- 6.14 Supply Current Characteristics—2.5-V Supply
- 6.15 Electrical Characteristics—1.8-V Supply
- 6.16 Supply Current Characteristics—1.8-V Supply
- 6.17 Switching Characteristics—5-V Supply
- 6.18 Switching Characteristics—3.3-V Supply
- 6.19 Switching Characteristics—2.5-V Supply
- 6.20 Switching Characteristics—1.8-V Supply
- 6.21 絕緣特性曲線
- 6.22 Typical Characteristics
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- DW|16
散熱焊盤機械數據 (封裝 | 引腳)
- DW|16
訂購信息
5 Pin Configuration and Functions

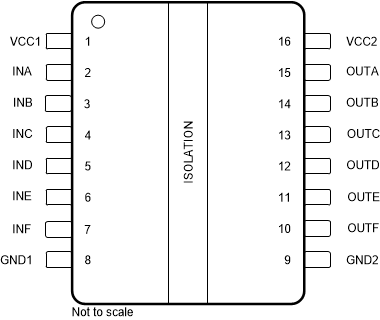

Figure 5-1 ISO6760 DW Package16-Pin
SOIC-WBTop View

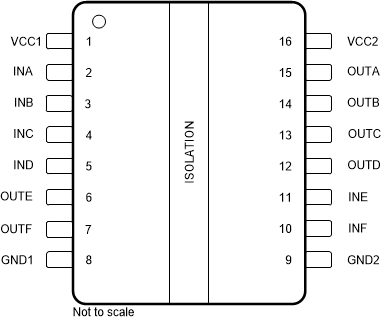

Figure 5-2 ISO6761 DW Package16-Pin
SOIC-WBTop View

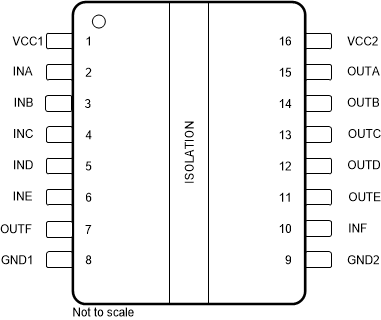

Figure 5-3 ISO6762 DW Package16-Pin
SOIC-WBTop View

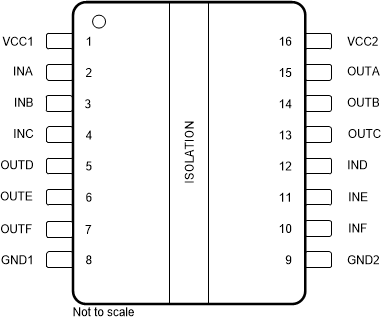

Figure 5-4 ISO6763 DW Package16-Pin SOIC-WBTop ViewTable 5-1 Pin Functions
| PIN | I/O | DESCRIPTION | ||||
|---|---|---|---|---|---|---|
| NAME | NO. | |||||
| ISO6760 | ISO6761 | ISO6762 | ISO6763 | |||
| GND1 | 8 | 8 | 8 | 8 | — | Ground connection for VCC1 |
| GND2 | 9 | 9 | 9 | 9 | — | Ground connection for VCC2 |
| INA | 2 | 2 | 2 | 2 | I | Input, channel A |
| INB | 3 | 3 | 3 | 3 | I | Input, channel B |
| INC | 4 | 4 | 4 | 4 | I | Input, channel C |
| IND | 5 | 5 | 5 | 12 | I | Input, channel D |
| INE | 6 | 6 | 11 | 11 | I | Input, channel E |
| INF | 7 | 10 | 10 | 10 | I | Input, channel F |
| OUTA | 15 | 15 | 15 | 15 | O | Output, channel A |
| OUTB | 14 | 14 | 14 | 14 | O | Output, channel B |
| OUTC | 13 | 13 | 13 | 13 | O | Output, channel C |
| OUTD | 12 | 12 | 12 | 5 | O | Output, channel D |
| OUTE | 11 | 11 | 6 | 6 | O | Output, channel E |
| OUTF | 10 | 7 | 7 | 7 | O | Output, channel F |
| VCC1 | 1 | 1 | 1 | 1 | — | Power supply, side 1 |
| VCC2 | 16 | 16 | 16 | 16 | — | Power supply, side 2 |
