6.16 Typical Characteristics
| TA = 25 °C | VCC1 = VCC2 = 3.3 V | PRBS Data 216 - 1 |
| VCC1 = VCC2 = 3.3 V | CL = 50 pF | RL = 54 Ω |

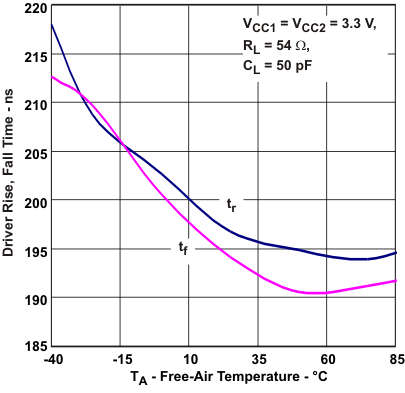

Figure 6-6 Driver Rise, Fall Time vs Free-Air Temperature
Figure 6-8 Differential Output Voltage vs Load Current
Figure 6-10 Receiver High-Level Output Current vs High-Level Output Voltage
| TA = 25 °C | Receiver CL = 15 pF | PRBS Data 216 - 1 |
| Driver CL = 50 pF | Driver RL = 54 Ω | VCC1 = VCC2 = 3.3 V |
| VCC1 = VCC2 = 3.3 V | CL = 15 pF |

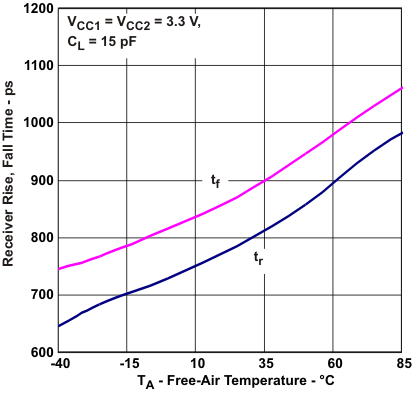

Figure 6-7 Receiver Rise, Fall Time vs Free-Air Temperature
Figure 6-9 Receiver Low-Level Output Current vs Low-Level Output Voltage
Figure 6-11 Bus
Input Current vs Input Voltage
