ZHCSR66C November 2022 – December 2022 ESD751 , ESD761
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- DPY|2
散熱焊盤機械數據 (封裝 | 引腳)
- DPY|2
訂購信息
6.7 Typical Characteristics – ESD751

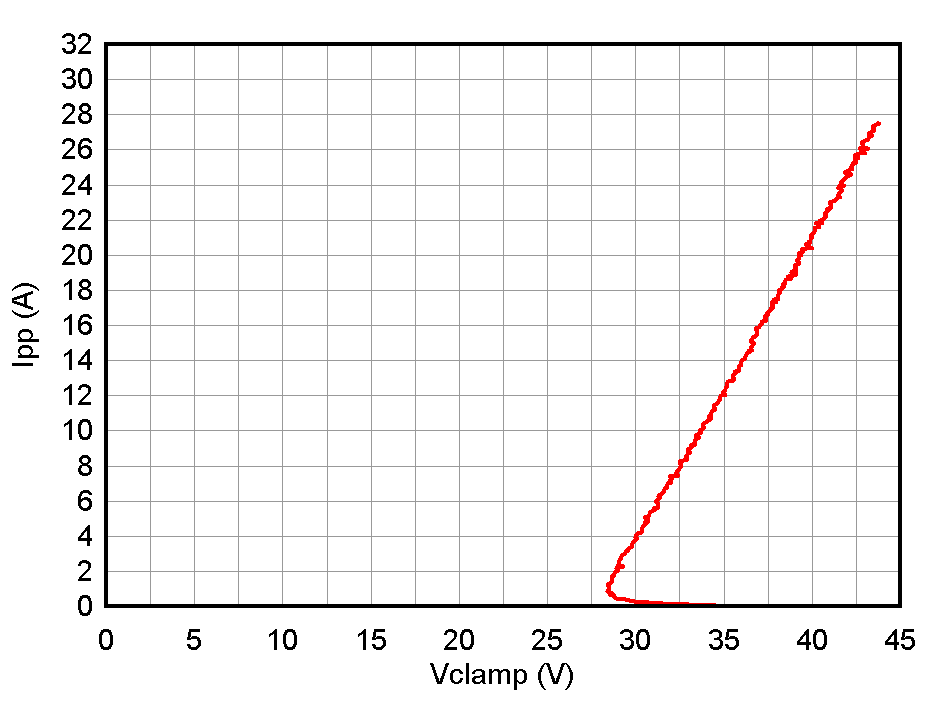

Figure 6-1 Positive TLP Curve

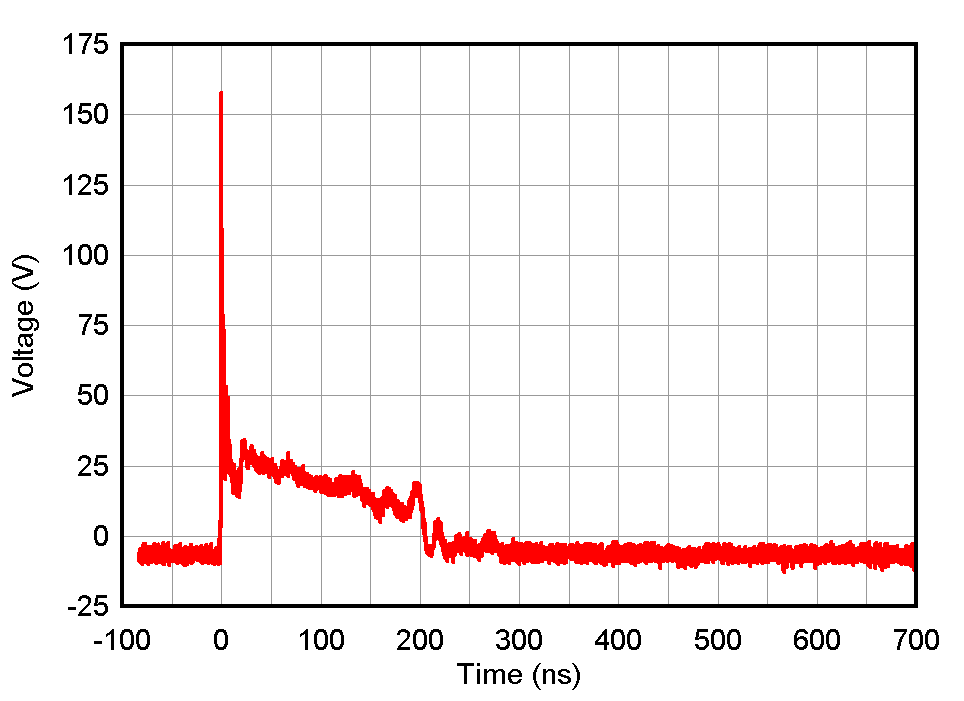

Figure 6-3 +8-kV
Clamped IEC Waveform
Figure 6-5 Capacitance vs. Bias Voltage

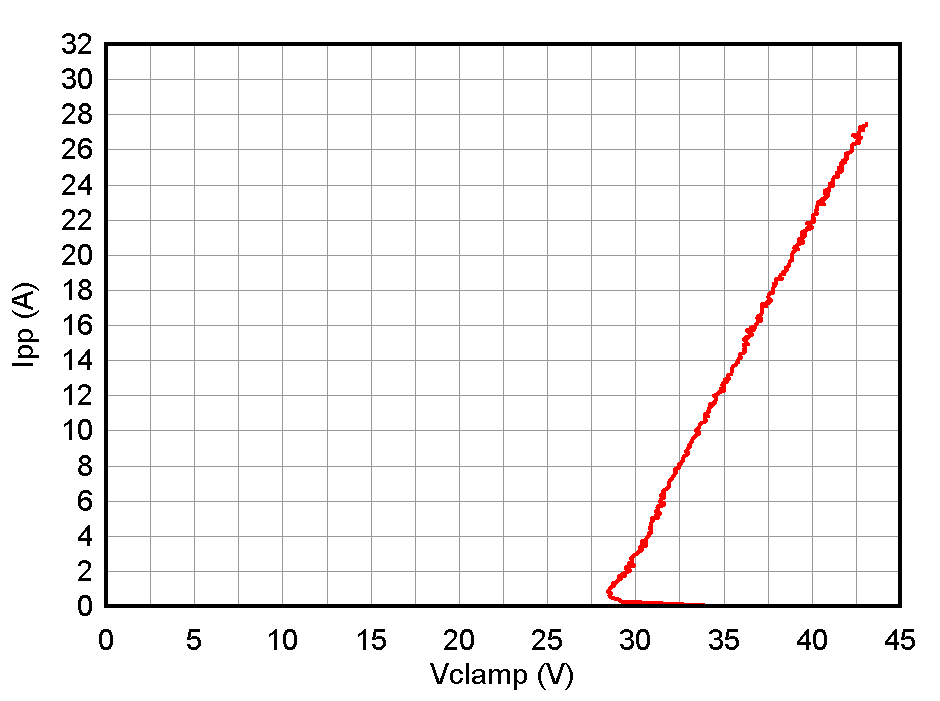

Figure 6-2 Negative TLP Curve

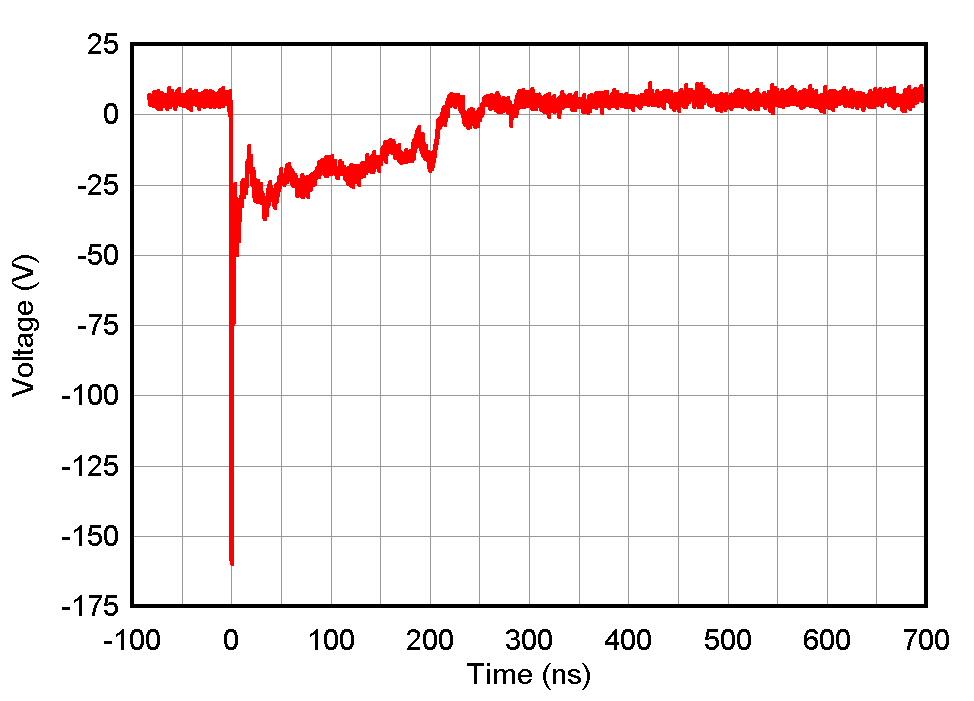

Figure 6-4 -8-kV
Clamped IEC Waveform

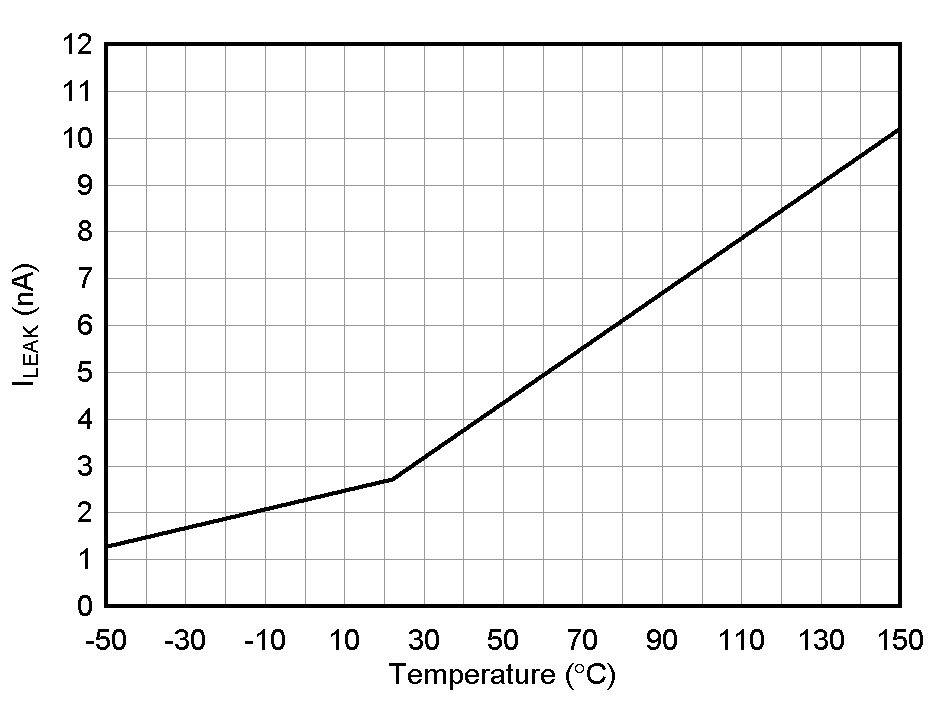

Figure 6-6 Leakage Current vs. Temperature
