The variation of thermal parameters such as the RθJA (Junction-to-Ambient Thermal Resistance) and ΨJB (Junction-to-Board Characterization Parameter) is highly dependent on the PCB type, copper thickness and the copper pad area.
Figure 144 and Figure 145 shows the variation of the RθJA (Junction-to-Ambient Thermal Resistance) and ΨJB (Junction-to-Board Characterization Parameter) with copper-pad area for 2-layer PCB. As shown in these curves, the thermal resistance is lower for the higher copper thickness PCB and the higher copper pad-area.
Similarly, Figure 146 and Figure 145 shows the variation of the RθJA and ΨJB with copper-pad area for 4-layer PCB respectively.
NOTE
The thermal parameters (RθJA (Junction-to-Ambient Thermal Resistance) and ΨJB (Junction-to-Board Characterization Parameter)) are calculated considering the ambient temperature of 25°C and with 1.5-W power evenly dissipated between high-side and low-side FET's. The thermal parameters calculated considering the power dissipation at the actual location of the power-FETs rather than an averaged estimation.
The thermal parameters are highly dependent on the external conditions such as altitude, package geometry etc. Refer to Application Report for more details.

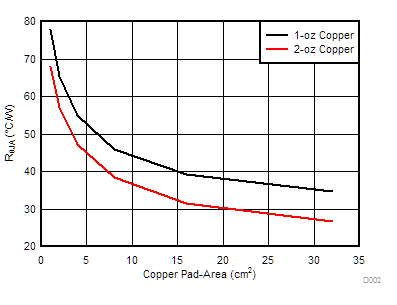

Figure 144. 2-Layer PCB Junction-to-Ambient Thermal Resistance (RθJA) vs Copper Area

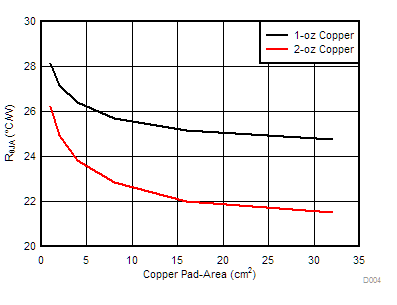

Figure 146. 4-Layer PCB Junction-to-Ambient Thermal Resistance (RθJA) vs Copper Area

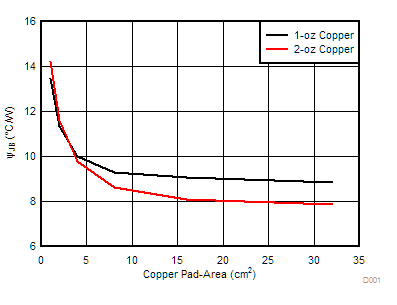

Figure 145. 2-Layer PCB Junction-to-Board Characterization Parameter (ΨJB) vs Copper Area

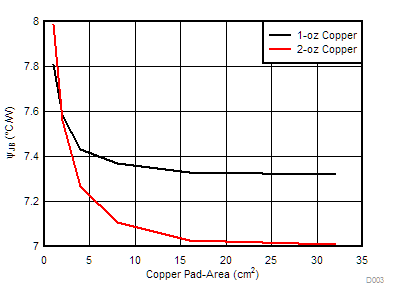

Figure 147. 4-Layer PCB Junction-to-Board Characterization (ΨJB) Parameter vs Copper Area
