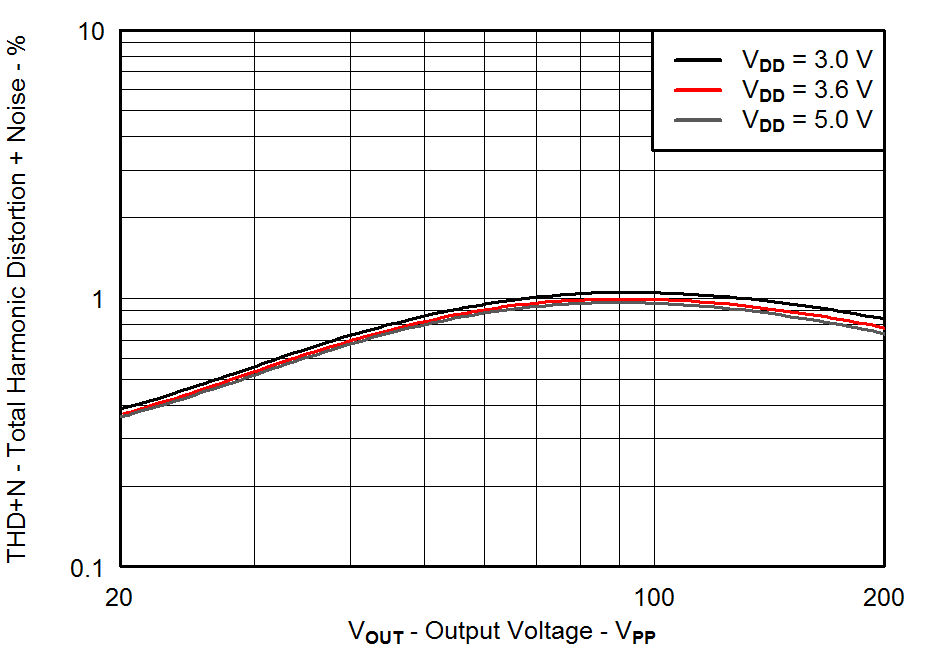

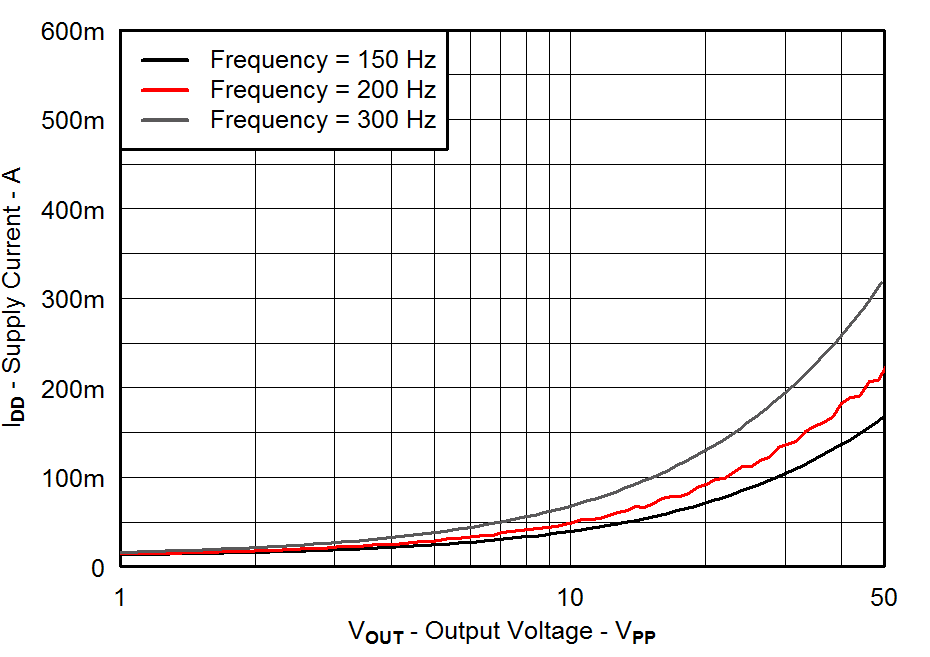

6.8 Typical Characteristics

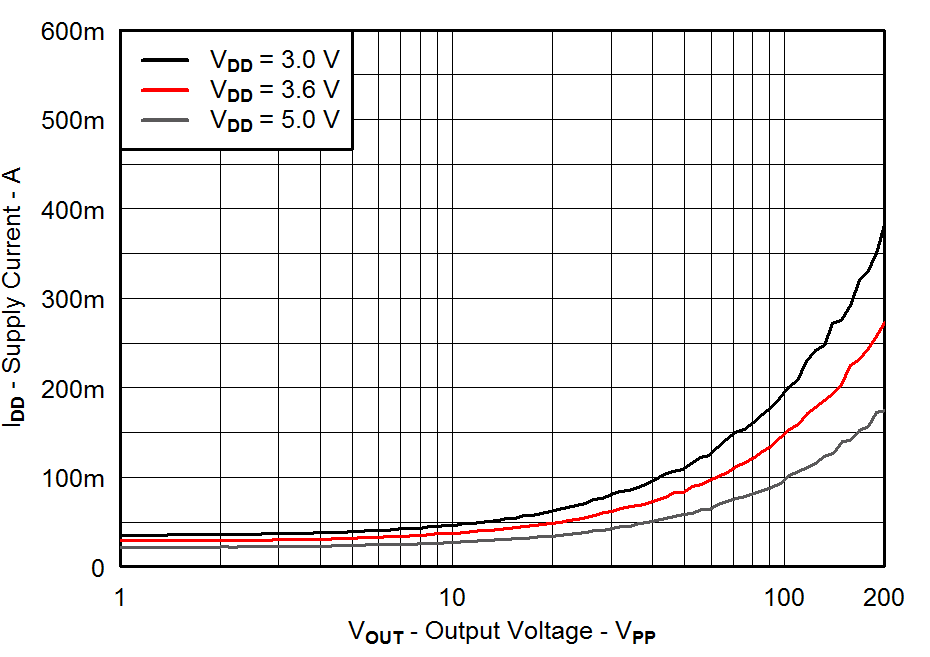

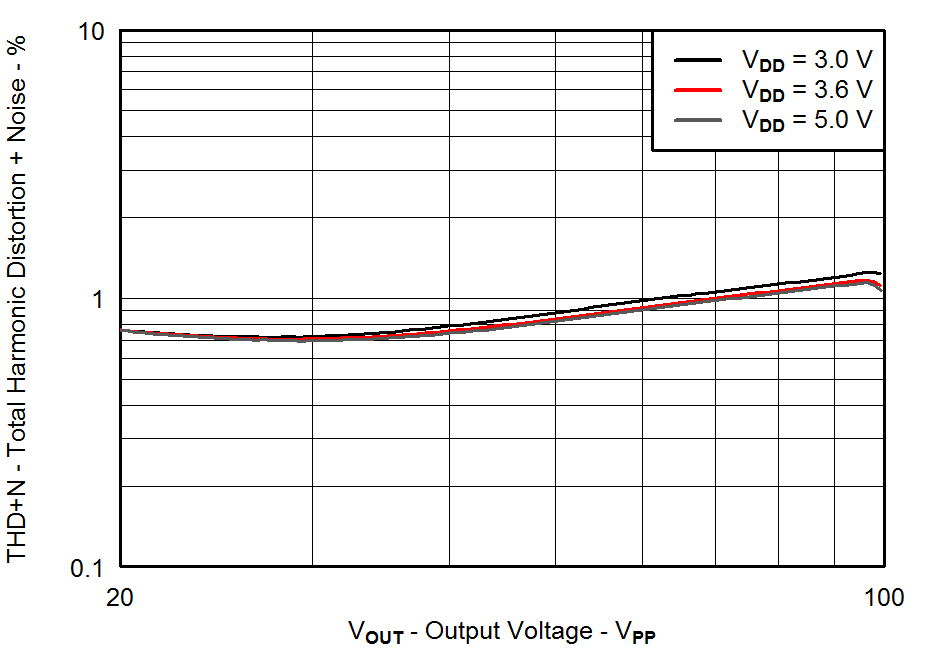

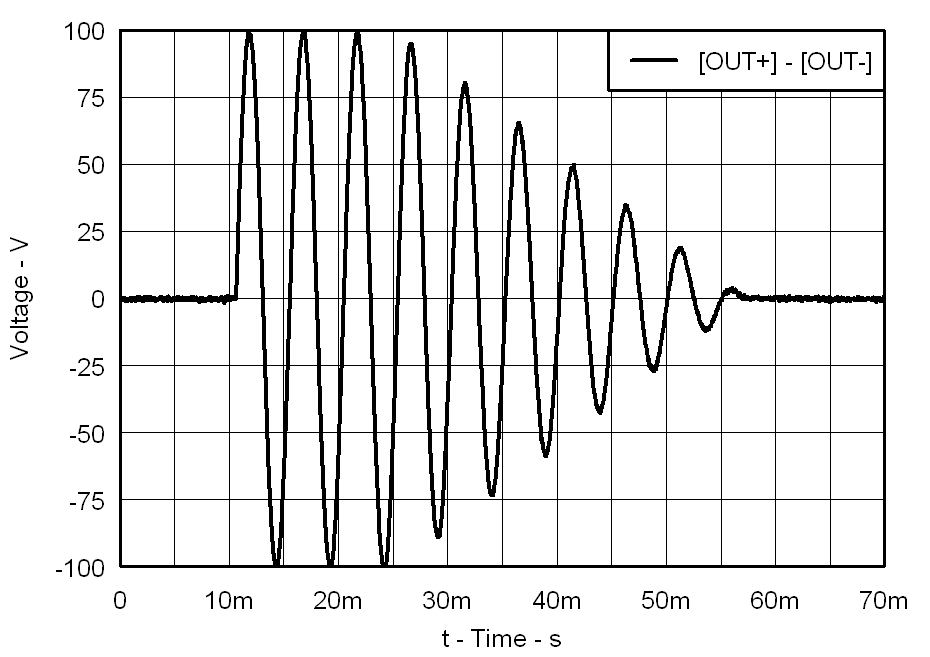

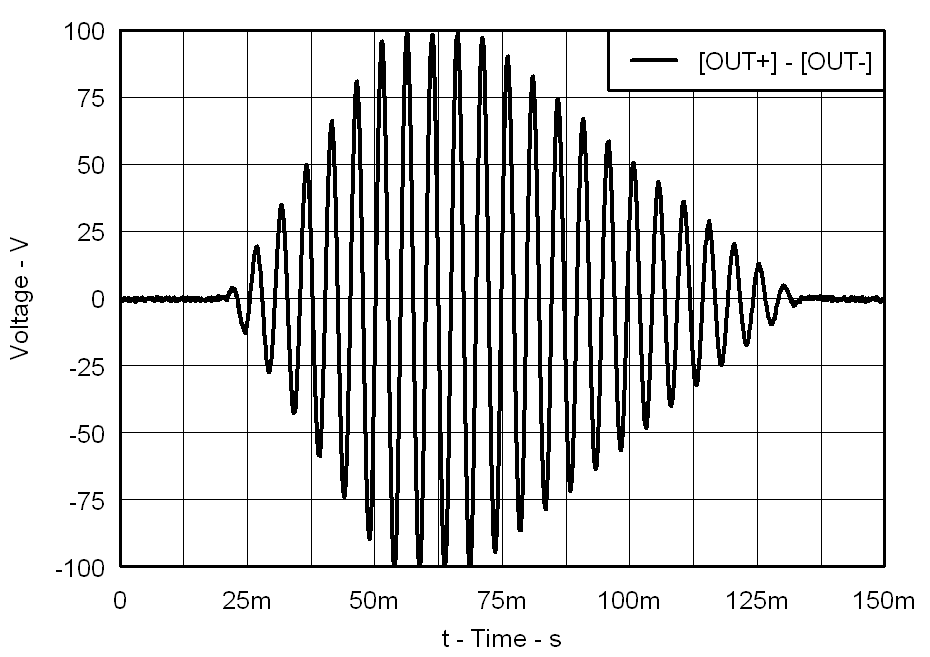

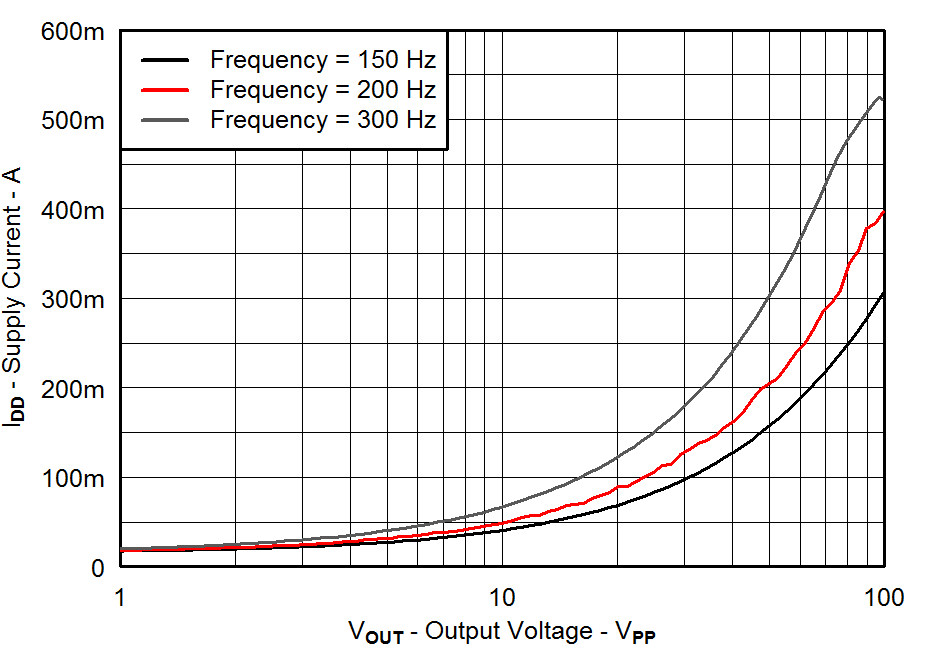

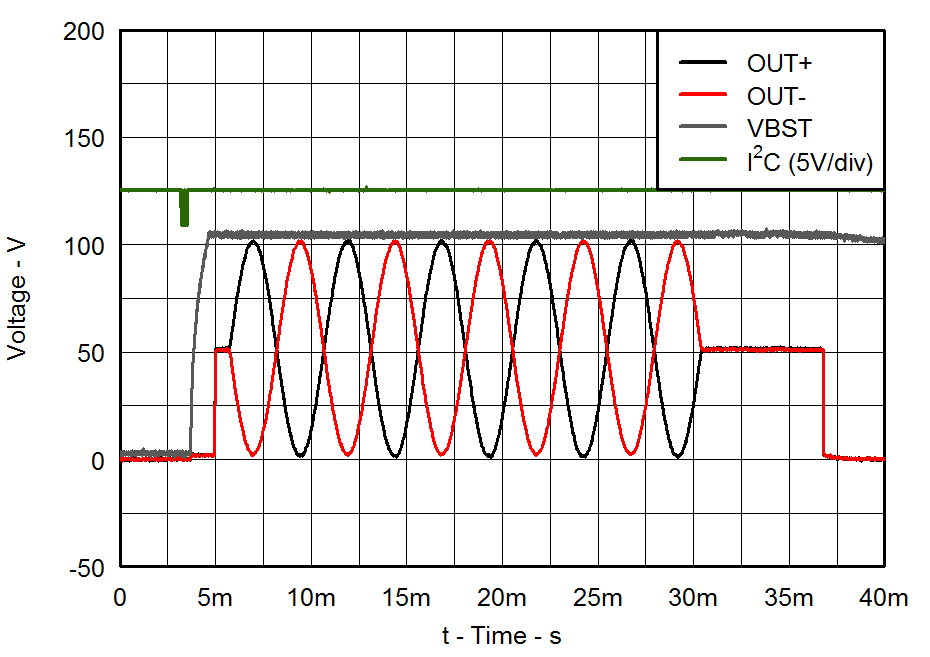

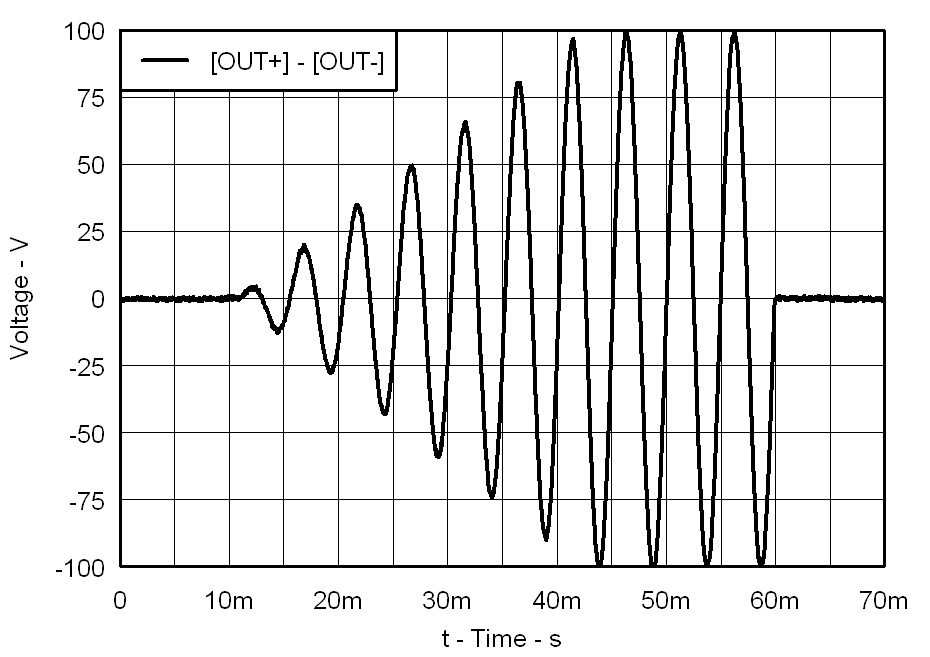

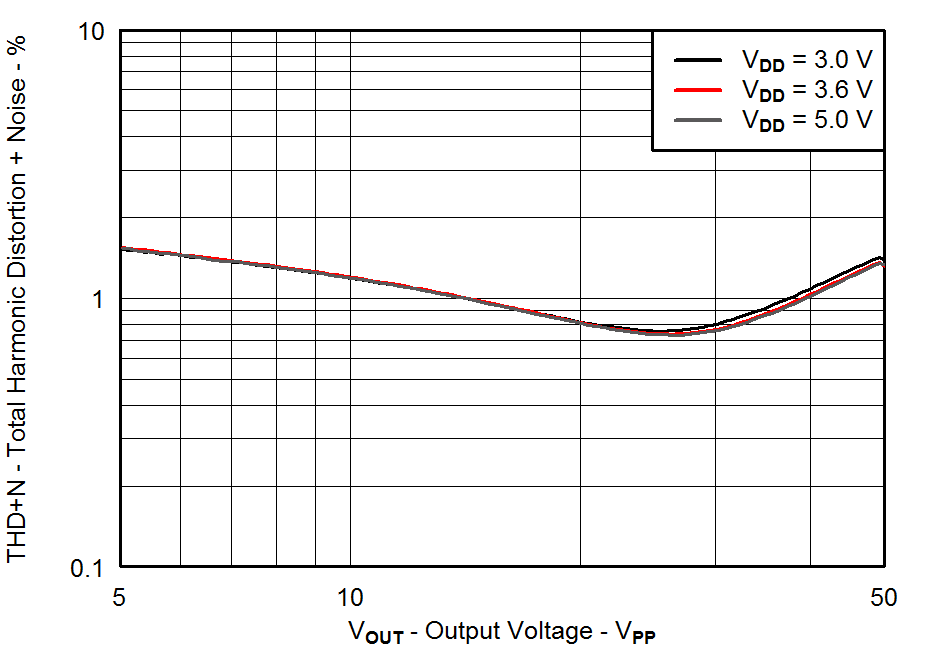

| f = 200 Hz | PVDD = 105 V |
| CLOAD = 47 nF | Gain = 40 dB |
| f = 200 Hz | PVDD = 55 V |
| CLOAD = 330 nF | Gain = 34 dB |
| f = 200 Hz | PVDD = 30 V |
| CLOAD = 680 nF | Gain = 28 dB |
| f = 200 Hz | PVDD = 105 V |
| CLOAD = 47 nF | Gain = 40 dB |
| f = 200 Hz | PVDD = 55 V |
| CLOAD = 330 nF | Gain = 34 dB |
| f = 200 Hz | PVDD = 30 V |
| CLOAD = 680 nF | Gain = 28 dB |
| f = 200 Hz | PVDD = 105 V |
| CLOAD = 47 nF | Gain = 40 dB |
| VDD = 3.6 V | PVDD = 105 V |
| CLOAD = 47 nF | Gain = 40 dB |
| VDD = 3.6 V | PVDD = 55 V |
| CLOAD = 330 nF | Gain = 34 dB |
| VDD = 3.6 V | PVDD = 30 V |
| CLOAD = 680 nF | Gain = 28 dB |
| VDD = 3.6 V | PVDD = 105 V |
| CLOAD = 47 nF | Gain = 40 dB |
| VDD = 3.6 V | PVDD = 55 V |
| CLOAD = 330 nF | Gain = 34 dB |
| VDD = 3.6 V | PVDD = 30 V |
| CLOAD = 680 nF | Gain = 28 dB |
