7 Parameter Measurement Information
7.1 Test Configurations
Figure 5 through Figure 11 illustrate how the device must be set up for a variety of test configurations for each block for the CDCLVP1204.

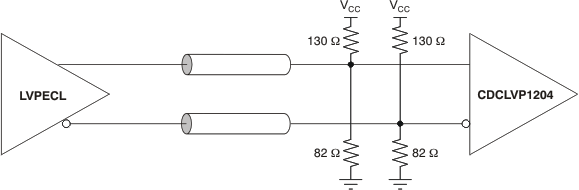

Figure 5. DC-Coupled LVPECL Input During Device Test

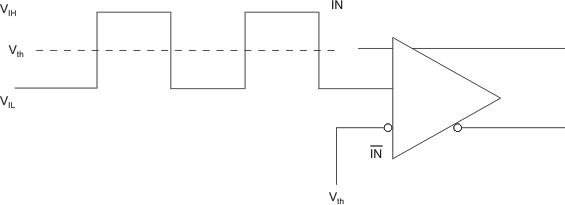

Figure 6. DC-Coupled LVCMOS Input During Device Test

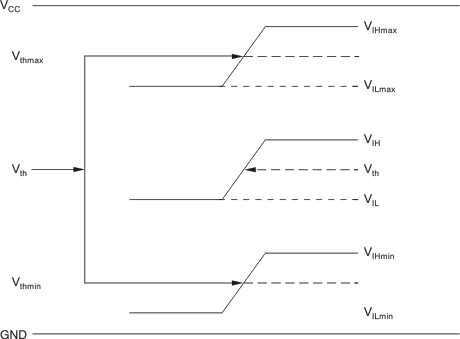

Figure 7. Voltage Variation Over LVCMOS Vth Levels

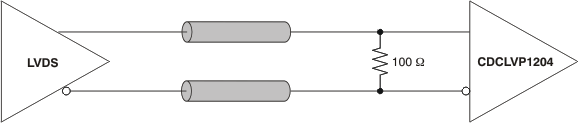

Figure 8. DC-Coupled LVDS Input During Device Test

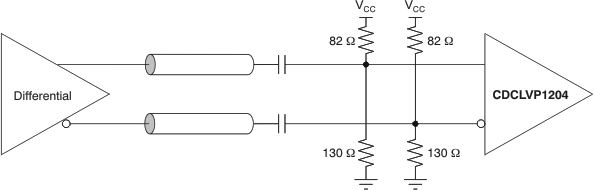

Figure 9. AC-Coupled Differential Input To Device
Figure 10. LVPECL Output DC Configuration During Device Test

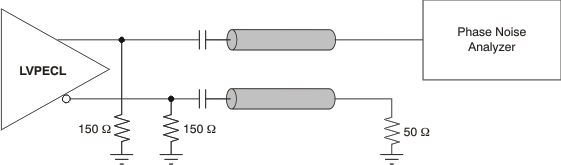

Figure 11. LVPECL Output AC Configuration During Device Test
