6.3 Device Functional Modes
Table 6-1 Function Table
| INPUTS | OUTPUTS | |||
|---|---|---|---|---|
| R | A | B | Q | Q |
| L | X | X | L | H |
| X | H | X | L | H |
| X | X | L | L | H |
| H | L | ↓ |  |
 |
| H | ↑ | H | |
|
Table 6-2 Functional Terminal
Connections
| FUNCTION | VCC TO TERMINAL NUMBER | GND TO TERMINAL NUMBER | INPUT PULSE TO TERMINAL NUMBER | OTHER CONNECTIONS | ||||
|---|---|---|---|---|---|---|---|---|
| MONO(1) | MONO(2) | MONO(1) | MONO(2) | MONO(1) | MONO(2) | MONO(1) | MONO(2) | |
| Leading-edge trigger/retriggerable | 3, 5 | 11, 13 | 4 | 12 | ||||
| Leading-edge trigger/nonretriggerable | 3 | 13 | 4 | 12 | 5?7 | 11?9 | ||
| Trailing-edge trigger/retriggerable | 3 | 13 | 4 | 12 | 5 | 11 | ||
| Trailing-edge trigger/nonretriggerable | 3 | 13 | 5 | 11 | 4?6 | 12?10 | ||
(1) A retriggerable one-shot
multivibrator has an output pulse width that is extended one full time
period (T) after application of the last trigger pulse.
(2) A nontriggerable one-shot
multivibrator has a time period (T) referenced from the application of the
first trigger pulse.
Input Pulse Train

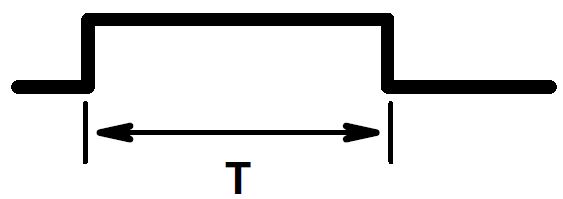

Nonretriggerable Mode Pulse Width (A
Mode)

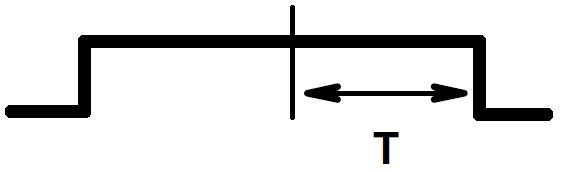

Retriggerable Mode Pulse Width (A
Mode)
