ZHCSX10D January 2001 – August 2024 CD54AC08 , CD74AC08
PRODUCTION DATA
- 1
- 1 特性
- 2 說明
- 3 Pin Configuration and Functions
-
4 Specifications
- 4.1 Absolute Maximum Ratings
- 4.2 ESD Ratings
- 4.3 Recommended Operating Conditions
- 4.4 Thermal Information
- 4.5 Electrical Characteristics
- 4.6 Switching Characteristics, VCC = 1.5 V
- 4.7 Switching Characteristics, VCC = 3.3V ± 0.3V
- 4.8 Switching Characteristics, VCC = 5V ± 0.5V
- 4.9 Operating Characteristics
- 5 Parameter Measurement Information
- 6 Detailed Description
- 7 Application and Implementation
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- D|14
- N|14
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
3 Pin Configuration and Functions

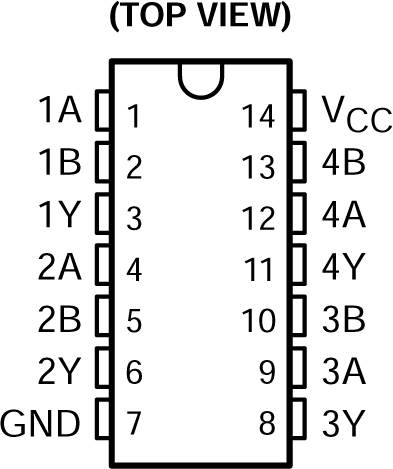

Figure 3-1 CD54AC08 J Package, 14-Pin CDIP; CD74AC08 N or D Package, 14-Pin PDIP or SOIC (Top View)Table 3-1 Pin Functions
| PIN | I/O1 | DESCRIPTION | |
|---|---|---|---|
| NAME | SOIC, PDIP, CDIP | ||
| 1A | 1 | I | 1A Input |
| 1B | 2 | I | 1B Input |
| 1Y | 3 | O | 1Y Output |
| 2A | 4 | I | 2A Input |
| 2B | 5 | I | 2B Input |
| 2Y | 6 | O | 2Y Output |
| 3Y | 8 | O | 3Y Output |
| 3A | 9 | I | 3A Input |
| 3B | 10 | I | 3B Input |
| 4Y | 11 | O | 4Y Output |
| 4A | 12 | I | 4A Input |
| 4B | 13 | I | 4B Input |
| GND | 7 | — | Ground Pin |
| NC | — | — | No Connection |
| VCC | 14 | — | Power Pin |
- I = input, O = output, P = power, FB = feedback, GND = ground, N/A = not applicable
