15 Parameter Measurement Information

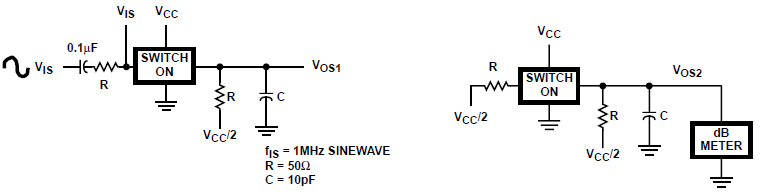

Figure 15-1 Crosstalk Between Two Switches
Test Circuit

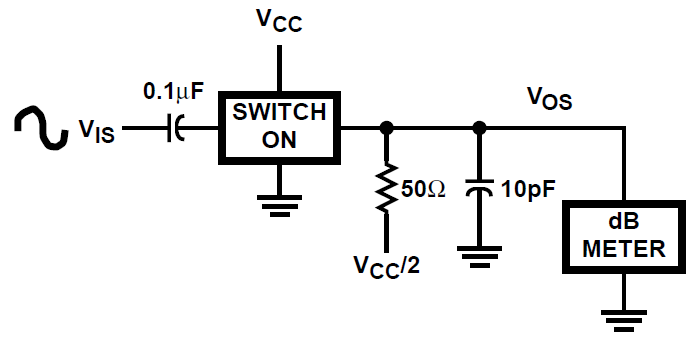

Figure 15-2 Frequency Response Test
Circuit

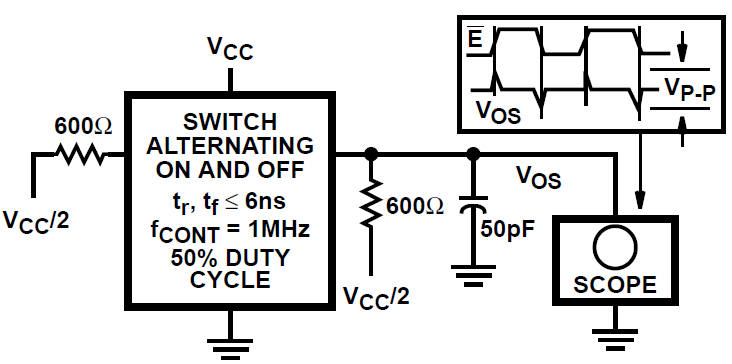

Figure 15-4 Control-To-Switch
Feedthrough Noise Test Circuit

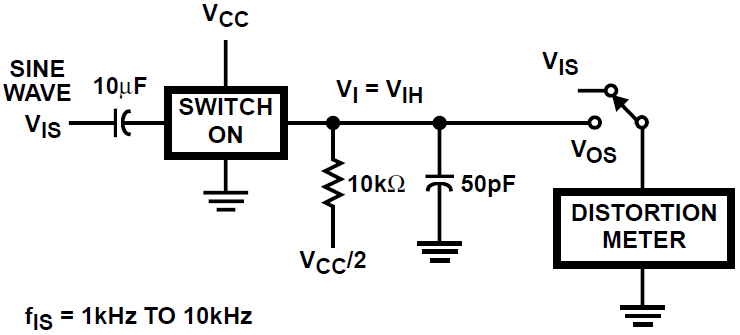

Figure 15-3 Total Harmonic Distortion
Test Circuit

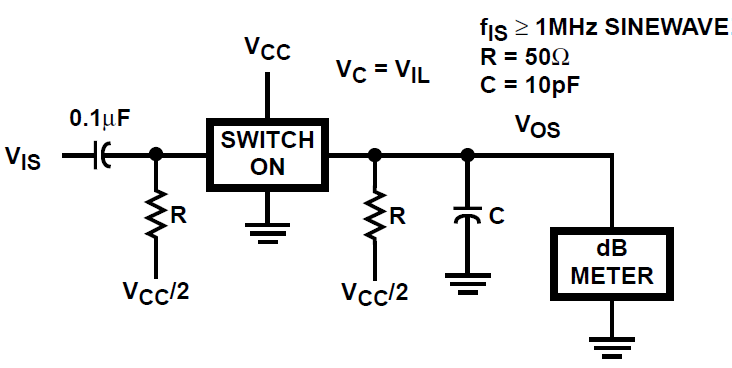

Figure 15-5 Switch Off Signal
Feedthrough

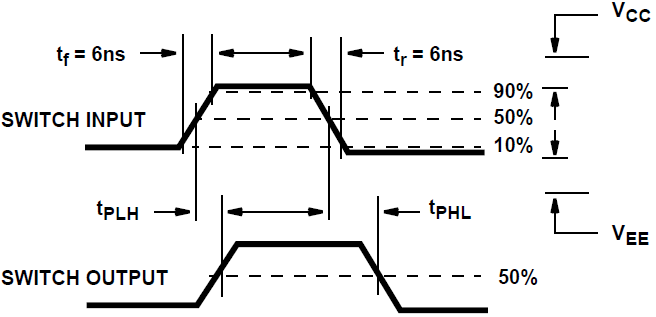

Figure 15-6 Switch Propagation Delay
Times

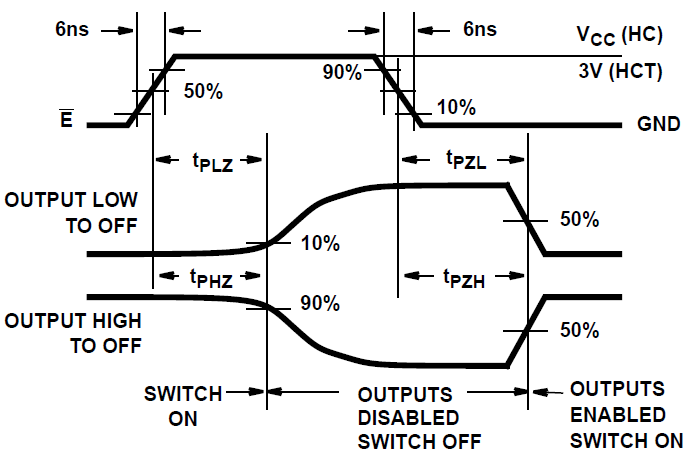

Figure 15-7 Switch Turn-On and
Turn-Off Propagation Delay Times Waveforms
