9.2.3 Application Performance Plots

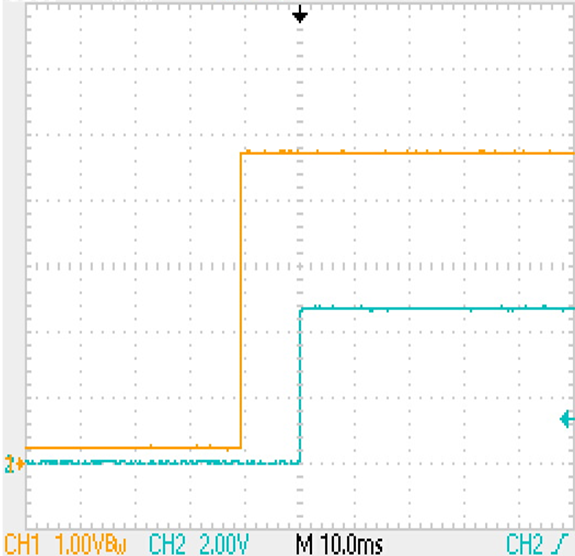

| Orange Line (Channel 1) = Power Up Ramp on BAT Pin | ||
| Turquoise Line (Channel 2) = DOUT Gate Drive Output | ||
| DOUT goes from low to high when UVP Recovery = UVP Set Threshold +100mV |

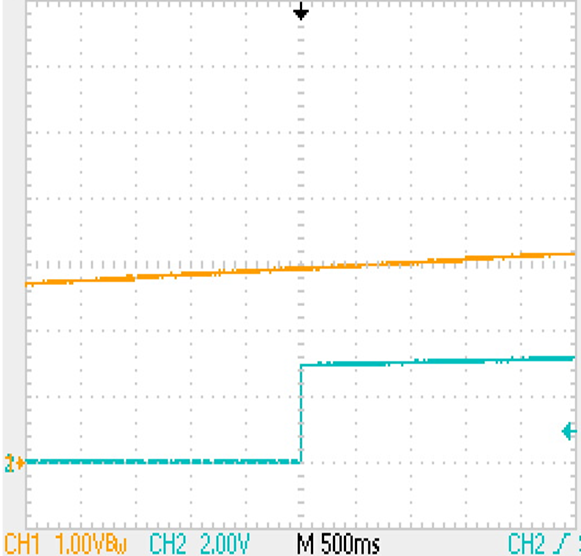

| Orange Line (Channel 1) = Power Up Ramp on BAT pin | ||
| Turquoise Line (Channel 2) = DOUT Gate Drive Output | ||

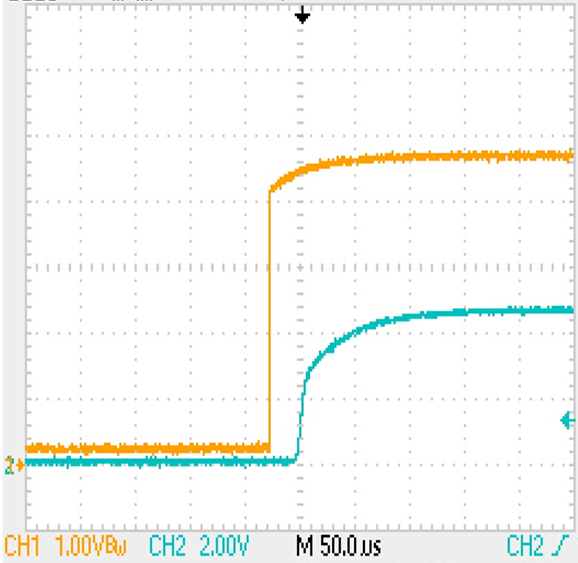

| Orange Line (Channel 1) = Power Up Ramp on BAT Pin | ||
| Turquoise Line (Channel 2) = COUT Gate Drive Output | ||
| COUT goes from high to low when OVP threshold = OVP set Threshold + set delay time |

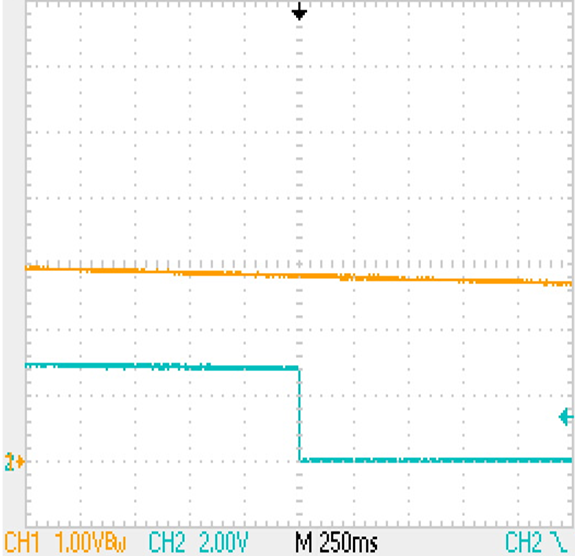

| Orange Line (Channel 1) = Power Down Ramp on BAT Pin | ||
| Turquoise Line (Channel 2) = DOUT Date Drive Output | ||
| DOUT goes from high to low when UVP threshold = UVP set Threshold + set delay time |

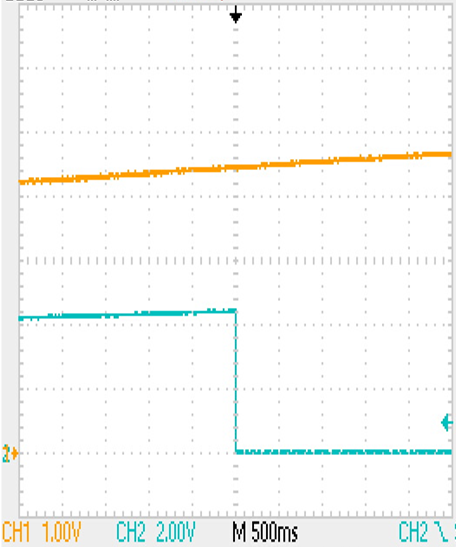

| Orange Line (Channel 1) = Power Up Ramp on BAT Pin | ||
| Turquoise Line (Channel 2) = COUT Gate Drive Output | ||

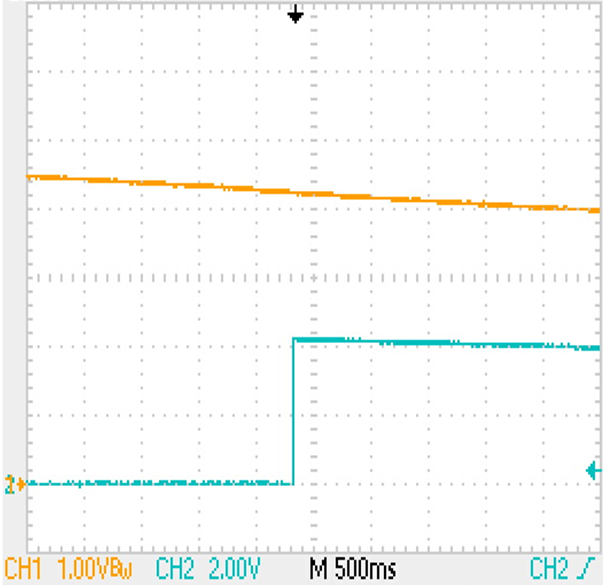

| Orange Line (Channel 1) = Decrease Voltage on BAT Pin | ||
| Turquoise Line (Channel 2) = COUT Gate Drive Output | ||
| COUT goes from low to high when OVP Recovery = OVP Set Threshold –100mV |
