ZHCSJZ6F June 2019 – February 2025 BQ25618 , BQ25619
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 說明（續）
- 5 Pin Configuration and Functions
- 6 Specifications
-
7 Detailed Description
- 7.1 Overview
- 7.2 Functional Block Diagram
- 7.3
Feature Description
- 7.3.1 Power-On-Reset (POR)
- 7.3.2 Device Power Up From Battery Without Input Source
- 7.3.3 Power Up From Input Source
- 7.3.4 Boost Mode Operation From Battery
- 7.3.5 Power Path Management
- 7.3.6 Battery Charging Management
- 7.3.7 Ship Mode and QON Pin
- 7.3.8 Status Outputs (STAT, INT , PMID_GOOD)
- 7.3.9 Protections
- 7.3.10 Serial Interface
- 7.4 Device Functional Modes
- 7.5 Register Maps
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Revision History
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- YFF|30
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息

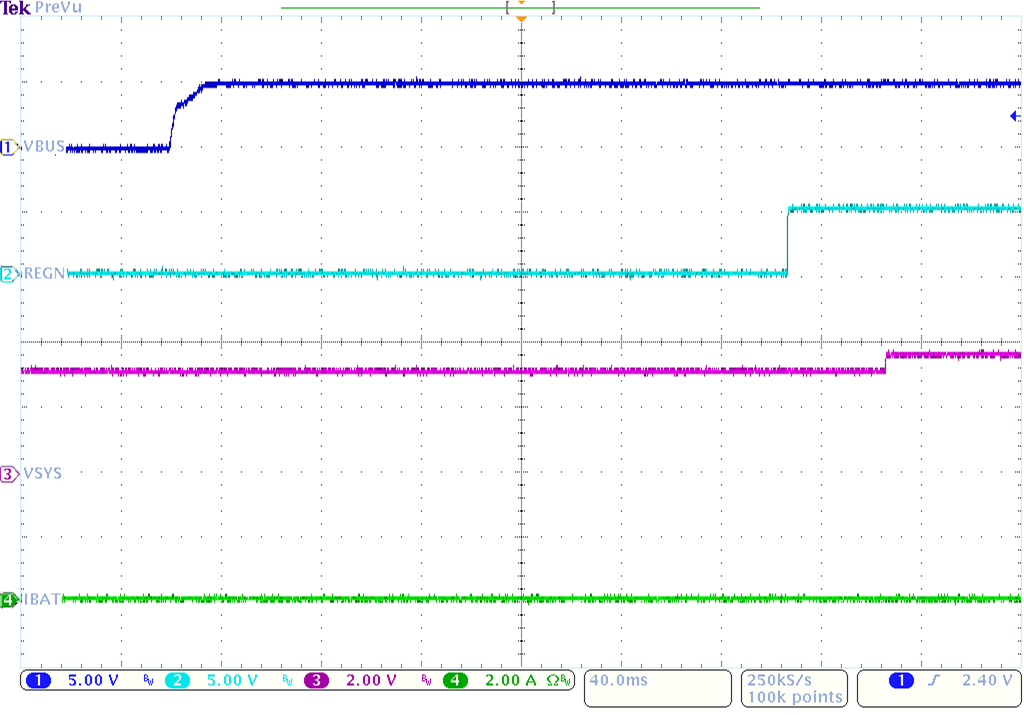

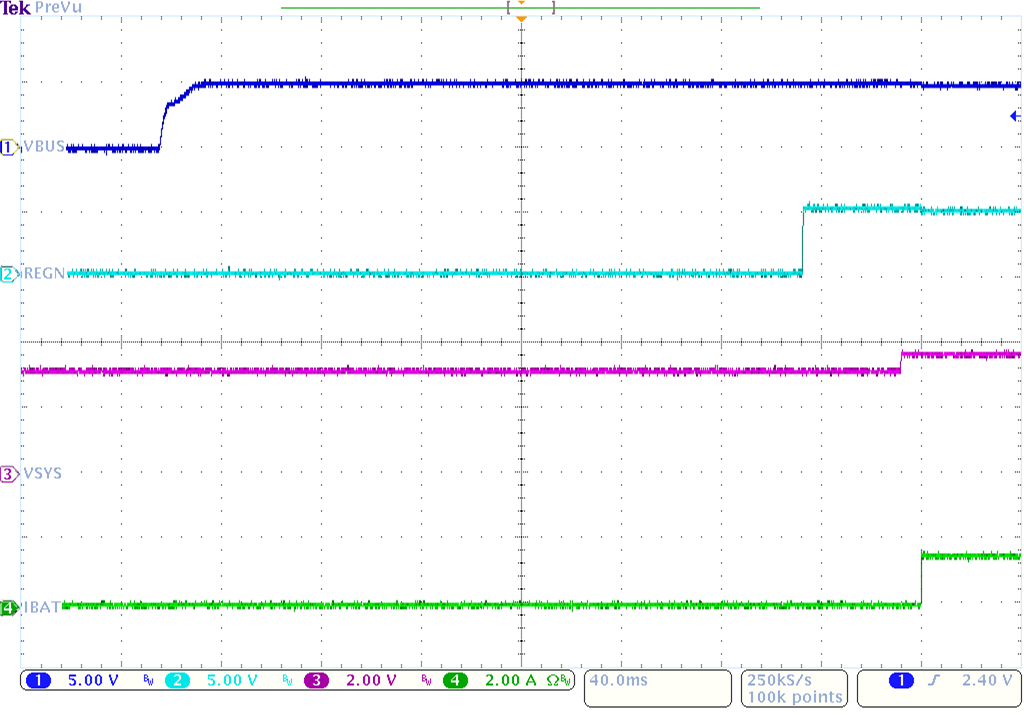

8.2.3 Application Curves
| VVBUS = 5 V | VBAT = 3.8 V |

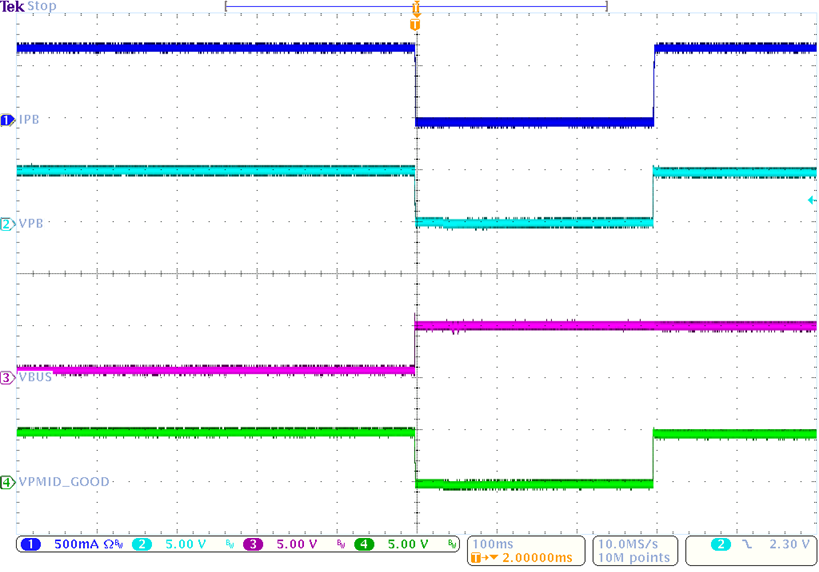

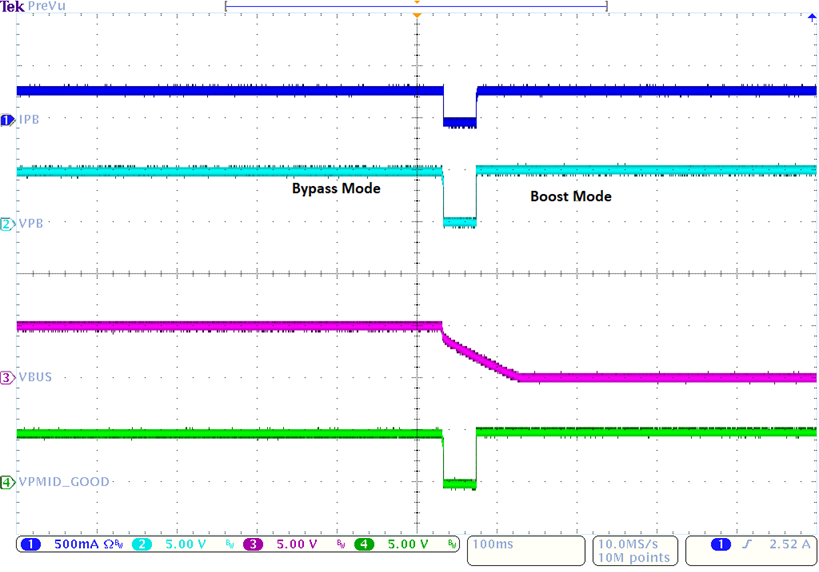

| VVBUS = 5 V | VBAT = 3.8 V | VBoost = 5 V |
| ICHG = 1.5 A | VVBUS = 5 V | VBAT = 3.2 V |

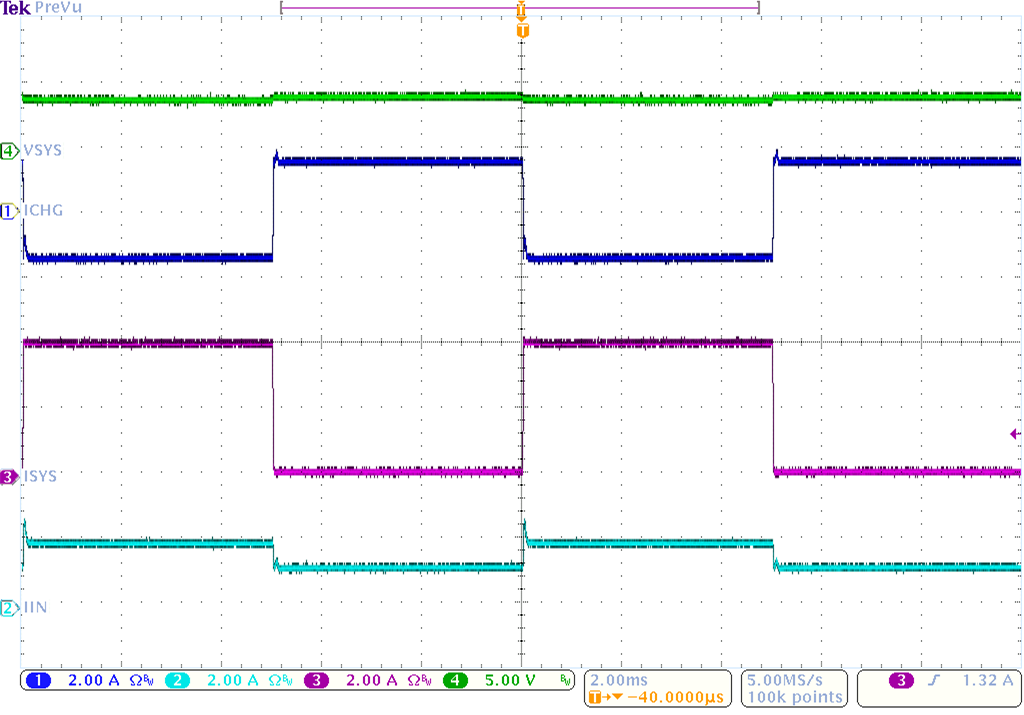

| ISYS = 0 – 2 A | VVBUS = 5 V | IINDPM = 2 A |
| ICHG = 1 A | VBAT = 3.7 V |

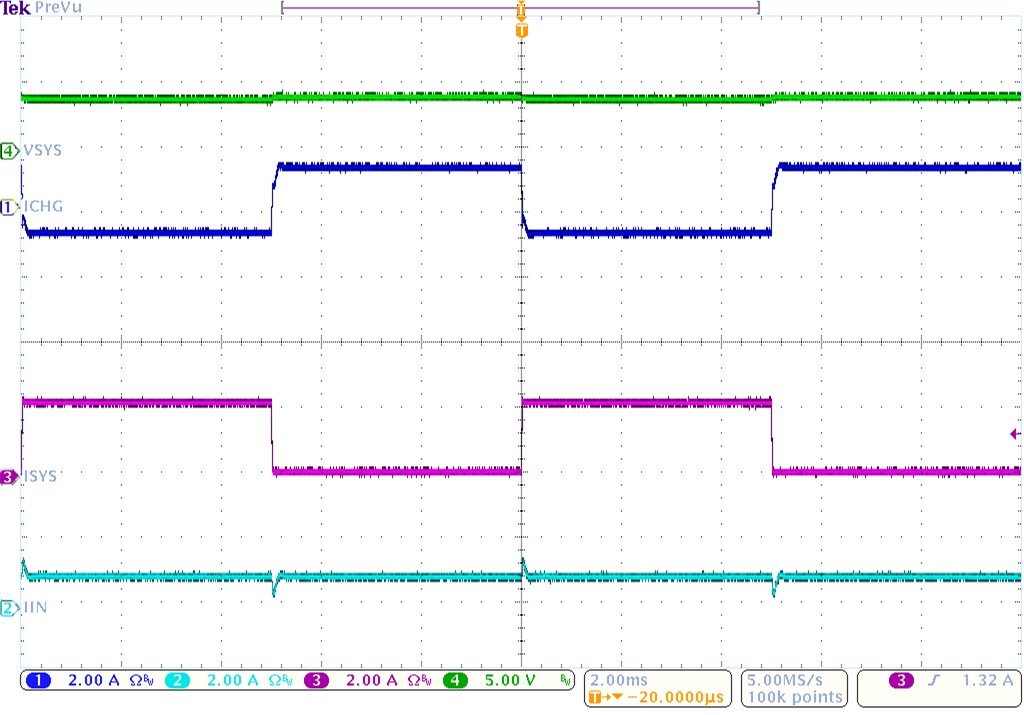

| ISYS = 0 – 4 A | VVBUS = 5 V | IINDPM = 2 A | |
| ICHG = 1.5 A | VBAT = 3.7 V |
| VVBUS = 5 V | VBAT = 3.8 V |
| VVBUS = 5 V | VBAT = 3.2 V |

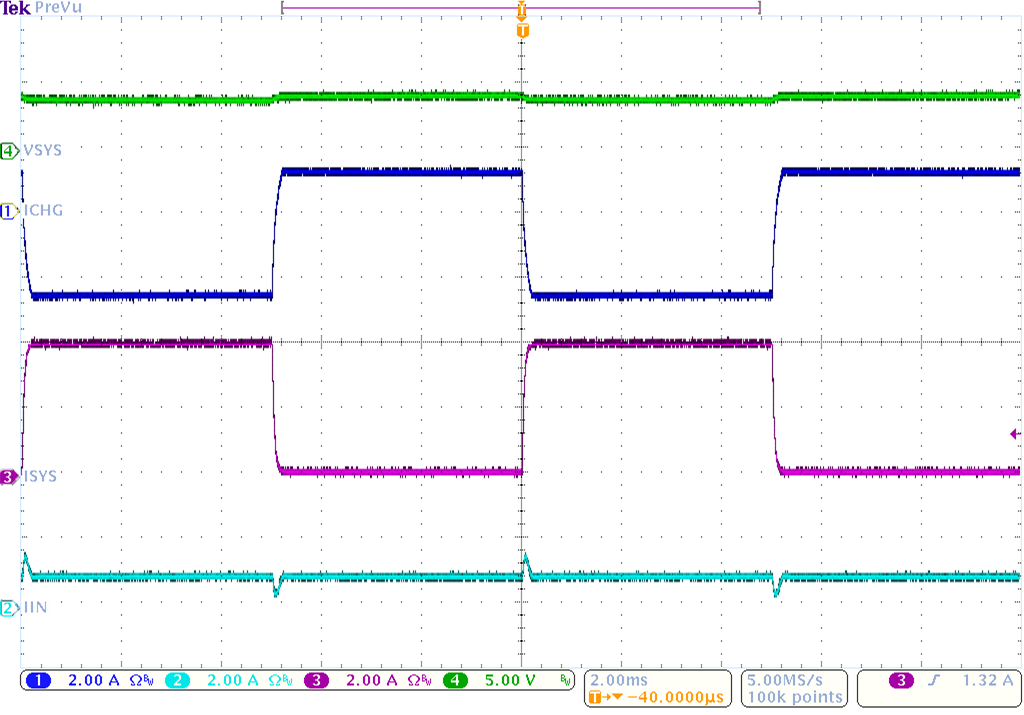

| ISYS = 0 - 2 A | VVBUS = 5 V | IINDPM = 1 A |
| ICHG = 1.5 A | VBAT = 3.7 V |

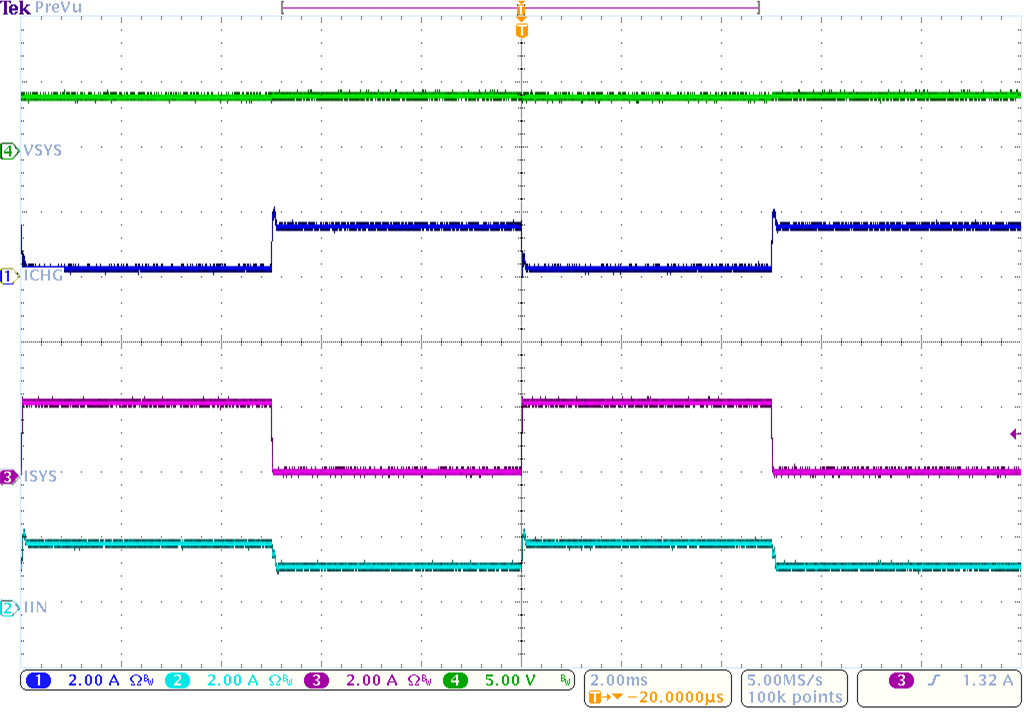

| ISYS = 0 – 4 A | VVBUS = 5 V | IINDPM = 1 A |
| ICHG = 1.5 A | VBAT = 3.7 V |
