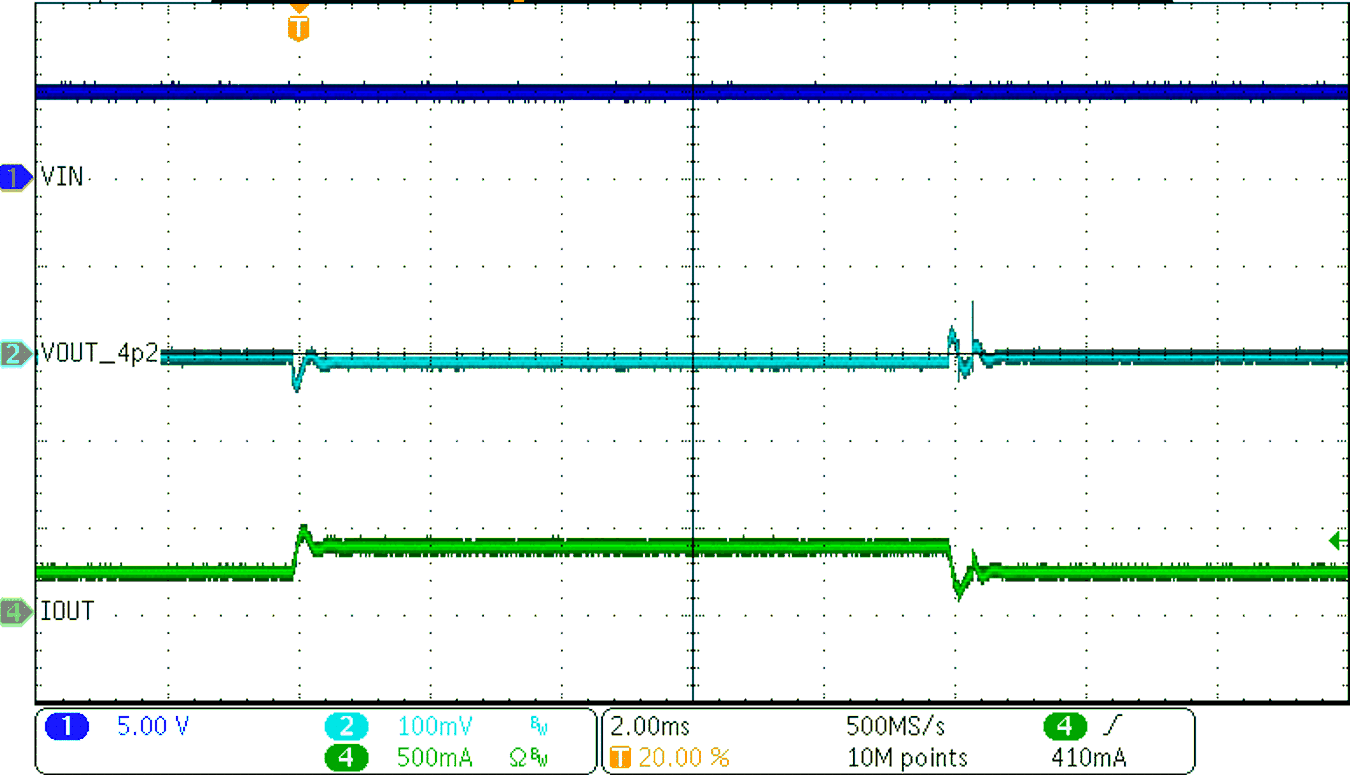

8.2.1.3 Application Curves
CIN = 1 μF, COUT = 1 μF, VIN = 5 V, VOUT = 3.8 V, ICHG = 250 mA (unless otherwise specified)
| RISET = 1.2 kΩ |
| VIN = 5 V → 0 V |
| CE = Low → High |
| VIN = 5 V → 9 V | VOUT = VSET = 4.2 V | |
| VOUT = VSET = 4.2 V → 0 V | ||
| ISET = 50 mA → 500 mA |
| RISET = 1.2 kΩ | OUT = open-circuit |
| CE = High → Low |
| VOUT = VSET = 4.2 V | ISYS = 0 mA → 500 mA | |
| ISET = 1.2 kΩ → 0 Ω | ||
