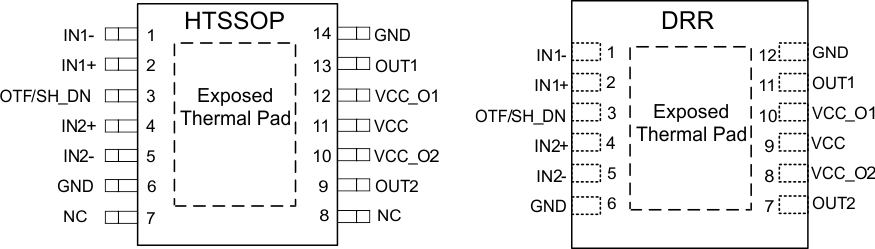

6 Pin Configuration and Functions
It is recommended to connect the Exposed Pad to ground for best thermal performance. Must not be connected to any other pin than ground. However, it can be left floating.
HTSSOP is in preview
Pin Functions
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | DDR | PWP(1) | ||
| NO. | NO. | |||
| IN(X)+ | 2, 4 | 2, 4 | Input | non-inverting opamp input terminal |
| IN(X)- | 1, 5 | 1, 5 | Input | inverting opamp input terminal |
| OUT(X) | 11, 7 | 13, 9 | Output | Opamp output |
| OTF/SH_DN | 3 | 3 | Input/output | Over temperature flag and Shutdown (see for truth table) |
| VCC_O(X) | 8, 10 | 10, 12 | Input | Output stage supply pin |
| VCC | 9 | 11 | Input | Gain stage supply pin |
| GND | 6, 12 | 14 | Input | Ground pin (Both ground pins must be used and connected together on board) |
| NC | N/A | 7, 8 | N/A | No Internal Connection (do no connect) |
(1) Preview.
