7.16 Typical Characteristics
At TJ = 25°C, PA_VS = 16 V, VAVDD = VDVDD = 3.3 V, and PA_ISET (pin 46) connected to ground, unless otherwise noted.

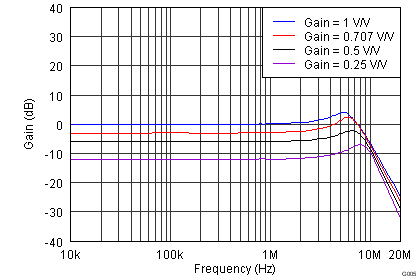

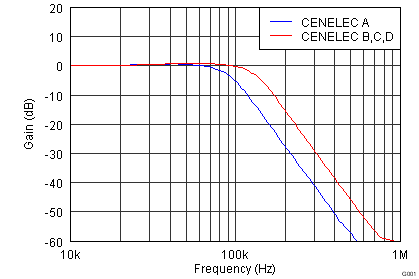

Figure 1. Tx Filter Gain vs Frequency

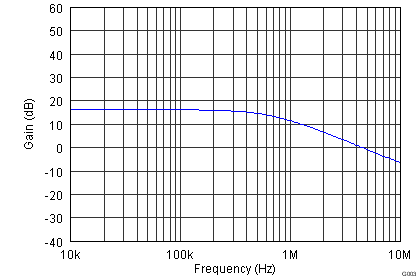

Figure 3. PA Gain vs Frequency
Figure 5. Tx PGA Gain vs Frequency

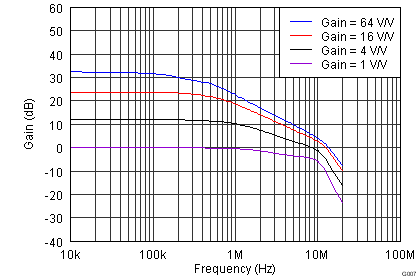

Figure 7. Rx PGA2 Gain vs Frequency

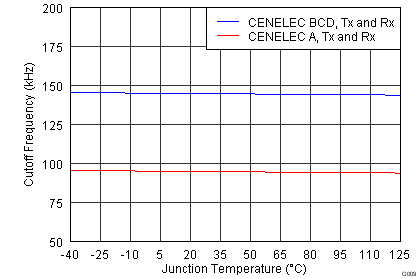

Figure 9. Filter Cutoff vs Temperature

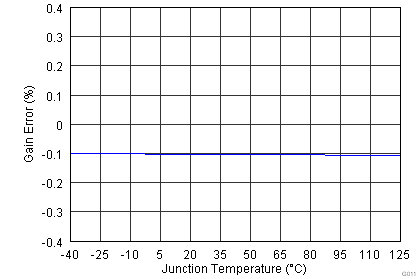

Figure 11. PA Gain Error vs Temperature

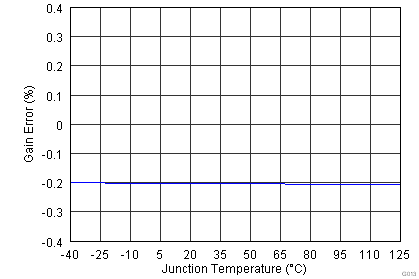

Figure 13. Rx PGA2 Gain Error vs Temperature

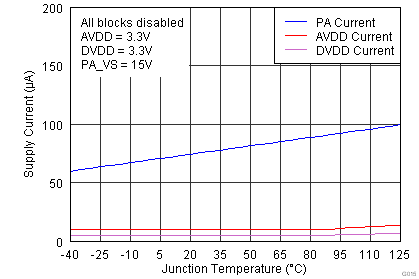

Figure 15. Supply Current (Shutdown) vs Temperature
Figure 17. Tx Filter Pulse Response

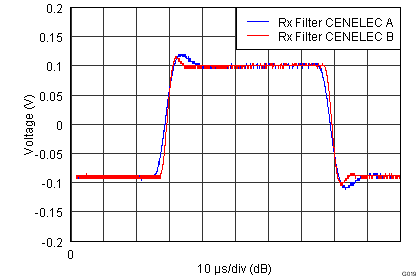

Figure 19. Rx Pulse Response

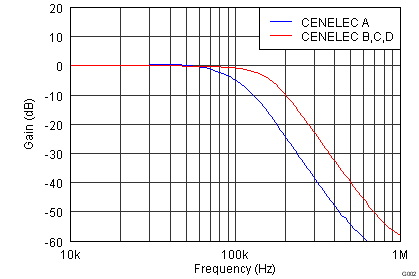

Figure 2. Rx Filter Gain vs Frequency

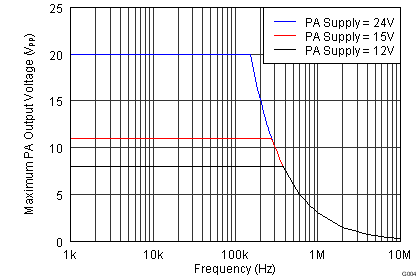

Figure 4. Maximum PA Output Voltage vs Frequency

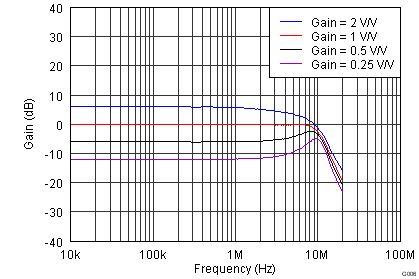

Figure 6. Rx PGA1 Gain vs Frequency

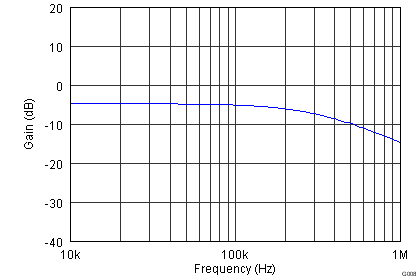

Figure 8. Two-Wire Receiver Gain vs Frequency

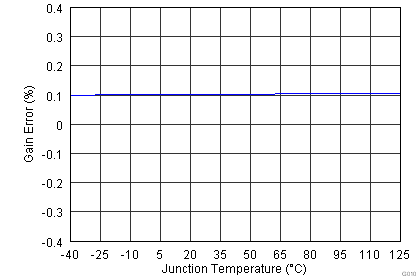

Figure 10. Tx PGA Gain Error vs Temperature
Figure 12. Rx PGA1 Gain Error vs Temperature

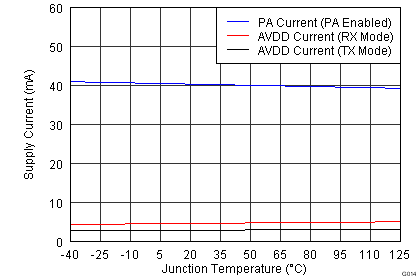

Figure 14. Quiescent Supply Current vs Temperature

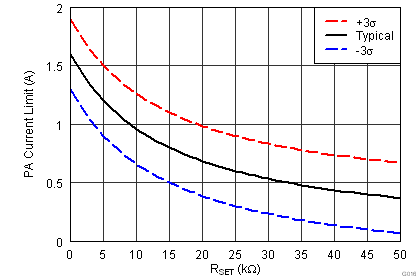

Figure 16. PA Current Limit vs RSET

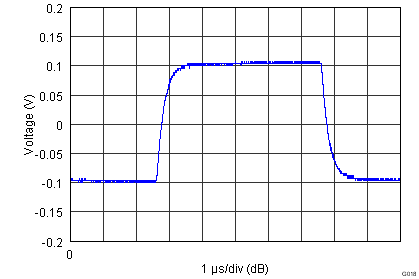

Figure 18. PA Pulse Response
