3.1 Software Setup
Use the following to set up the EVM testing software:
- On the computer connected to the EV2400 or EV2500
interface board, launch Battery Management Studio (BQStudio). Select Charger as
seen in Figure 3-1.
Figure 3-1 BQStudio Device Type
Selection Window - Select the appropriate configuration file based on the BQ2569x device from the window.
- Toward the right side of the ribbon on the window
that appears select
for the main window of
the BQ2569x EVM software to appear, as shown in
Figure 3-2.

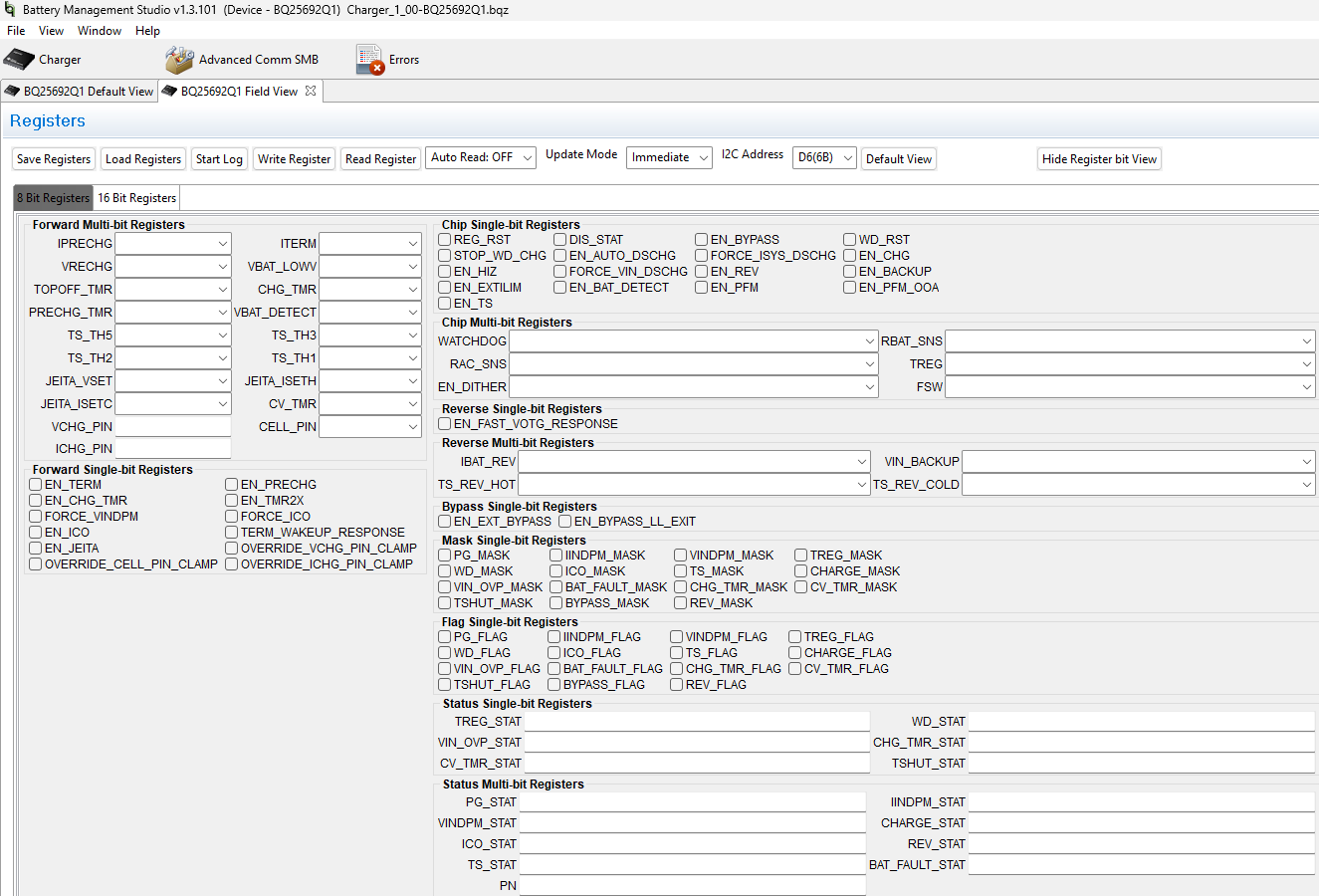

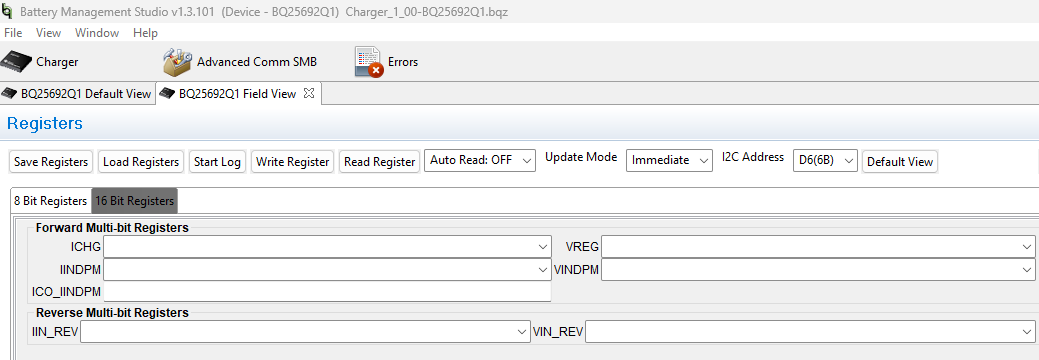

Figure 3-2 Field View of 8 Bit and 16 Bit
Register Tabs of BQ25692-Q1 EVM Software
