1 特性

• 信號傳輸速率：25Mbps刪除了數據表標題中的刪除了數據表標題中的
• 輸入時使用集成噪聲濾波器
• 默認輸出高電平和低電平選項
• 低功耗，每通道 I_CC 典型值（1Mbps 時）：
  • ISO7340x：0.9mA（5V 電源）、
    0.7mA（3.3V 電源）
  • ISO7341x：1.2mA（5V 電源）、
    0.9mA（3.3V 電源）
  • ISO7342x：1.3mA（5V 電源）、
    0.9mA（3.3V 電源）
• 低傳播延遲：典型值 31ns
  （5V 電源）
• 3.3V 和 5V 電平轉換
• 寬溫度范圍：-40°C 至 125°C
• 70KV/μs 瞬態抗擾度，典型值（5V 電源）
• 優異的電磁兼容性 (EMC)
  • 系統級靜電放電 (ESD)、瞬態放電 (EFT) 以及抗浪涌保護
  • 低輻射
• 由 3.3V 和 5V 電源供電
• 寬體小外形尺寸集成電路 (SOIC)-16 封裝
• 安全相關認證：
  • 4242 V_PK 基本隔離，符合 DIN V VDE V 0884-10 和 DIN EN 61010-1 標準
  • 符合 UL 1577 標準且長達 1 分鐘的 3K V_RMS 隔離
  • CSA 組件驗收通知 5A、IEC 60950-1 和 IEC 61010-1 終端設備標準
  • 已通過 GB4943.1-2011 CQC 認證

2 應用

• 是下列應用中光耦合器的替代產品：
  • 工業現場總線 (Fieldbus)
    • Profibus 現場總線
    • Modbus
    • DeviceNet 數據總線
  • 伺服器控制接口
  • 電機控制
  • 電源
  • 電池組

3 說明

ISO734x 系列器件可提供符合 UL 1577 標準的長達 1 分鐘且高達 3000 V_RMS 的電隔離，以及符合 VDE V 0884-10 標準的 4242 V_PK 隔離。這些器件具有四個隔離通道，后者由邏輯輸入和輸出緩沖器組成，并由二氧化硅 (SiO₂) 絕緣隔柵進行隔離。

ISO7340x 器件具有四個正向通道，ISO7341x 器件具有三個正向通道和一個反向通道，ISO7342x 器件具有兩個正向通道和兩個反向通道。如果出現輸入功率或信號損失，默認輸出低（器件帶有后綴 F）或高（器件不帶后綴 F）。有關更多詳細信息，請參閱 器件功能模式部分。

1. 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

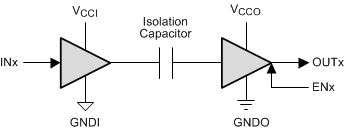

簡化電路原理圖

V_CCI 和 GNDI 分別是輸入通道的電源和接地連接。

V_CCO 和 GNDO 分別是輸出的電源和接地連接。
