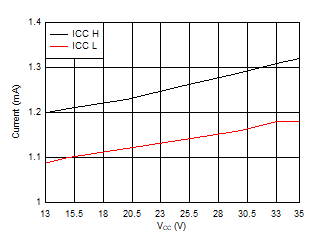

6.12 Typical Characteristics
VCC= 15 V, 1-μF capacitor from VCC to VEE, CLOAD = 1 nF for timing tests and 180nF for IOH and IOL tests, TJ = –40°C to +150°C, (unless otherwise noted)

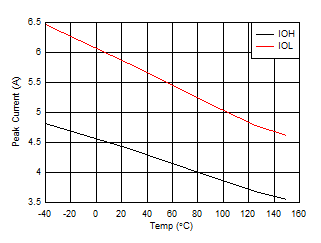

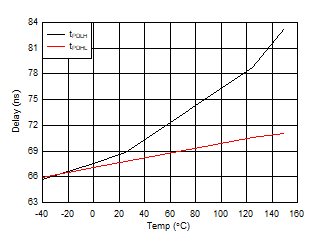

| CLOAD = 180-nF |
| CLOAD = 1-nF |
A.
Figure 6-8 VOH (No Load) versus Temperature| IOUT = 0mA |
A.
Figure 6-10 VOL versus Temperature| IOUT = 20mA (sinking) |
A.
Figure 6-12 Supply current versus Frequency
A.

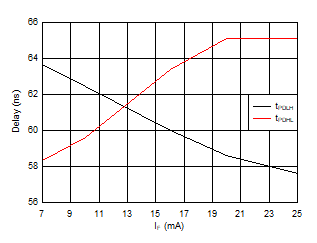

Figure 6-14 Forward voltage drop versus Temperature| IF = 10mA |
| CLOAD = 1-nF |
A.

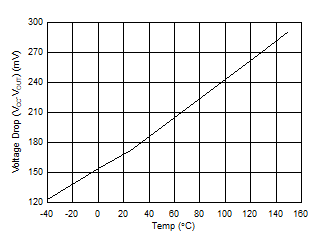

Figure 6-9 VOH (20mA Load) versus Temperature| IOUT = 20mA (sourcing) |
A.

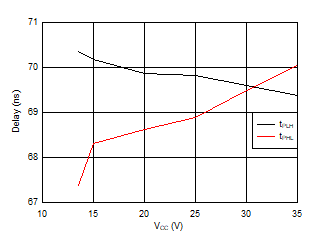

Figure 6-11 Propagation delay versus Supply voltage
A.
Figure 6-13 Forward current versus Forward voltage drop| TA = 25°C |
