7 Parameter Measurement Information

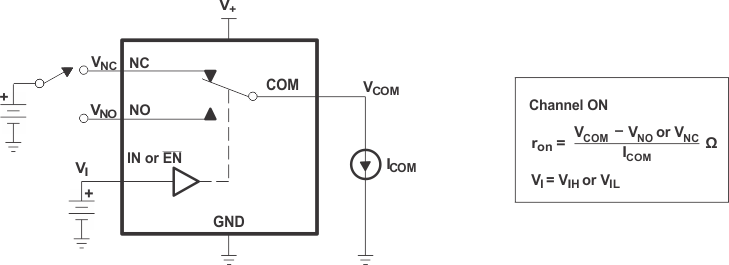

Figure 17. ON-State Resistance (ron)

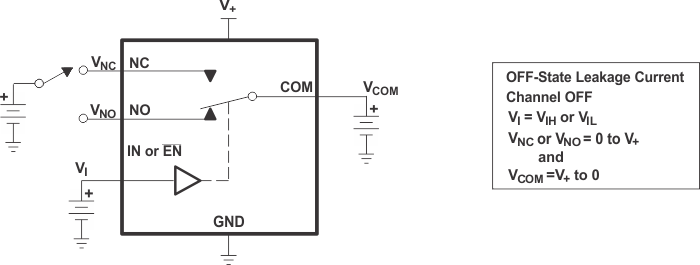

Figure 18. OFF-State Leakage Current (ICOM(OFF), INC(OFF), INO(OFF))

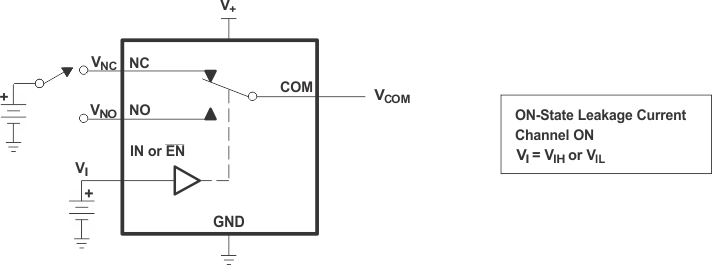

Figure 19. ON-State Leakage Current (ICOM(ON), INC(ON))

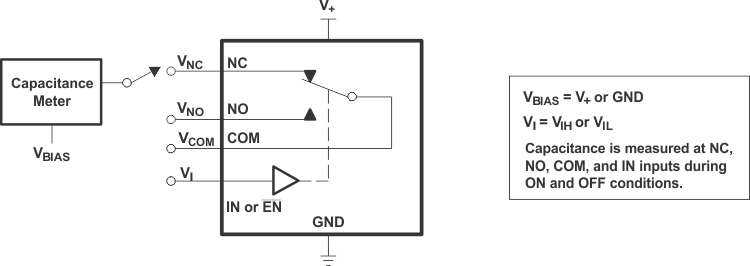

Figure 20. Capacitance (CI, CCOM(OFF), CCOM(ON), CNC(OFF), CNC(ON))
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
2. CL includes probe and jig capacitance.
3. See Electrical Characteristics for VCOM.

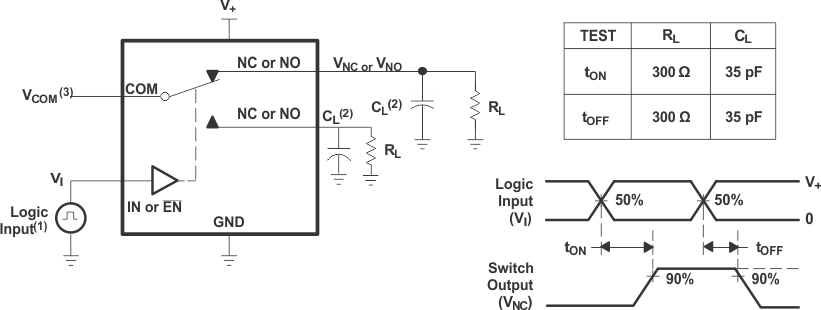

Figure 21. Turnon (tON) and Turnoff Time (tOFF)

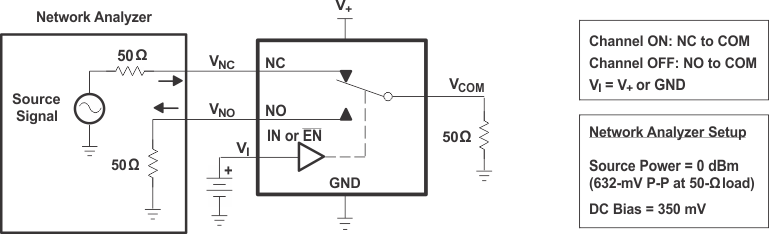

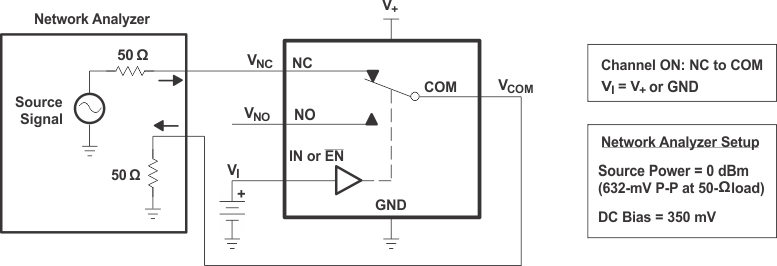

Figure 22. Bandwidth (BW)

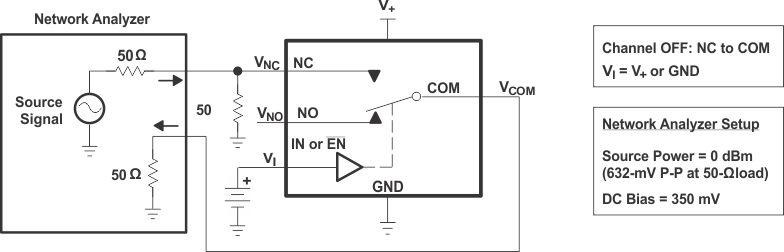

Figure 23. OFF Isolation (OISO)

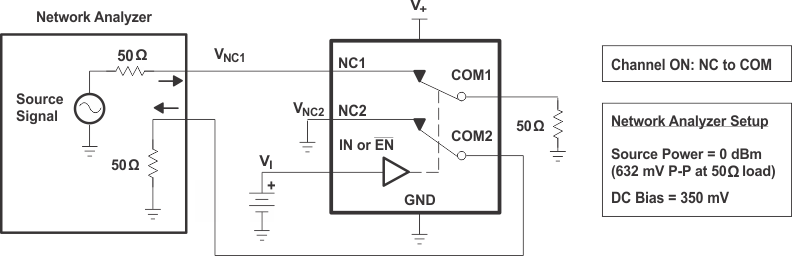

Figure 24. Crosstalk (XTALK)
Figure 25. Crosstalk Adjacent
1. CL includes probe and jig capacitance.
2. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.

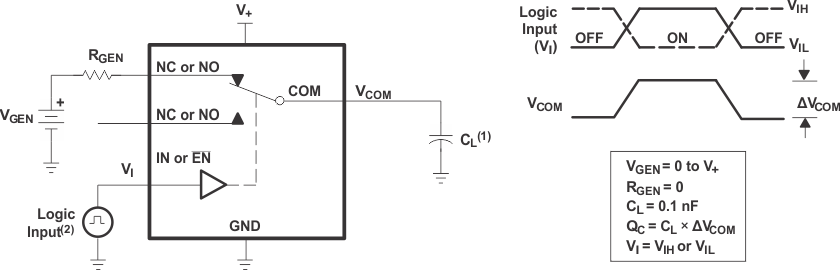

Figure 26. Charge Injection (QC)
1. CL includes probe and jig capacitance.

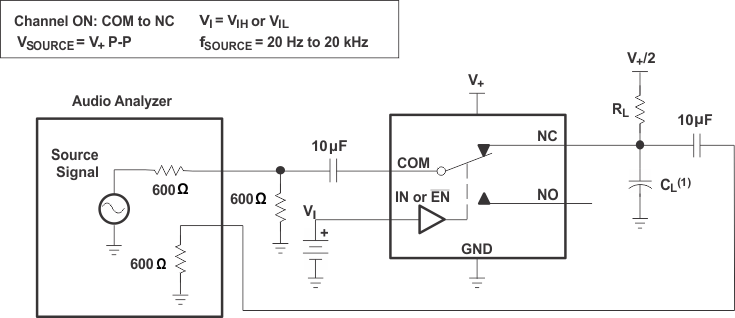

Figure 27. Total Harmonic Distortion (THD)
