ZHCSJ92E October 2009 – September 2022 TS12A12511
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
6.8 Typical Characteristics

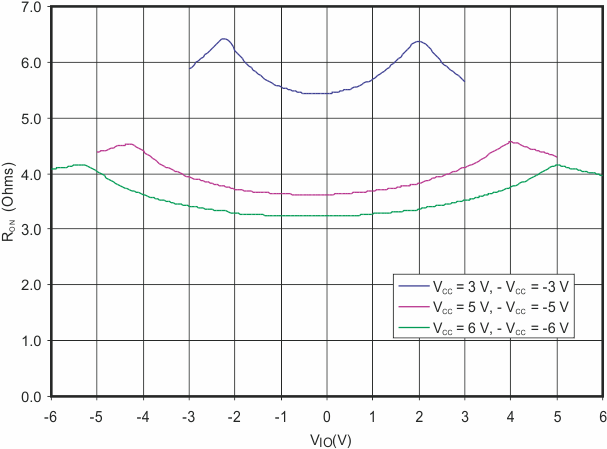

Figure 6-1 RON vs VIO
Figure 6-3 Leakage Current vs I/O Voltage (Switch OFF)
Figure 6-5 Negative Supply Current vs Temperature

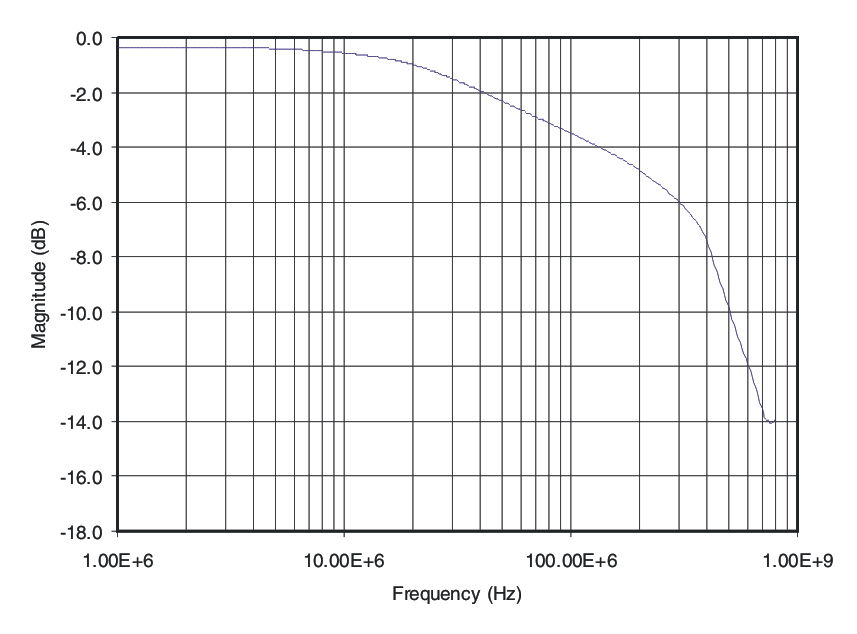

Figure 6-7 Bandwidth Dual Supply (±5 V)

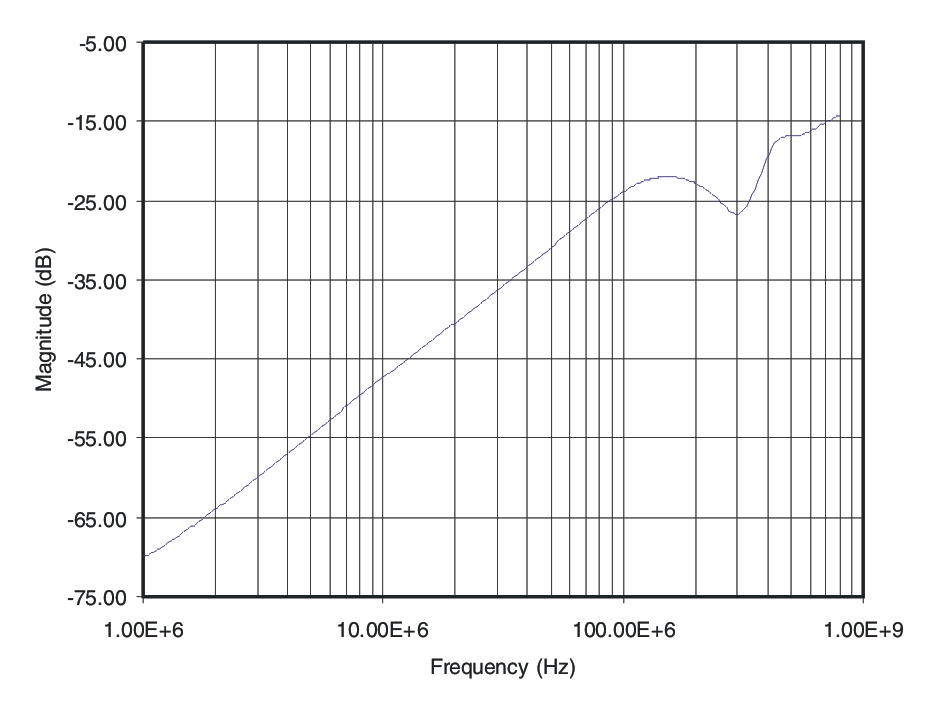

Figure 6-9 Crosstalk vs Frequency Dual Supply (±5 V)

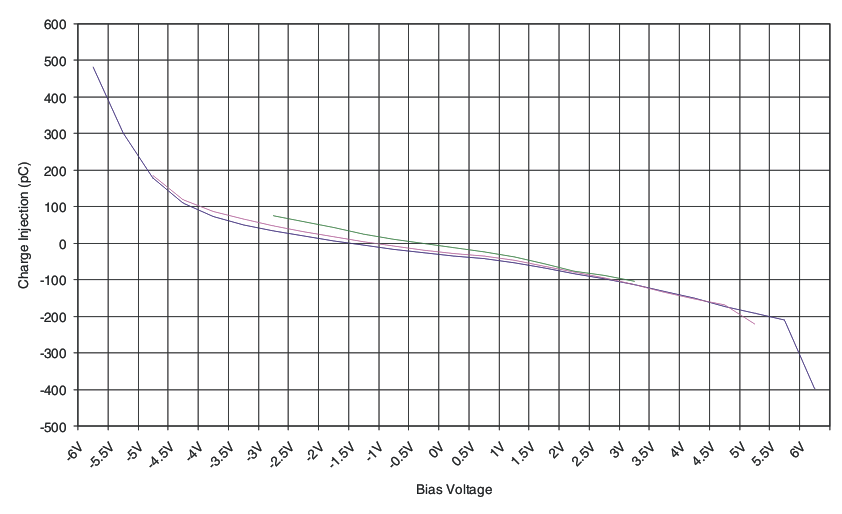

Figure 6-11 Charge Injection vs Bias Voltage

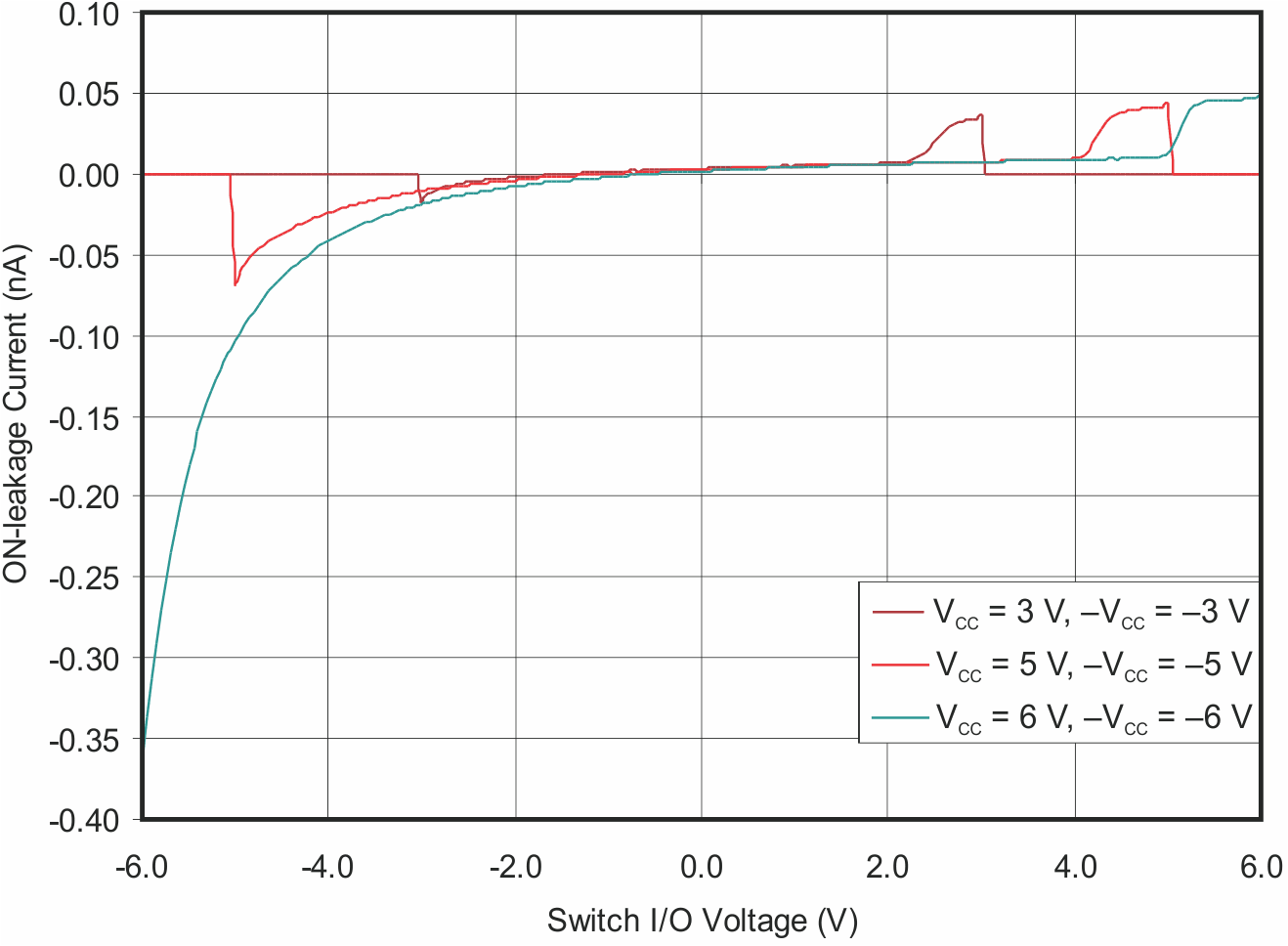

Figure 6-2 Leakage Current vs I/O Voltage (Switch
ON)

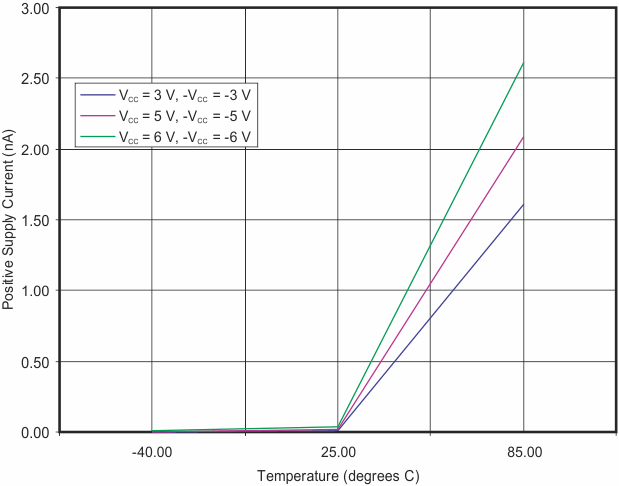

Figure 6-4 Positive Supply Current vs Temperature

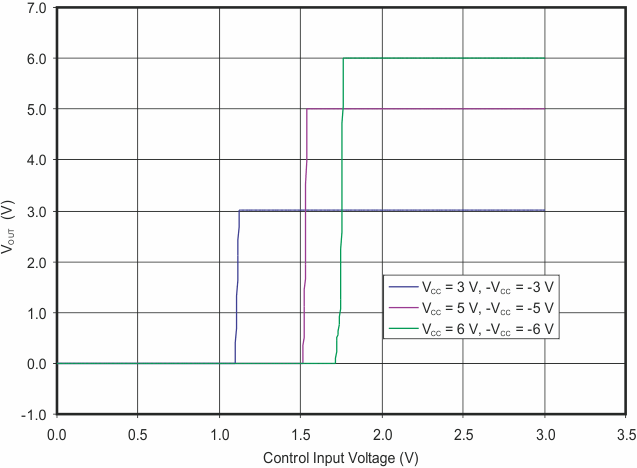

Figure 6-6 Control Input (IN) Threshold Voltage
Figure 6-8 Off
Isolation vs Frequency Dual Supply (±5 V)

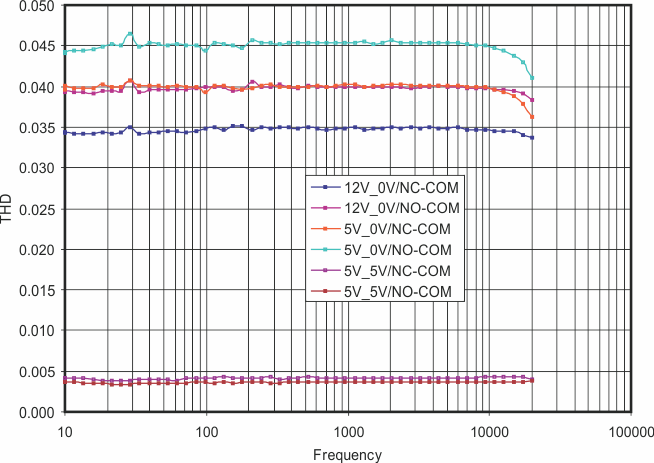

Figure 6-10 THD+N (%) vs Frequency
