9.3.1.1 Application Curves

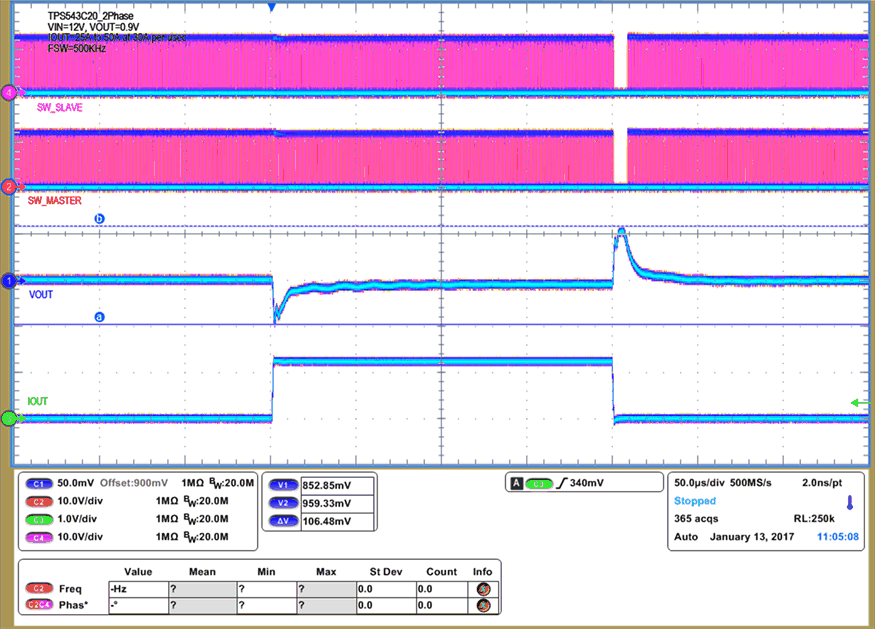

Figure 34. Transient Response of 0.9-V Output at 12 VIN, Transient is 25 A to 50 A, Step is 25 A at 30 A/μs

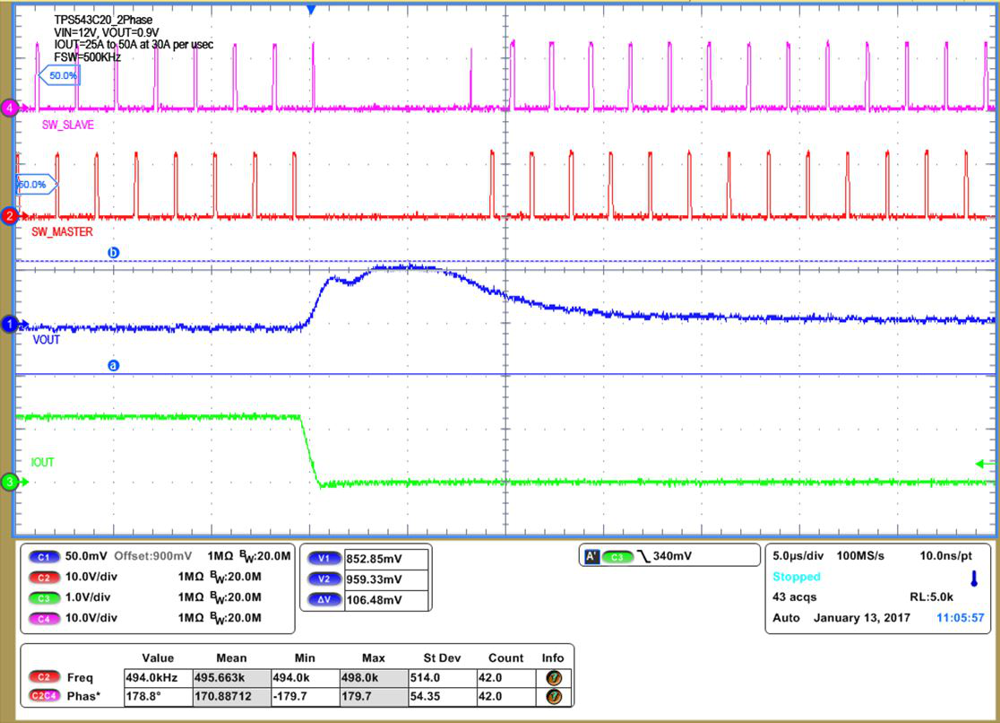

Figure 36. Transient Response of 50-A to 25-A Load
at 30 A/μs Fall

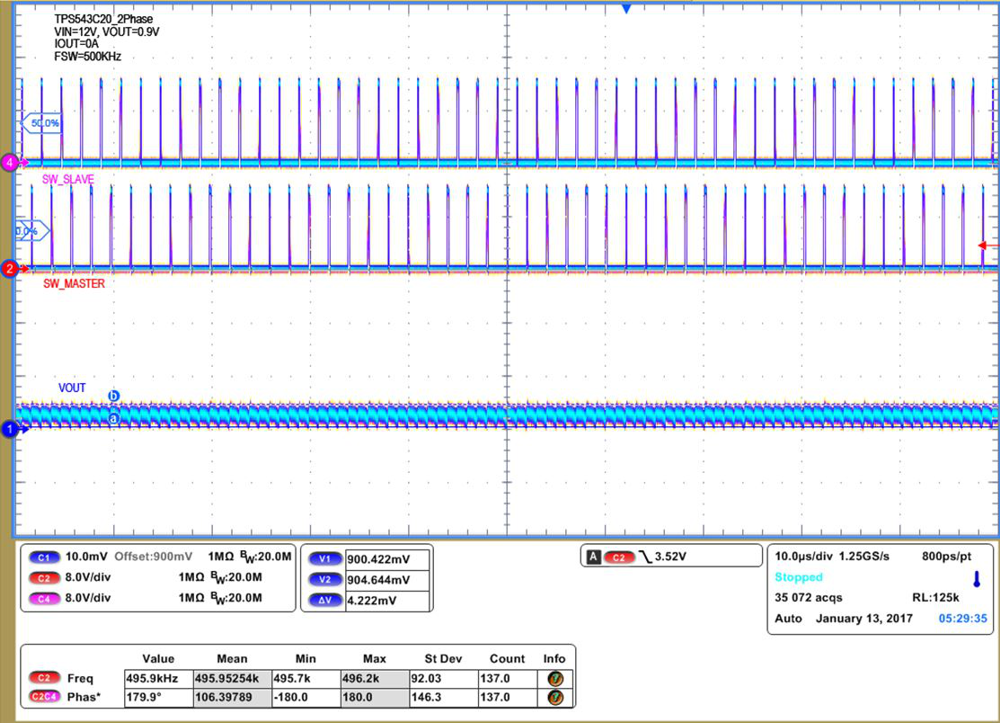

Figure 38. Output Ripple and SW Node
of 0.9-V Output at 12 VIN, 0-A Output

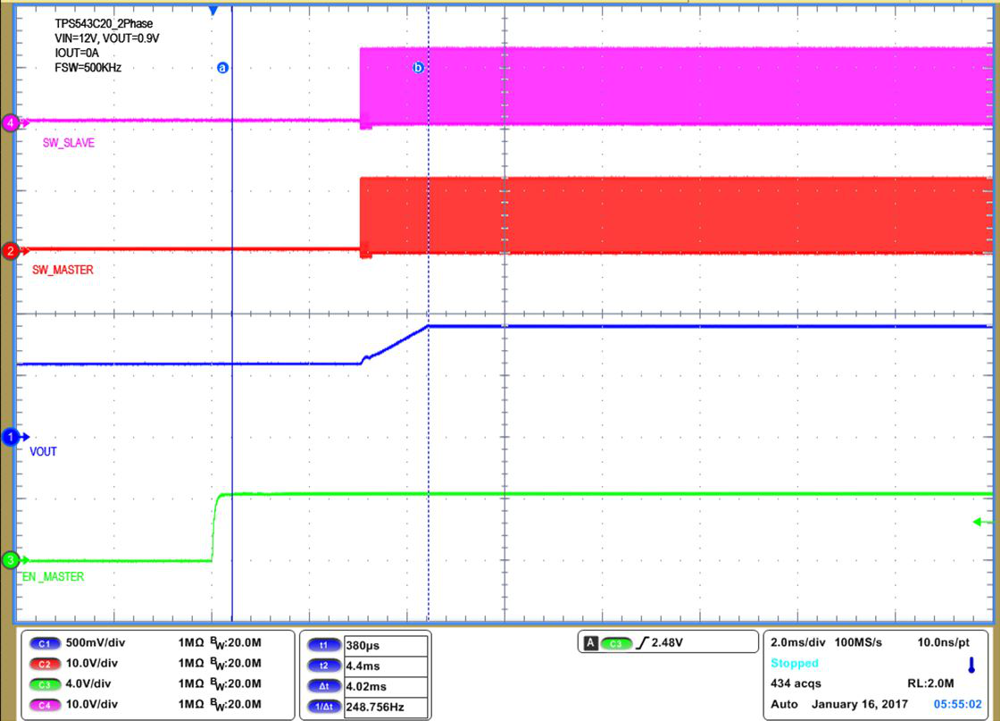

Figure 40. 0.6-V Pre-Bias Start Up From Enable,
0.9-V Output at 12 VIN, 0-A Output

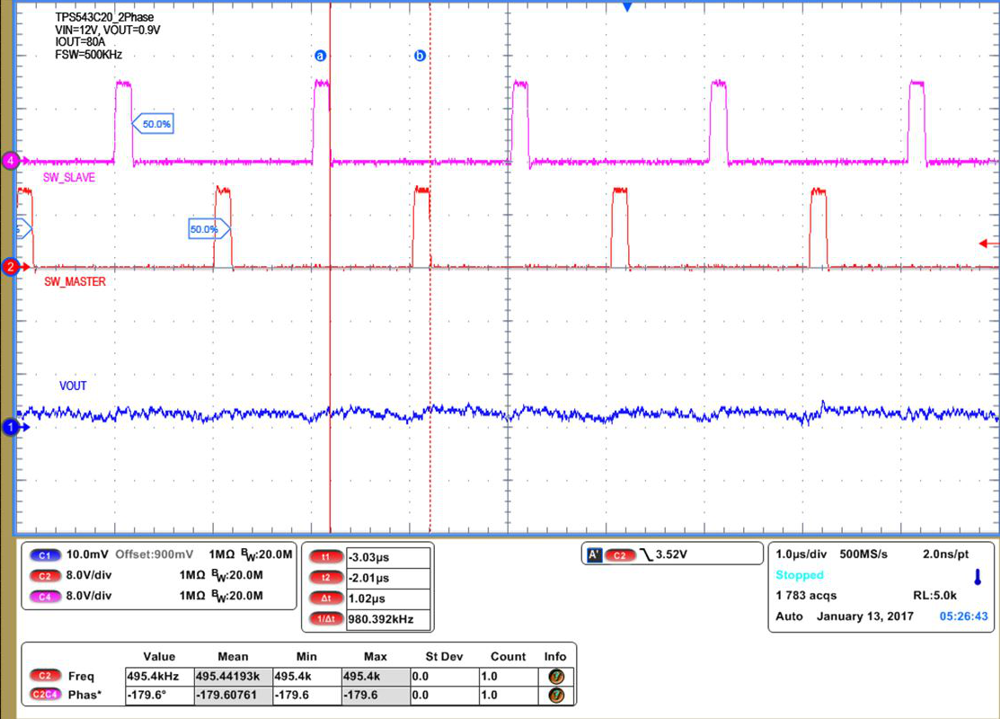

Figure 42. Master-Slave 180° Synchronization

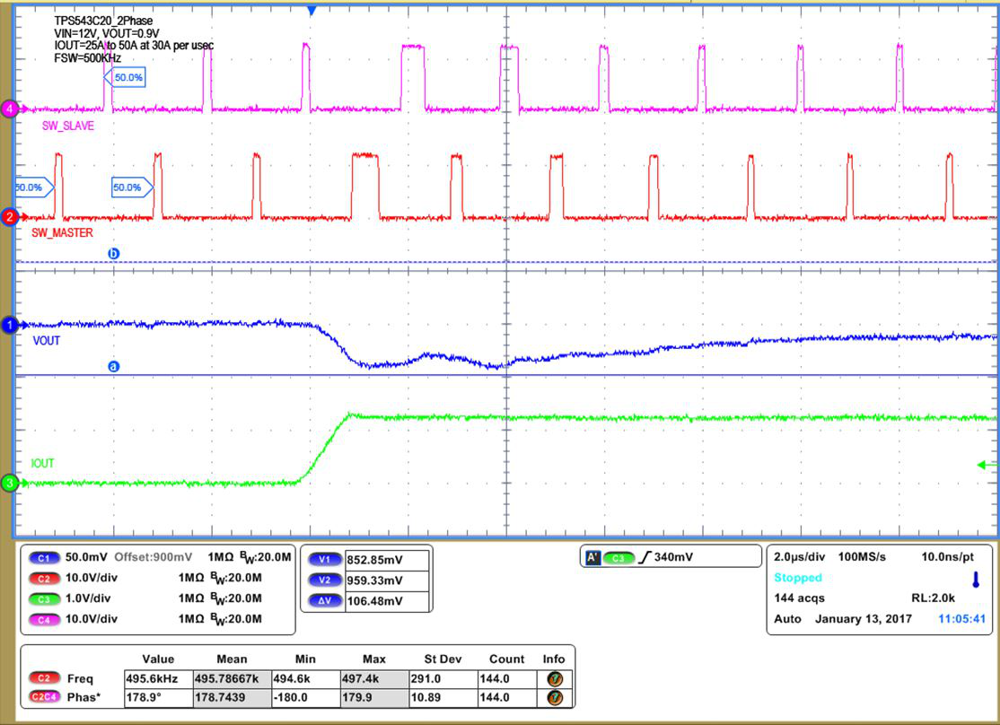

Figure 35. Transient Response of 25-A to 50-A Load
at 30 A/μs Rise

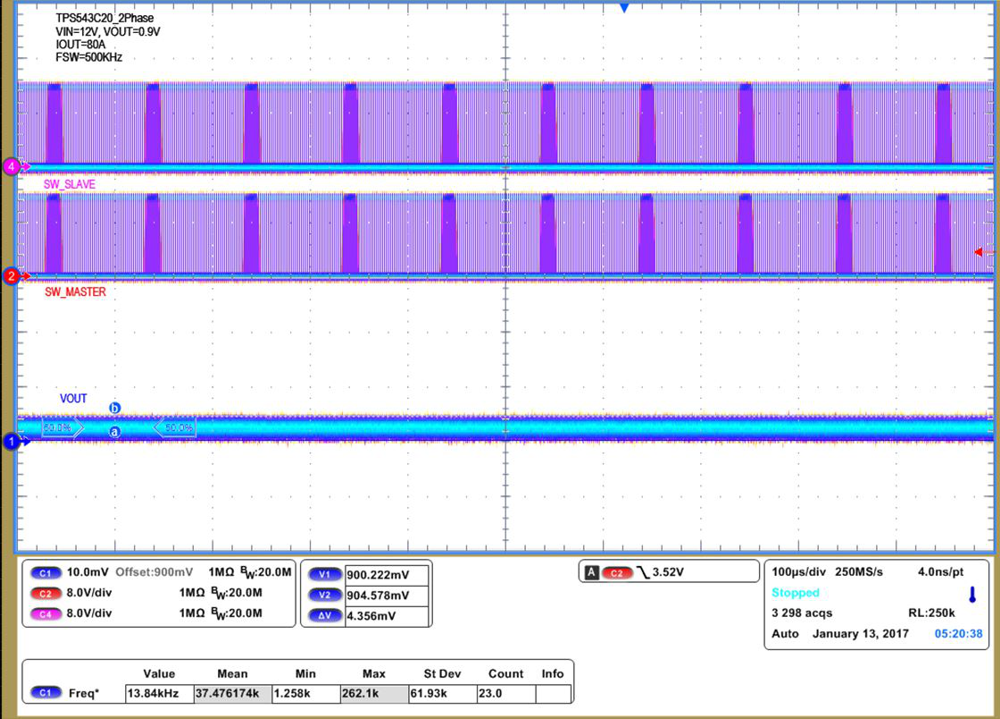

Figure 37. Output Ripple and SW Node
of 0.9-V Output at 12 VIN, -A Output

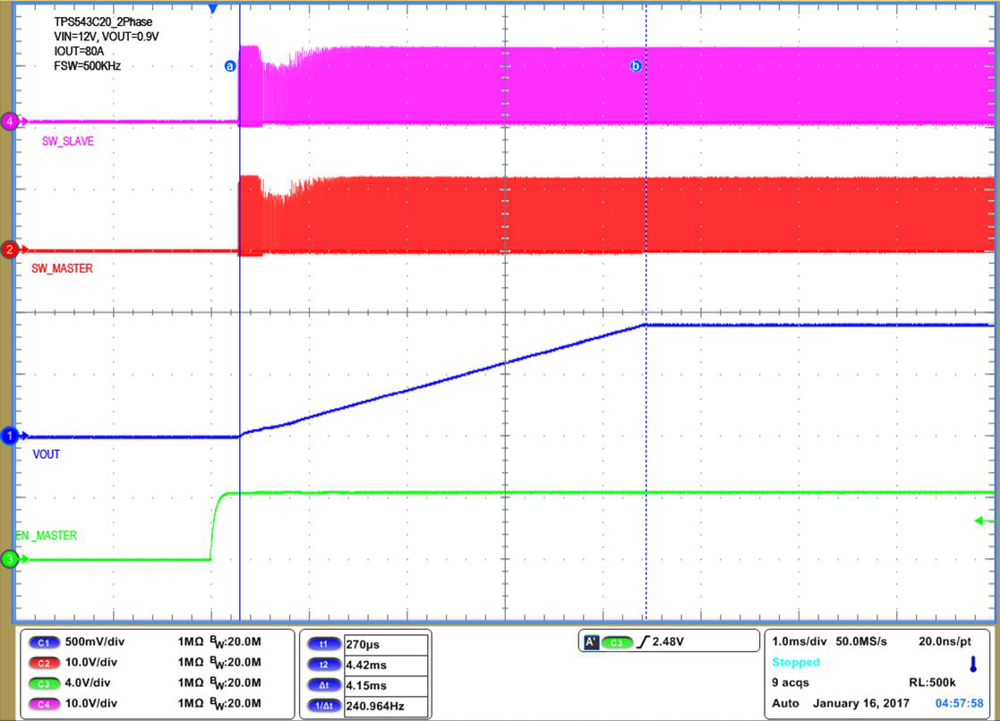

Figure 39. Start up from Enable,
0.9-V Output at 12 VIN, 80-A Output
Figure 41. Output Voltage Start-up and Shutdown,
0.9-V Output at 12 VIN, 5-A Output
