9.2.2.1 Application Curves
Figure 9-8 8 Gbps PRBS-7 Signals
Through Calibration Traces in TI Evaluation Board

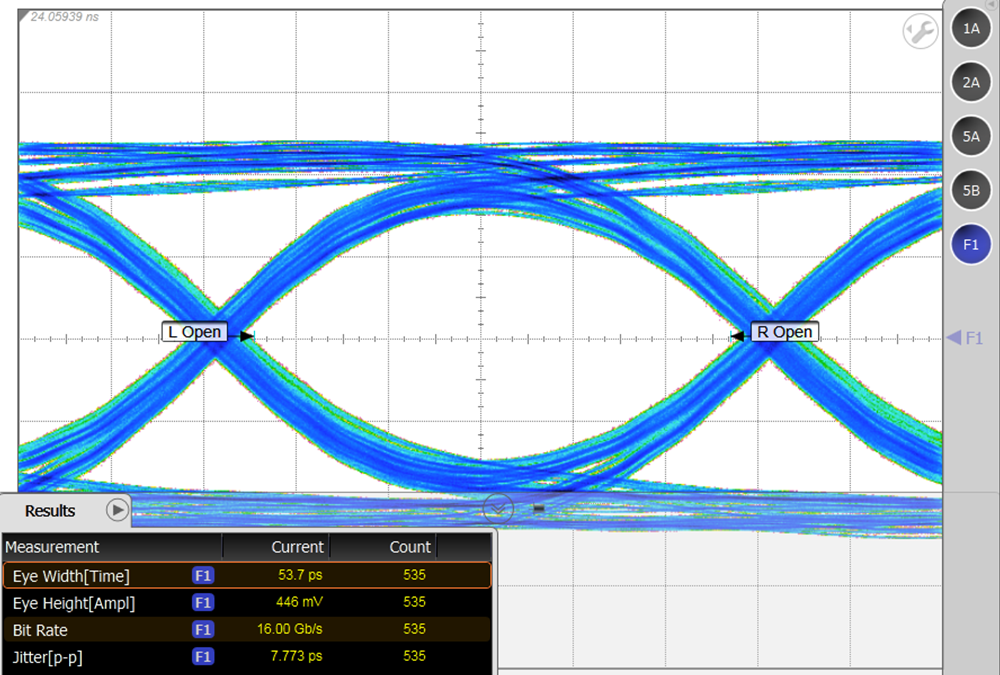

Figure 9-10 16 Gbps PRBS-7 Signals
Through Calibration Traces in TI Evaluation Board
Figure 9-9 8 Gbps PRBS-7 Signals
Through a Typical TMUXHS4212 Channel in TI Evaluation
Board
Figure 9-11 16 Gbps PRBS-7 Signals
Through a Typical TMUXHS4212 Channel in TI Evaluation
Board
