6.7 Typical Characteristics
At TA = 25°C and V+ = 3.3 V, unless otherwise noted.
Figure 6-2 Local Temperature Error vs. Temperature
Figure 6-4 Remote Temperature Error vs. Leakage Resistance

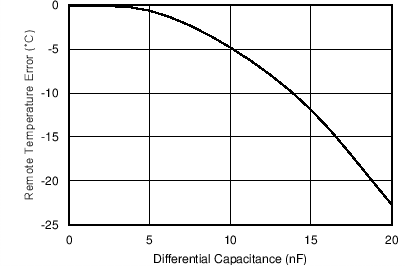

Figure 6-6 Remote Temperature Error vs. Differential Capacitance
Figure 6-8 Quiescent Current vs. Conversion Rate

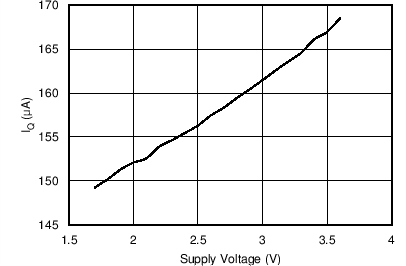

Figure 6-10 Quiescent Current vs. Supply Voltage (At Default Conversion Rate of 16 Conversions per Second)
Figure 6-3 Remote Temperature Error vs. Temperature

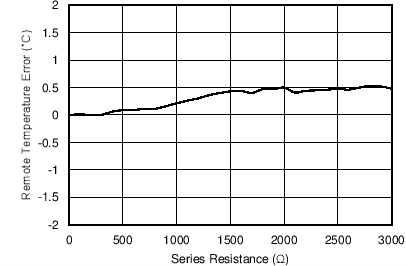

Figure 6-5 Remote Temperature Error vs. Series Resistance
Figure 6-7 Remote Temperature Error vs. Remote Channel Noise Frequency
Figure 6-9 Shutdown Quiescent Current vs. SCL Clock Frequency

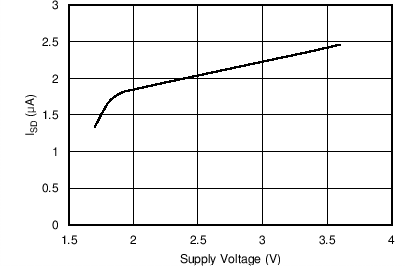

Figure 6-11 Shutdown Quiescent Current vs. Supply Voltage
