6 Parameter Measurement Information
tpd is the maximum between tPLH and tPHL

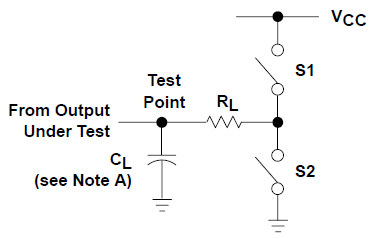

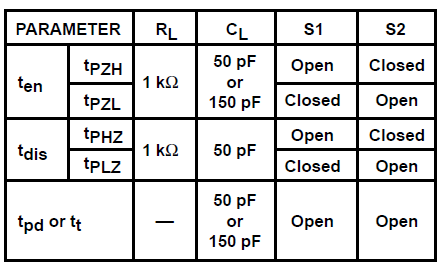

Figure 6-1 Load Circuit

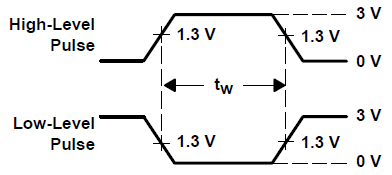

Figure 6-2 Voltage WaveformsPulse Durations

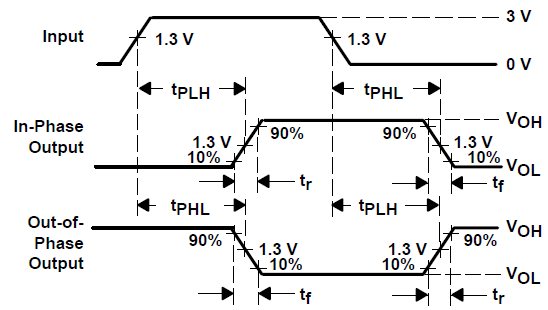

Figure 6-4 Voltage WaveformsPropagation Delay and Output Rise and Fall Times

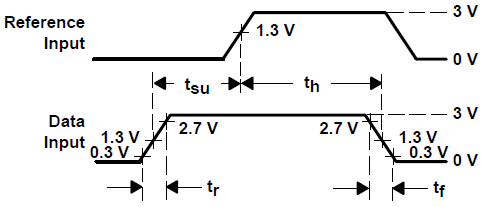

Figure 6-3 Voltage WaveformsSetup and Hold and Input Rise and Fall Times
Figure 6-5 Voltage WaveformsEnable and Diable Times for 3-State Outputs
A. CL includes probe and test-fixture capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low
except when diabled by the output control.
Waveform 2
is for an output with internal conditions such that the output is high except when
diabled by the output control.
C. Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following charactersitics: PRR ≤ 1 MHz, ZO = 50 Ω, tr = 6 ns, tf = 6 ns.
D. The outputs are measured one at a time with one input transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
