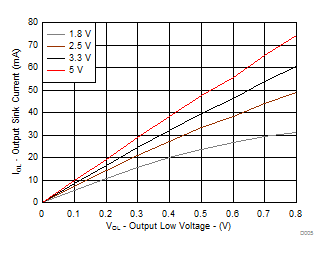

6.8 Typical Characteristics
TA = 25°C (unless otherwise noted)
| fSCL = 400 kHz | I/Os = High or Low Inputs |
| fSCL = 400 kHz | I/Os = High or Low Inputs | TA = 25°C |
| TA = 25°C |
| TA = 25°C |
| VCC = 5 V |
| fSCL = 0 kHz | I/Os = High Inputs |

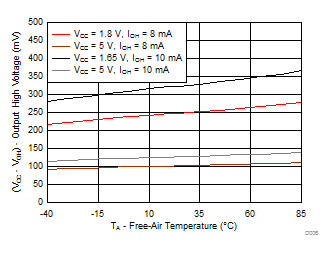

Figure 6-6 Output High Voltage (VCC – VOH) vs Temperature (TA) for P-Ports
| TA = 25°C |

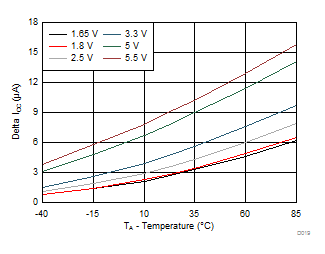

Figure 6-10 Δ ICC vs Temperature for Different VCC (VI = VCC – 0.6 V)
