9.4.1 EMI Plots
EMI plots were measured using the standard LMZM33602EVM with no input filter.

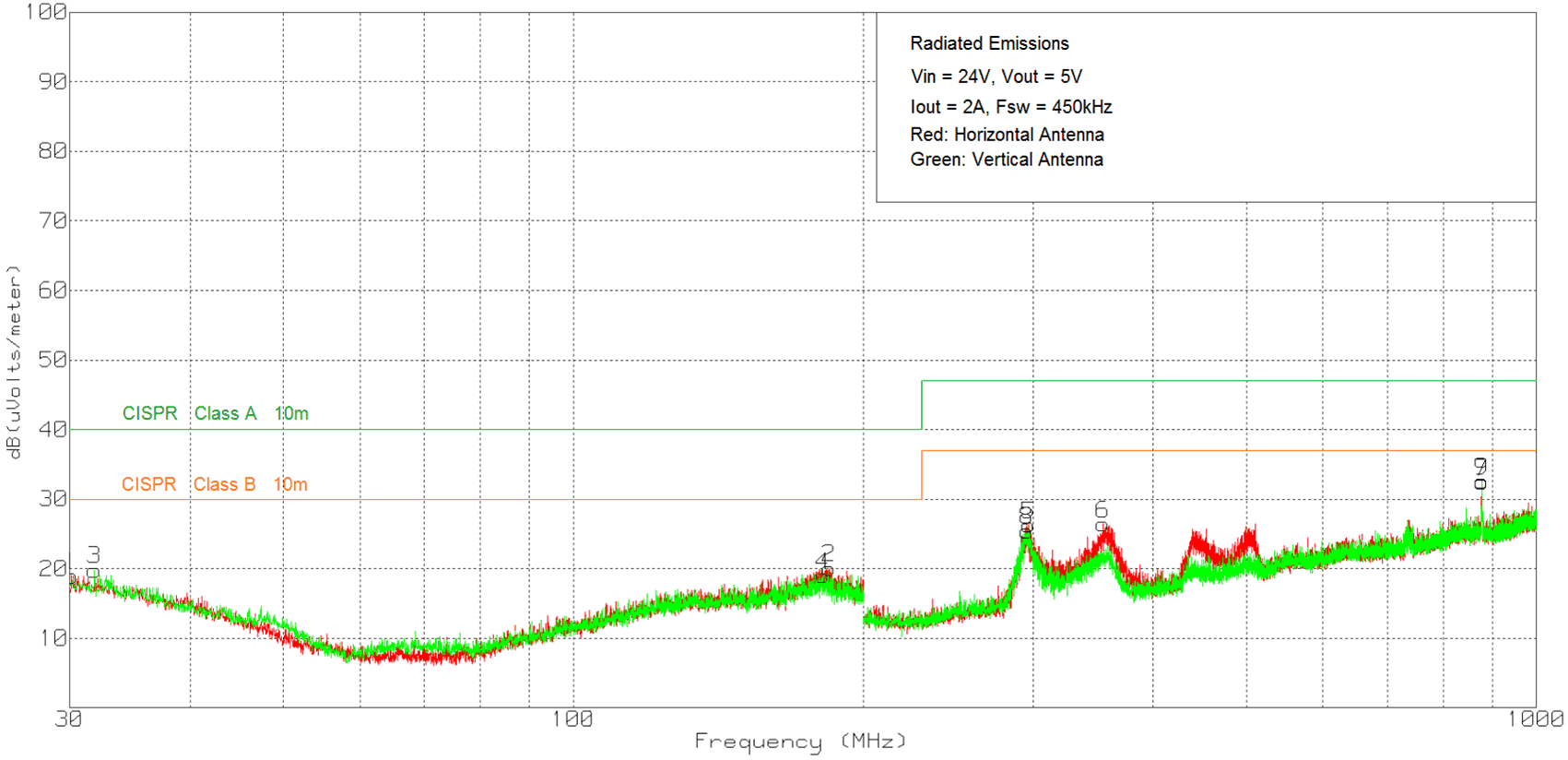

Figure 9-6 Radiated Emissions 24-V Input, 5-V Output, 2-A Load (EN55011 Class B)

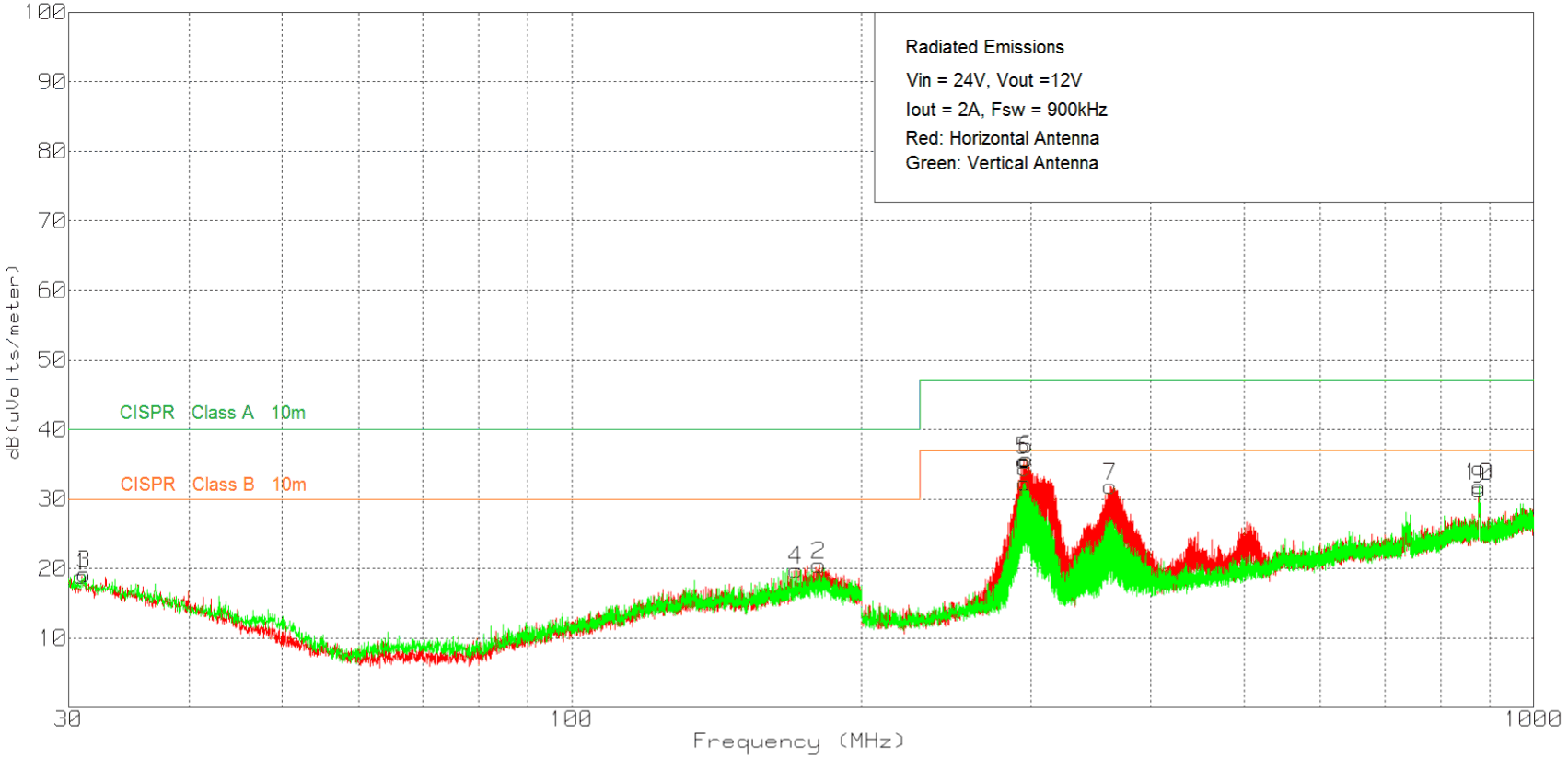

Figure 9-7 Radiated Emissions 24-V Input, 12-V Output, 2-A Load (EN55011 Class B)

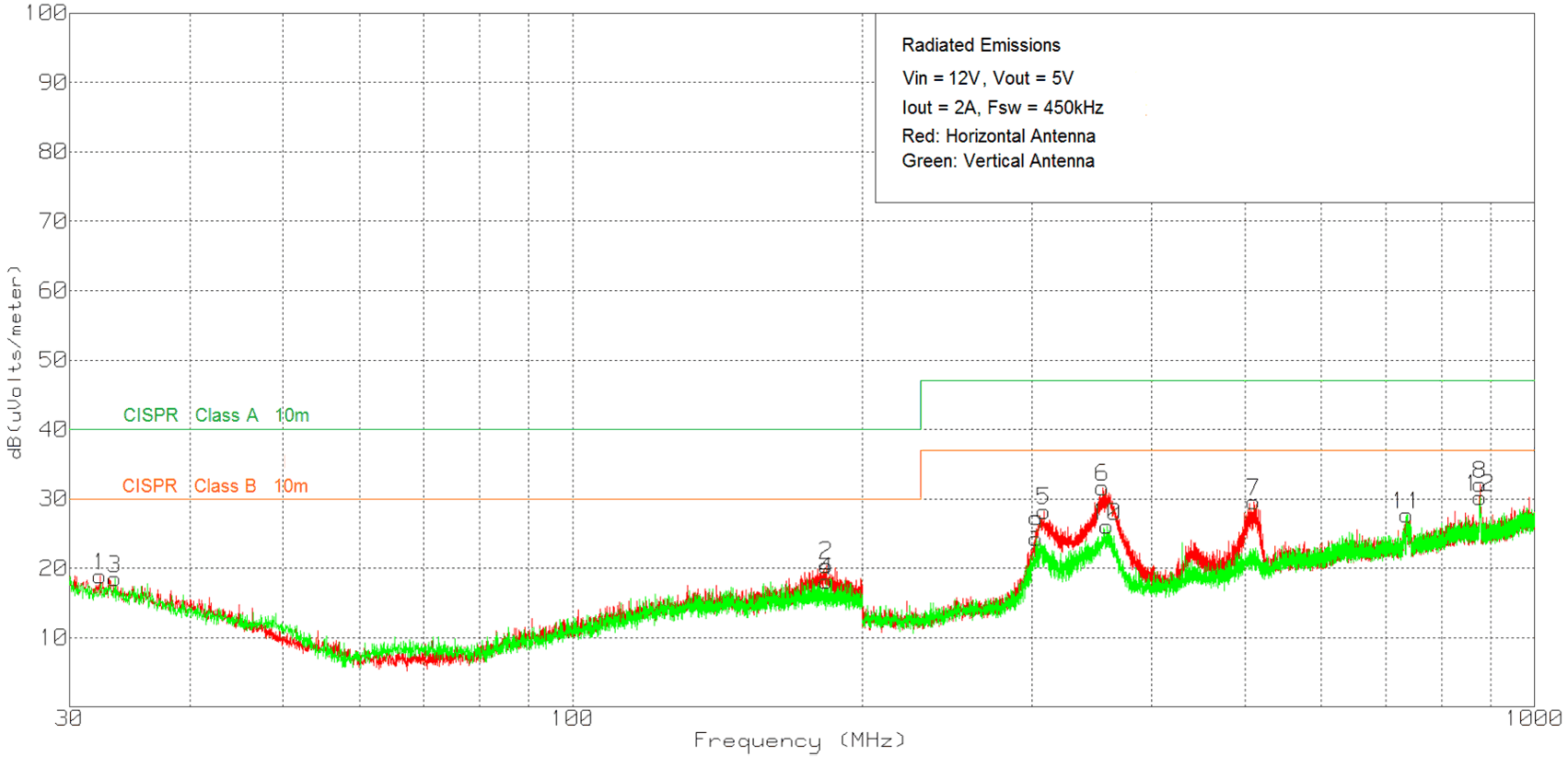

Figure 9-8 Radiated Emissions 12-V Input, 5-V Output, 2-A Load (EN55011 Class B)
