9.4.2 Input Termination
The LMK1D210x inputs can be interfaced with LVDS, LVPECL, HCSL or LVCMOS drivers.
LVDS drivers can be connected to LMK1D210x inputs with DC- and AC-coupling as shown Figure 9-3 and Figure 9-4 (respectively).

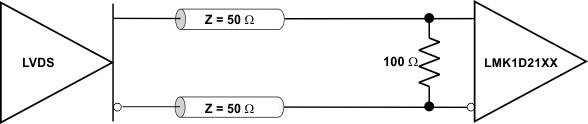

Figure 9-3 LVDS
Clock Driver Connected to LMK1D210x Input (DC-Coupled)

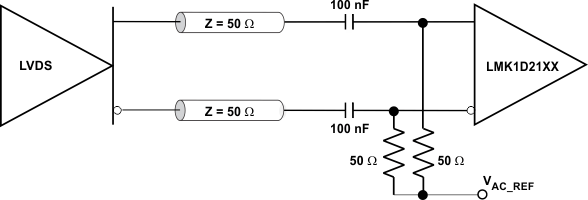

Figure 9-4 LVDS

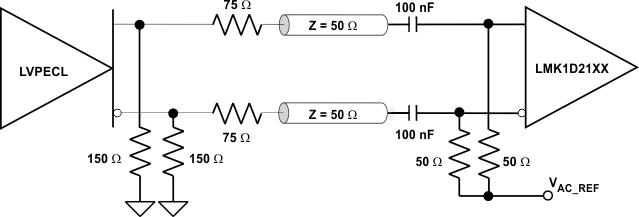

Clock Driver Connected to LMK1D210x Input (AC-Coupled)Figure 9-5 shows how to connect LVPECL inputs to the LMK1D210x. The series resistors are required to reduce the LVPECL signal swing if the signal swing is >1.6 VPP.
Figure 9-5 LVPECL
Clock Driver Connected to LMK1D210x InputFigure 9-6 illustrates how to couple a LVCMOS clock input to the LMK1D210x directly.
Figure 9-6 1.8-V/2.5-V/3.3-V LVCMOS Clock Driver Connected to LMK1D210x InputUnused inputs can be left floating thus reducing the need for additional components.
