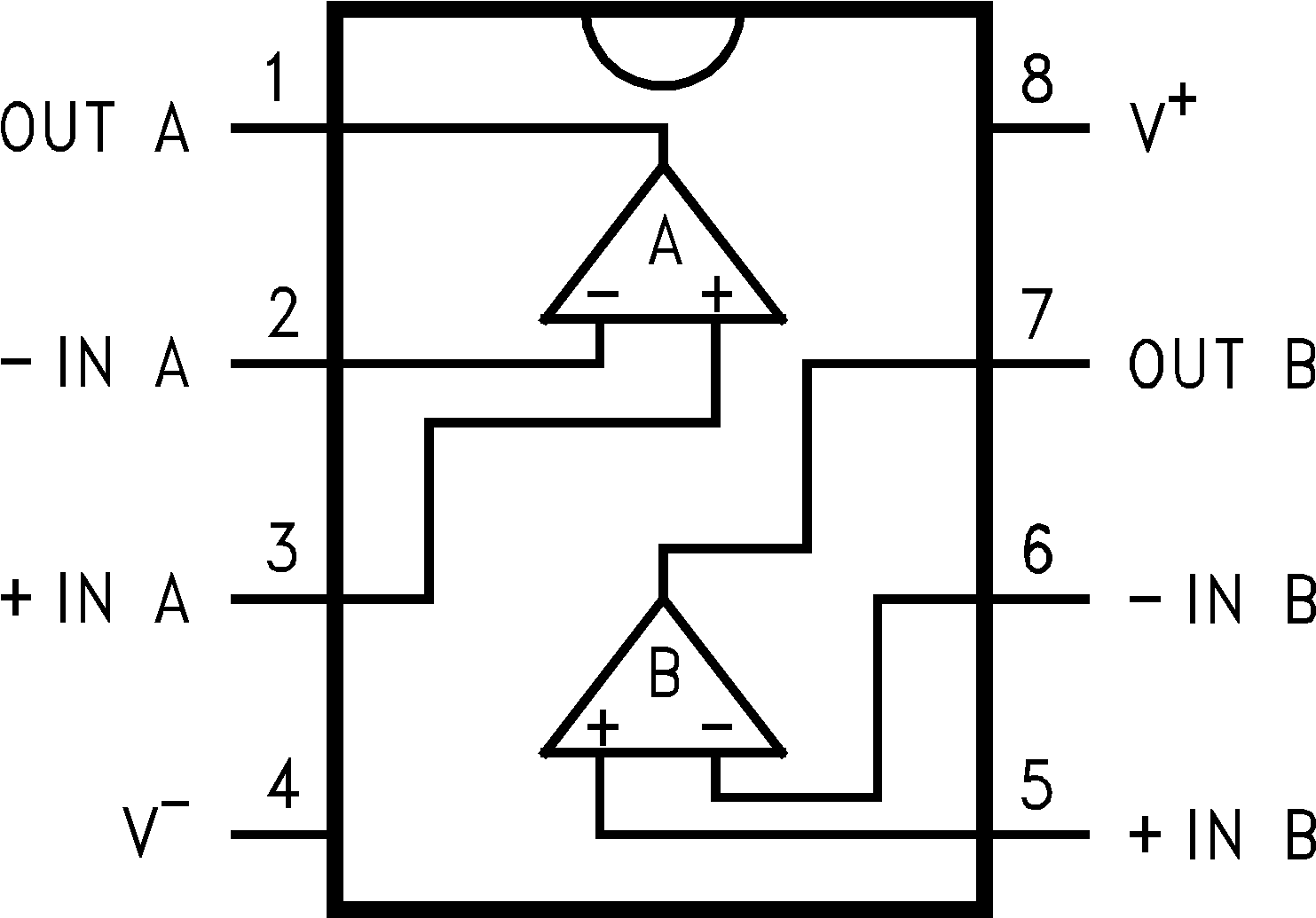

5 Pin Configuration and Functions
8-Pin SOIC and VSSOP
D and DGK Packages
(Top View)
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| OUT A | 1 | O | ChA Output |
| -IN A | 2 | I | ChA Inverting Input |
| +IN A | 3 | I | ChA Non-inverting Input |
| V- | 4 | I | V- Supply Pin |
| +IN B | 5 | I | ChB Non-inverting Input |
| -IN B | 6 | I | ChB Inverting Input |
| OUT B | 7 | I | ChB Output |
| V+ | 8 | I | V+ Supply Pin |
