6.6 Typical Characteristics
TA = 25 °C, V(IN) = 12 V, V(SHDN)= 2 V, R(ILIM) = 120 kΩ, IMON = FLT = OPEN, C(IN) = 0.1 μF, C(OUT) = 1 μF, C(dVdT) = OPEN. (Unless otherwise noted)
Figure 3. Supply Current OFF (IQOFF) vs Supply Voltage (VIN)
| V(OUT) = 24 V | V(IN) = 0 V | VSHDN = 0 V |
Figure 2. Supply Current ON (IQON) vs Supply Voltage (VIN)
| TA = -40 to 125 °C |
| V(OUT) = 0 V | V(IN) = –24 V | VSHDN = 0 V |
Taken on 2-layer PCB with 0.07-mm thick copper and copper area of 10.5 cm2 connected to PowerPAD.

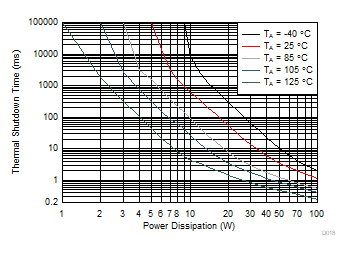

Figure 18. Thermal Shutdown Time vs Power Dissipation
