7 Specifications
7.1 Absolute Maximum Ratings
See (1)(2)| MIN | MAX | UNIT | |
|---|---|---|---|
| VDD to VSS | −0.3 | 18 | V |
| HB to HS | −0.3 | 18 | V |
| LI or HI input | −0.3 | VDD + 0.3 | V |
| LO output | −0.3 | VDD + 0.3 | V |
| HO output | VHS − 0.3 | VHB + 0.3 | V |
| HS to VSS (3) | −5 | 100 | V |
| HB to VSS | 118 | V | |
| Junction temperature | 150 | °C | |
| Storage temperature | −55 | 150 | °C |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) If Military or Aerospace specified devices are required, contact the Texas Instruments Sales Office or Distributors for availability and specifications.
(3) In the application the HS node is clamped by the body diode of the external lower N-MOSFET, therefore the HS node will generally not exceed –1 V. However, in some applications, board resistance and inductance may result in the HS node exceeding this stated voltage transiently. If negative transients occur, the HS voltage must never be more negative than VDD – 15 V. For example if VDD = 10 V, the negative transients at HS must not exceed –5 V.
7.2 ESD Ratings
| VALUE | UNIT | ||||
|---|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V | |
| Machine Model (MM) (2) | Option A | 50 | |||
| Option B and C | 100 | ||||
(1) The Human Body Model (HBM) is a 100-pF capacitor discharged through a 1.5-kΩ resistor into each pin. 2 kV for all pins except Pin 2, Pin 3 and Pin 4 which are rated at 1000 V for HBM.
(2) Machine Model (MM) ratings are: 100 V(MM) for Options B and C; 50 V(MM) for Option A.
7.3 Recommended Operating Conditions
| MIN | NOM | MAX | UNIT | |
|---|---|---|---|---|
| VDD | 9 | 14 | V | |
| HS | –1 | 100 | V | |
| HB | VHS + 8 | VHS + 14 | V | |
| HS slew rate | < 50 | V/ns | ||
| Junction temperature | −40 | 125 | °C |
7.4 Thermal Information
| THERMAL METRIC(1) | LM5100A, LM5100C, LM5101A |
LM5101C | LM5101A | LM5100x, LM5101x |
UNIT | ||
|---|---|---|---|---|---|---|---|
| SO PowerPAD | MSOP-PowerPAD(3) | WSON(3) | WSON(3) | SOIC | |||
| 8 PINS | 8 PINS | 8 PINS | 10 PINS | 8 PINS | |||
| RθJA | Junction-to-ambient thermal resistance(2) | 40 | 80 | 37.8 | 40 | 170 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | — | — | 36.7 | — | — | °C/W |
| RθJB | Junction-to-board thermal resistance | — | — | 14.9 | — | — | °C/W |
| ψJT | Junction-to-top characterization parameter | — | — | 0.3 | — | — | °C/W |
| ψJB | Junction-to-board characterization parameter | — | — | 15.2 | — | — | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | — | — | 4.4 | — | — | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
(2) The RθJA is not a given constant for the package and depends on the printed circuit board design and the operating environment.
(3) 4-layer board with Cu finished thickness 1.5, 1, 1, 1.5 oz. Maximum die size used. 5× body length of Cu trace on PCB top.
50-mm × 50-mm ground and power planes embedded in PCB. See Application Note AN-1187 (SNOA401).
50-mm × 50-mm ground and power planes embedded in PCB. See Application Note AN-1187 (SNOA401).
7.5 Electrical Characteristics
unless otherwise specified, limits are for TJ = 25°C, VDD = VHB = 12 V, VSS = VHS = 0 V, no load on LO or HO (1).| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| SUPPLY CURRENTS | |||||||
| IDD | VDD quiescent current, LM5100A/B/C | LI = HI = 0 V | TJ = 25°C | 0.1 | mA | ||
| TJ = –40°C to 125°C | 0.2 | ||||||
| VDD quiescent current, LM5101A/B/C | LI = HI = 0 V | TJ = 25°C | 0.25 | mA | |||
| TJ = –40°C to 125°C | 0.4 | ||||||
| IDDO | VDD operating current | f = 500 kHz | TJ = 25°C | 2 | mA | ||
| TJ = –40°C to 125°C | 3 | ||||||
| IHB | Total HB quiescent current | LI = HI = 0 V | TJ = 25°C | 0.06 | mA | ||
| TJ = –40°C to 125°C | 0.2 | ||||||
| IHBO | Total HB operating current | f = 500 kHz | TJ = 25°C | 1.6 | mA | ||
| TJ = –40°C to 125°C | 3 | ||||||
| IHBS | HB to VSS current, quiescent | HS = HB = 100 V | TJ = 25°C | 0.1 | µA | ||
| TJ = –40°C to 125°C | 10 | ||||||
| IHBSO | HB to VSS current, operating | f = 500 kHz | 0.4 | mA | |||
| INPUT PINS | |||||||
| VIL | Input voltage threshold LM5100A/B/C | Rising Edge | TJ = 25°C | 5.4 | V | ||
| TJ = –40°C to 125°C | 4.5 | 6.3 | |||||
| VIL | Input voltage threshold LM5101A/B/C | Rising Edge | TJ = 25°C | 1.8 | V | ||
| TJ = –40°C to 125°C | 1.3 | 2.3 | |||||
| VIHYS | Input voltage hysteresis LM5100A/B/C | 500 | mV | ||||
| VIHYS | Input voltage hysteresis LM5101A/B/C | 50 | mV | ||||
| RI | Input pulldown resistance | TJ = 25°C | 200 | kΩ | |||
| TJ = –40°C to 125°C | 100 | 400 | |||||
| UNDER VOLTAGE PROTECTION | |||||||
| VDDR | VDD rising threshold | TJ = 25°C | 6.9 | V | |||
| TJ = –40°C to 125°C | 6 | 7.4 | |||||
| VDDH | VDD threshold hysteresis | 0.5 | V | ||||
| VHBR | HB rising threshold | TJ = 25°C | 6.6 | V | |||
| TJ = –40°C to 125°C | 5.7 | 7.1 | |||||
| VHBH | HB threshold hysteresis | 0.4 | V | ||||
| BOOT STRAP DIODE | |||||||
| VDL | Low-current forward voltage | IVDD-HB = 100 µA | TJ = 25°C | 0.52 | V | ||
| TJ = –40°C to 125°C | 0.85 | ||||||
| VDH | High-current forward voltage | IVDD-HB = 100 mA | TJ = 25°C | 0.8 | V | ||
| TJ = –40°C to 125°C | 1 | ||||||
| RD | Dynamic resistance LM5100A/B/C, LM5101A/B/C | IVDD-HB = 100 mA | TJ = 25°C | 1.0 | Ω | ||
| TJ = –40°C to 125°C | 1.65 | ||||||
| LO AND HO GATE DRIVER | |||||||
| VOL | Low-level output voltage LM5100A/LM5101A | IHO = ILO = 100 mA | TJ = 25°C | 0.12 | V | ||
| TJ = –40°C to 125°C | 0.25 | ||||||
| Low-level output voltage LM5100B/LM5101B | TJ = 25°C | 0.16 | V | ||||
| TJ = –40°C to 125°C | 0.4 | ||||||
| Low-level output voltage LM5100C/LM5101C | TJ = 25°C | 0.28 | V | ||||
| TJ = –40°C to 125°C | 0.65 | ||||||
| VOH | High-level output voltage LM5100A/LM5101A | IHO = ILO = 100 mA VOH = VDD– LO or VOH = HB - HO |
TJ = 25°C | 0.24 | V | ||
| TJ = –40°C to 125°C | 0.45 | ||||||
| High-level output voltage LM5100B/LM5101B | TJ = 25°C | 0.28 | V | ||||
| TJ = –40°C to 125°C | 0.60 | ||||||
| High-level output voltage LM5100C/LM5101C | TJ = 25°C | 0.6 | V | ||||
| TJ = –40°C to 125°C | 1.10 | ||||||
| IOHL | Peak pullup current LM5100A/LM5101A | HO, LO = 0 V | TJ = 25°C | 3 | A | ||
| Peak pullup current LM5100B/LM5101B | 2 | A | |||||
| Peak pullup current LM5100C/LM5101C | 1 | A | |||||
| IOLL | Peak pulldown current LM5100A/LM5101A | HO, LO = 12 V | TJ = 25°C | 3 | A | ||
| Peak pulldown current LM5100B/LM5101B | 2 | A | |||||
| Peak pulldown current LM5100C/LM5101C | 1 | A | |||||
(1) Minimum and maximum limits are 100% production tested at 25°C. Limits over the operating temperature range are specified through correlation using Statistical Quality Control (SQC) methods. Limits are used to calculate Average Outgoing Quality Level (AOQL).
7.6 Switching Characteristics
Limits in standard type are for TJ = 25°C only; limits in boldface type apply over the junction temperature (TJ) range of –40°C to +125°C. Minimum and Maximum limits are specified through test, design, or statistical correlation. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for reference purposes only. Unless otherwise specified, VDD = VHB = 12 V, VSS = VHS = 0 V, No Load on LO or HO (1).| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| tLPHL | LO turnoff propagation delay LM5100A/B/C | LI Falling to LO Falling | 20 | 45 | ns | |
| LO turnoff propagation delay LM5101A/B/C | 22 | 56 | ns | |||
| tLPLH | LO turnon propagation delay LM5100A/B/C | LI Rising to LO Rising | 20 | 45 | ns | |
| LO turnon propagation delay LM5101A/B/C | 26 | 56 | ns | |||
| tHPHL | HO turnoff propagation delay LM5100A/B/C | HI Falling to HO Falling | 20 | 45 | ns | |
| HO turnoff propagation delay LM5101A/B/C | 22 | 56 | ns | |||
| tHPLH | LO turnon propagation delay LM5100A/B/C | HI Rising to HO Rising | 20 | 45 | ns | |
| LO turnon propagation delay LM5101A/B/C | 26 | 56 | ns | |||
| tMON | Delay matching: LO on and HO off LM5100A/B/C | 1 | 10 | ns | ||
| Delay matching: LO on and HO off LM5101A/B/C | 4 | 10 | ns | |||
| tMOFF | Delay matching: LO off and HO on LM5100A/B/C | 1 | 10 | ns | ||
| Delay matching: LO on and HO off LM5101A/B/C | 4 | 10 | ns | |||
| tRC, tFC | Either output rise and fall time | CL = 1000 pF | 8 | ns | ||
| tR | Output rise time (3 V to 9 V) LM5100A/LM5101A | CL = 0.1 µF | 430 | ns | ||
| Output rise time (3 V to 9 V) LM5100B/LM5101B | 570 | ns | ||||
| Output rise time (3 V to 9 V) LM5100C/LM5101C | 990 | ns | ||||
| tF | Output fall time (3 V to 9 V) LM5100A/LM5101A | CL = 0.1 µF | 260 | ns | ||
| Output fall time (3 V to 9 V) LM5100B/LM5101B | 430 | ns | ||||
| Output fall time (3 V to 9 V) LM5100C/LM5101C | 715 | ns | ||||
| tPW | Minimum input pulse width that changes the output | 50 | ns | |||
| tBS | Bootstrap diode reverse recovery time | IF = 100 mA, IR = 100 mA |
37 | ns | ||
(1) Minimum and maximum limits are 100% production tested at 25°C. Limits over the operating temperature range are specified through correlation using Statistical Quality Control (SQC) methods. Limits are used to calculate Average Outgoing Quality Level (AOQL).

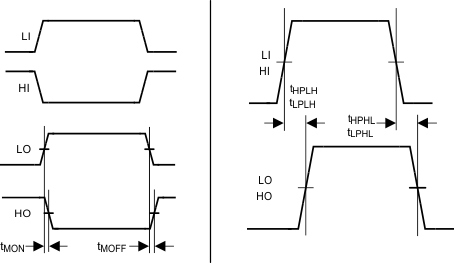

Figure 1. Timing Diagram
7.7 Typical Characteristics
Figure 2. Peak Sourcing Current vs VDD
Figure 4. Sink Current vs Output Voltage
Figure 6. LM5100A/B/C IDD vs Frequency
Figure 8. Operating Current vs Temperature
Figure 10. Quiescent Current vs Supply Voltage
Figure 12. Undervoltage Rising Thresholds vs Temperature
Figure 14. Bootstrap Diode Forward Voltage
Figure 16. LM5101A/B/C Input Threshold vs Temperature
Figure 18. LM5101A/B/C Input Threshold vs VDD
Figure 20. LM5101A/B/C Propagation Delay vs Temperature
Figure 22. LO and HO Gate Drive - Low Level Output Voltage vs Temperature
Figure 24. LO and HO Gate Drive - Output Low Voltage vs VDD
Figure 3. Peak Sinking Current vs VDD
Figure 5. Source Current vs Output Voltage
Figure 7. LM5101A/B/C IDD vs Frequency
Figure 9. IHB vs Frequency
Figure 11. Quiescent Current vs Temperature
Figure 13. Undervoltage Threshold Hysteresis vs Temperature
Figure 15. LM5100A/B/C Input Threshold vs Temperature
Figure 17. LM5100A/B/C Input Threshold vs VDD
Figure 19. LM5100A/B/C Propagation Delay vs Temperature
Figure 21. LO and HO Gate Drive - High Level Output Voltage vs Temperature
Figure 23. LO and HO Gate Drive - Output High Voltage vs VDD
