8.2.2 Current Differencing
Occasionally, the need arises to confirm that the current into a load is identical to the current out of a load, usually as part of diagnostic testing or fault detection. This situation requires precision current differencing, which is the same as summing except that the two amplifiers have the inputs connected opposite of each other.
NOTE: The voltage applied to the reference inputs must not exceed 9 V.

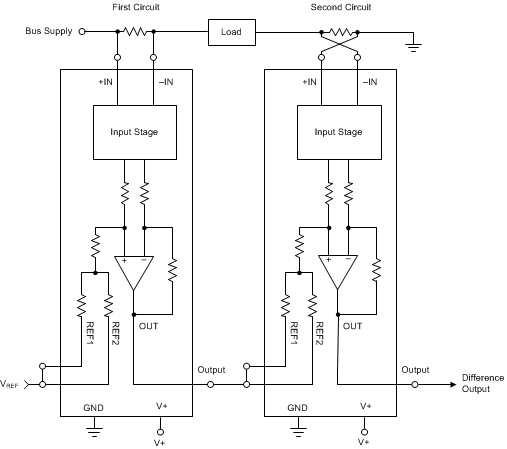

Figure 8-4 Current Differencing Using an INA28x-Q1 Device
